Front Differential Cage Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the lock pin retaining bolt.
  2. Remove the ring gear.
  3. Remove the lock pin. See Fig 2.
  4. Remove the cross pin using a soft metal rod and a hammer. See Fig 3.
  5. Remove pinion gear and thrust washer.
  6. Remove the side gear.
  7. Remove the thrust washer.

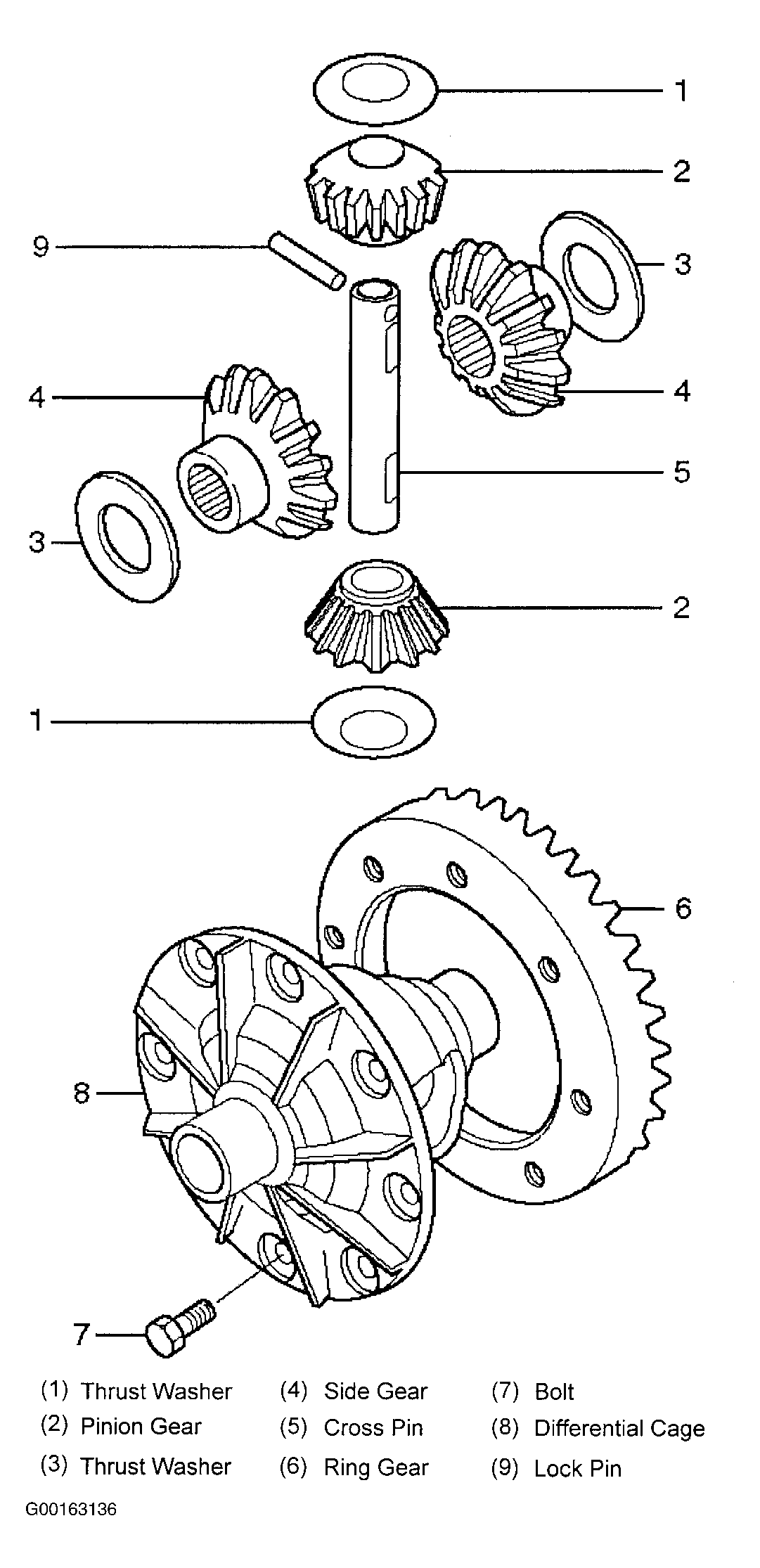

Fig 1: Exploded View Of Differential Cage Assembly
G00163136Courtesy of ISUZU MOTOR CO.

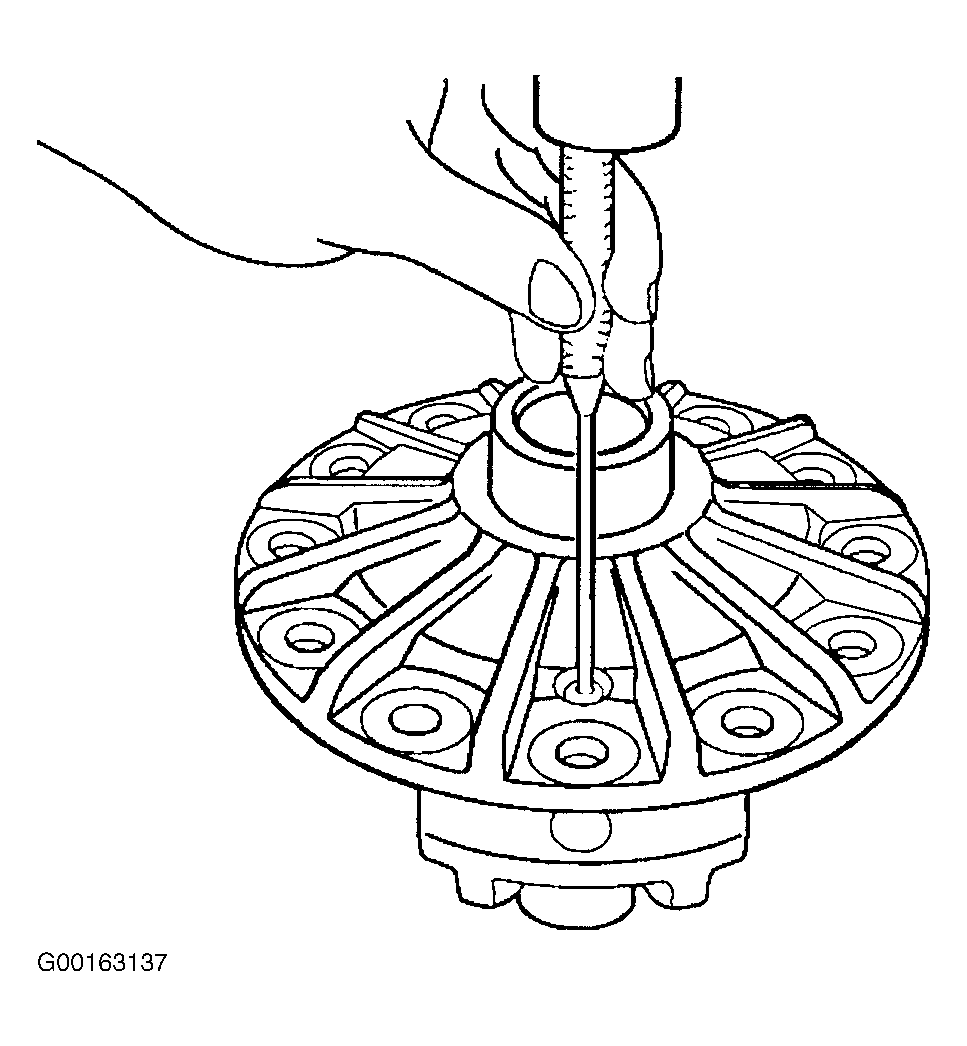

Fig 2: Removing Lock Pin
G00163137Courtesy of ISUZU MOTOR CO.

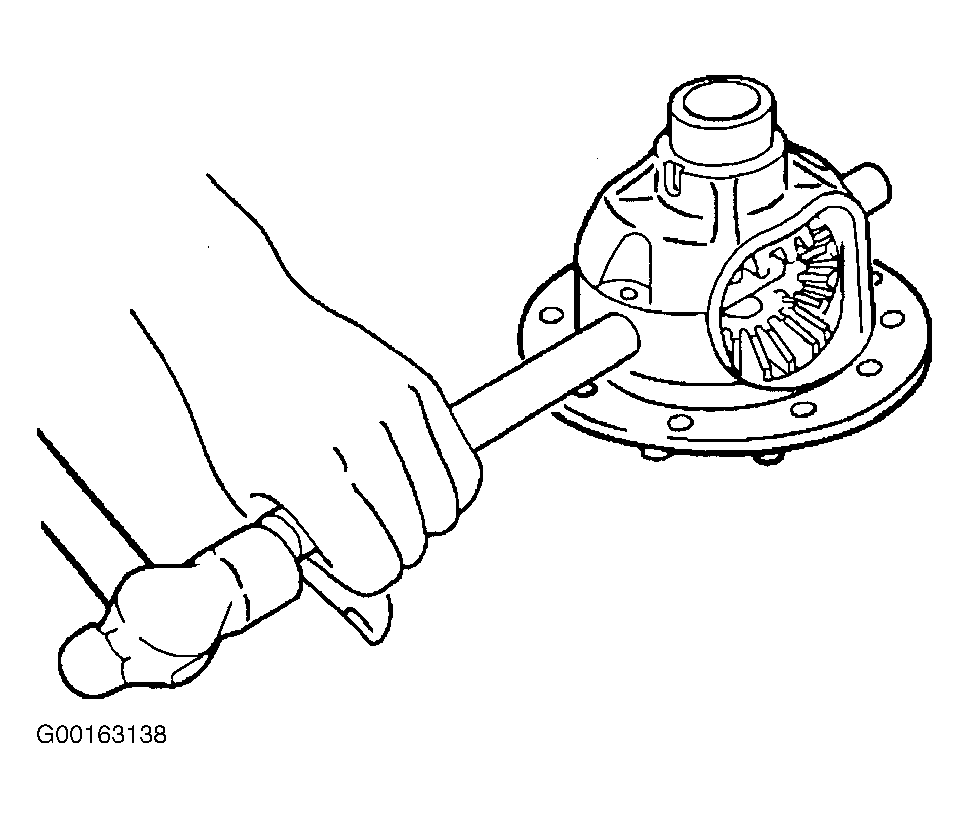

Fig 3: Removing Cross Pin
G00163138Courtesy of ISUZU MOTOR CO.
