Upper Control Arm: Removal

WARNING: This page is about a different car, the 2003 Isuzu Rodeo Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle and support the frame with suitable safety stands.
  2. Remove wheel and tire assembly. Refer to WHEEL AND TIRE SYSTEM .
  3. Remove the brake caliper and disconnect brake pipe. Refer to in Brake section.
  4. Support lower control arm with a jack.
  5. Remove speed sensor cable.
  6. Remove nut and cotter pin then use remover J-36831.
    CAUTION: Be careful not to damage the ball joint boot.

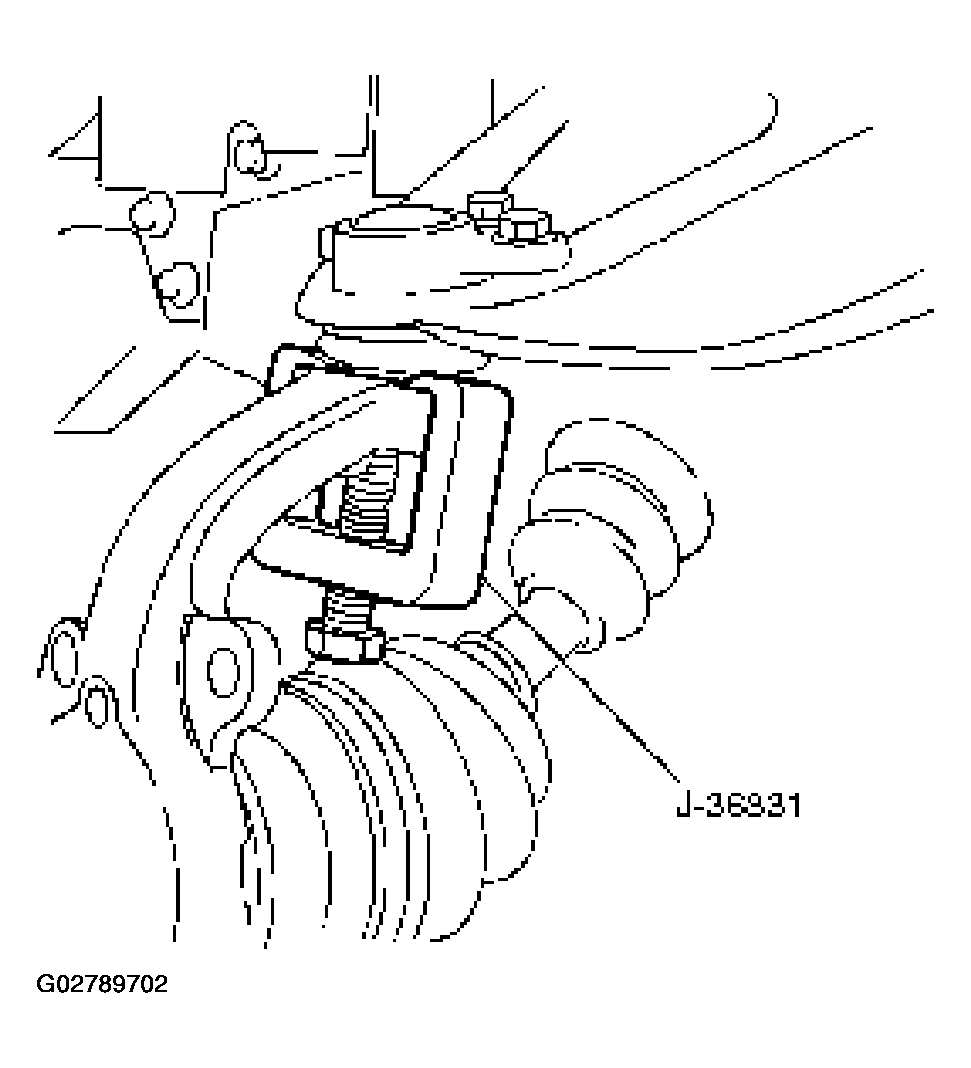

    Fig 1: Removing Nut & Cotter Pin
    G02789702Courtesy of ISUZU MOTOR CO.
  7. Remove upper ball joint.
  8. Remove bolt and plate.
  9. Remove nut assembly.
  10. Remove camber shims and note the positions and number of shims.
  11. Remove caster shims and note the positions and number of shims.
  12. Remove upper control arm assembly.
  13. Remove nut (9).
  14. Remove plate (8).
  15. Remove bushing (7) by using remover J-29755.

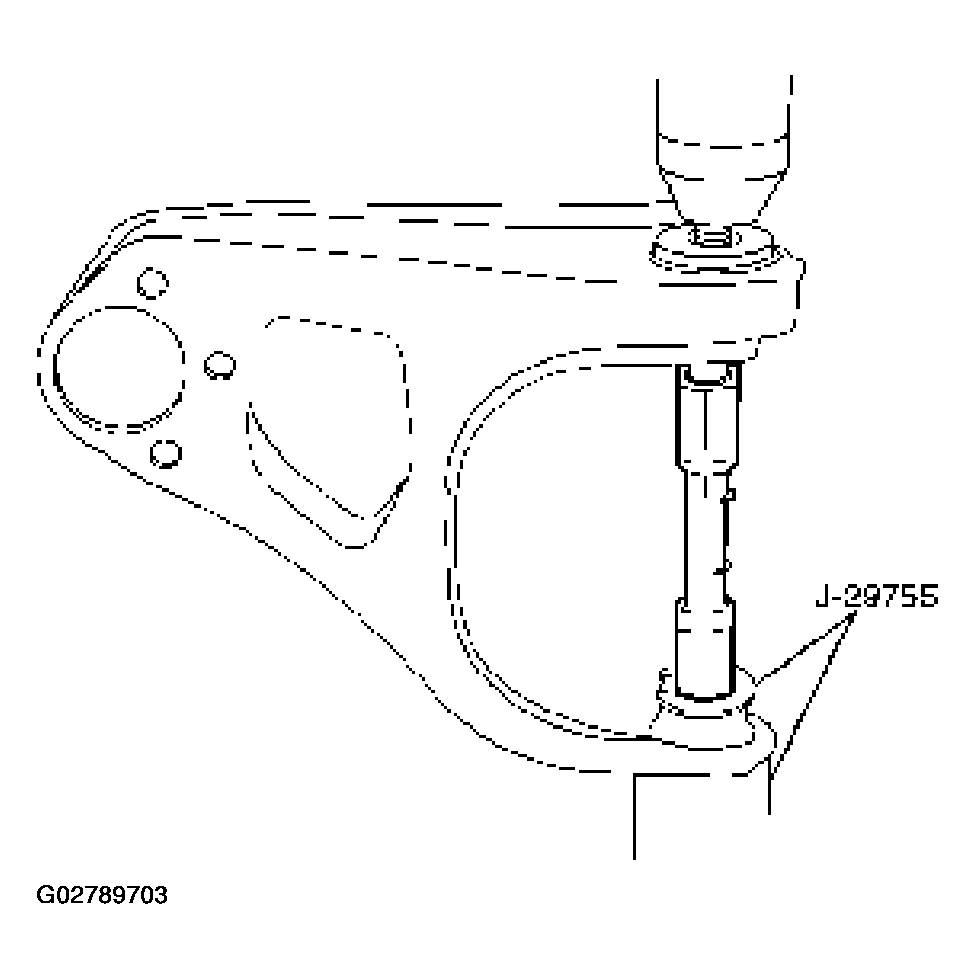

    Fig 2: Removing Bushing Using Remover (1 Of 2)
    G02789703Courtesy of ISUZU MOTOR CO.

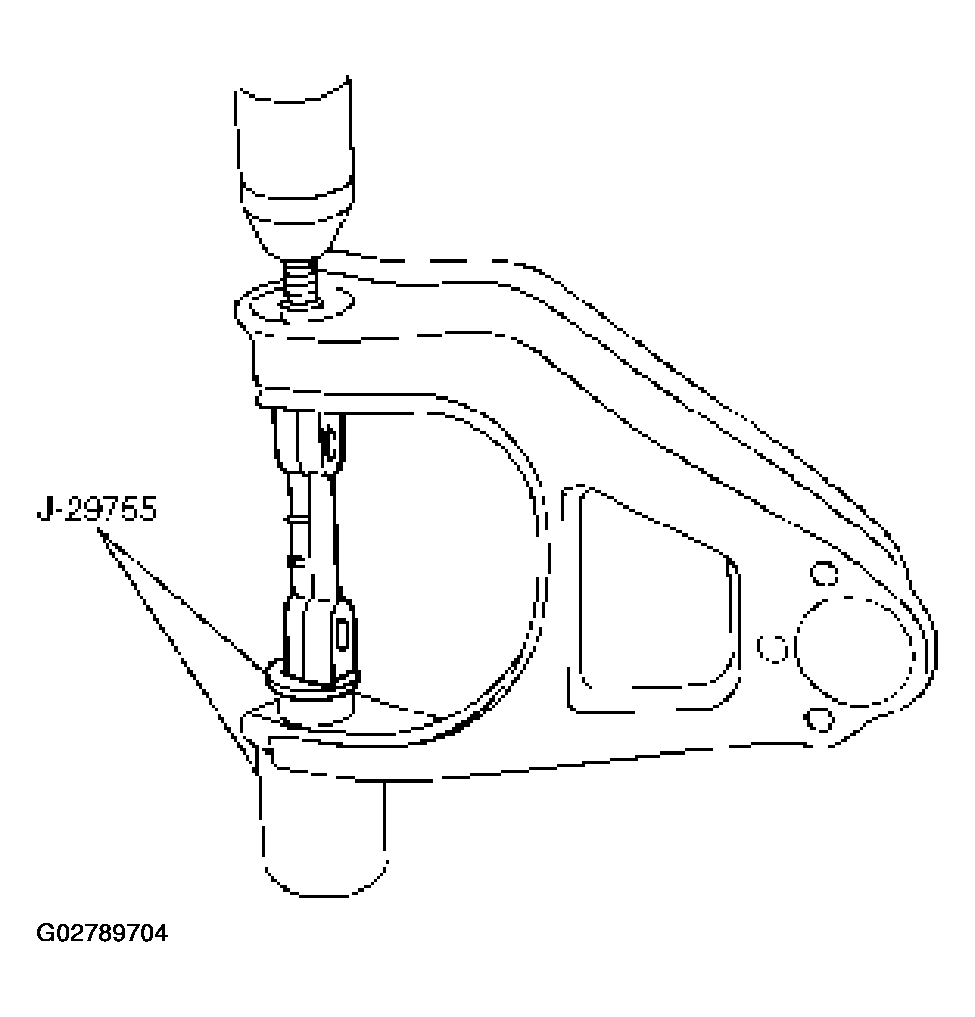

    Fig 3: Removing Bushing Using Remover (2 Of 2)
    G02789704Courtesy of ISUZU MOTOR CO.
  16. Remove fulcrum pin (6).
