Lower Control Arm: Removal

WARNING: This page is about a different car, the 2003 Isuzu Rodeo Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle and support the frame with suitable safety stands.
  2. Remove wheel and tire assembly. Refer to WHEEL AND TIRE SYSTEM .
  3. Remove the tie-rod end from the knuckle. Refer to POWER STEERING UNIT in Power-Assisted Steering System.
  4. Remove the retaining ring from the front axle driving shaft to release the shaft from hub (Except 2WD model). Refer to DISC & DRUM .
  5. Support lower control arm with a jack.
  6. Remove front nut.
  7. Remove rear nut.
  8. Remove torsion bar. Refer to TORSION BAR  in this section.
  9. Remove torsion bar arm bracket.
  10. Disconnect the stabilizer link at the lower control arm.
  11. Remove the shock absorber lower end from the lower control arm.
  12. Remove the lower ball joint from the lower control arm.
  13. Remove front bolt.
  14. Remove rear bolt.
  15. Remove lower control arm.
  16. Remove torsion bar arm bolt.
  17. Remove lower ball joint bolt.
  18. Remove front bushing by using remover J-36833.

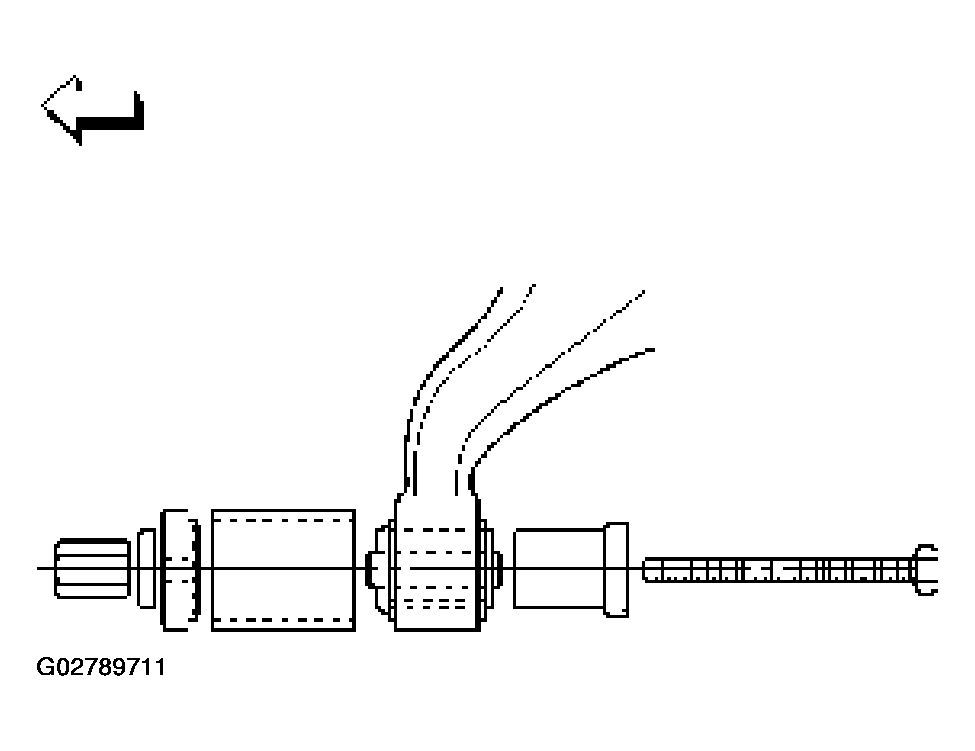

    Fig 1: Removing Front Bushing (1 Of 2)
    G02789711Courtesy of ISUZU MOTOR CO.

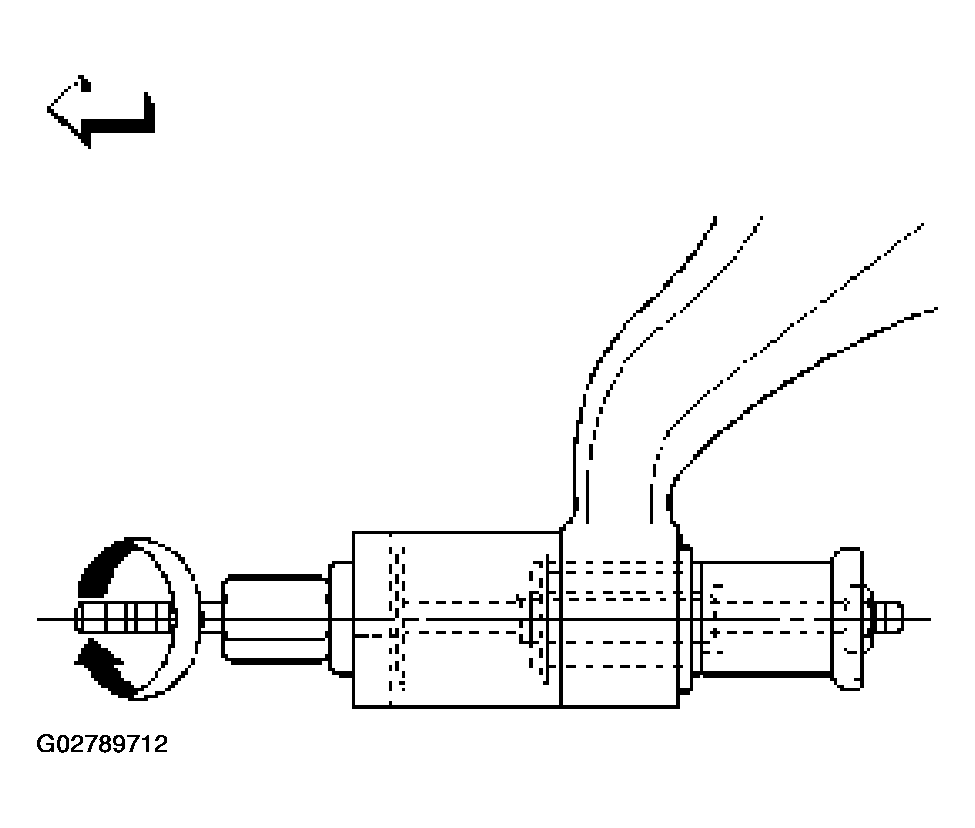

    Fig 2: Removing Front Bushing (2 Of 2)
    G02789712Courtesy of ISUZU MOTOR CO.
  19. Remove rear bushing by using remover J-36834.

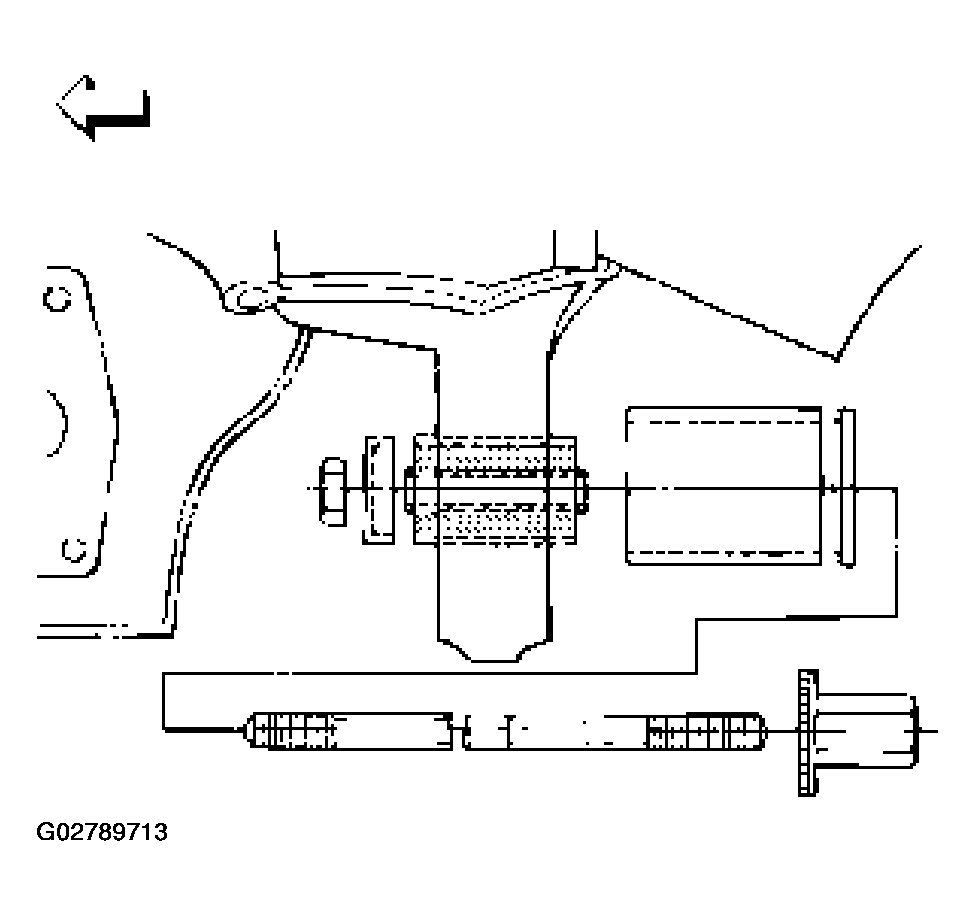

    Fig 3: Removing Rear Bushing (1 Of 2)
    G02789713Courtesy of ISUZU MOTOR CO.

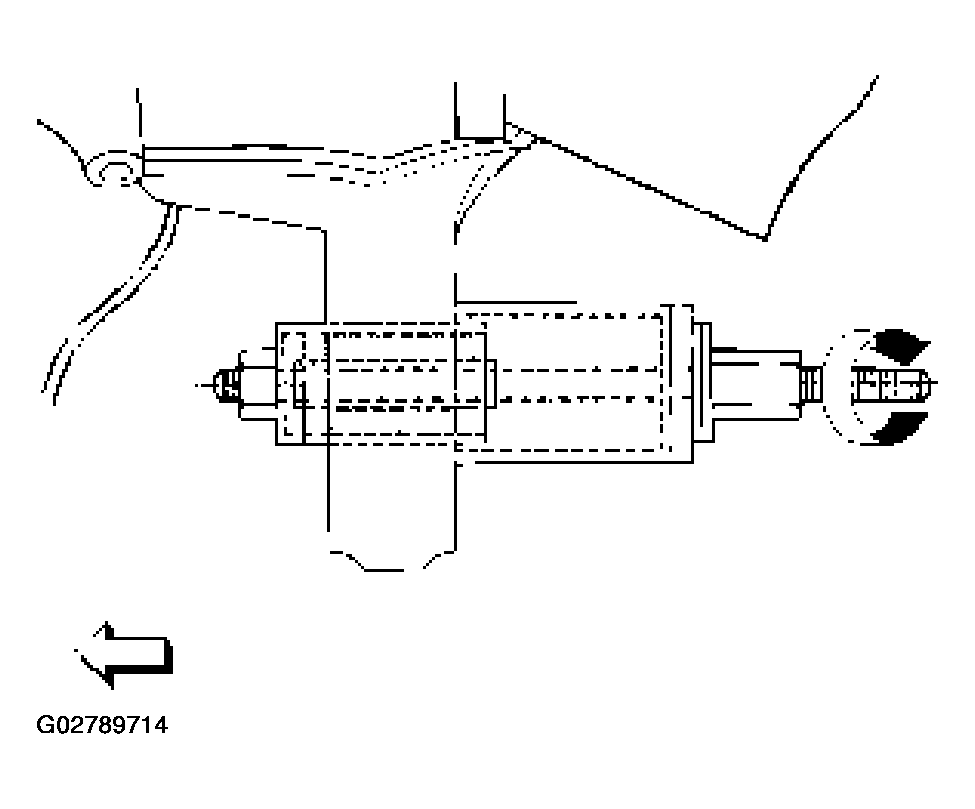

    Fig 4: Removing Rear Bushing (2 Of 2)
    G02789714Courtesy of ISUZU MOTOR CO.
