Removal & Installation (Axiom, Rodeo & Rodeo Sport)

1. Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE  .
2. Remove fuel tank. See FUEL TANK  .
3. Remove fuel feed and fuel return hoses at top of fuel tank. See Fig 1 and Fig 2 .
4. Using Fuel Pump Lock Retainer Tool (J-39765) remove fuel pump lock retainer. See Fig 3 .
5. To install, reverse removal procedure. When installing fuel pump, twist fuel pump assembly clockwise until fuel pump lock retainer is in locked position.
6. Run vehicle and check for fuel leaks.

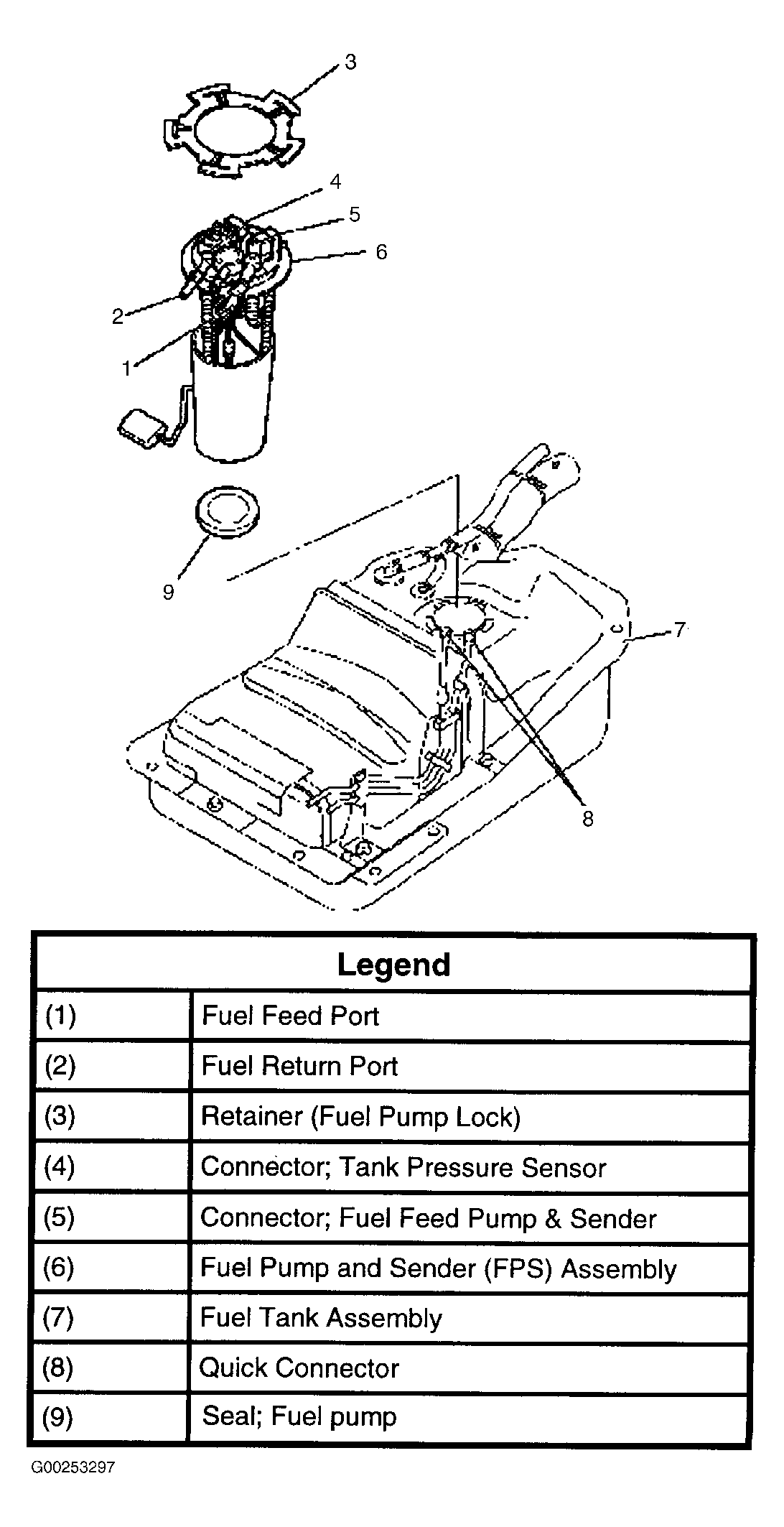

Fig 1: Locating Fuel Pump Components (Axiom & Rodeo)

Courtesy of ISUZU MOTOR CO.

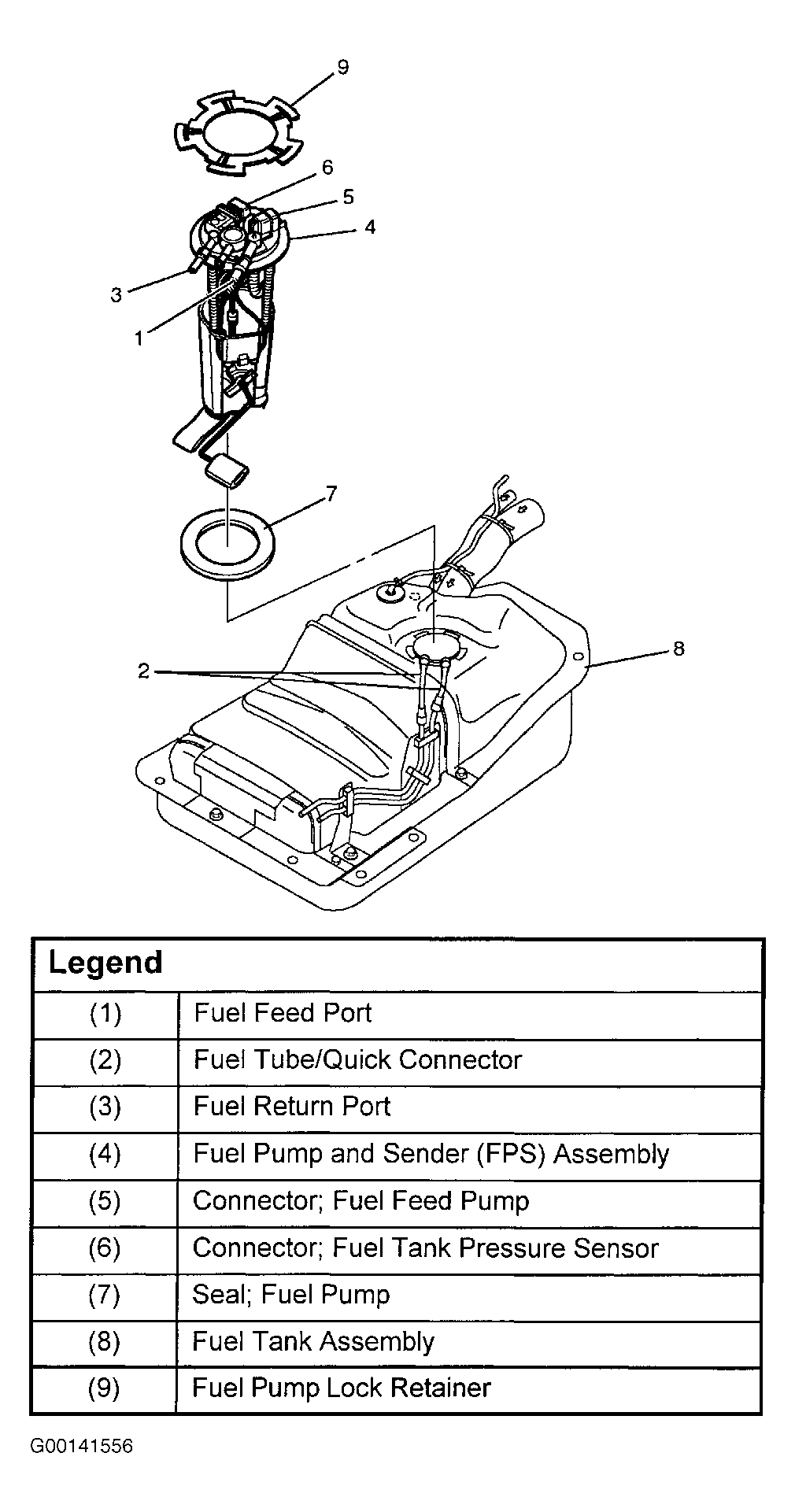

Fig 2: Locating Fuel Pump Components (Rodeo Sport)

Courtesy of ISUZU MOTOR CO.

Fig 3: Removing Fuel Pump Lock Retainer (Axiom, Rodeo & Rodeo Sport)

Courtesy of ISUZU MOTOR CO.
