Front Door Lock Assembly: Removal

Disconnect the battery ground cable.
Remove the power window switch (1)/regulator handle.
- Pry out the power window switch and remove the connectors.

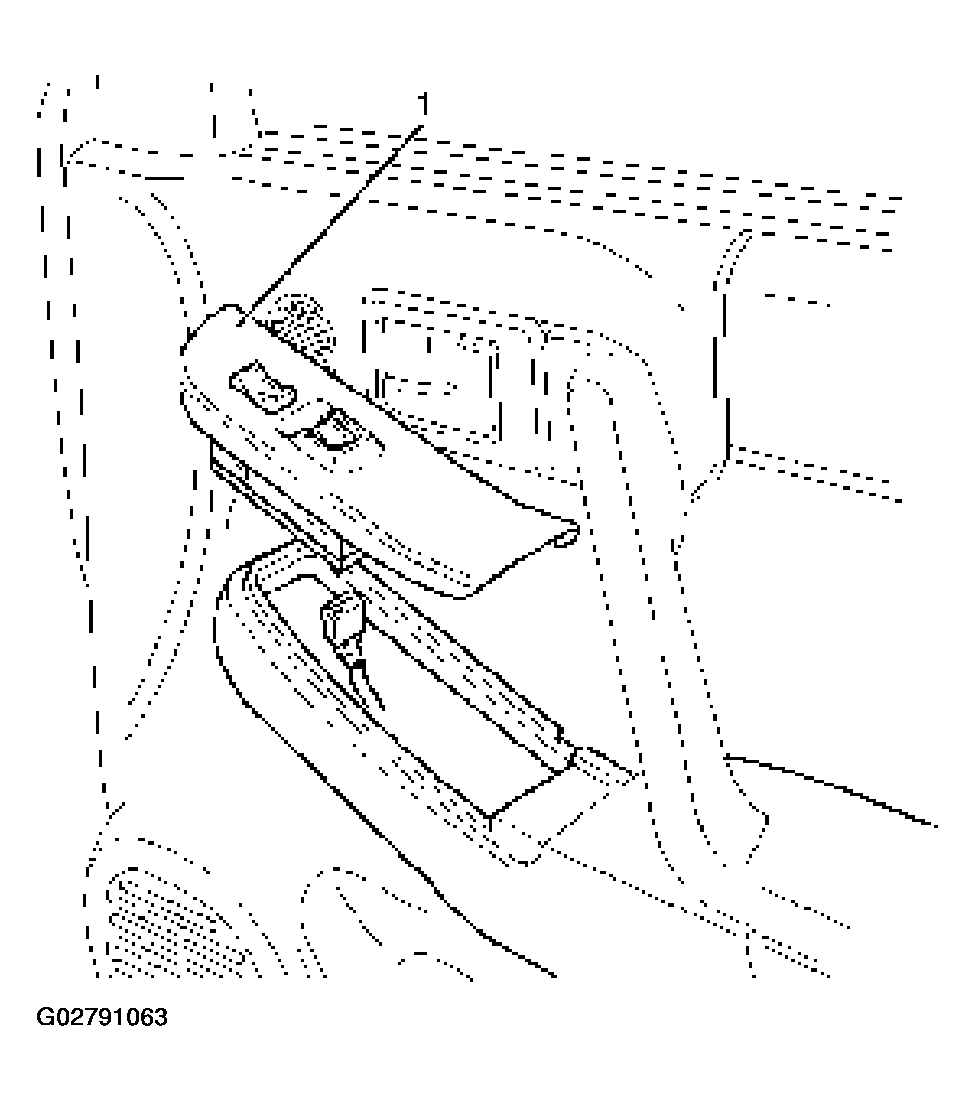

  Fig 1: Removing Power Window Switch & Connectors
  Courtesy of ISUZU MOTOR CO.
- To remove the regulator handle (1), remove the clip (2), at the root of the handle by using wire with hook.

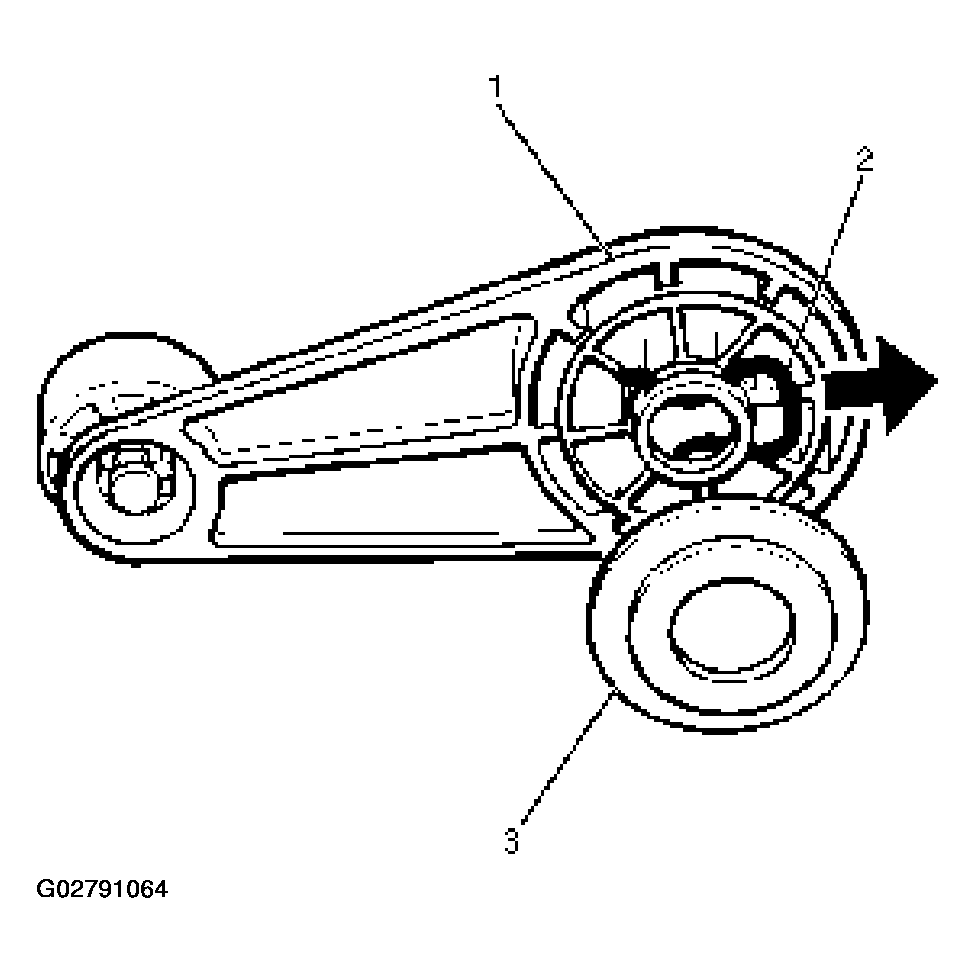

  Fig 2: Removing Regulator Handle Clip
  Courtesy of ISUZU MOTOR CO.
Remove the screw while pulling the inside lever toward you and then remove the inside handle.

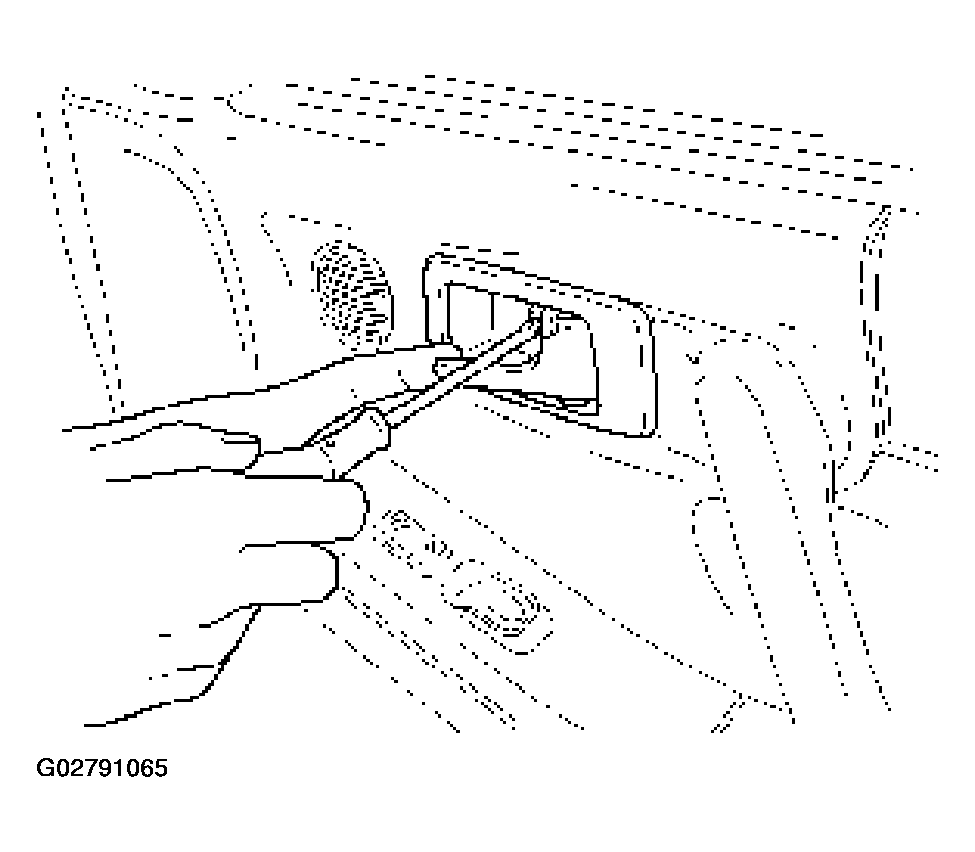

Fig 3: Removing Inside Handle
Courtesy of ISUZU MOTOR CO.
Remove the speaker grille (1).
- Pull out the front side of the grille.
Remove the speaker assembly (2).
- Remove the 4 screws and disconnect the speaker harness connector (3).

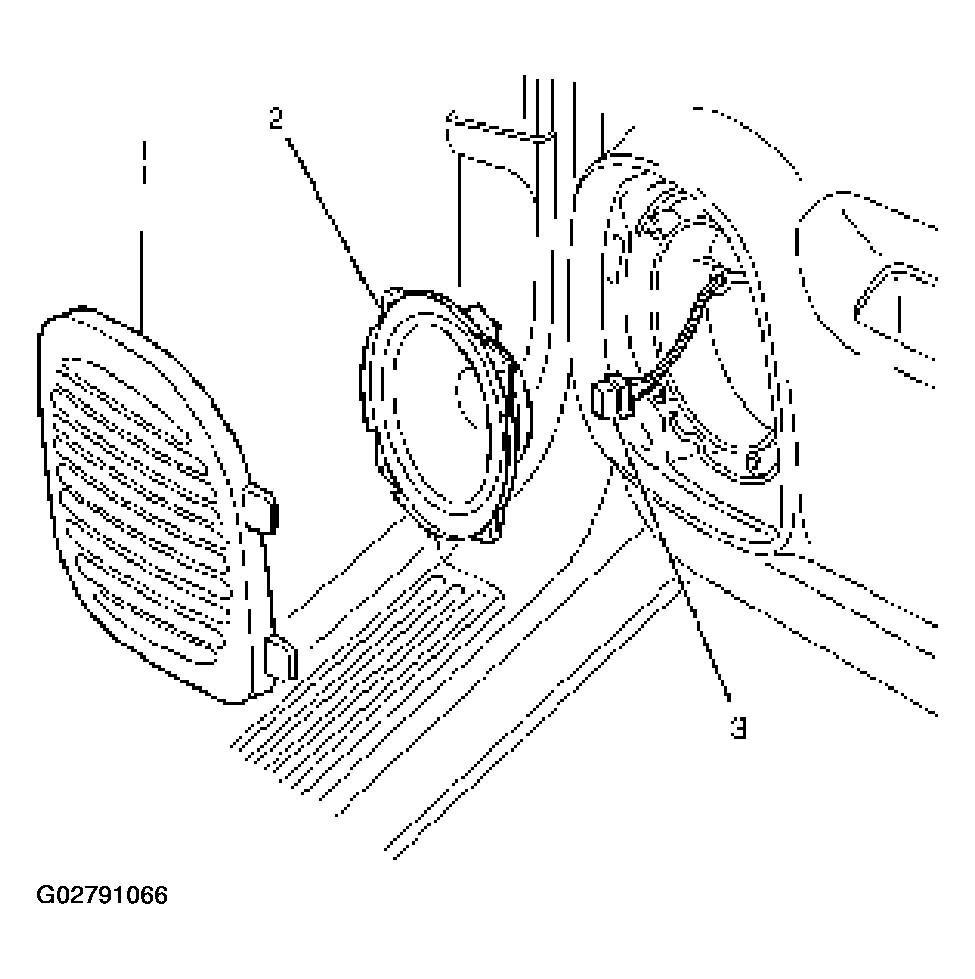

  Fig 4: Removing Speaker Assembly
  Courtesy of ISUZU MOTOR CO.
Remove the grip cover.
Remove the 5 screws (1), (3) and pull out the door trim panel at the 6 clip positions (2).

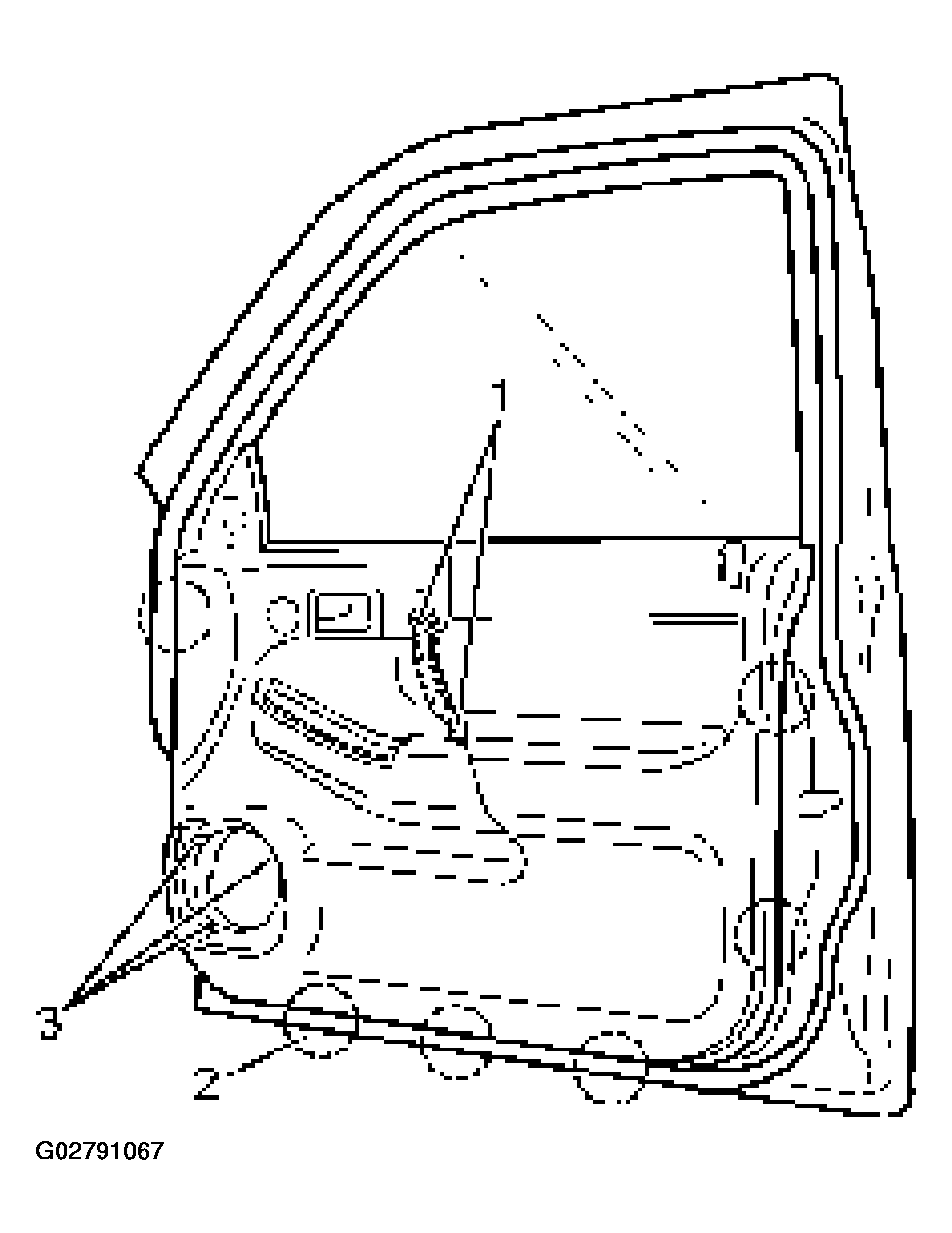

Fig 5: Identifying Door Trim Panel Clip Positions
Courtesy of ISUZU MOTOR CO.
Remove the waterproof sheet.
- Taking notice of the door harness, peel the waterproof sheet off the door panel carefully.
Raise the glass up to the uppermost position, and then remove the rear guide rail.
Disconnect the locking links then remove the door lock assembly fixing screws and door lock assembly.

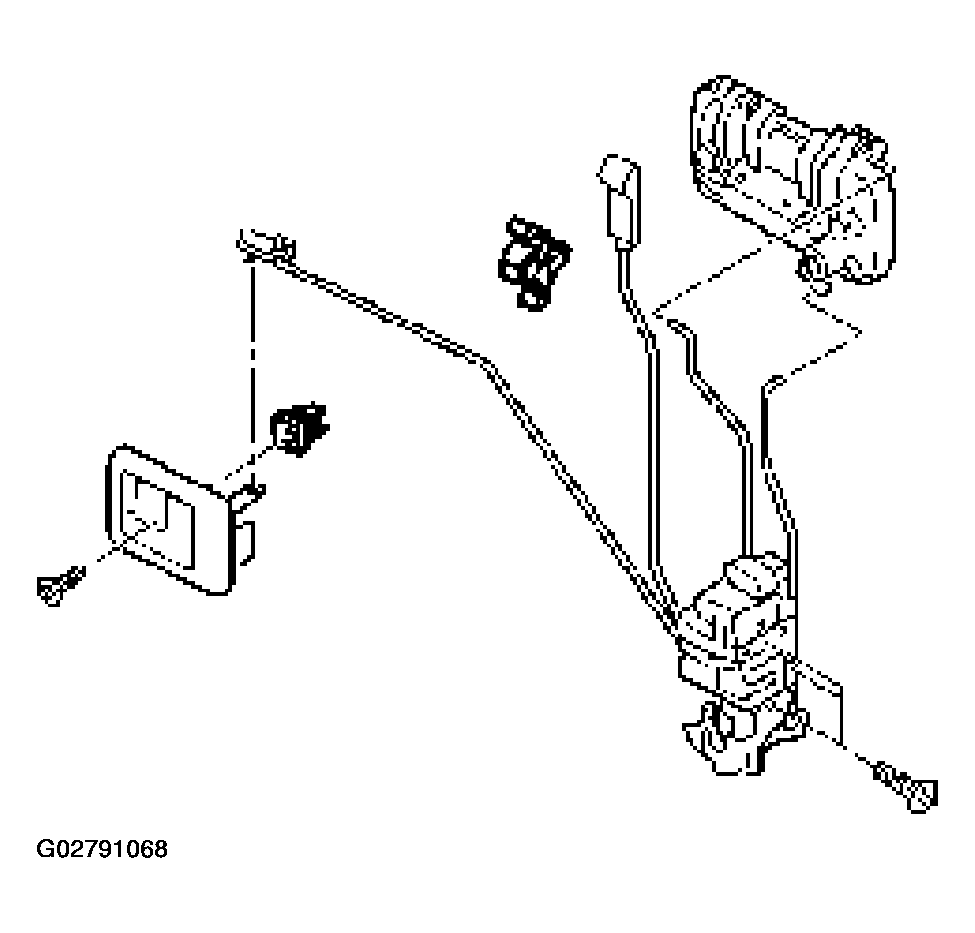

Fig 6: Removing Door Lock Assembly
Courtesy of ISUZU MOTOR CO.
