Transfer Case Assembly: Installation

1. Apply a thin coat of molybdenum disulfide grease to the input shaft spline as shown in the figure.

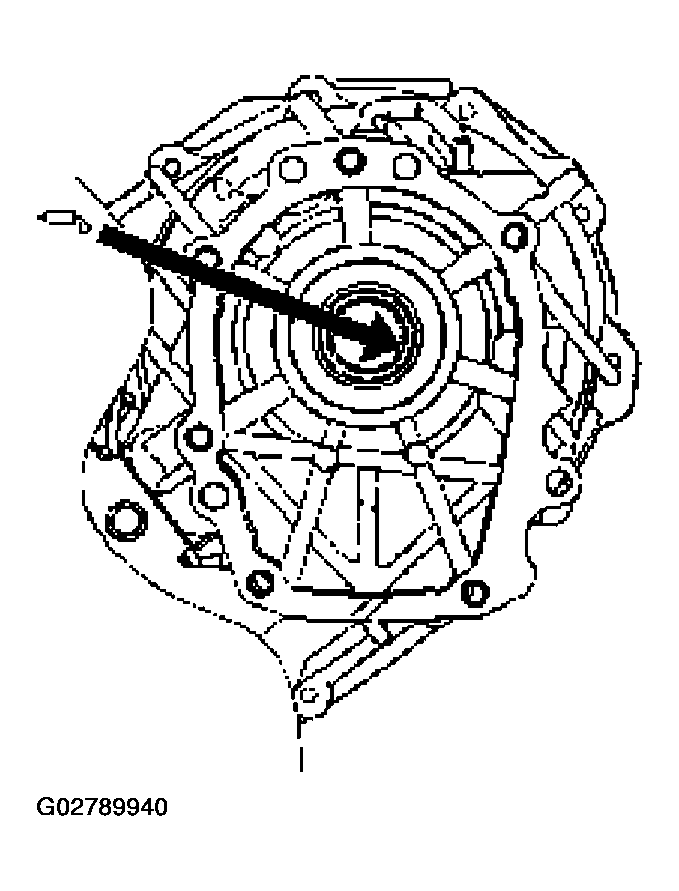

   Fig 1: Applying A Thin Coat Of Molybdenum Disulfide Grease To Input Shaft Spline

   Courtesy of ISUZU MOTOR CO.
2. Install transfer case (10) to the transmission. Tighten transfer bolts as shown in the figure.

   For M/T

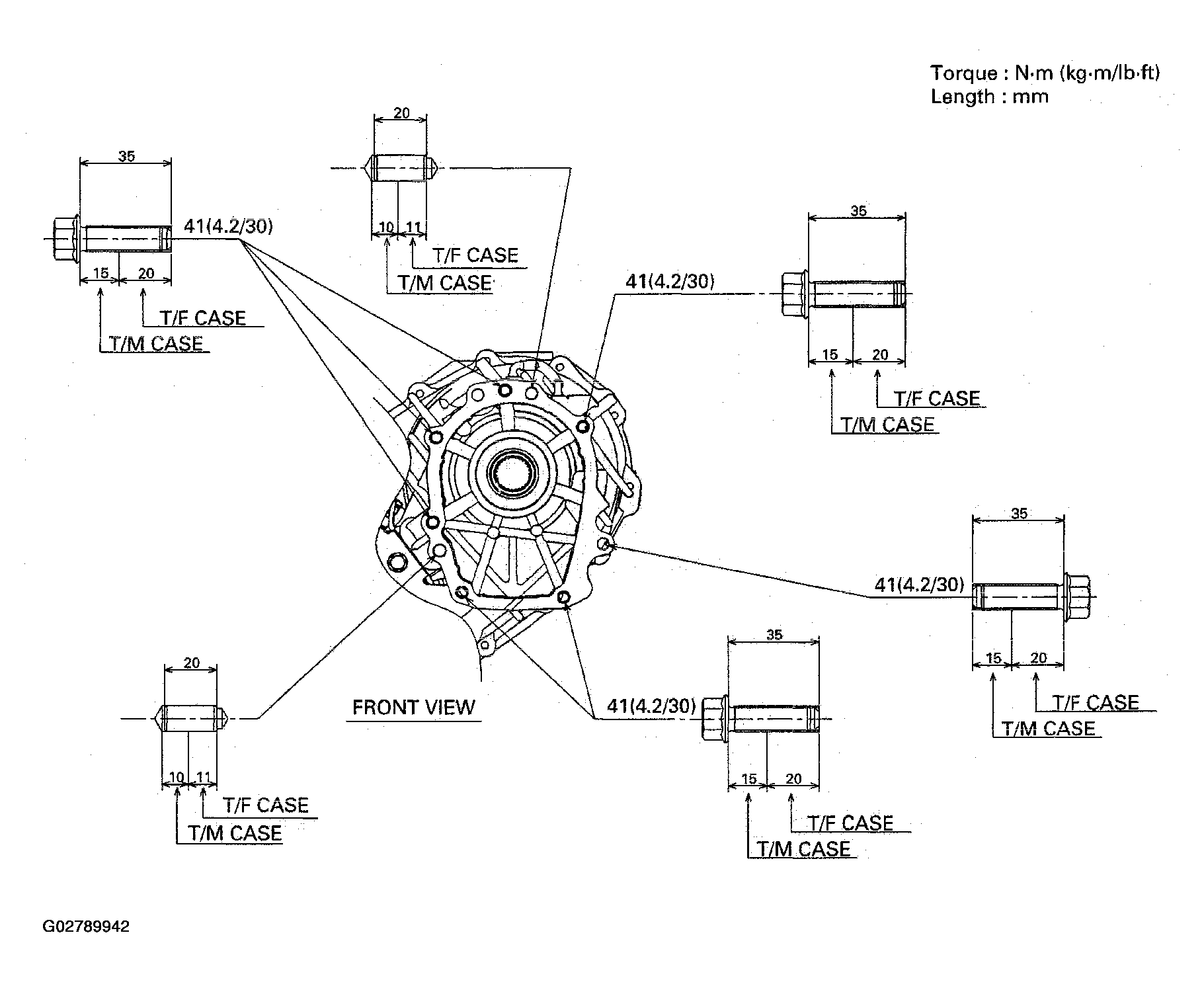

   Fig 2: Tightening Transfer Bolts (M/T)

   Courtesy of ISUZU MOTOR CO.

   For A/T

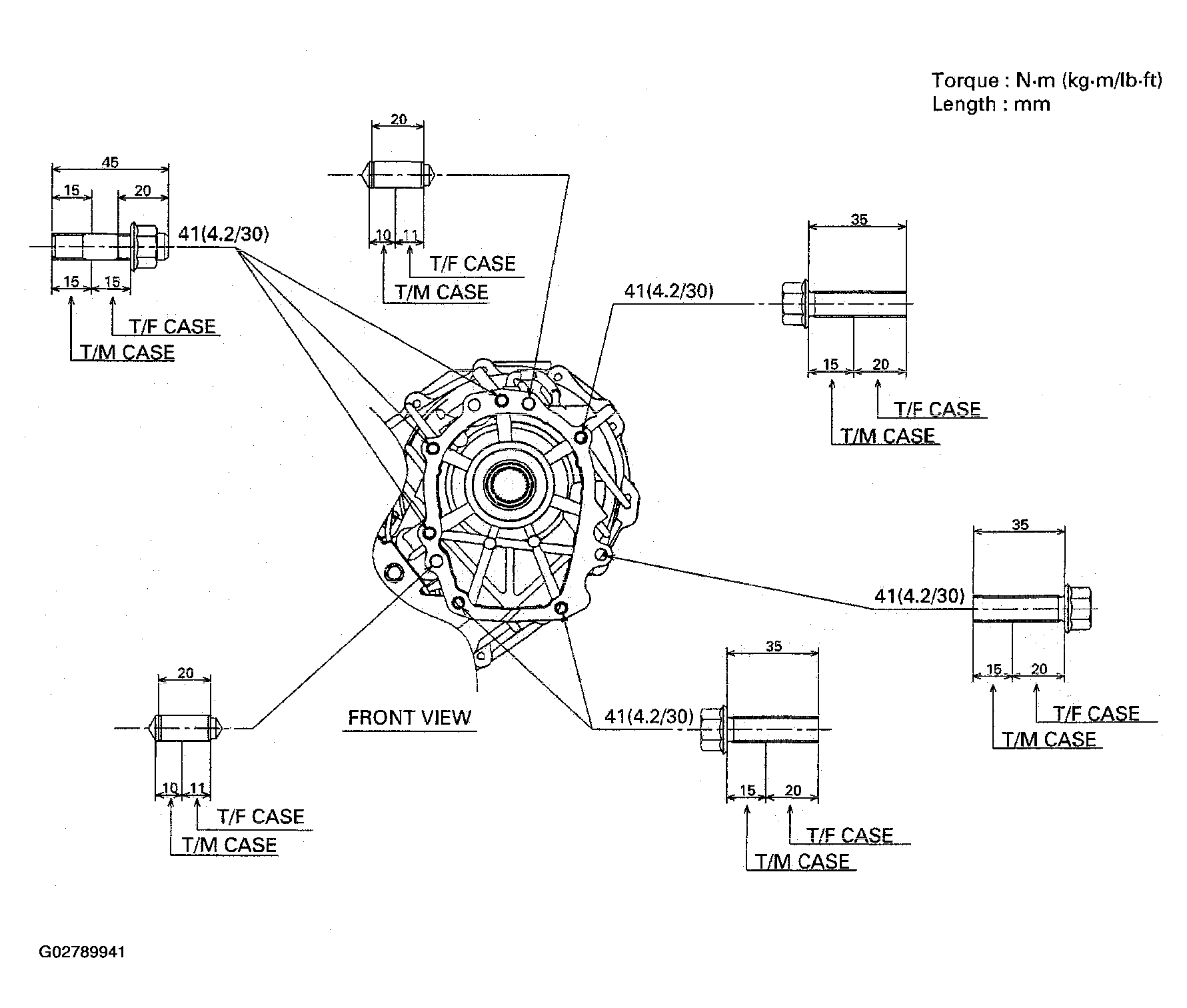

   Fig 3: Tightening Transfer Bolts (A/T)

   Courtesy of ISUZU MOTOR CO.
3. Remove the transmission jack from transmission side.
4. Connect harness connectors and clip.
   1. Connector: transfer switch, 2WD-4WD actuator, speed sensor.
5. Install rear propeller shaft (1) and front propeller shaft (2).

Torque:  63 N.m (46 lb ft)
