Transmission Assembly: Installation

Slowly raise transmission jack until front of the transmission is aligned with rear of the engine. Attach the transmission to the engine.
Tighten engine-transmission bolts as shown in the figure.

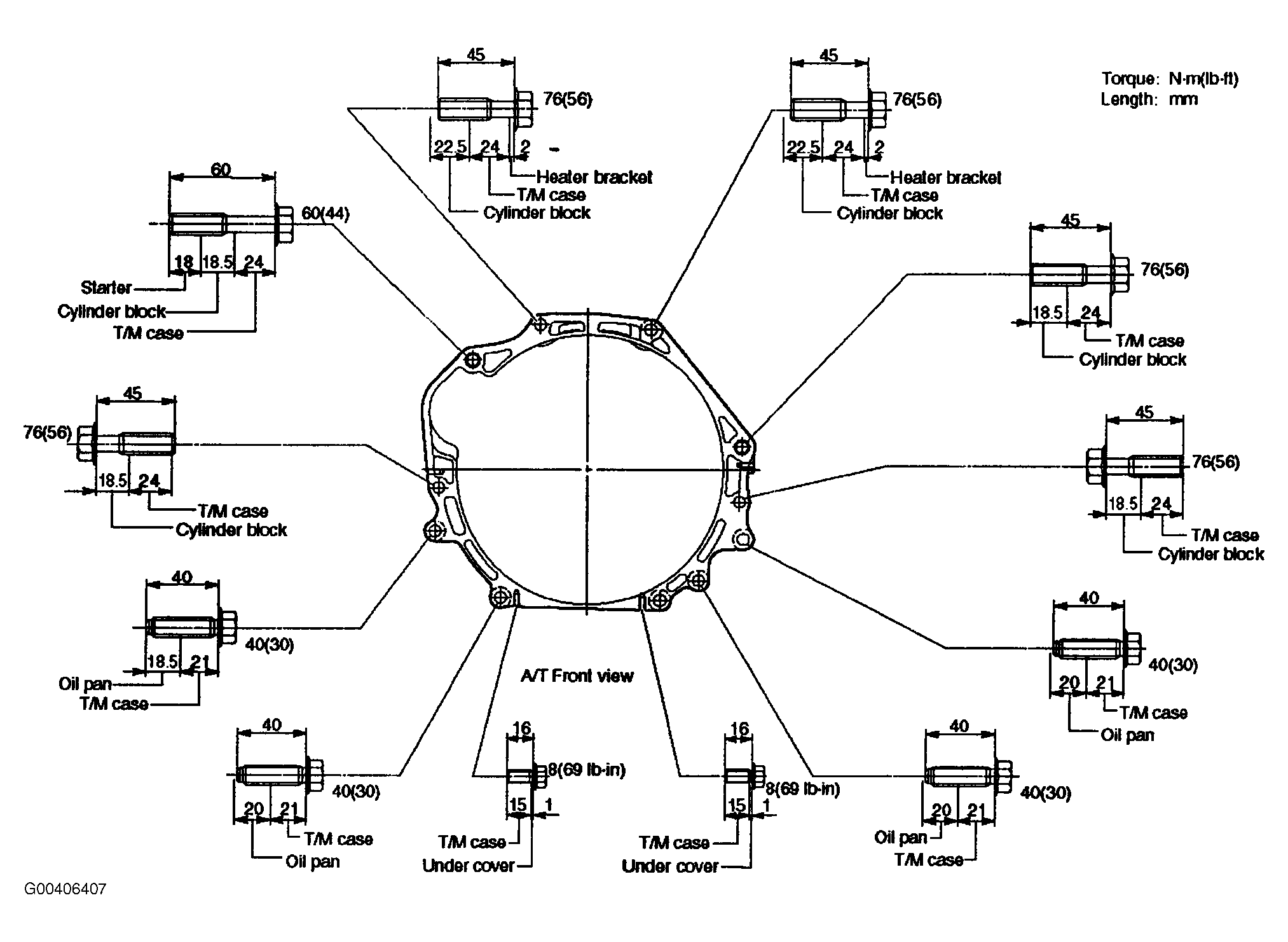

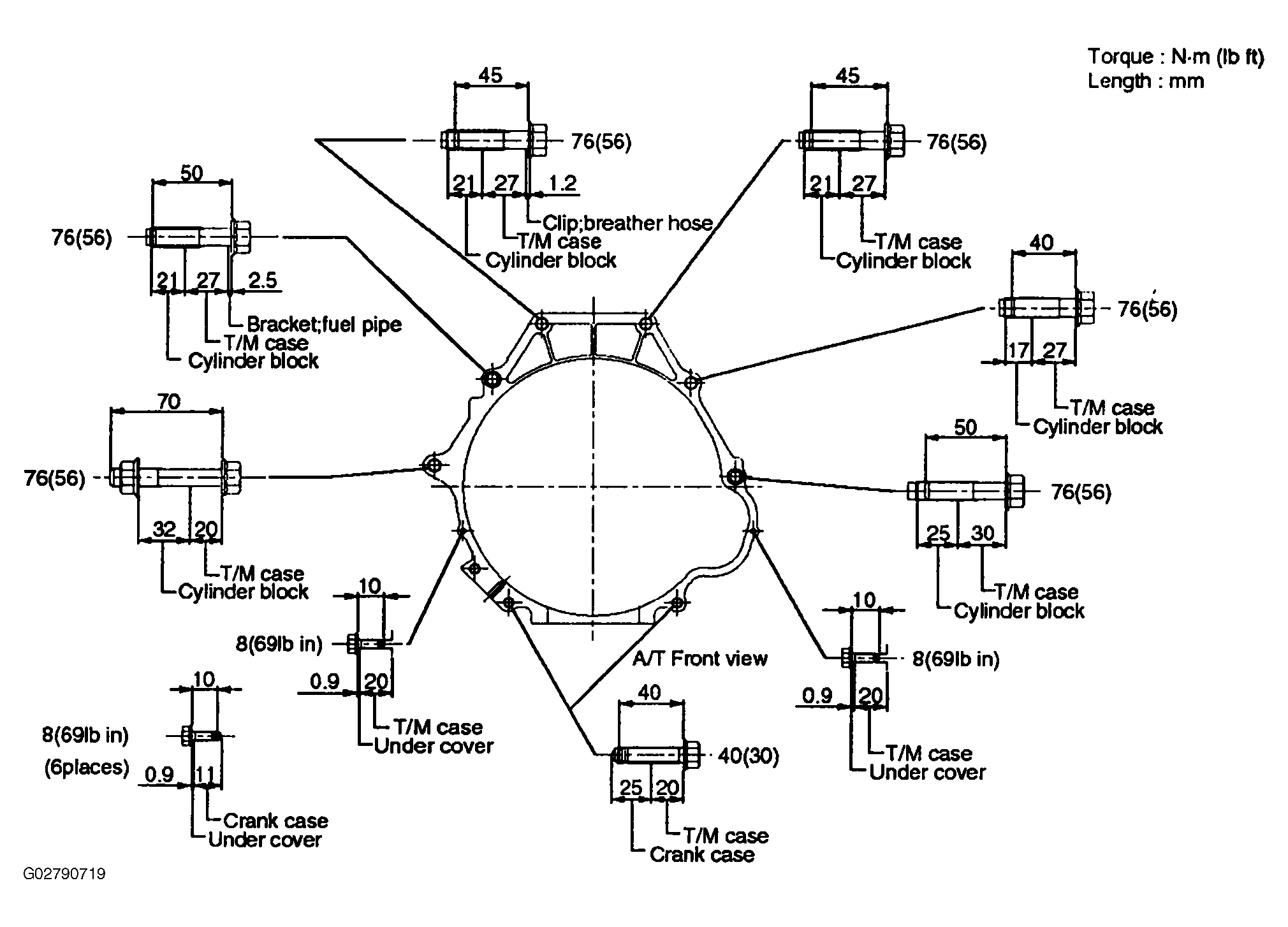

Fig 1: Tightening Engine-Transmission Bolts (V6)
Courtesy of ISUZU MOTOR CO.

Fig 2: Tightening Engine-Transmission Bolts (HEC)
Courtesy of ISUZU MOTOR CO.

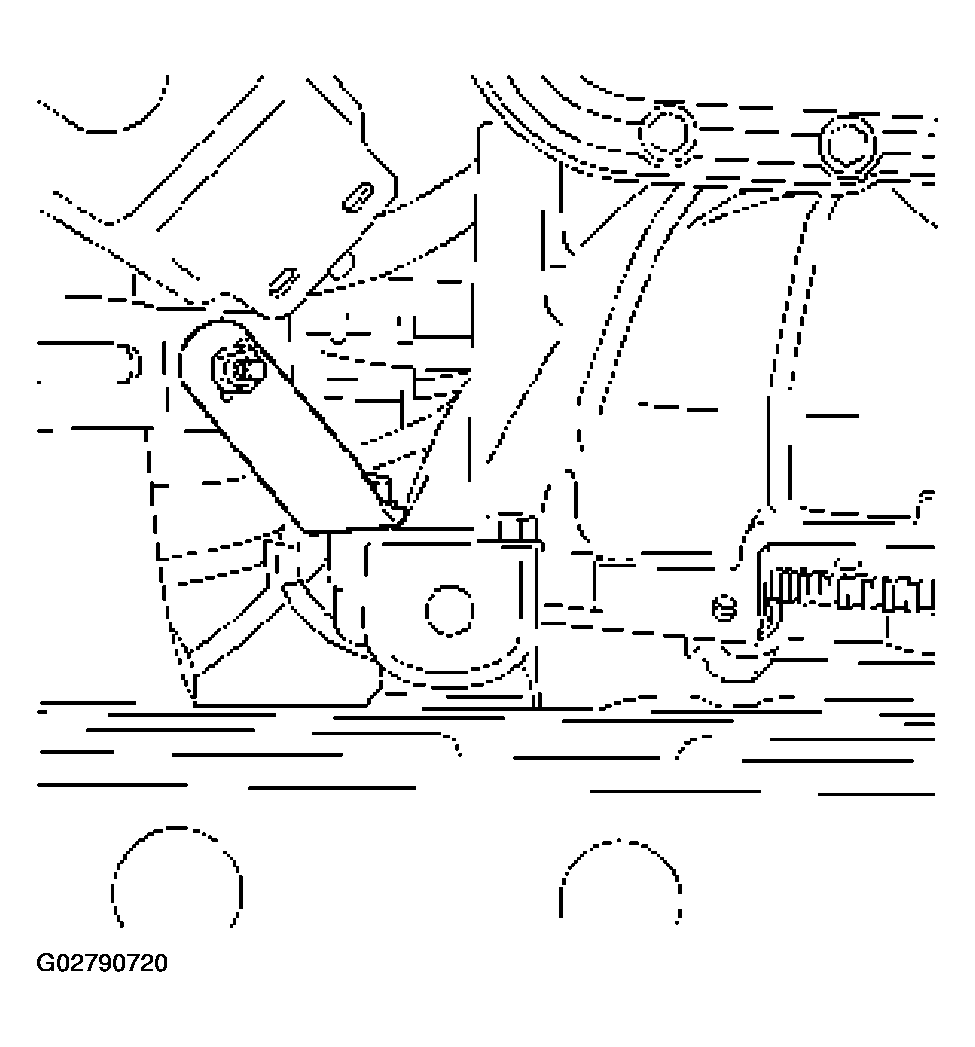

- Install exhaust pipe bracket to converter housing and exhaust pipe (HEC).

  Fig 3: Installing Exhaust Pipe Bracket & Exhaust Pipe (HEC)
  Courtesy of ISUZU MOTOR CO.

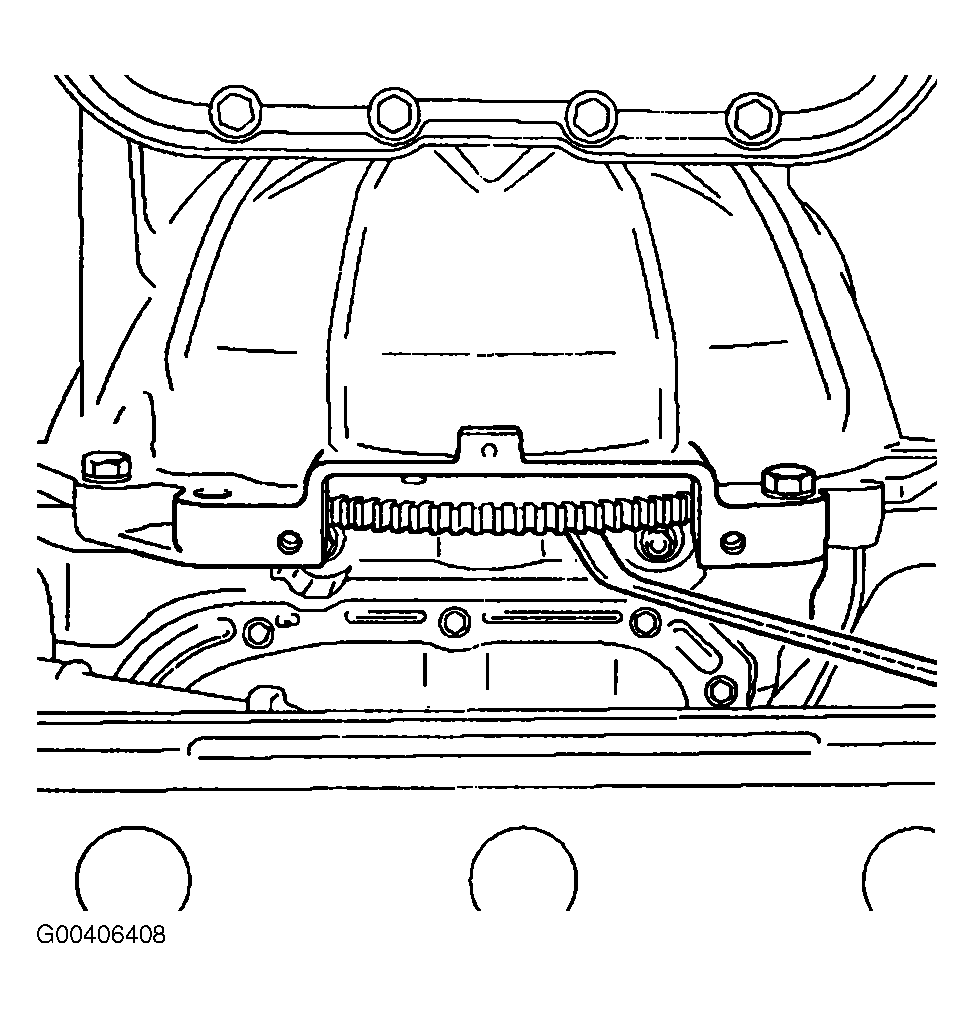

Align the flex plate-torque converter bolt boss with flex plate hole by turning the torque converter. Install flex plate-torque converter bolts (6 pieces) by turning the crankshaft.
1. Torque: 54 N.m (40 lb ft) (V6)
2. Torque: 29 N.m (22 lb ft) (HEC)
NOTE: Do not reuse the flex plate torque converter bolt.

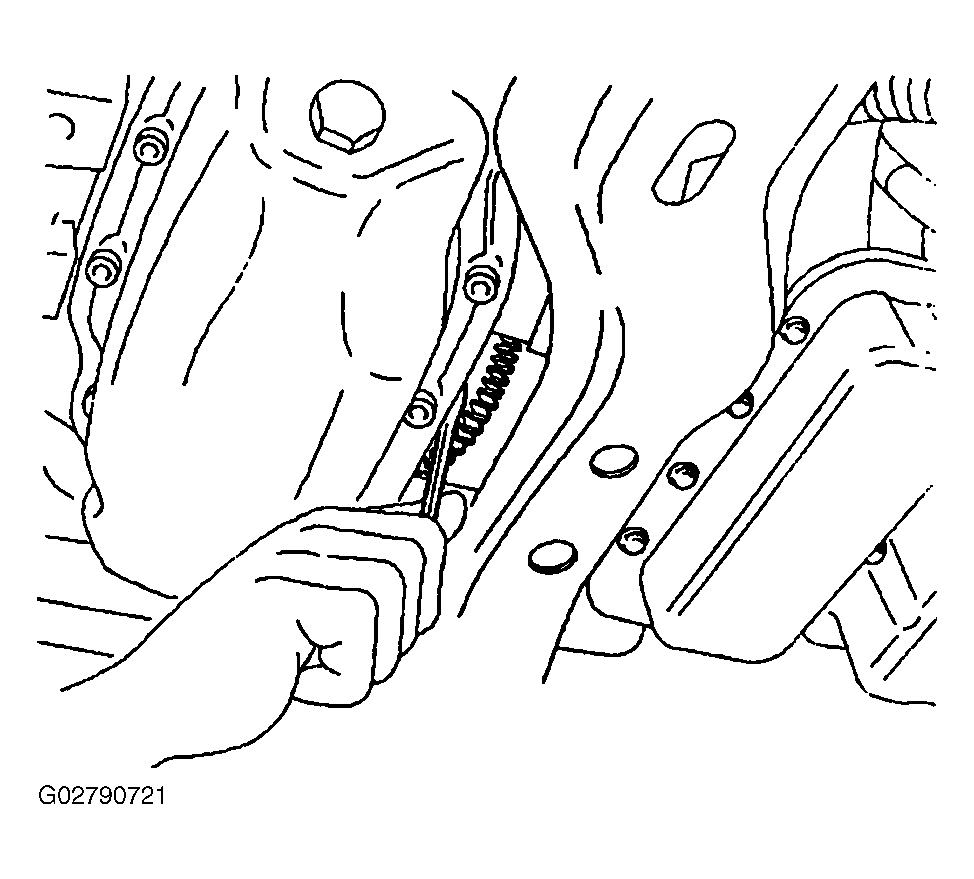

Fig 4: Installing Flex Plate-Torque Converter Bolt (V6)
Courtesy of ISUZU MOTOR CO.

Fig 5: Installing Flex Plate-Torque Converter Bolts (HEC)
Courtesy of ISUZU MOTOR CO.
Install transfer control lever on the transfer case (V6, 4X4).

Fig 6: Installing Transfer Control Lever On Transfer Case (V6, 4X4)
Courtesy of ISUZU MOTOR CO.
Install under covers to the transmission and engine.

Fig 7: Installing Under Covers To Transmission & Engine (HEC)
Courtesy of ISUZU MOTOR CO.
1. Torque: 8 N.m (69 lb ft) (V6 / HEC)
Install starter (V6).
1. Torque: 40 N.m (30 lb ft)
Install select cable by connecting inner cable to select lever and installing outer cable with bracket.

Fig 8: Installing Select Cable & Outer Cable With Bracket
Courtesy of ISUZU MOTOR CO.
Connect transmission Oil cooler pipes to A/T.
1. Torque: 44 N.m (33 lb ft)

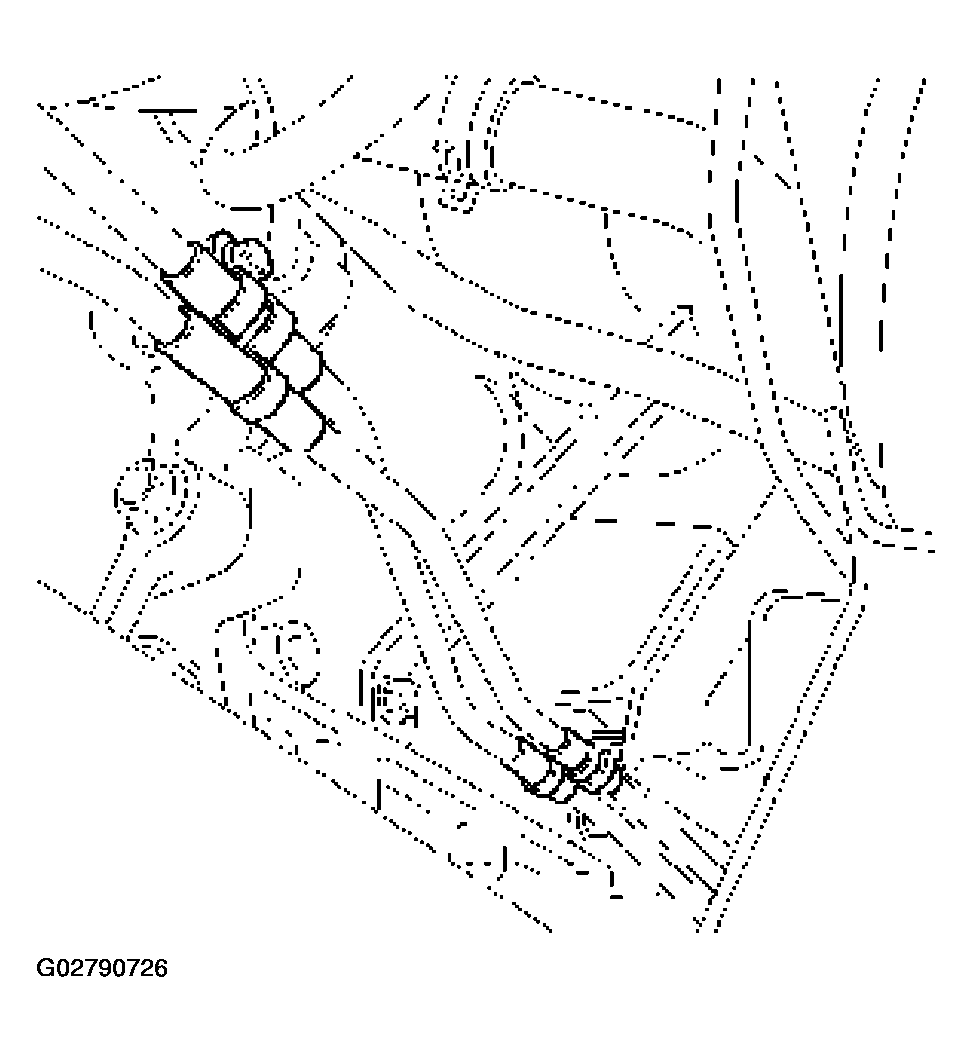

Install Oil cooler pipe clamp and bracket to the converter housing.

Fig 9: Installing Oil Cooler Pipe Clamp & Bracket (V6, 4X4)
Courtesy of ISUZU MOTOR CO.

Fig 10: Installing Oil Cooler Pipe Clamp & Bracket (HEC)
Courtesy of ISUZU MOTOR CO.
Tighten Oil cooler pipe clamp bolt at the engine mount side.
Install third crossmember.
1. Torque: 76 N.m (56 lb ft)

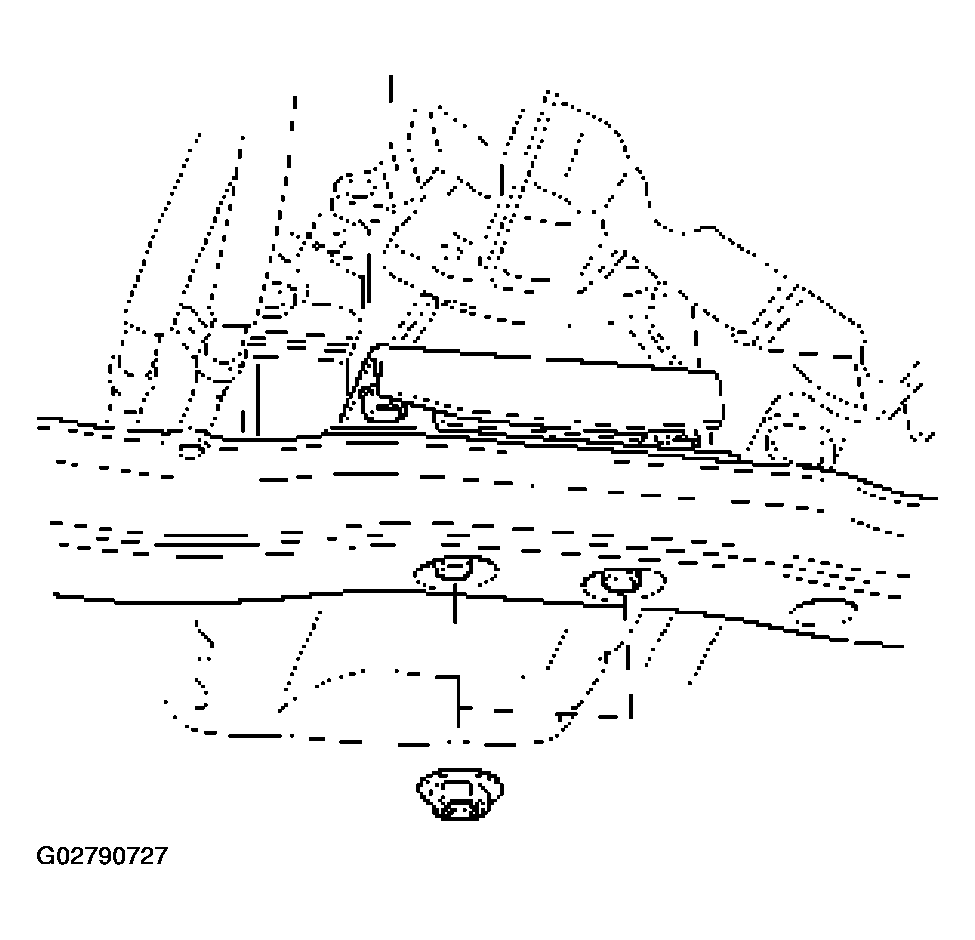

Install rear mount nuts.
1. Torque: 50 N.m (37 lb ft)

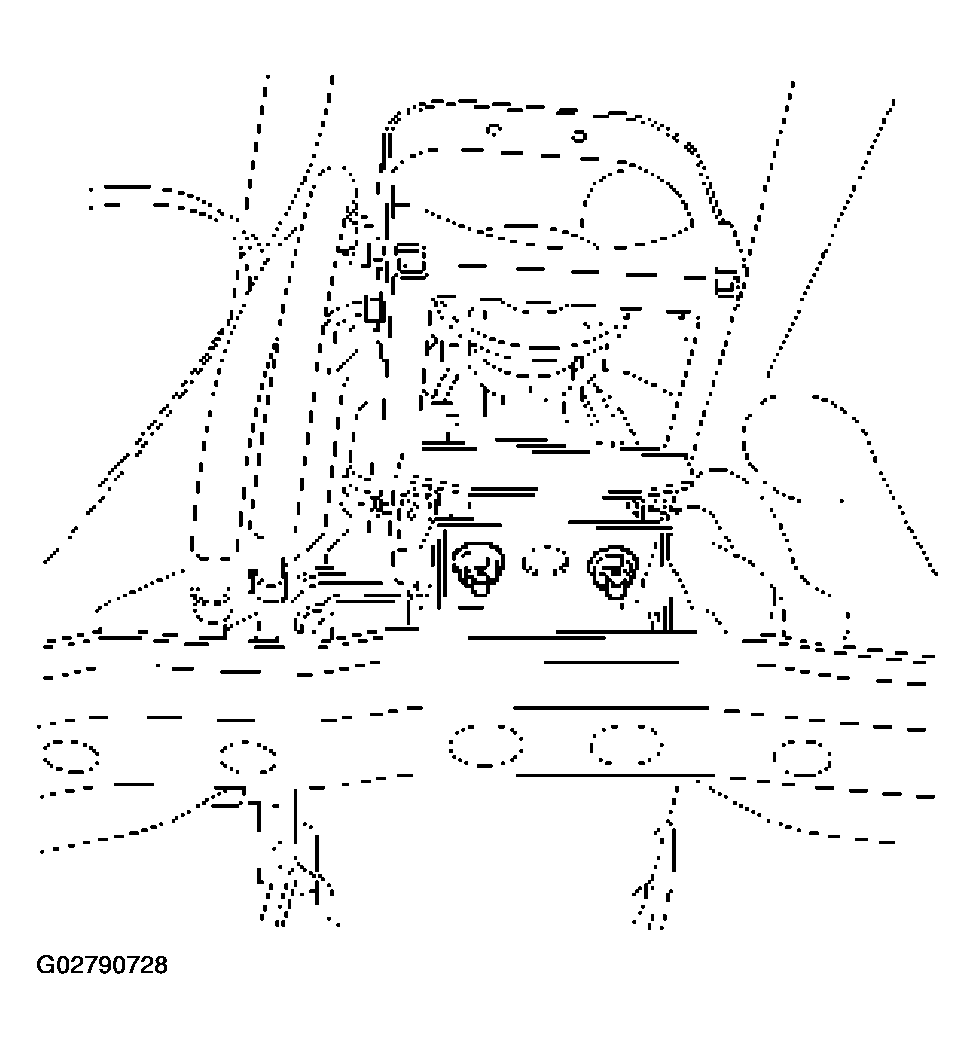

Fig 11: Installing Rear Mount Nuts
Courtesy of ISUZU MOTOR CO.

Fig 12: Installing Rear Mount Nuts (4X2)
Courtesy of ISUZU MOTOR CO.
Install harness heat protector (V6).
1. Torque: 6 N.m (52 lb in)
Fig 13: Installing Harness Heat Protector (V6)
Courtesy of ISUZU MOTOR CO.

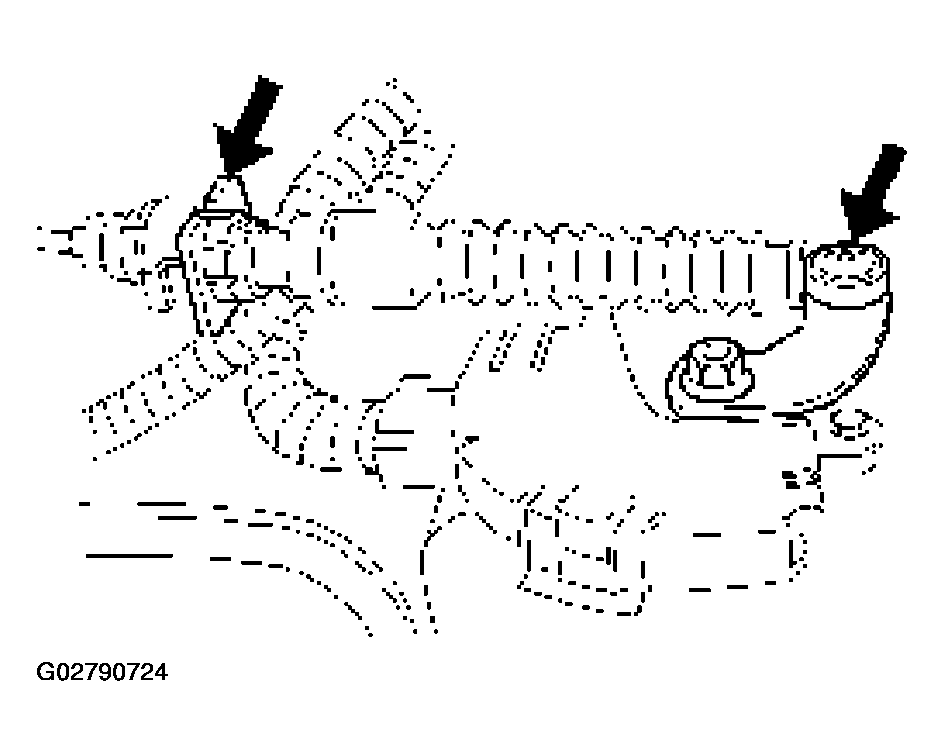

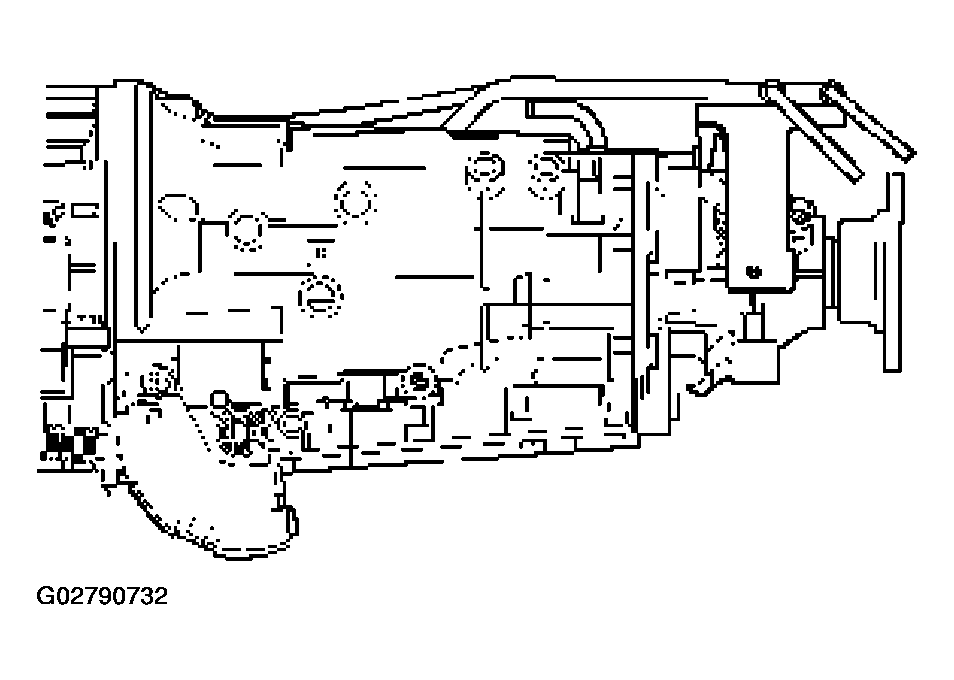

Connect transmission harness connector and clip.
Connector: Adapter case, mode switch, main case, magnetic sensor, transfer switch (4x4), 2-4 actuator (4x4) and car speed sensor.

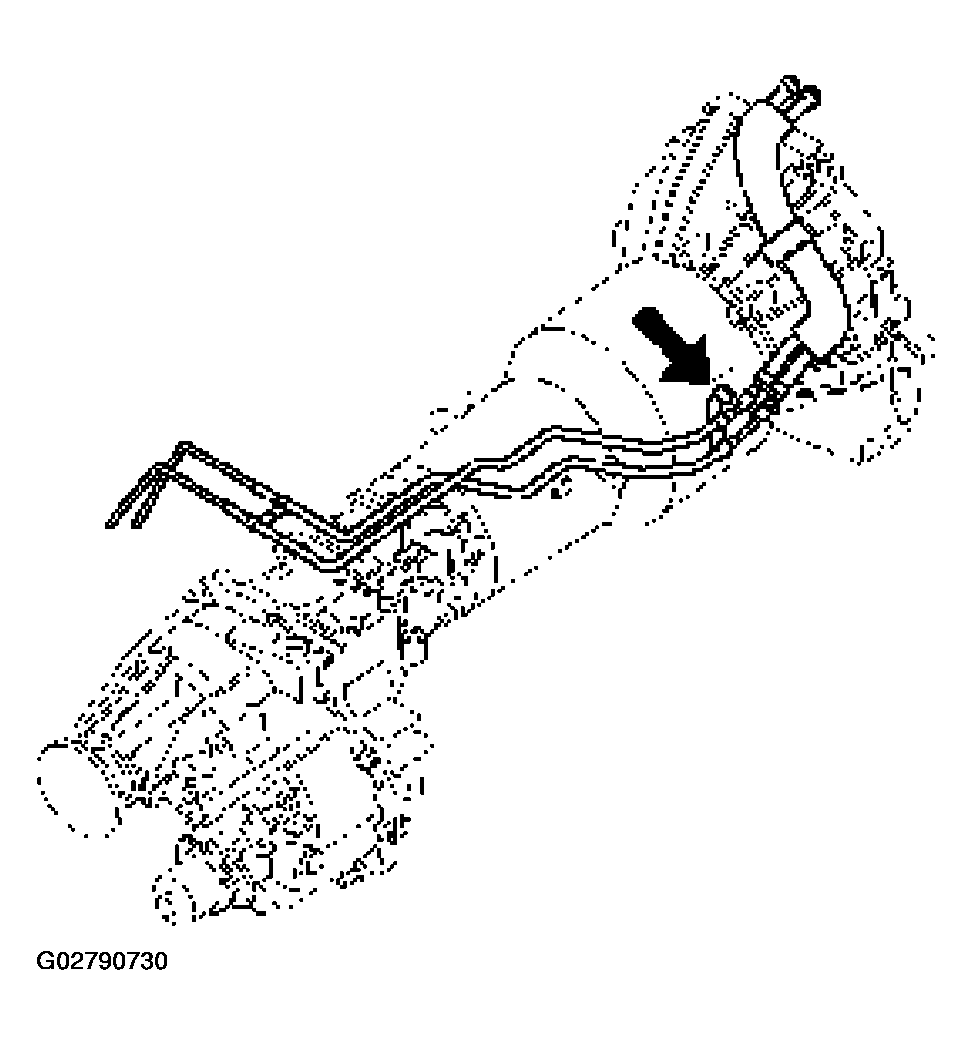

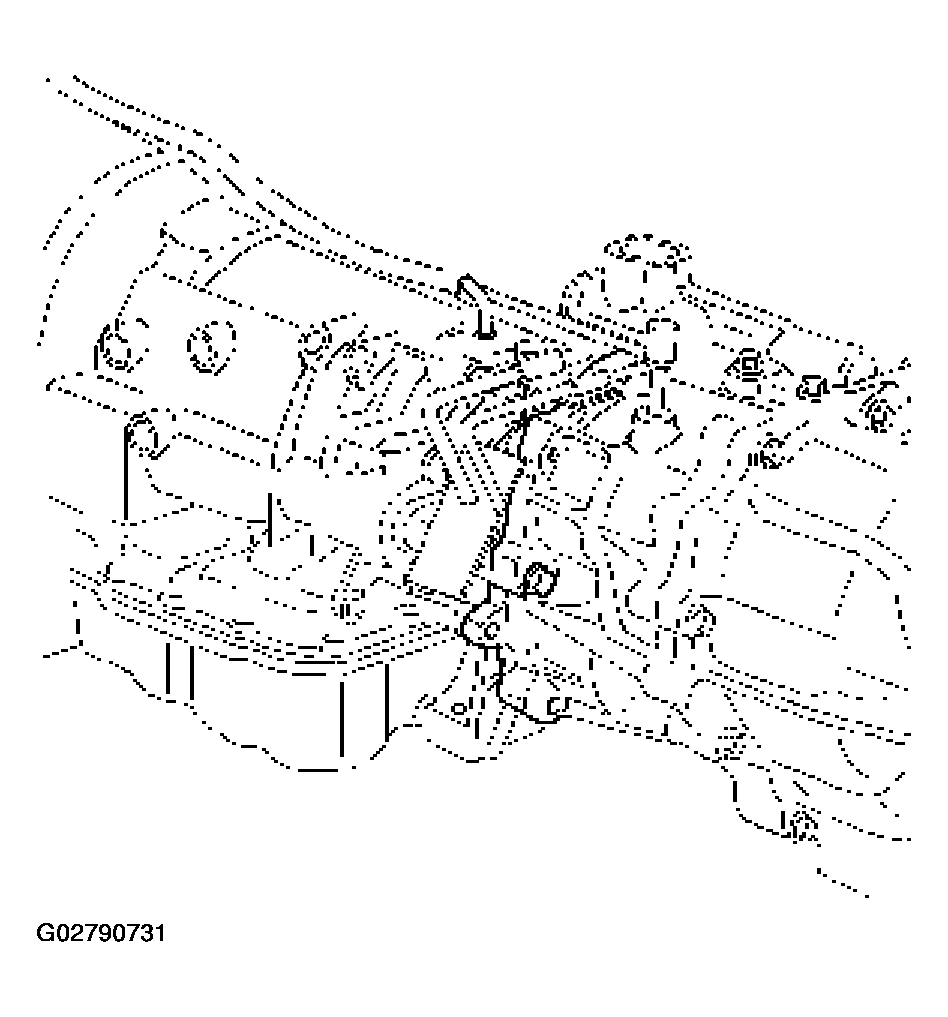

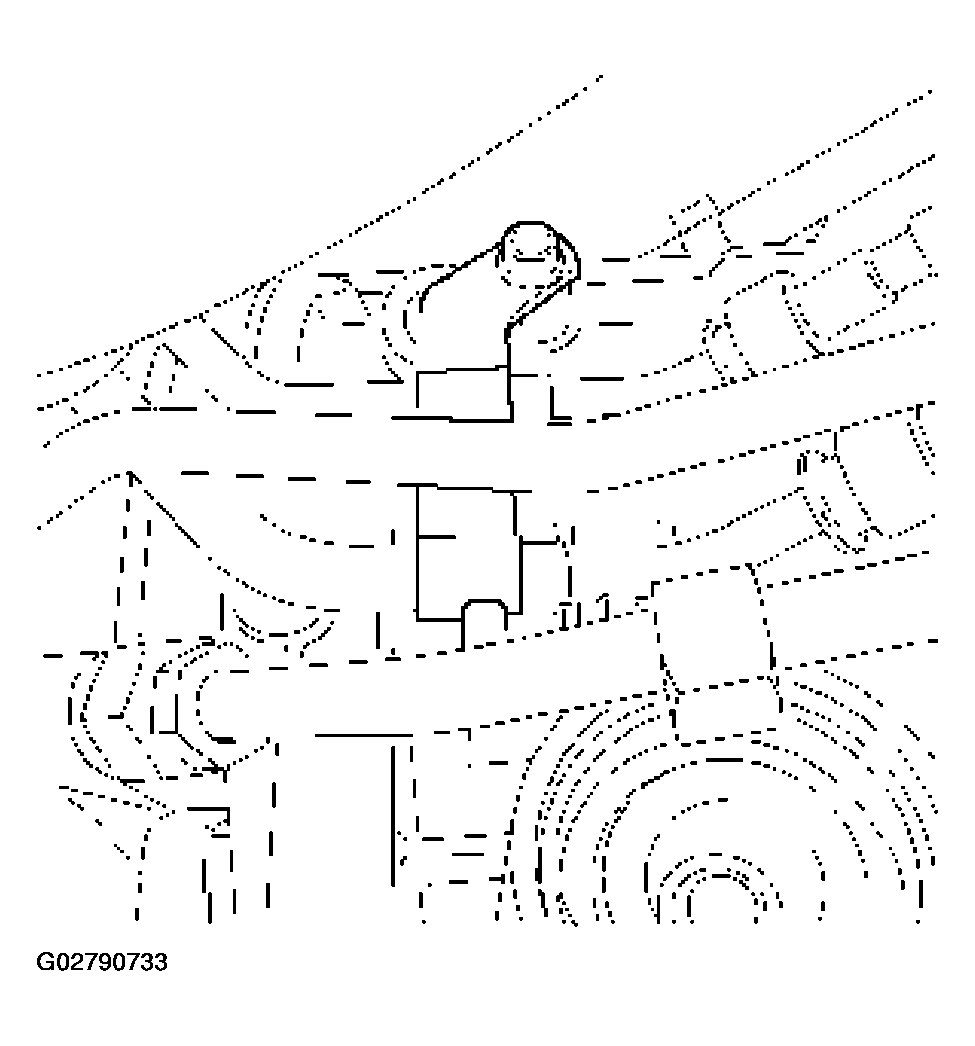

Connect fuel pipe bracket to transmission side.
NOTE: See "NOTE" of Removal steps.

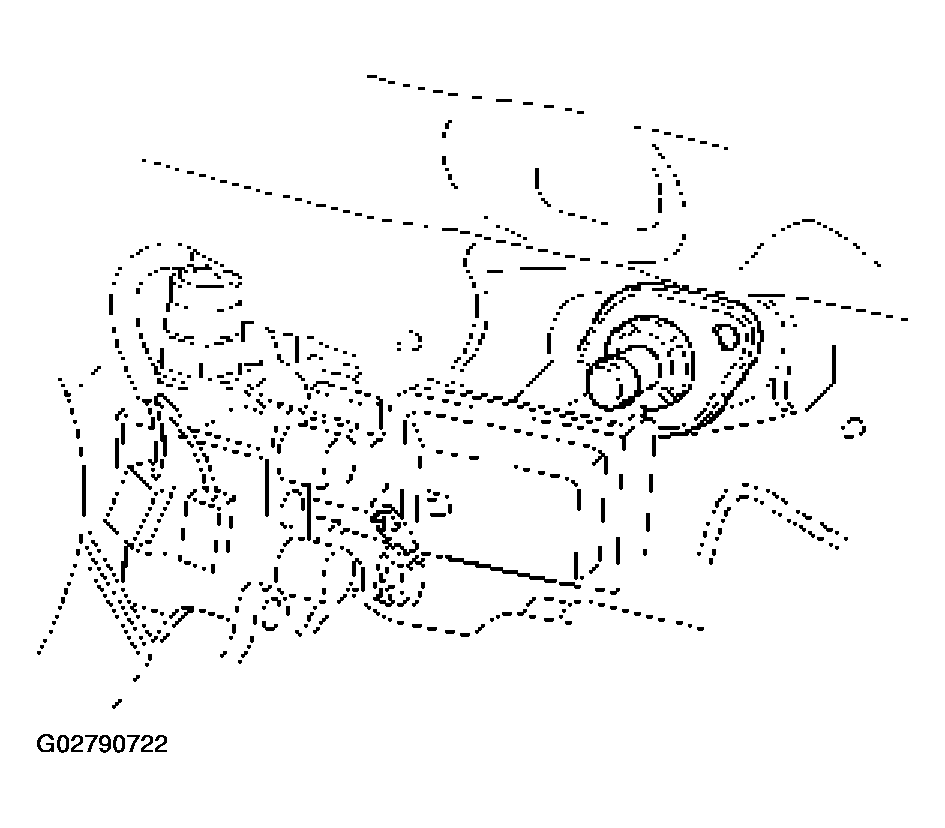

Fig 14: Connecting Fuel Pipe Bracket To Transmission Side (V6, 4X4 - 1 Of 2)
Courtesy of ISUZU MOTOR CO.

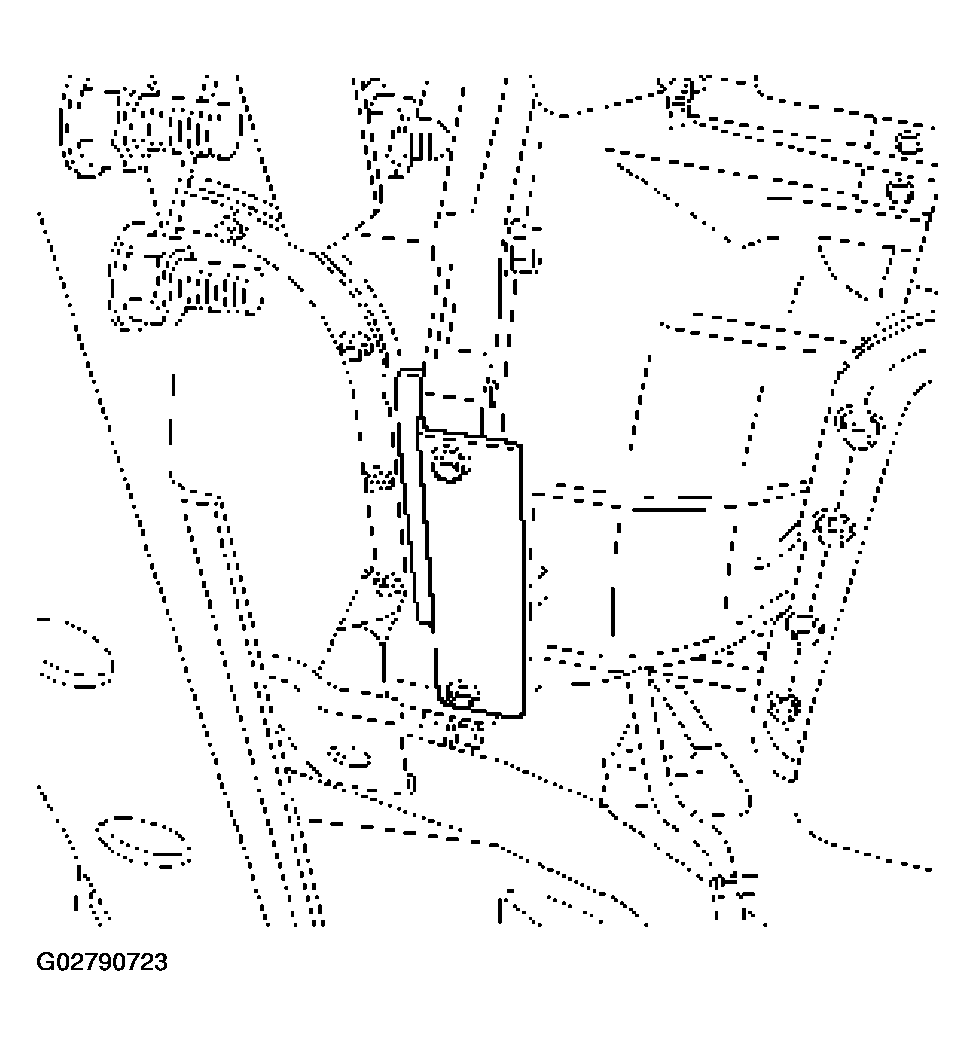

Fig 15: Connecting Fuel Pipe Bracket To Transmission Side (V6, 4X4 - 2 Of 2)
Courtesy of ISUZU MOTOR CO.

Fig 16: Connecting Fuel Pipe Bracket To Transmission Side (V6, 4x2)
Courtesy of ISUZU MOTOR CO.

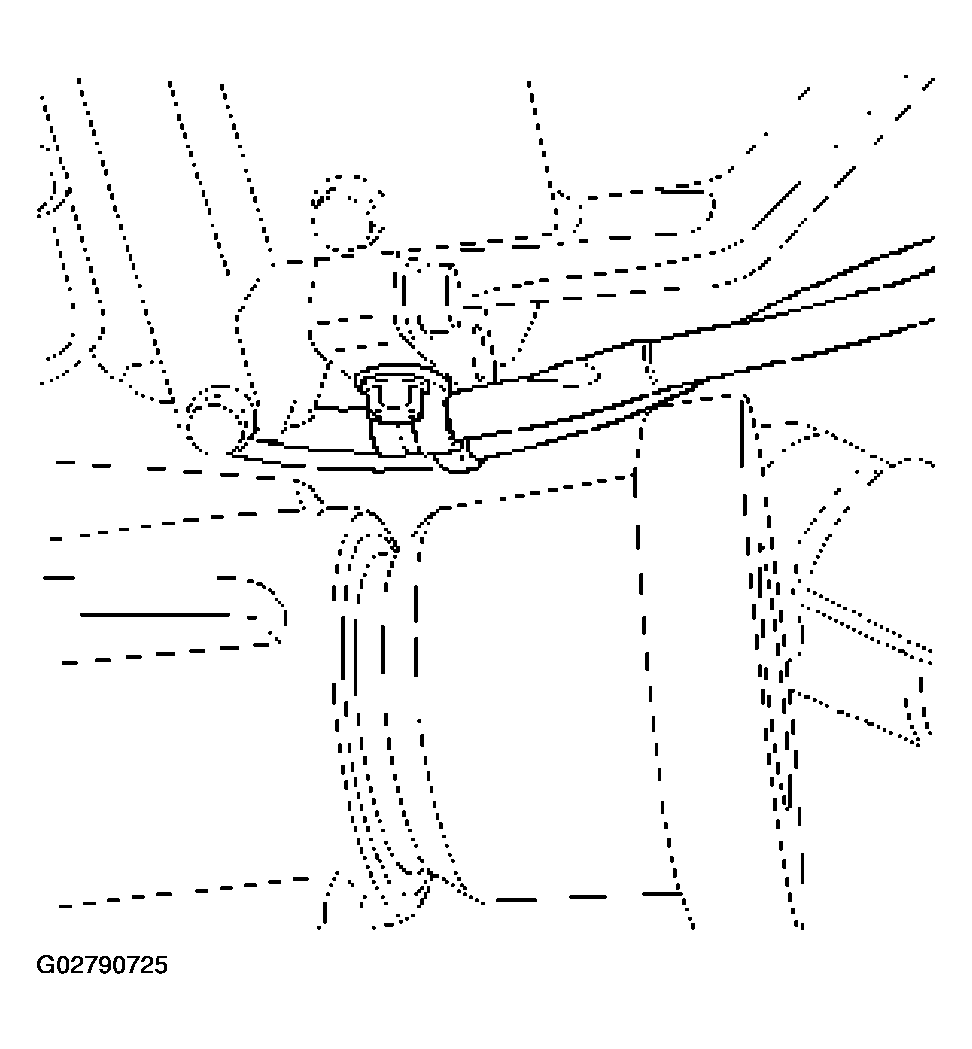

Fig 17: Connecting Fuel Pipe Bracket To Transmission Side (HEC - 1 Of 2)
Courtesy of ISUZU MOTOR CO.

Fig 18: Connecting Fuel Pipe Bracket To Transmission Side (HEC - 2 Of 2)
Courtesy of ISUZU MOTOR CO.
Install fuel pipe heat protector and clip.

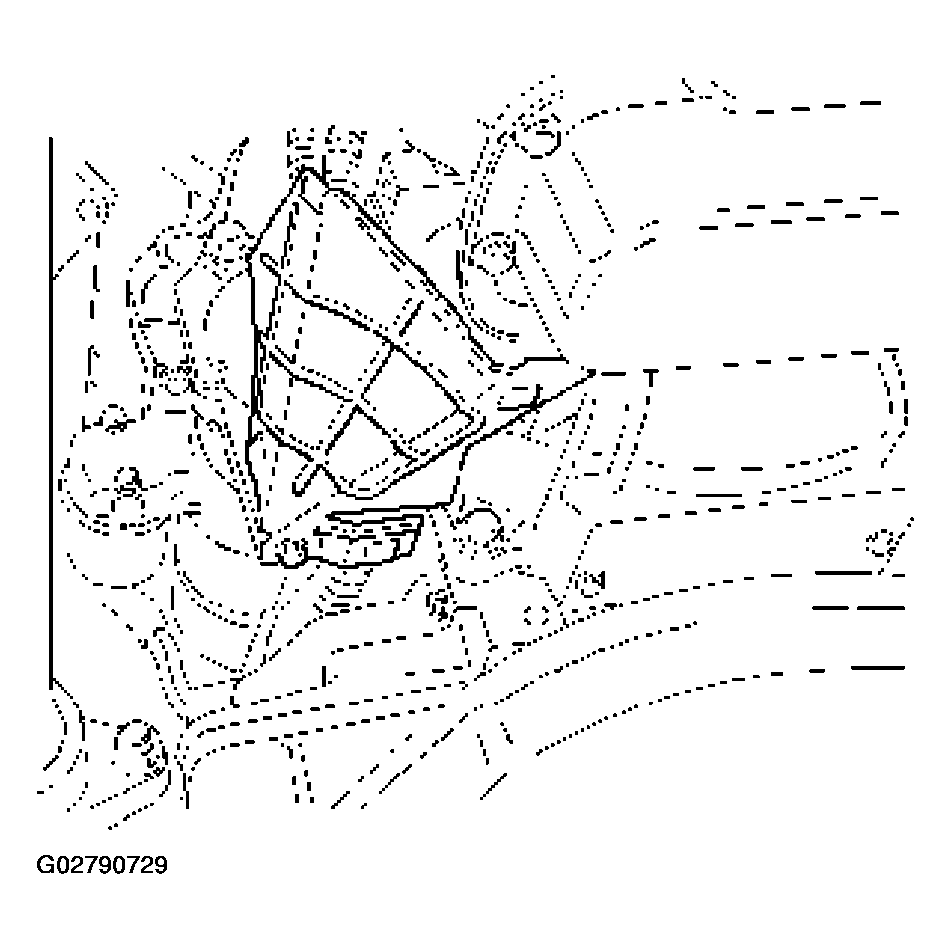

Fig 19: Installing Fuel Pipe Heat Protector & Clip
Courtesy of ISUZU MOTOR CO.
Connector fuel pipe bracket to third crossmember.

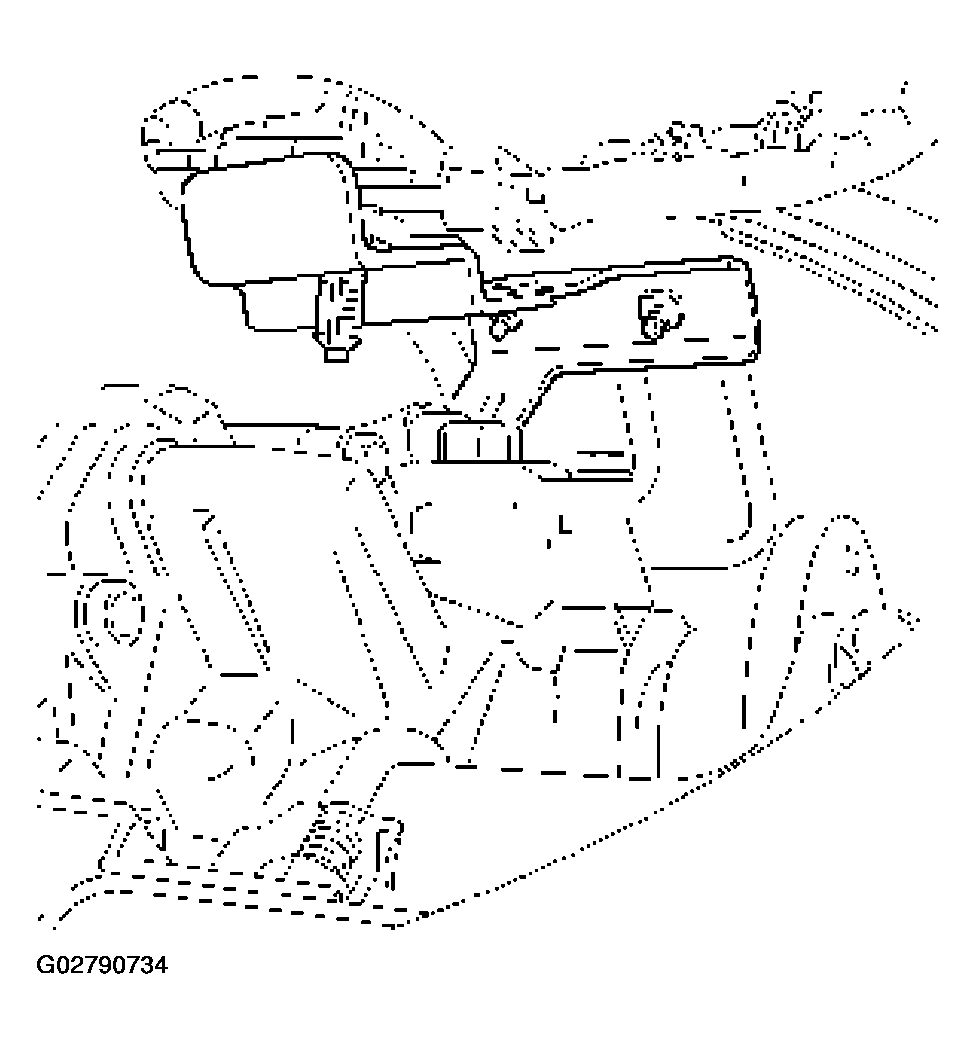

Fig 20: Connecting Fuel Pipe Bracket To Third Crossmember
Courtesy of ISUZU MOTOR CO.
Install center exhaust pipe (V6, 4x4).
1. Torque: 43 N.m (32 lb ft)

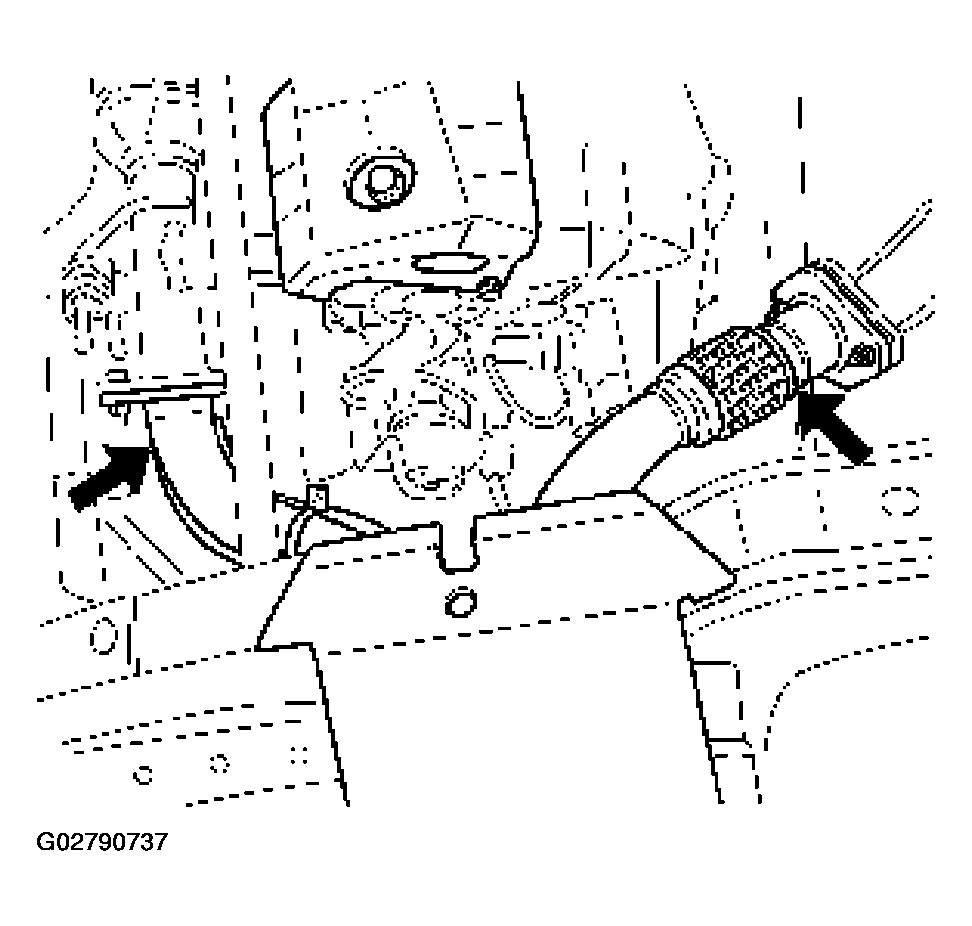

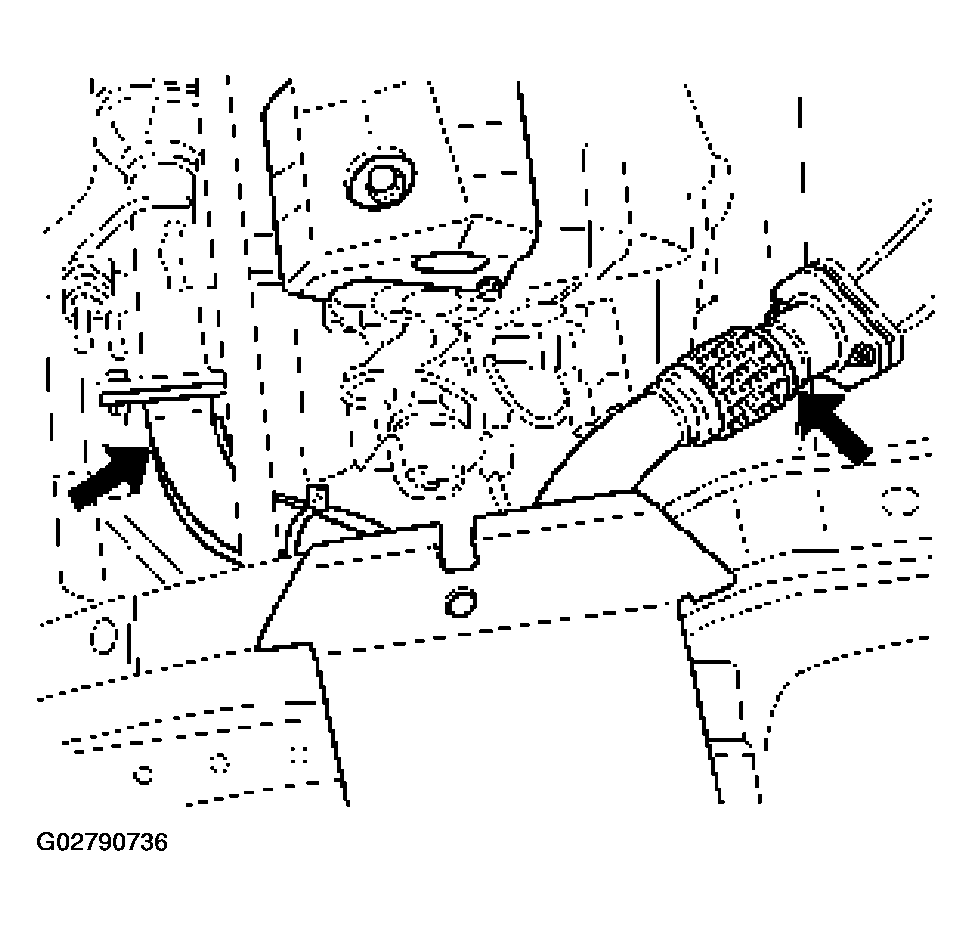

Fig 21: Installing Center Exhaust Pipe (V6, 4X4)
Courtesy of ISUZU MOTOR CO.
Install front propeller shaft (4x4) and rear propeller shaft.
1. Torque: 63 N.m (46 lb ft)
Install transfer protector (4x4) and fairing plate (V6).

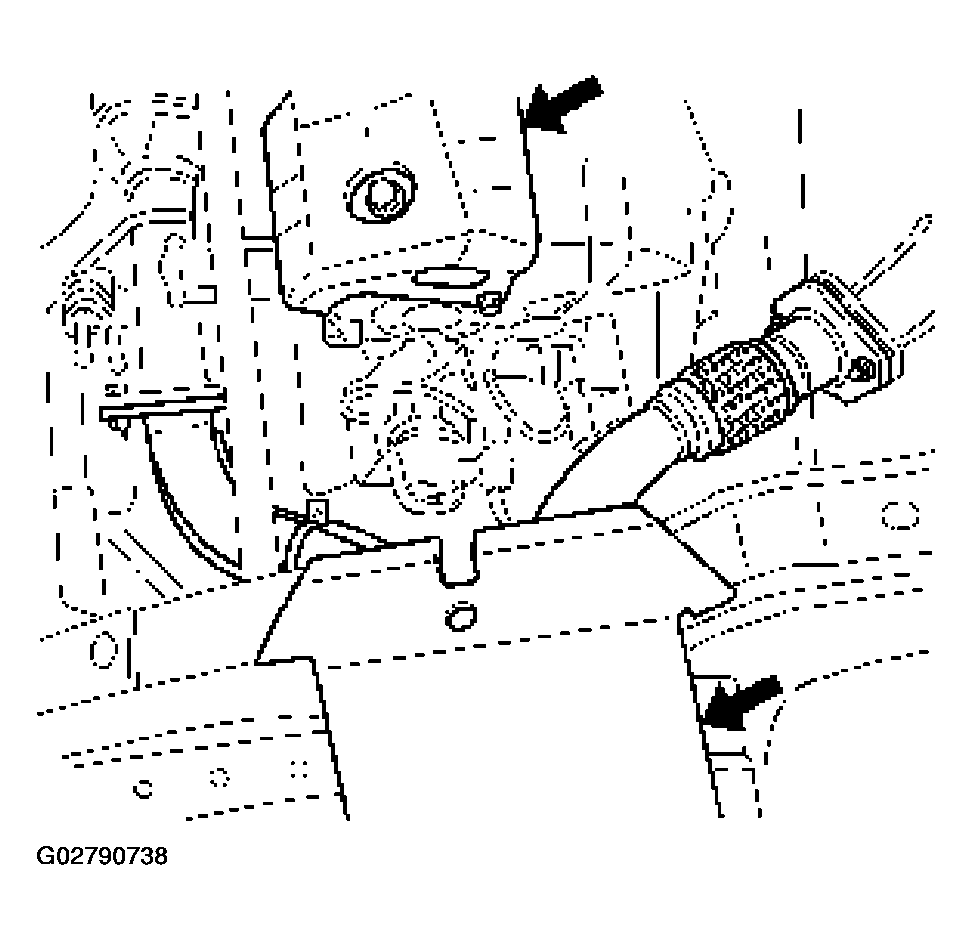

Fig 22: Installing Transfer Protector (4X4) & Fairing Plate (V6)
Courtesy of ISUZU MOTOR CO.
