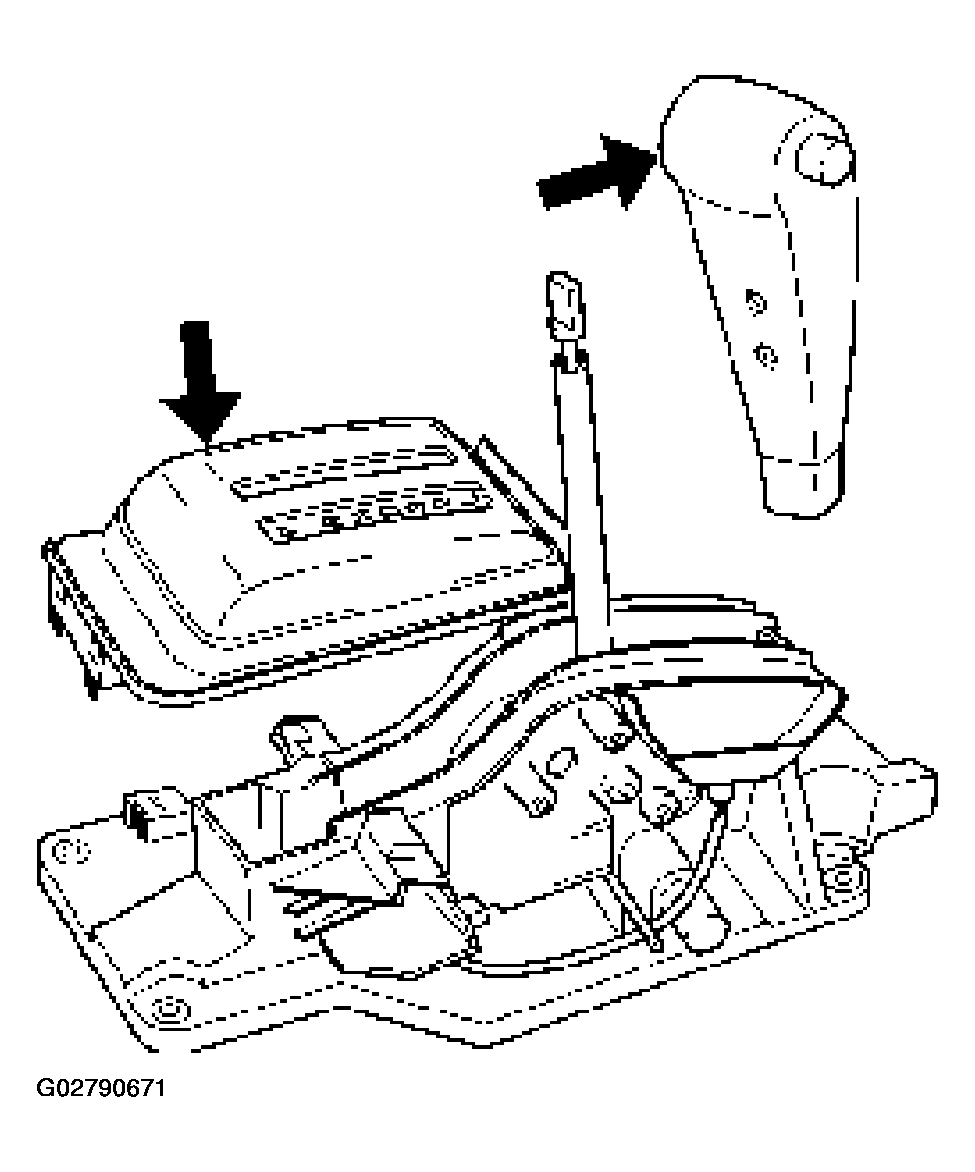

Selector Lever: Installation
- Install selector lever subassembly.
- Connect harness connector.
- Connect shift lock cable.
- Connect select cable.
- Install selector lever knob and cover.
Courtesy of ISUZU MOTOR CO.
- Install center console.
- Install rear console.
- Install lower cluster assembly.
- Install transfer control lever knob (4X4).
- Connect negative (-) battery cable.
- After installation, make sure that the selector lever operates normally, and that each selector position is properly indicated. (The red mark shows through the window.)
