Select Cable: Installation

Set selector lever in "P" position.
Let out select cable transmission side end from floor hole.
Fit outer cable into bracket in selector lever assembly.

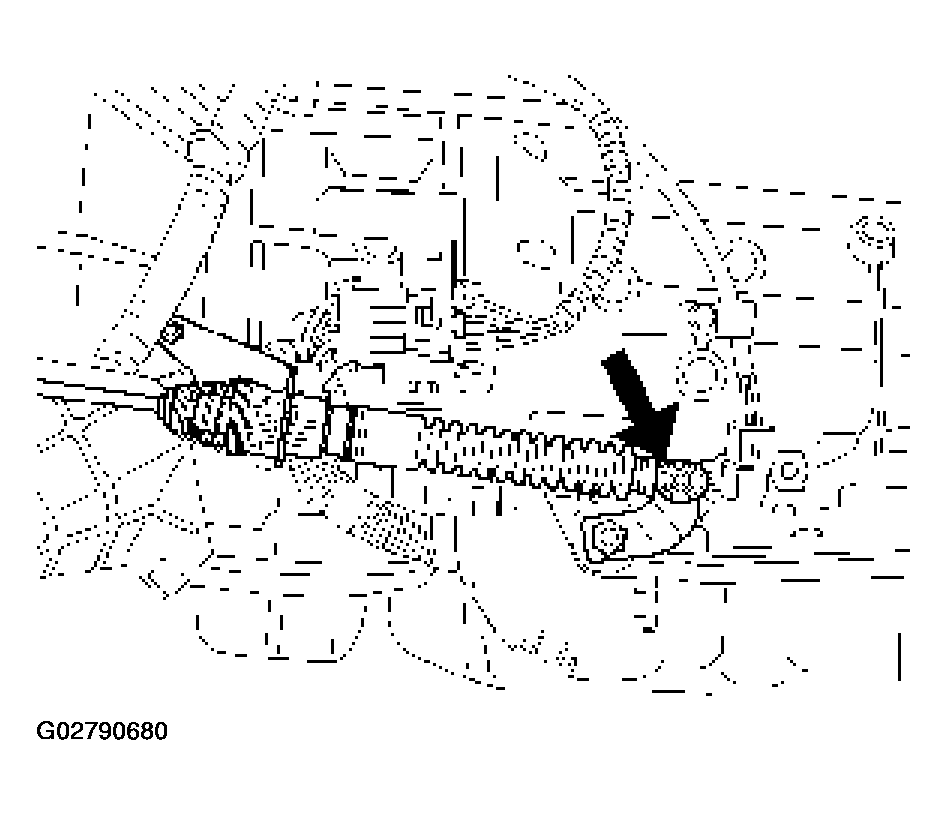

Fig 1: Fitting Outer Cable In Selector Lever Assembly
Courtesy of ISUZU MOTOR CO.
Set inner cable end in selector lever and push pin into selector lever hole and inner cable end.

Fig 2: Setting Inner Cable End In Selector Lever (4x4)
Courtesy of ISUZU MOTOR CO.
Check that lock projects.

Fig 3: Checking Lock Projects
Courtesy of ISUZU MOTOR CO.
Connect adjust end fitting attachment to the bracket on transmission.
Set select lever "P" position and connect inner cable to select lever.

Fig 4: Setting Select Lever "P" Position & Connecting Inner Cable To Select Lever (V6)
Courtesy of ISUZU MOTOR CO.
Push lock into adjust end fitting attachment.

Fig 5: Pushing Lock Into Adjust End-Fitting Attachment
Courtesy of ISUZU MOTOR CO.
Install grommet.
About following installation steps, refer to SELECTOR LEVER .
