Powertrain Control Module (PCM) (V6): Removal

  1. Disconnect battery ground cable.
  2. Disconnect PCM wiring harness connectors from PCM.
  3. Remove PCM from bracket.

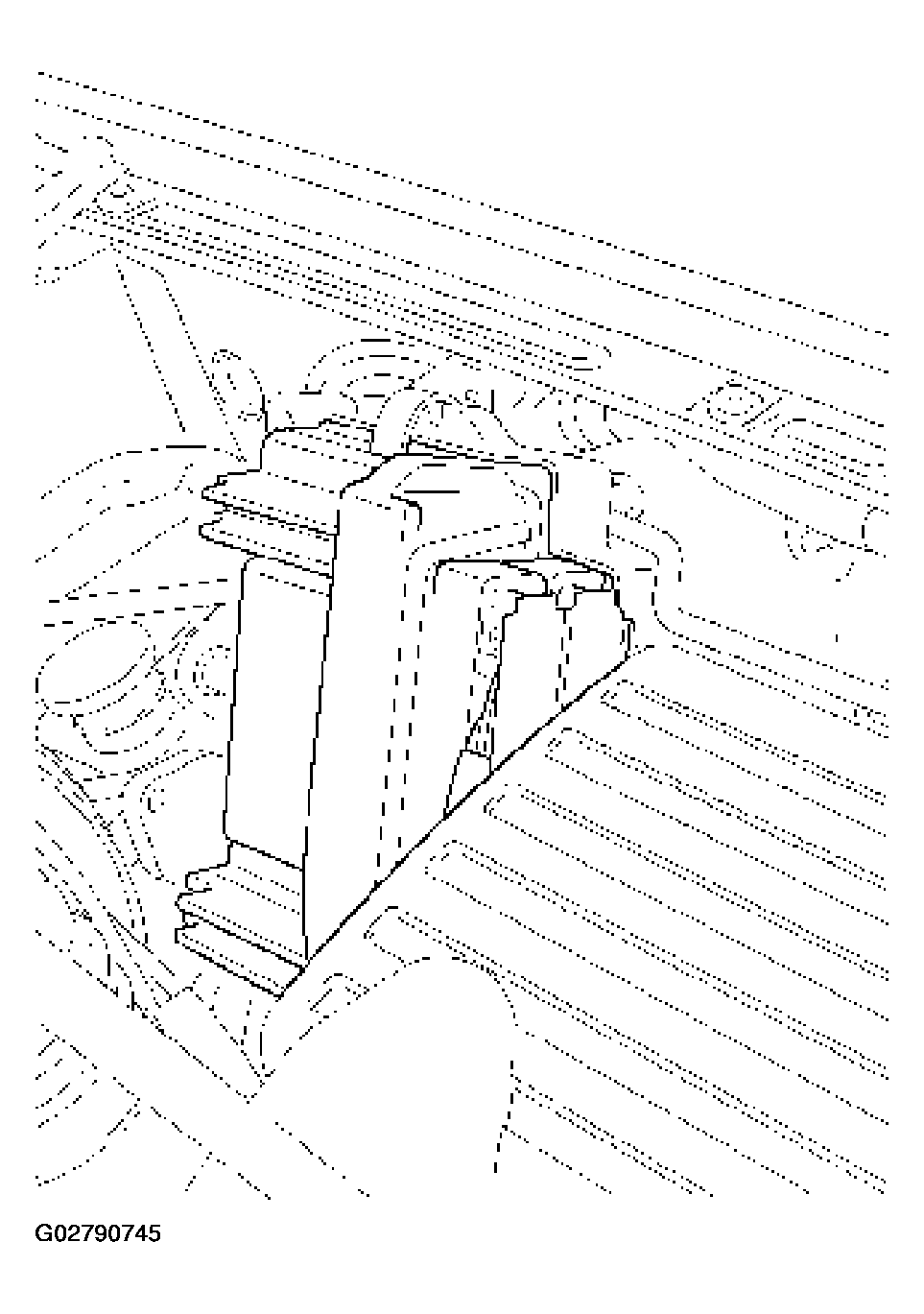

    Fig 1: Removing PCM From Bracket (PCM) (V6)
    G02790745Courtesy of ISUZU MOTOR CO.
