Mode Switch: Installation

To install, follow the removal steps in the reverse order, noting the following points;

Torque
1. Mode switch bolt: 13 N.m (113 lb in)
2. Selector lever nut: 23 N.m (17 lb ft)
Mode switch setting procedure
1. Perform either of the following adjustment procedures:
2. Procedure 1
  1. Place selector lever in neutral.
  2. Remove selector lever from the mode switch.
  3. Remove the mode switch cover.
  4. Loosen the two 10 mm screws.

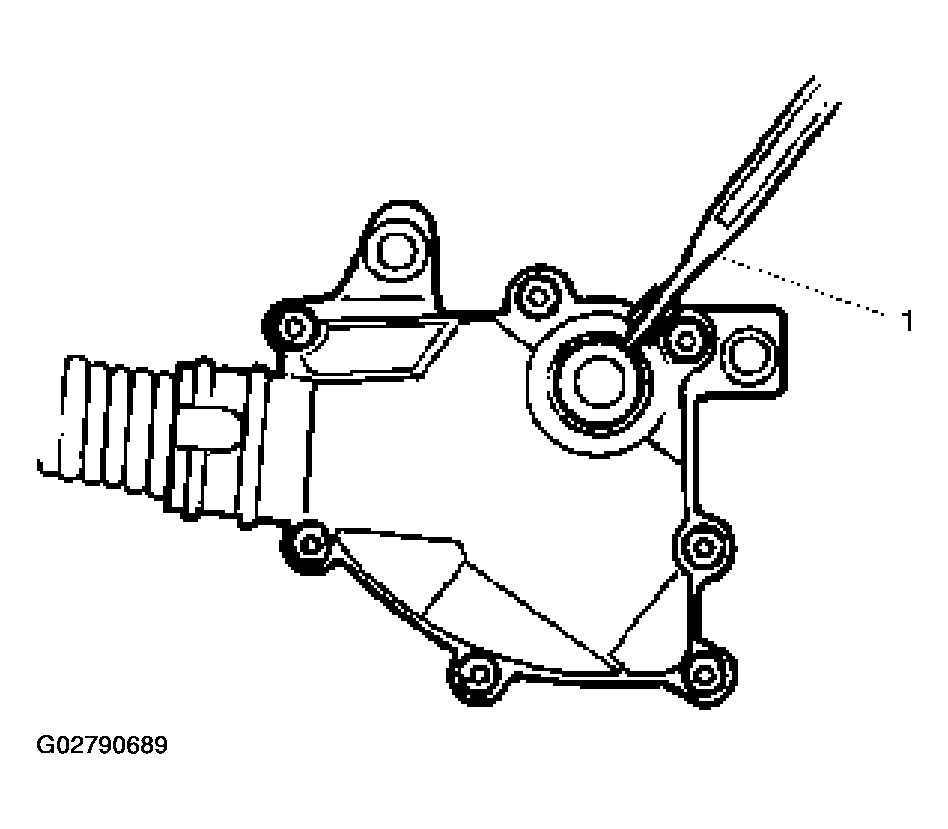

  5. Rotate the mode switch until the slot in the mode switch housing aligns with the selector shaft bushing, and insert a 3/32 in. (2.4 mm) drill bit or punch (1) into the slot. See Fig 1.
  6. Tighten the screws to 13 N.m (113 lb in).
  7. After completing adjustment, snap the mode switch cover into place.
  8. Reinstall the selector lever.

    Fig 1: Identifying Drill Bit Or Punch
    Courtesy of ISUZU MOTOR CO.
3. Procedure 2
  1. Place selector lever in neutral.
  2. Disconnect transmission harness connector from mode switch connector.
  3. Remove mode switch connector with bracket from the transmission case.
  4. Connect multimeter (resistance mode) to terminals 1 (E) and 4 (H) on mode switch connector.
  5. Loosen two mounting screws.
  6. Rotate mode switch slightly in both directions to determine the range (approx. 5 degrees) of electrical contact.
  7. Position mode switch in middle of contact range.
  8. Tighten two mounting screws.
  9. Remove multimeter and install mode switch harness connector with bracket to the transmission case.
  10. Connect transmission harness connector to mode switch connector.
