Torque Specifications

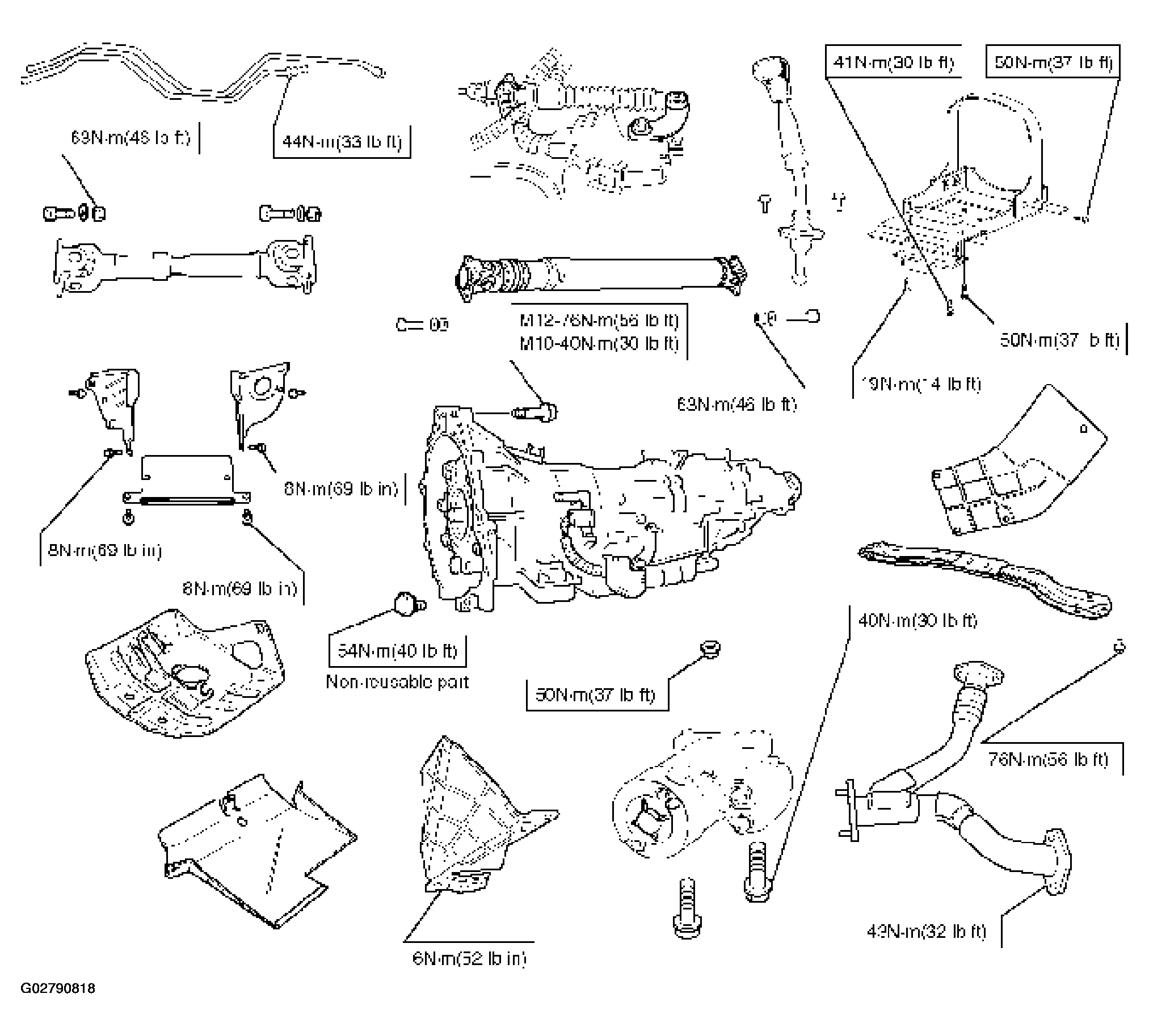

Fig 1: Torque Specifications Table (V6) (1 Of 3)

G02790818

Courtesy of ISUZU MOTOR CO.

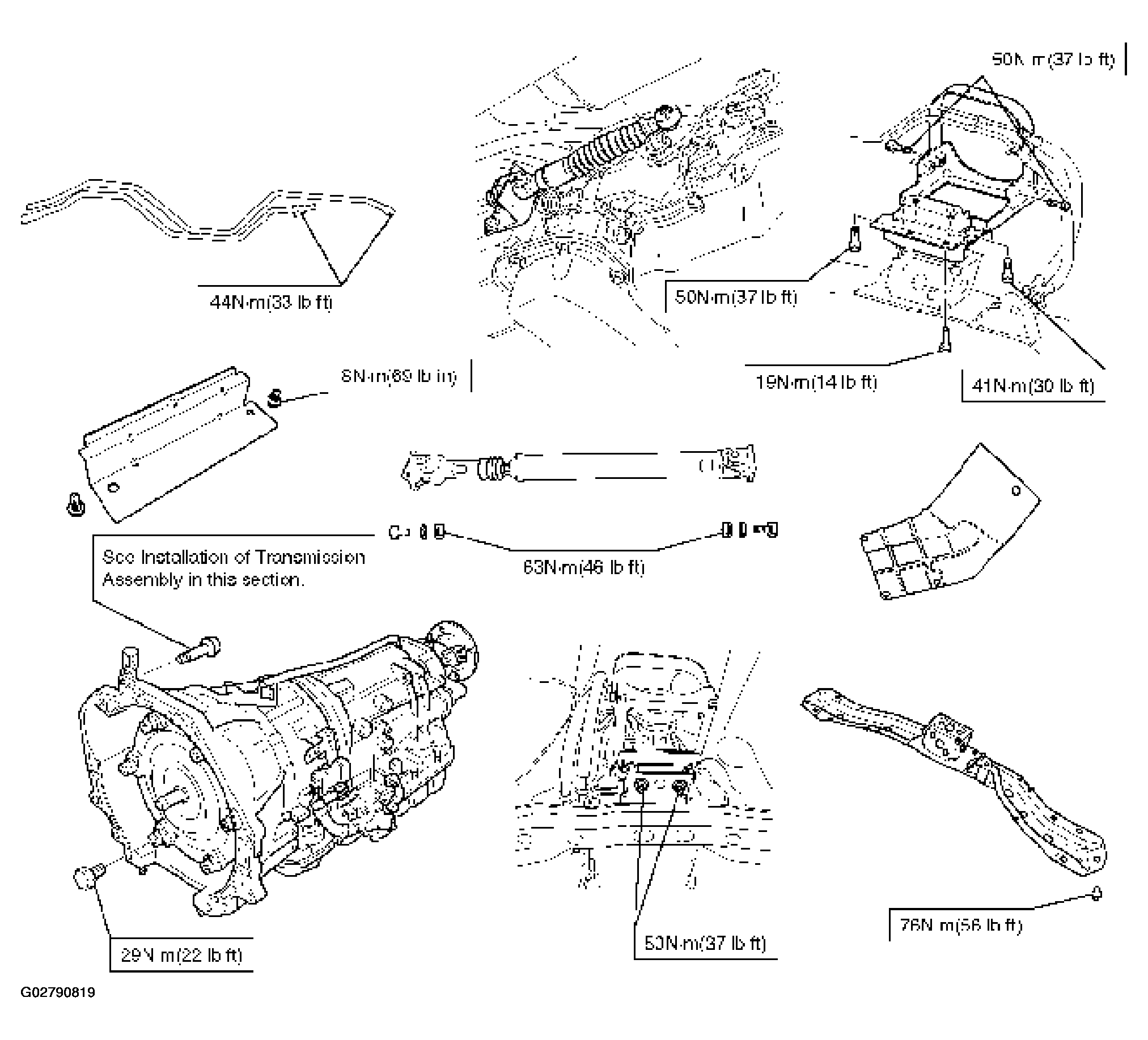

Fig 2: Torque Specifications Table (V6) (2 Of 3)

G02790819

Courtesy of ISUZU MOTOR CO.

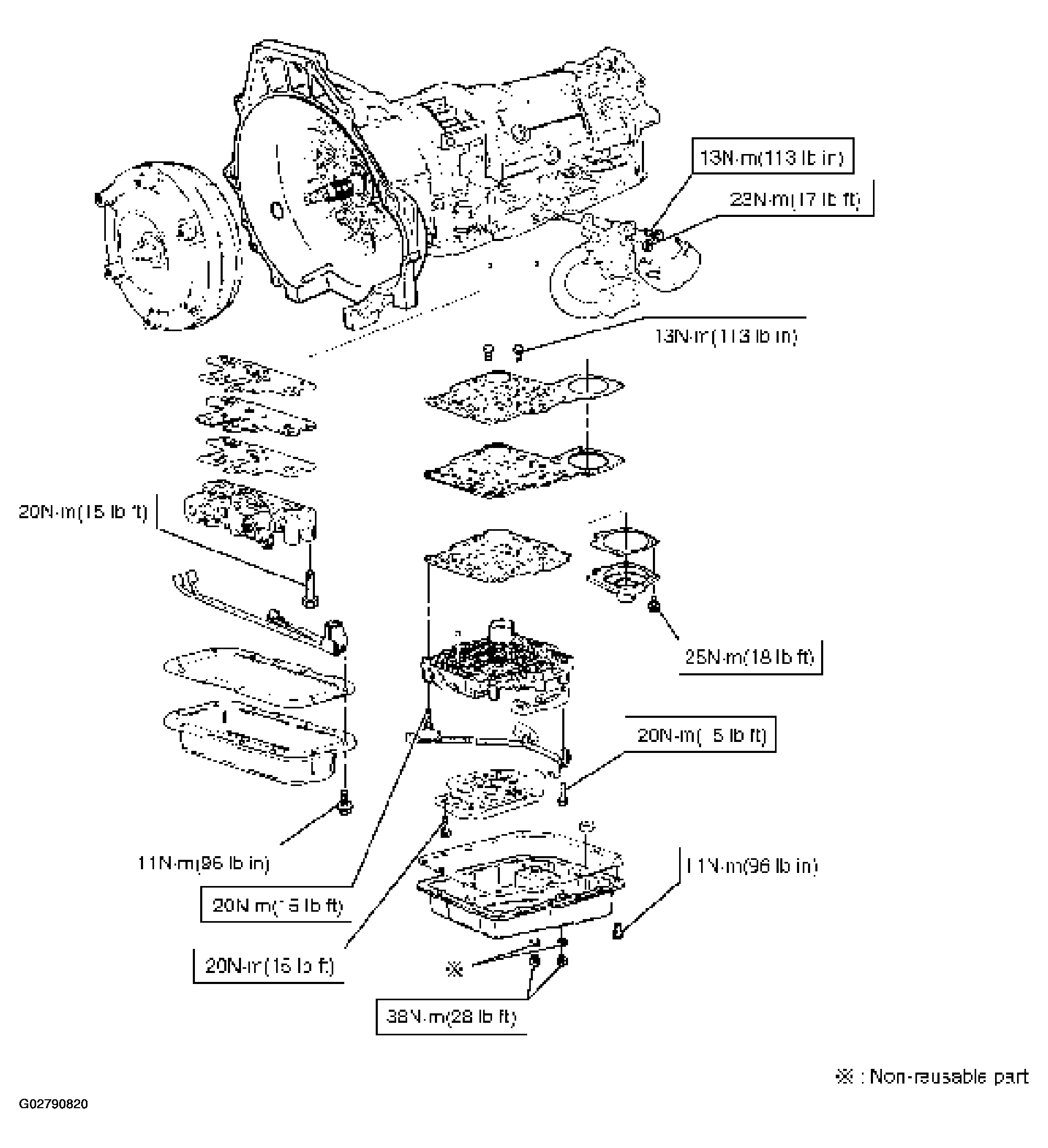

Fig 3: Torque Specifications Table (V6) (3 Of 3)

G02790820

Courtesy of ISUZU MOTOR CO.

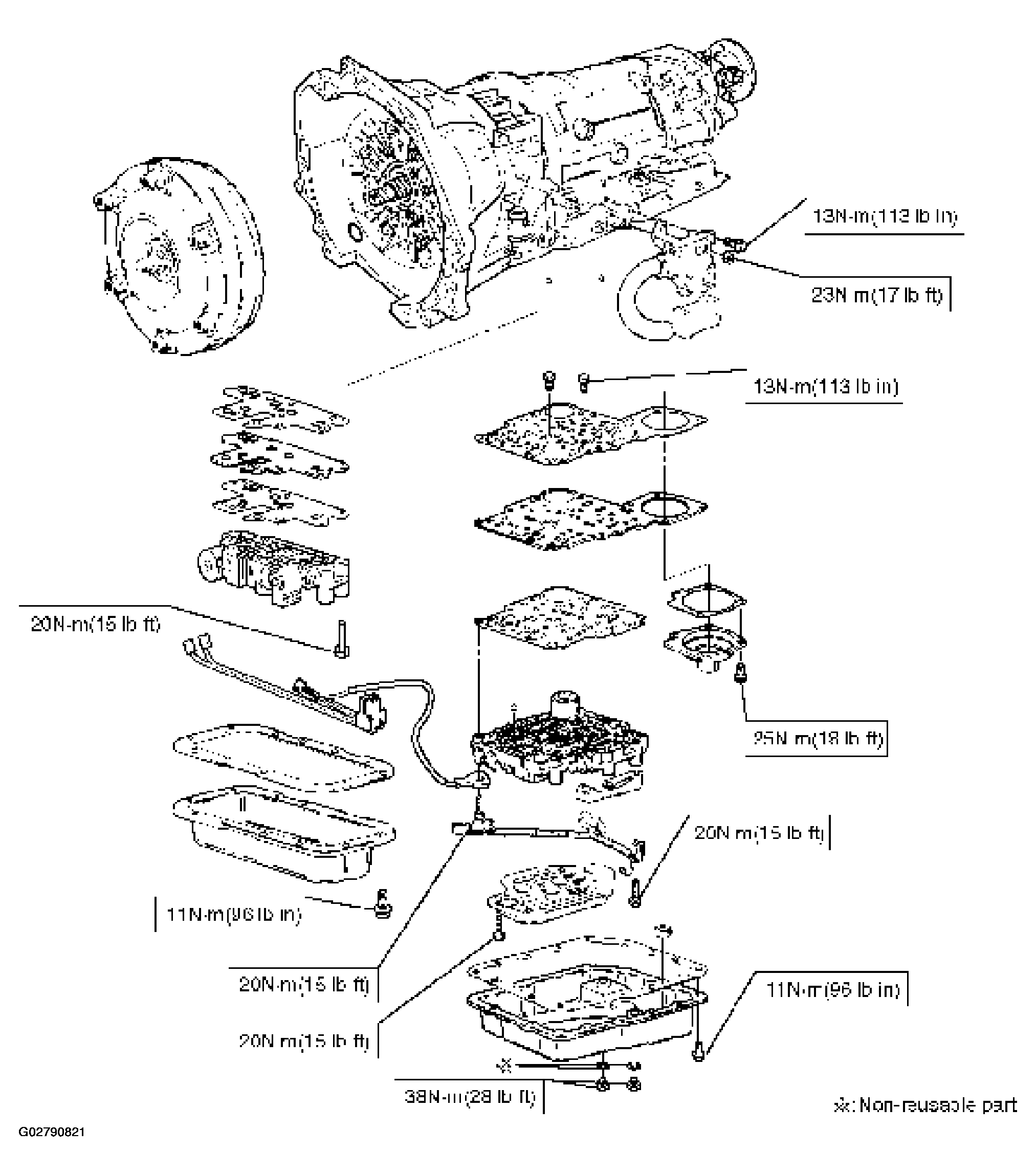

Fig 4: Torque Specifications Table (HEC) (1 Of 2)

G02790821

Courtesy of ISUZU MOTOR CO.

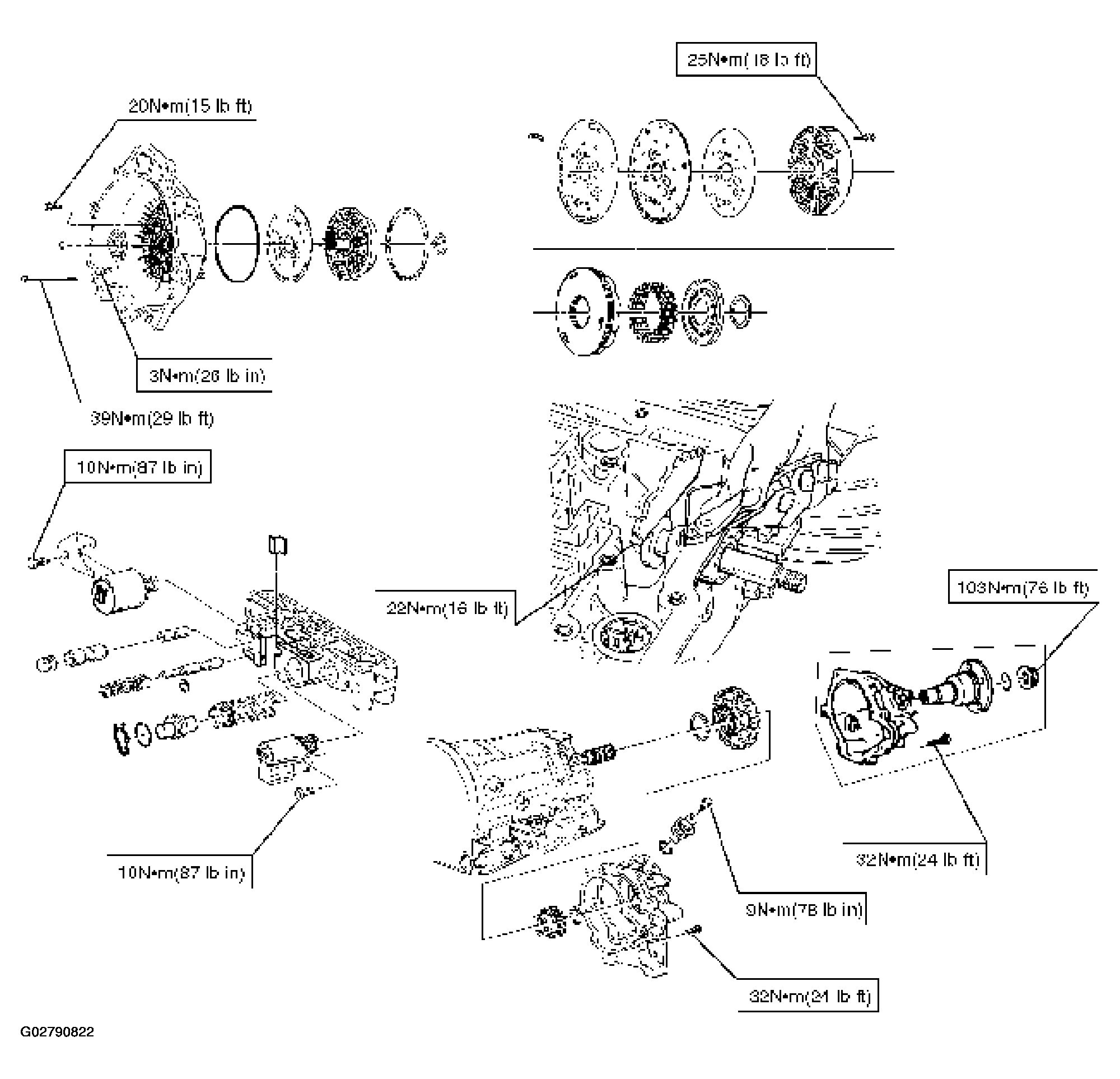

Fig 5: Torque Specifications Table (HEC) (2 Of 2)

G02790822

Courtesy of ISUZU MOTOR CO.
