Lockup Speed Chart
Lockup Speed Chart

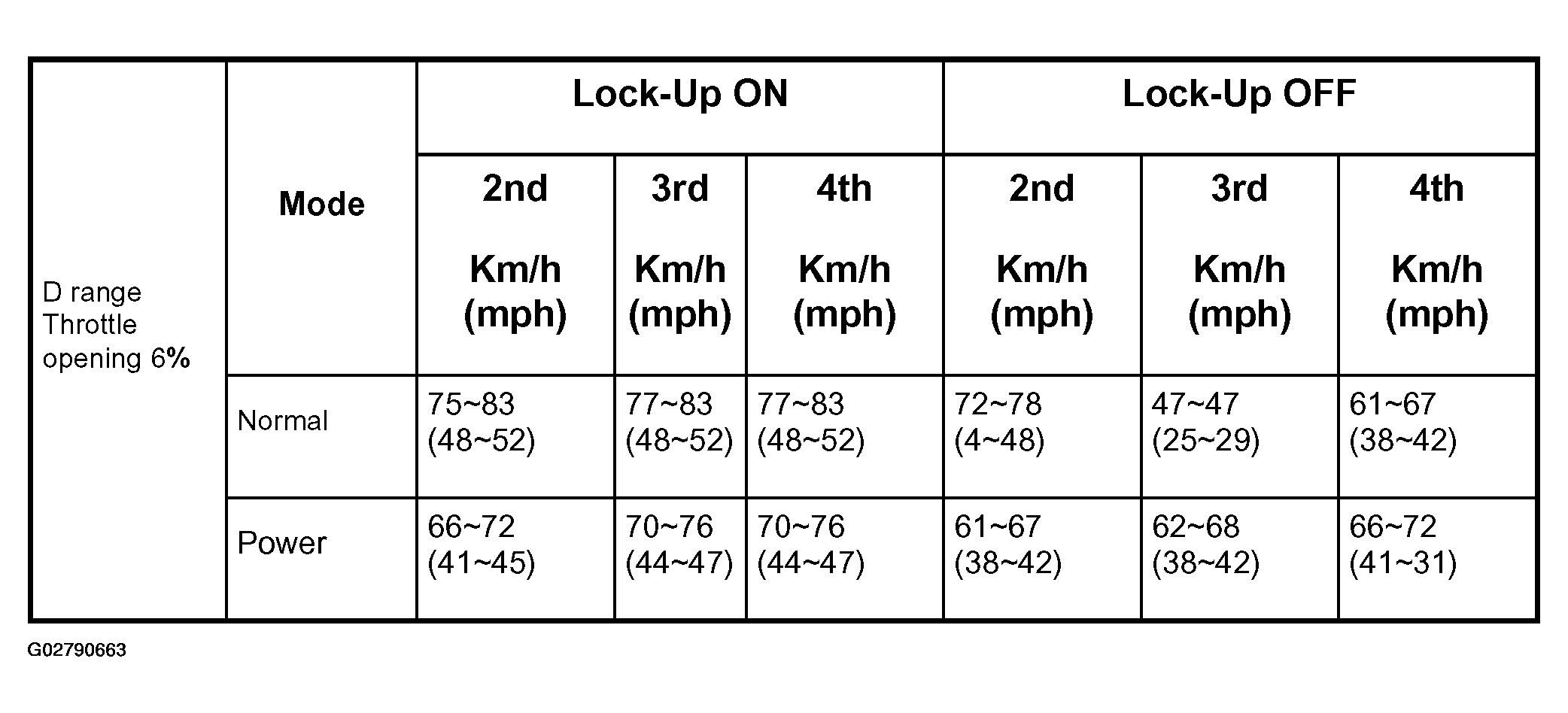

Fig 1: Lockup Speed Chart
Courtesy of ISUZU MOTOR CO.
Fig 2: Lock-up Operation Chart
Courtesy of ISUZU MOTOR CO.

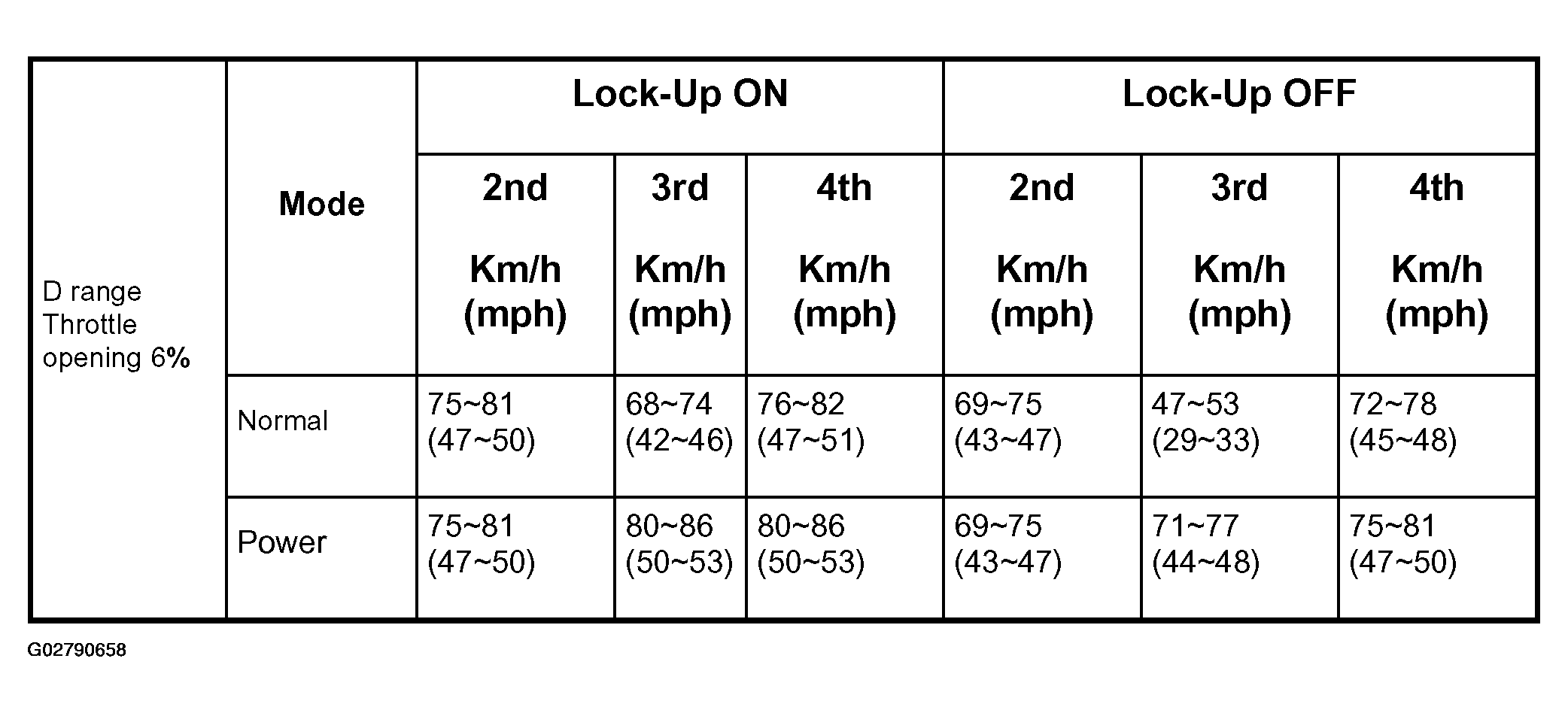

Fig 1: Lockup Speed Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
