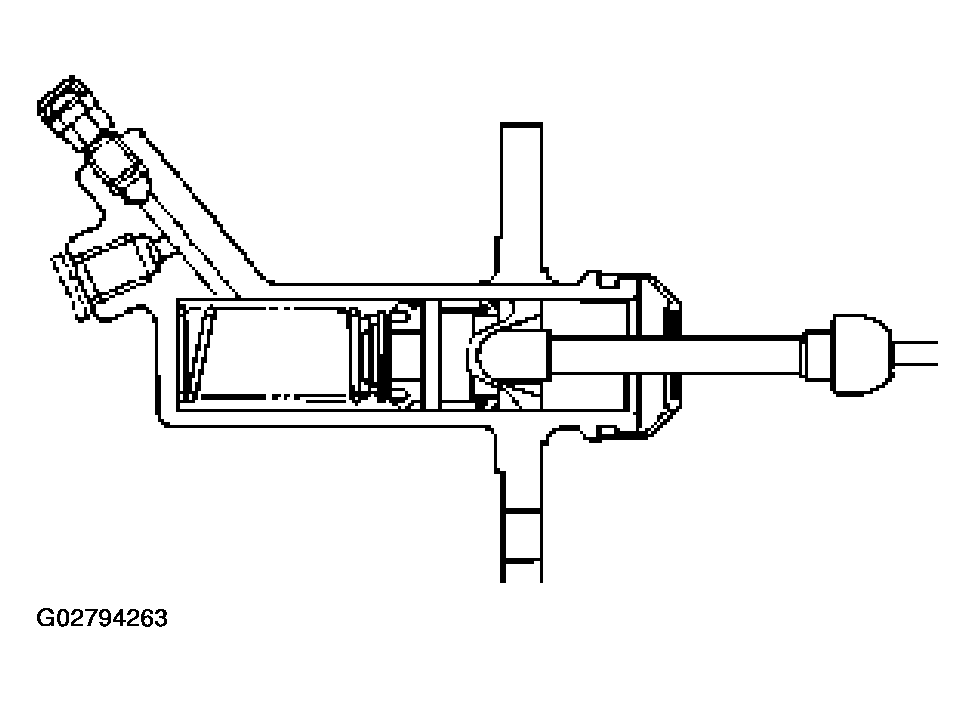

Piston Assembly
WARNING: This page is about a different variant/trim than selected.
- Before installing the parts, apply a thin coat of rubber grease.
- Install cup in groove in piston with the lip turned to the front of cylinder. Use care so as not to scratch the cylinder
Courtesy of ISUZU MOTOR CO.
