Rear Wheel Speed Sensor: Removal

  1. Disconnect harness connector (1).
  2. Remove sensor fixing bolt (2).
  3. Remove speed sensor (3).

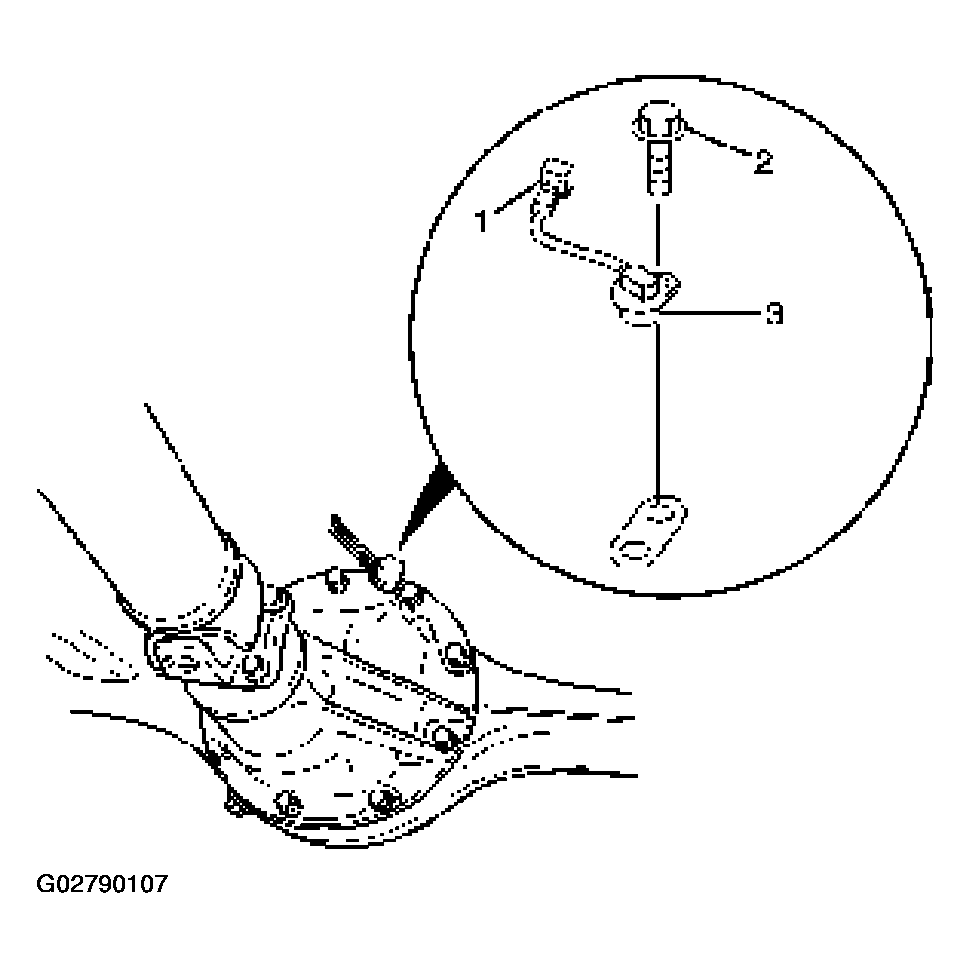

    Fig 1: Removing Speed Sensor Of Rear Wheel Speed Sensor
    G02790107Courtesy of ISUZU MOTOR CO.
