Diagnostic Trouble Codes

Choose and trace an appropriate flowchart by the numbers listed below to find fault and repair.

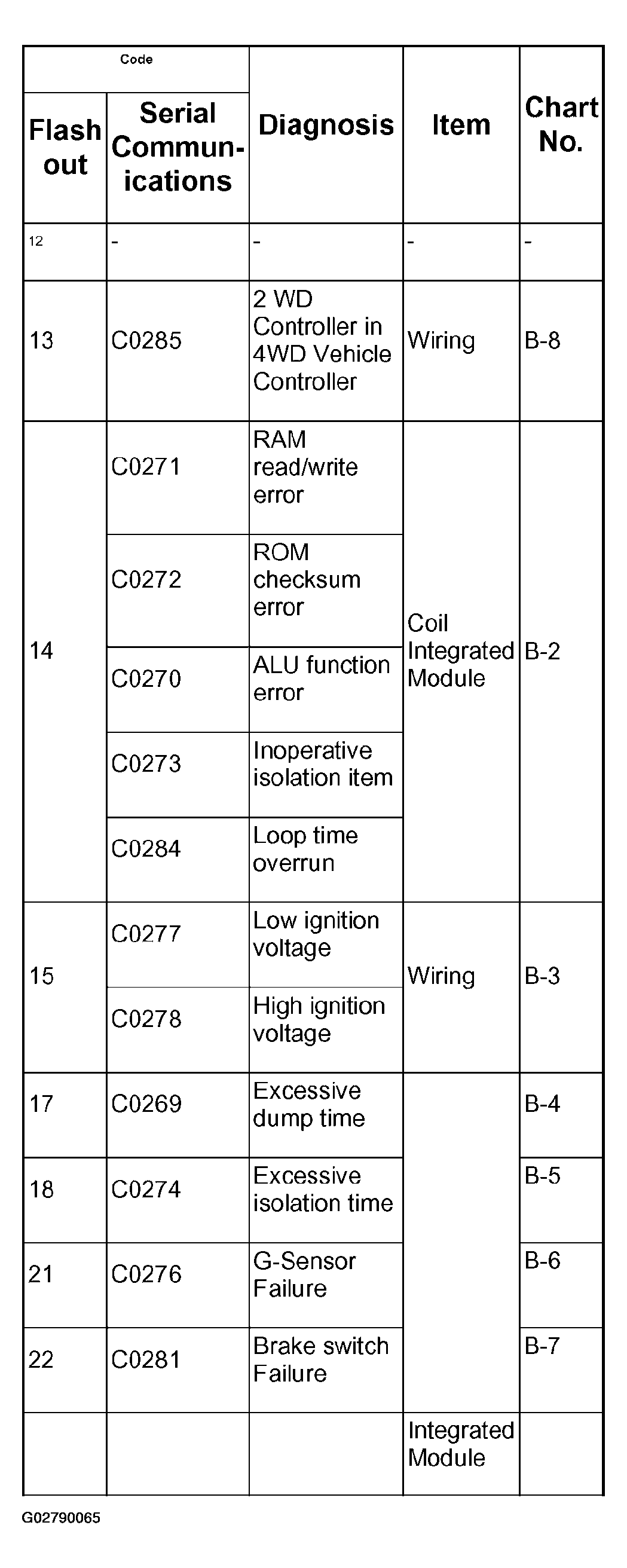

Fig 1: Diagnostic Trouble Codes Chart (1 Of 3)
G02790065Courtesy of ISUZU MOTOR CO.

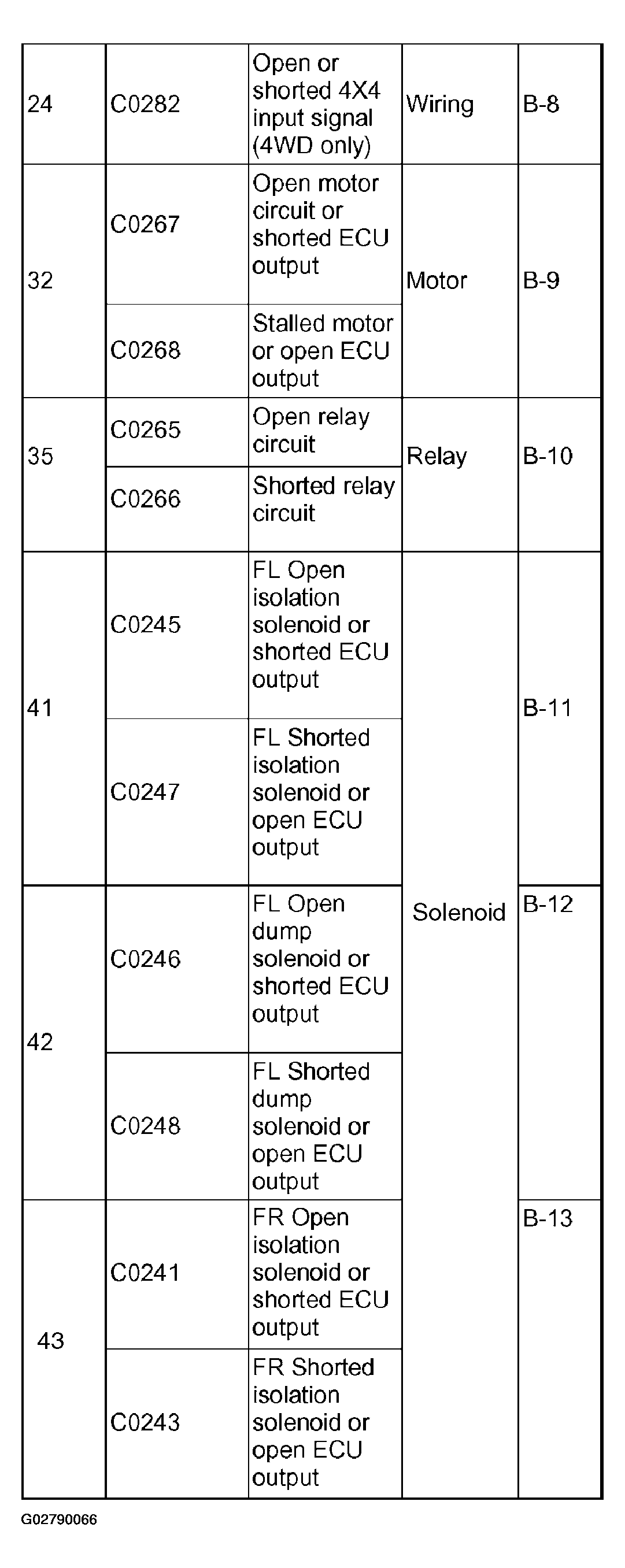

Fig 2: Diagnostic Trouble Codes Chart (2 Of 3)
G02790066Courtesy of ISUZU MOTOR CO.

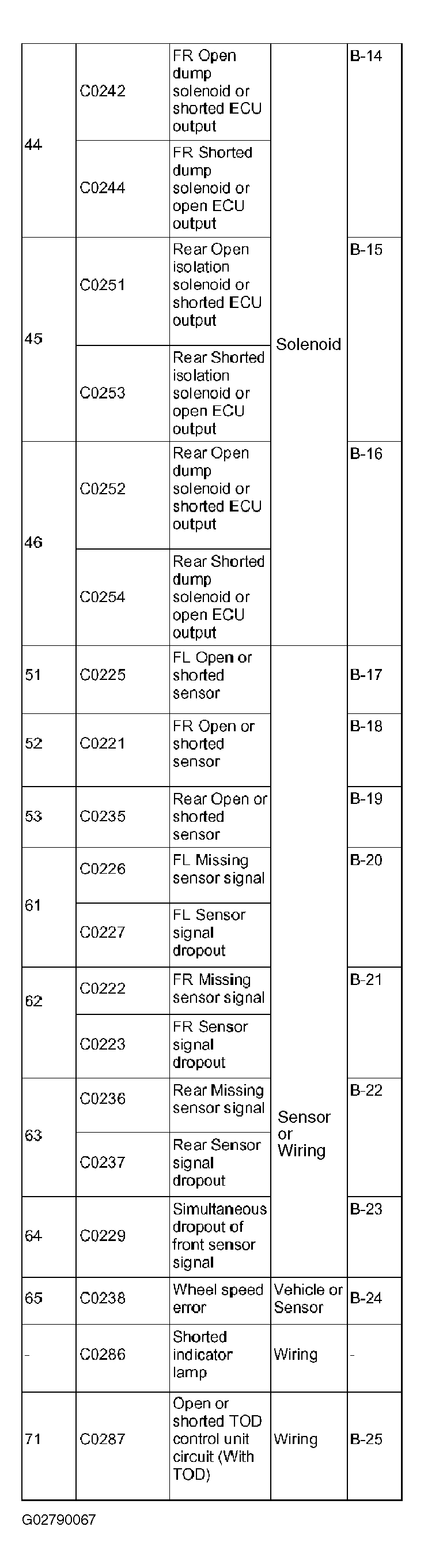

Fig 3: Diagnostic Trouble Codes Chart (3 Of 3)
G02790067Courtesy of ISUZU MOTOR CO.
