Isuzu
>>
2003
>>
Rodeo S, 2.2 D, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Exterior/Interior Trim
>>
Body Structure
>>
Main Data and Specifications
>>
Torque Specification
Torque Specification

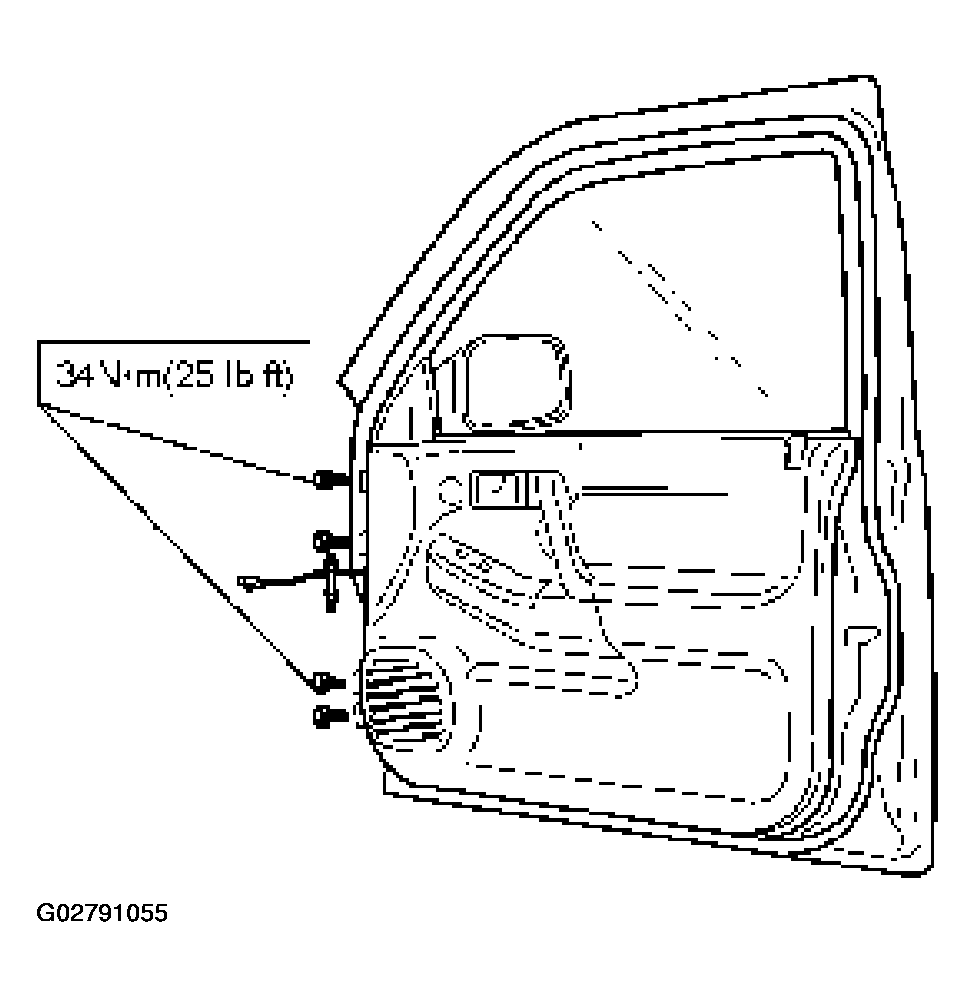

Fig 1: Torque Specifications Table (1 Of 7)
Courtesy of ISUZU MOTOR CO.

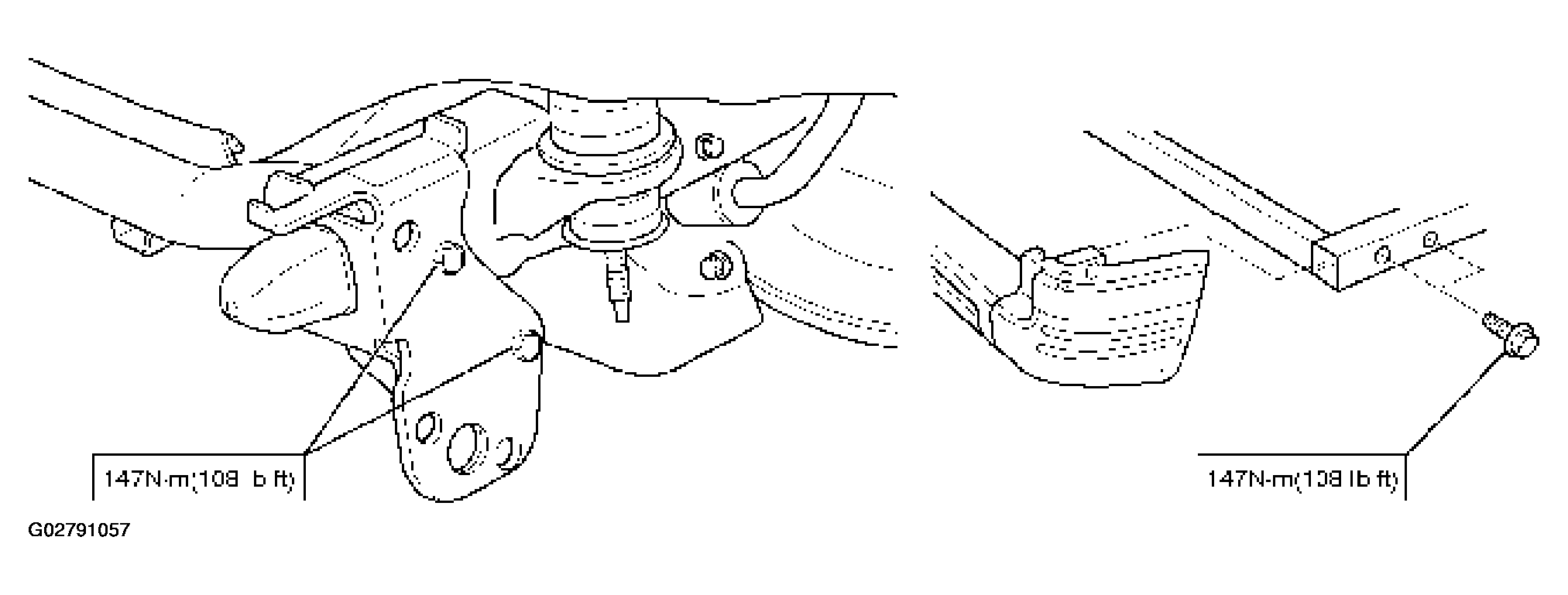

Fig 2: Torque Specifications Table (2 Of 7)
Courtesy of ISUZU MOTOR CO.

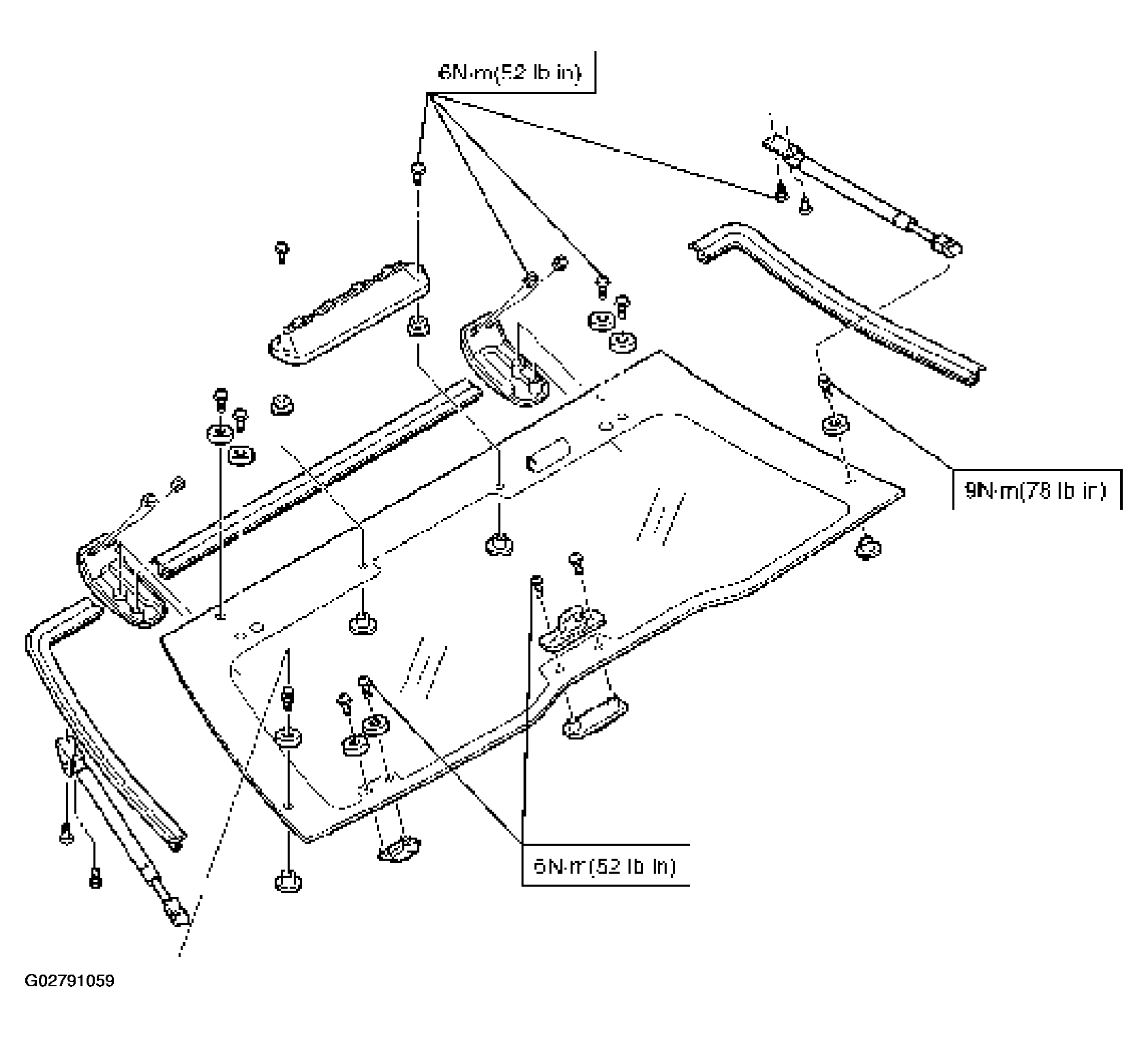

Fig 3: Torque Specifications Table (3 Of 7)
Courtesy of ISUZU MOTOR CO.

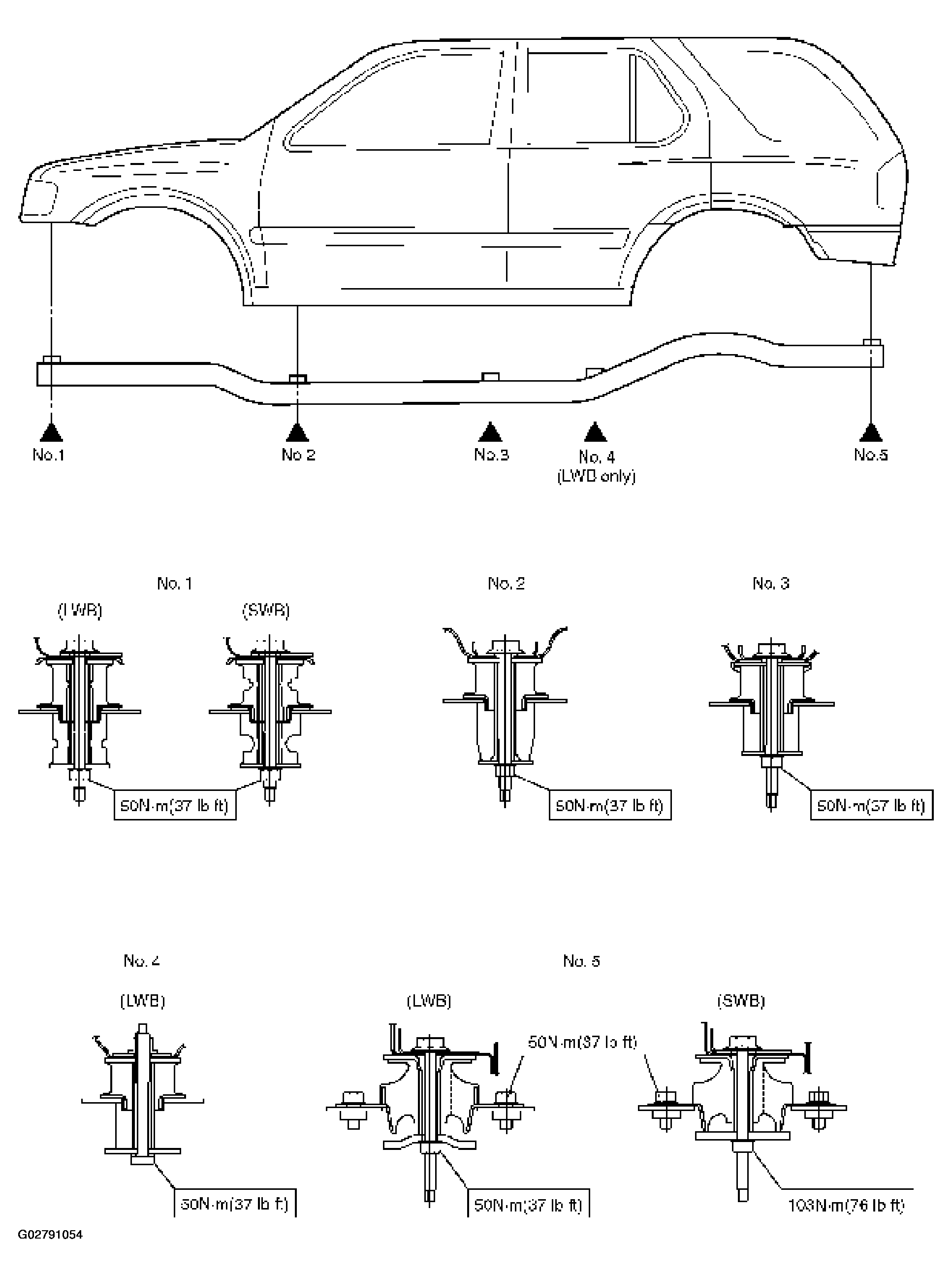

Fig 4: Torque Specifications Table (4 Of 7)
Courtesy of ISUZU MOTOR CO.

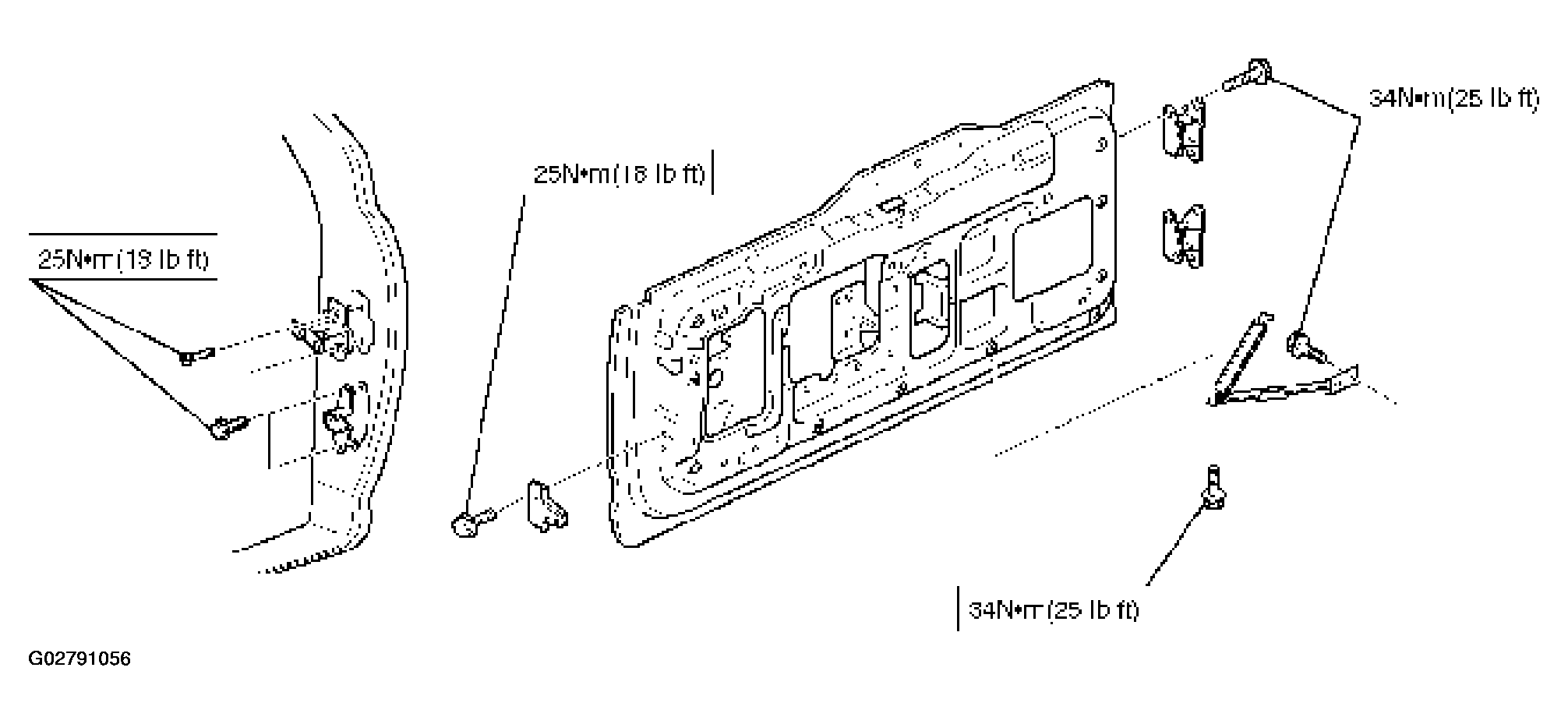

Fig 5: Torque Specifications Table (5 Of 7)
Courtesy of ISUZU MOTOR CO.
Fig 6: Torque Specifications Table (6 Of 7)
Courtesy of ISUZU MOTOR CO.
Fig 7: Torque Specifications Table (7 Of 7)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
