Front Fender Panel: Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. Tighten the front fender panel fixing bolts to the specified torque.
   1. Torque:  7 N.m (61 lb in)
2. Check the fender and front door (1).
   1. Clearance:  5.0 mm (0.196 in)
   2. Height (step):  Flush

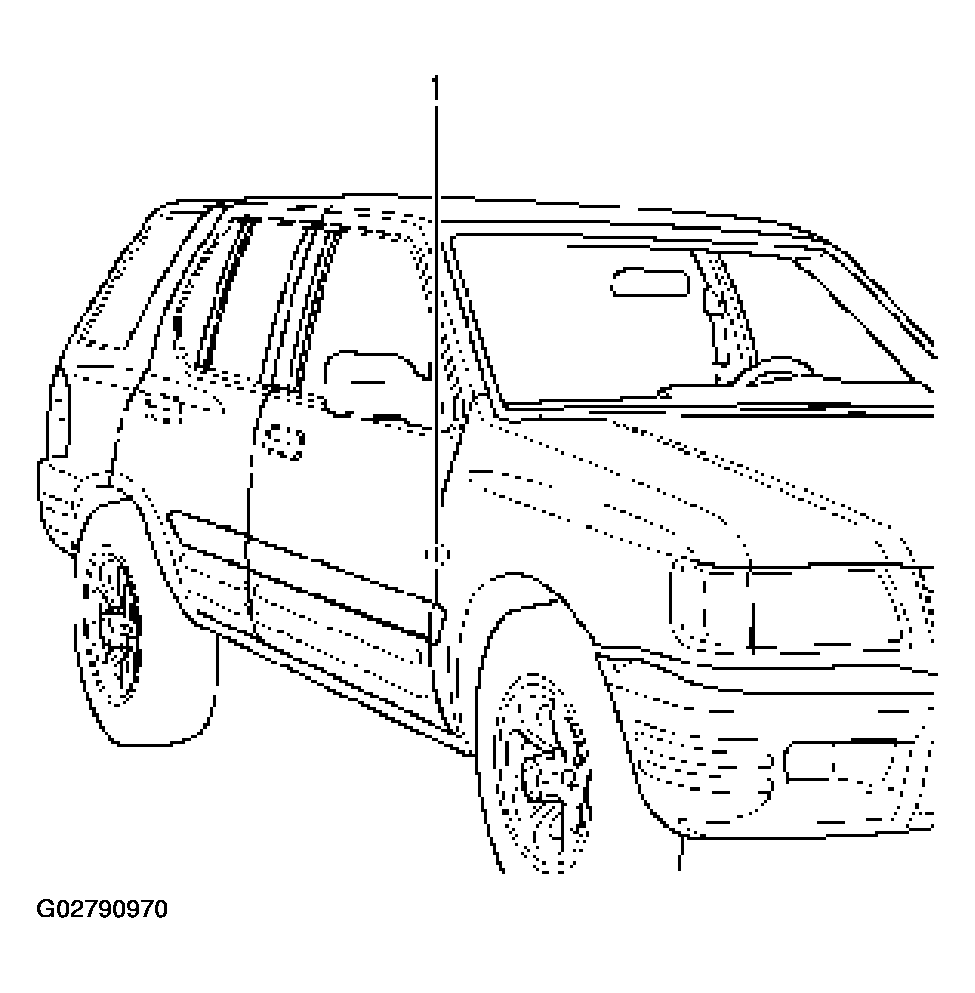

   Fig 1: Checking Fender & Front Door (1 Of 2)

   Courtesy of ISUZU MOTOR CO.
   Fig 2: Checking Fender & Front Door (2 Of 2)

   Courtesy of ISUZU MOTOR CO.
