Front Bumper: Removal

  1. Disconnect the battery ground cable.
  2. Disconnect front fog light connector (With fog light).
  3. Remove each clip on the right and left side of the inner liner.
  4. Remove the front bumper fixing bolts.
    • Remove the two bolts from both sides of the front bumper.

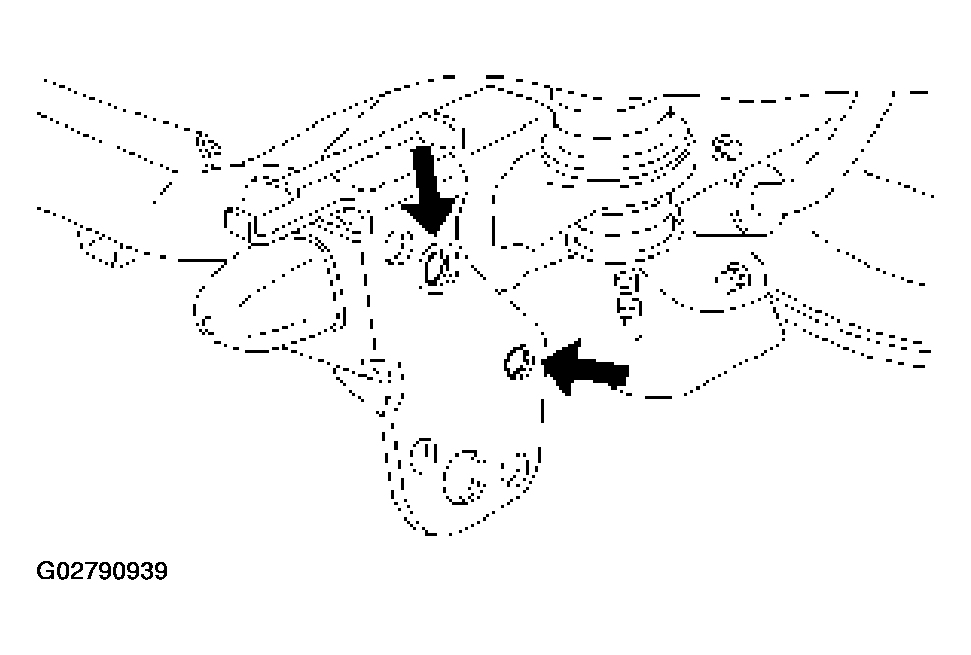

      Fig 1: Removing Front Bumper Fixing Bolts
      G02790939Courtesy of ISUZU MOTOR CO.
  5. Remove front bumper assembly.
  6. Remove the support assembly.
    • Remove the three fixing bolts.
  7. Remove the front bumper reinforcement assembly.
    • Remove the eleven fixing bolts.
  8. Remove the front bumper extension (OPT).
    • Remove the three nuts and nine bolts.
  9. Remove the three bolts at each backbar and remove backbars.
  10. Remove the front fog light assembly (With fog light).
  11. Remove the front bumper slide (1).
    • Remove the two screws (4) and the two nuts (3) and release the claw from the washer (2).

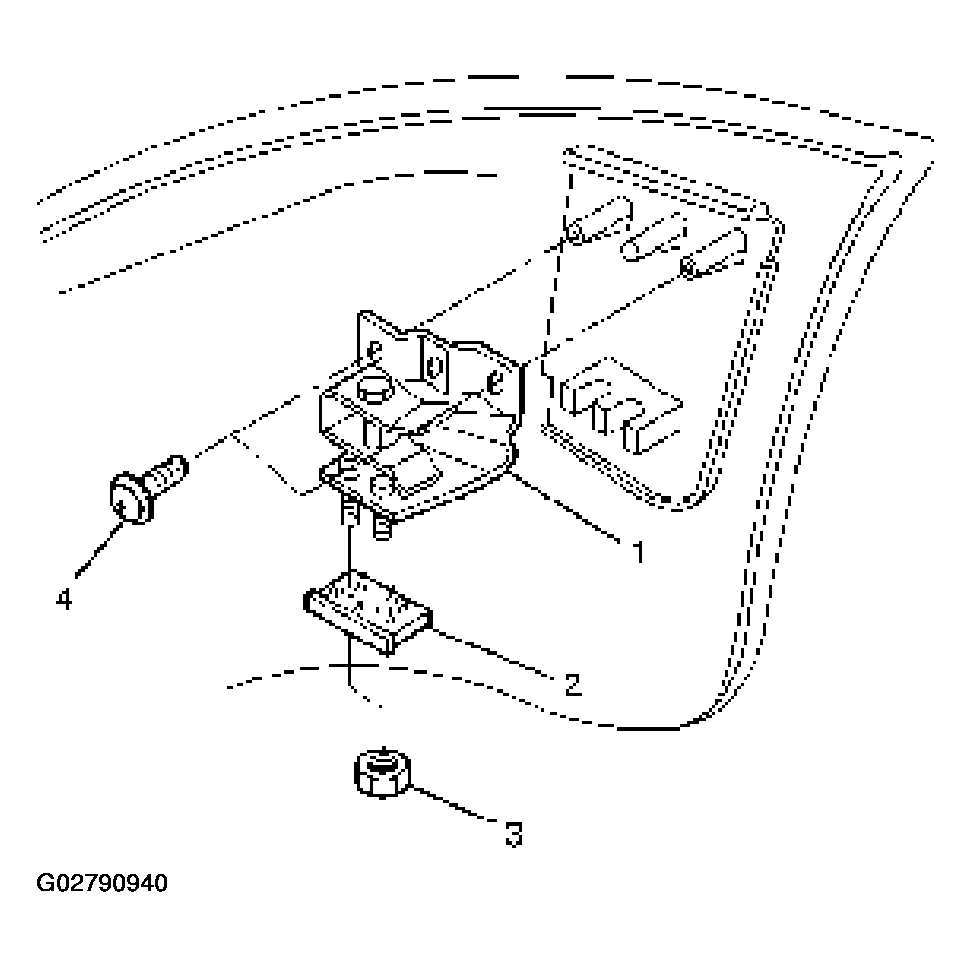

      Fig 2: Removing Front Bumper Slide
      G02790940Courtesy of ISUZU MOTOR CO.
