Body Structure: Frame: General Description

Proper frame alignment is important to assure normal vehicle life and performance of many other parts of the vehicle. If the vehicle has been involved in a fire, collision or has been overloaded, it is necessary to check the frame alignment.

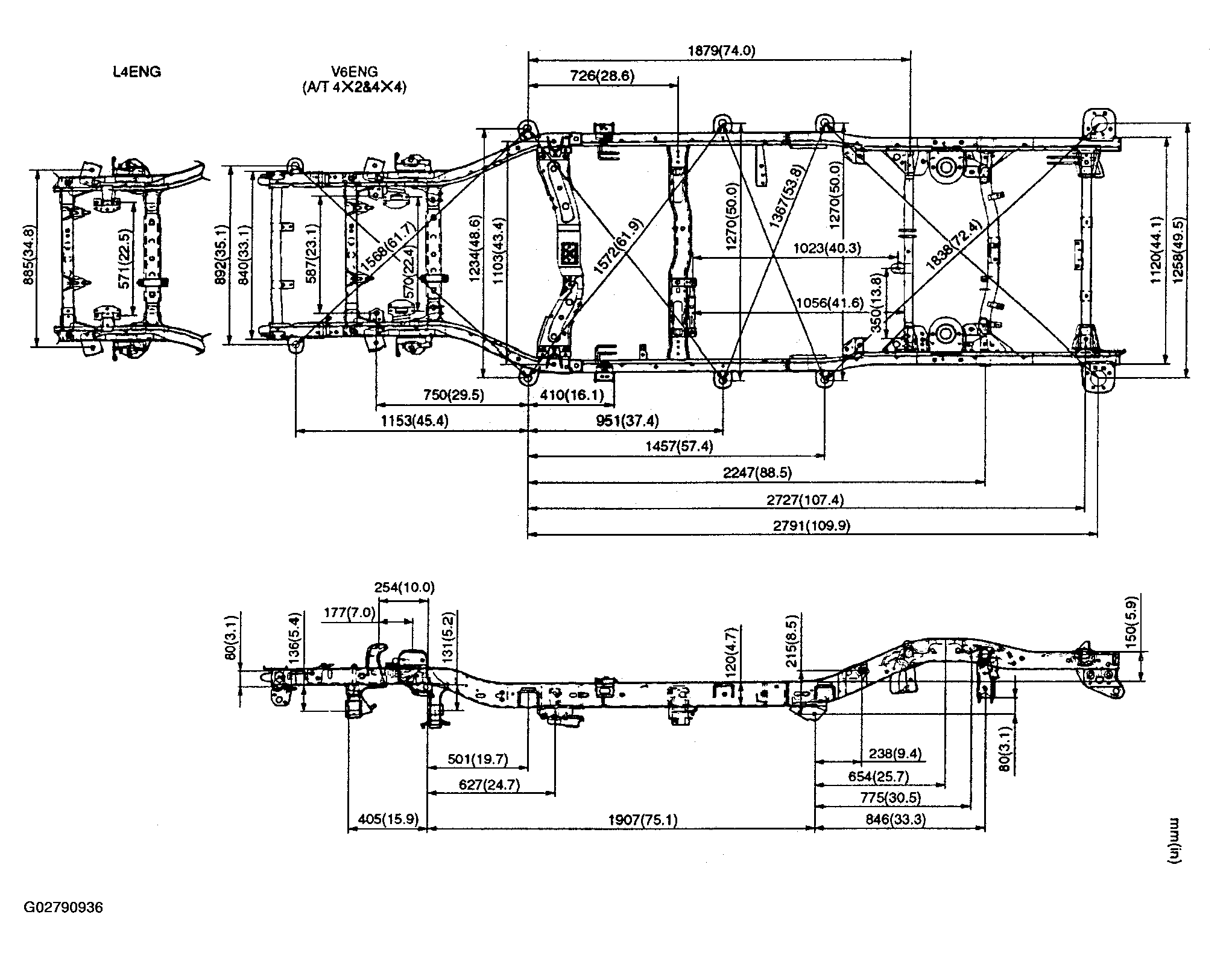

Fig 1: Identifying Frame Dimensions (LWB)
G02790936Courtesy of ISUZU MOTOR CO.

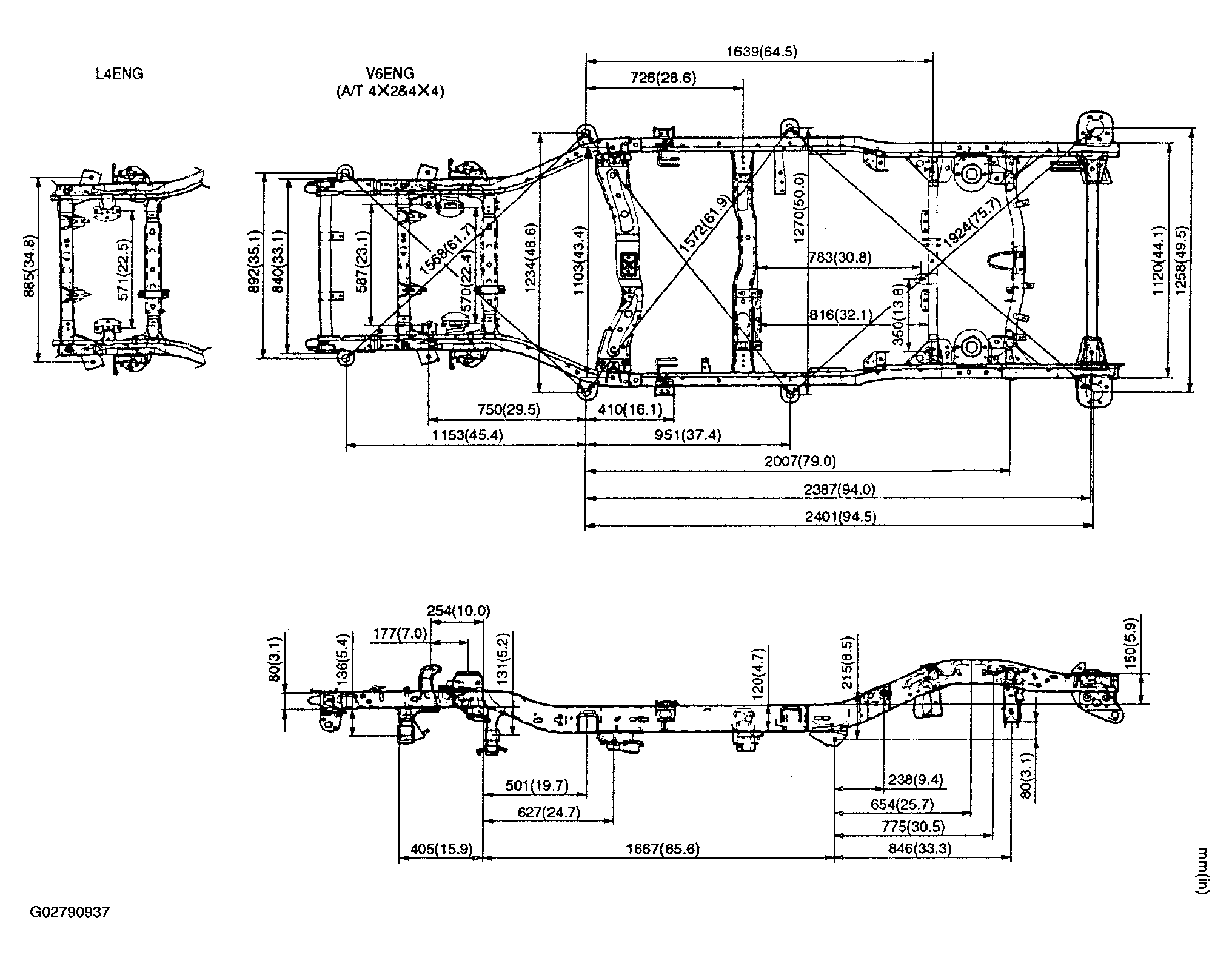

Fig 2: Identifying Frame Dimensions (SWB)
G02790937Courtesy of ISUZU MOTOR CO.
