Steering Column and Associated Parts

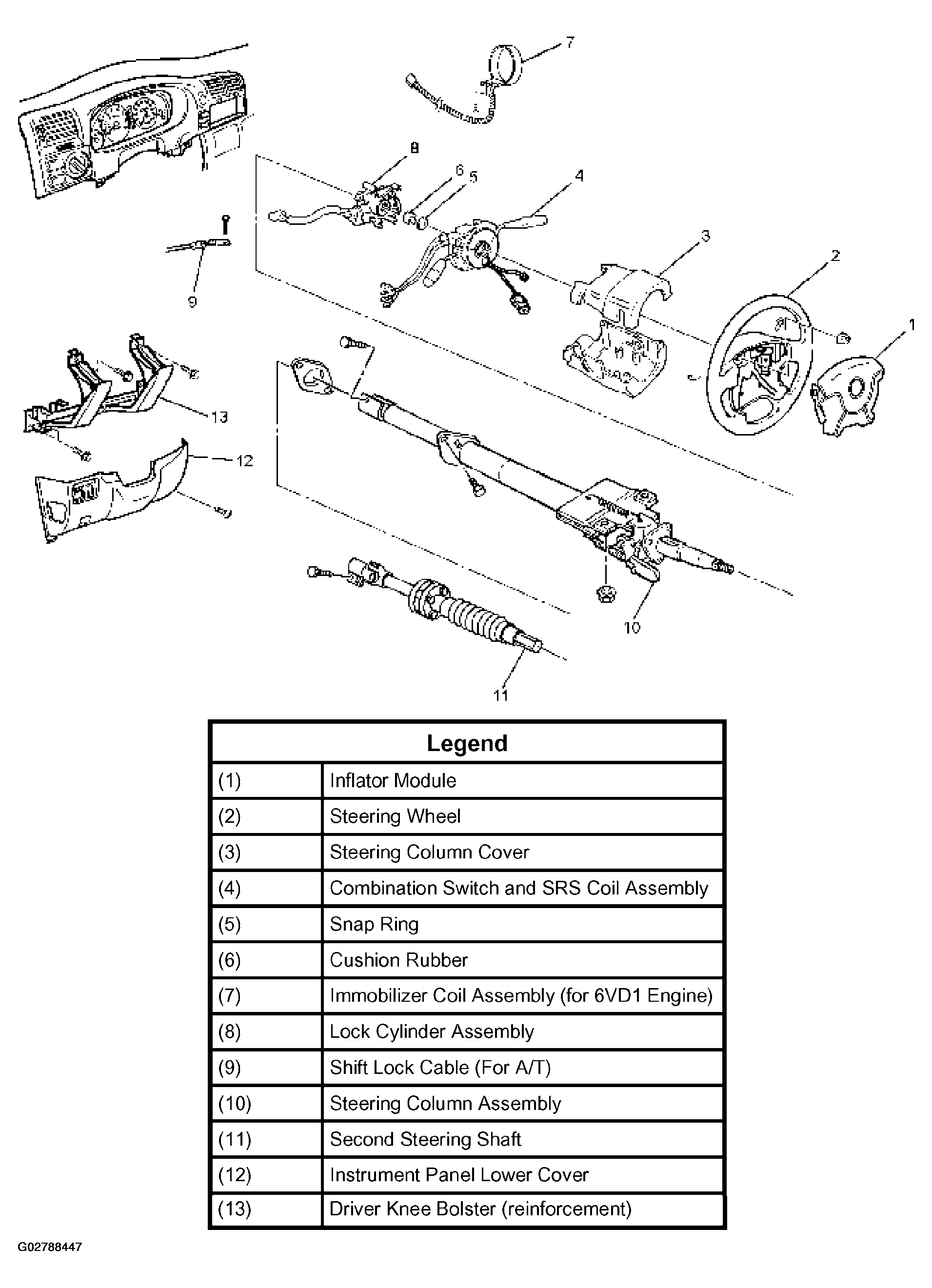

Fig 1: Identifying Steering Column & Associated Parts

G02788447

Courtesy of ISUZU MOTOR CO.
