Steering Column: Removal

  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Turn the ignition switch to "LOCK".
  3. Disconnect the battery ground cable, and wait at least 5 minutes.
  4. Disconnect the yellow SRS connector located under the steering column.
    CAUTION: The wheel of the vehicle must be straight ahead and the steering column in the "LOCK" position before disconnecting the steering column from the steering gear. Failure to do so will cause the SRS coil assembly to become uncentered which will cause damage to the SRS coil assembly.
  5. Remove the engine hood opening lever, then remove instrument panel lower cover.
  6. Remove driver knee bolster (reinforcement).
  7. Loosen the inflator module fixing bolt from behind the steering wheel assembly using a TORX® driver or equivalent until the inflator module can be released from steering assembly.

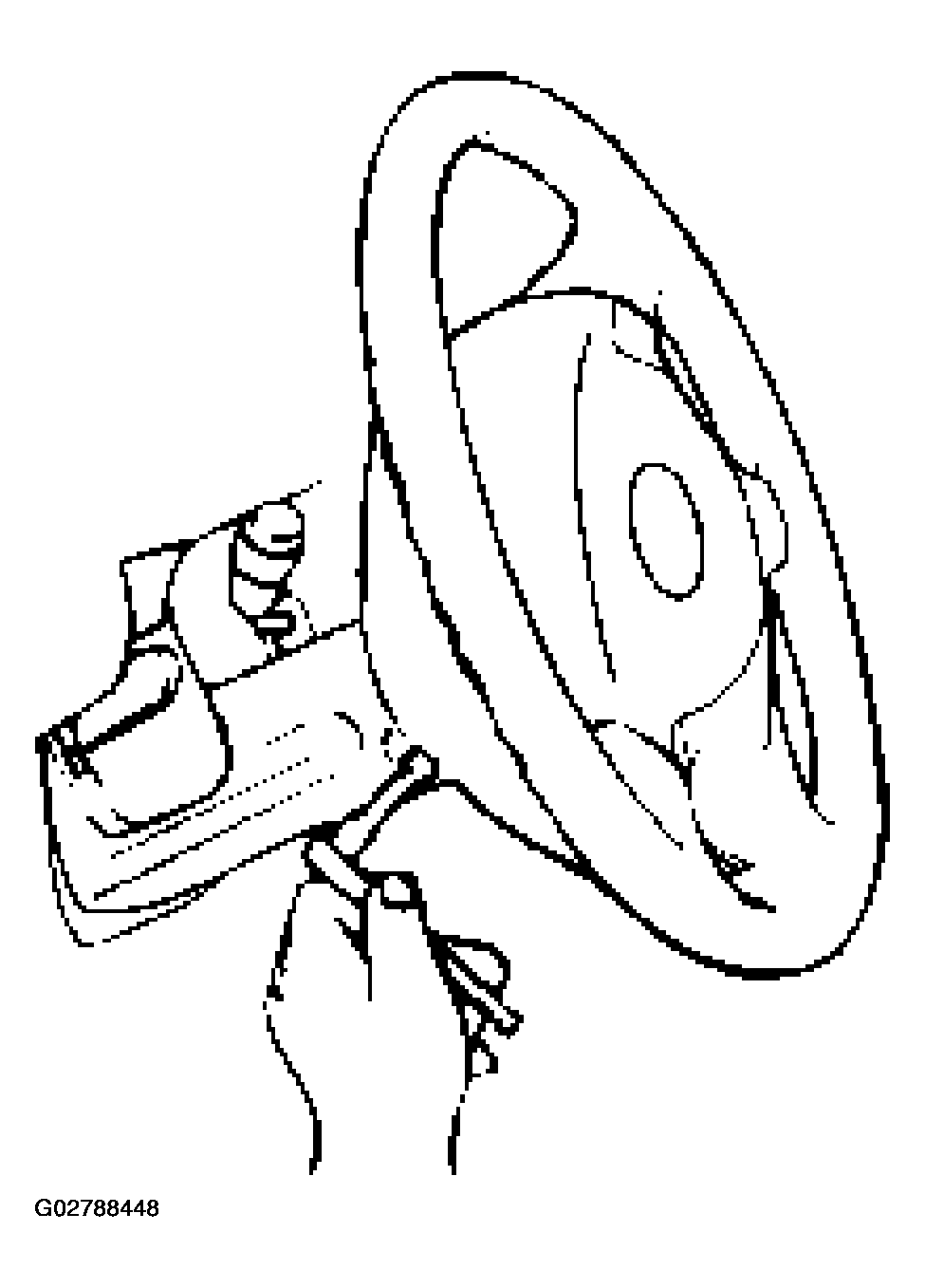

    Fig 1: Removing Steering Wheel Assembly
    G02788448Courtesy of ISUZU MOTOR CO.
  8. Disconnect the yellow SRS connector and horn lead located behind the inflator module.
  9. Disconnect horn and steering switch connector.
  10. Remove inflator module.
    WARNING: THE INFLATOR MODULE SHOULD ALWAYS BE CARRIED WITH THE TRIM COVER AWAY FROM YOUR BODY AND SHOULD ALWAYS BE LAID ON A FLAT SURFACE WITH THE URETHANE SIDE UP. THIS IS NECESSARY BECAUSE A FREE SPACE IS PROVIDED TO ALLOW THE AIR CUSHION TO EXPAND IN THE UNLIKELY EVENT OF ACCIDENTAL DEPLOYMENT. OTHERWISE, PERSONAL INJURY MAY RESULT.
    Fig 2: Carrying Trim Cover Away From Body
    G02788449Courtesy of ISUZU MOTOR CO.
  11. Apply a setting mark (1) across the steering wheel and shaft so parts can be reassembled in their original position. Move the front wheels to the straight ahead position, then use steering wheel remover J-29752 to remove the steering wheel.

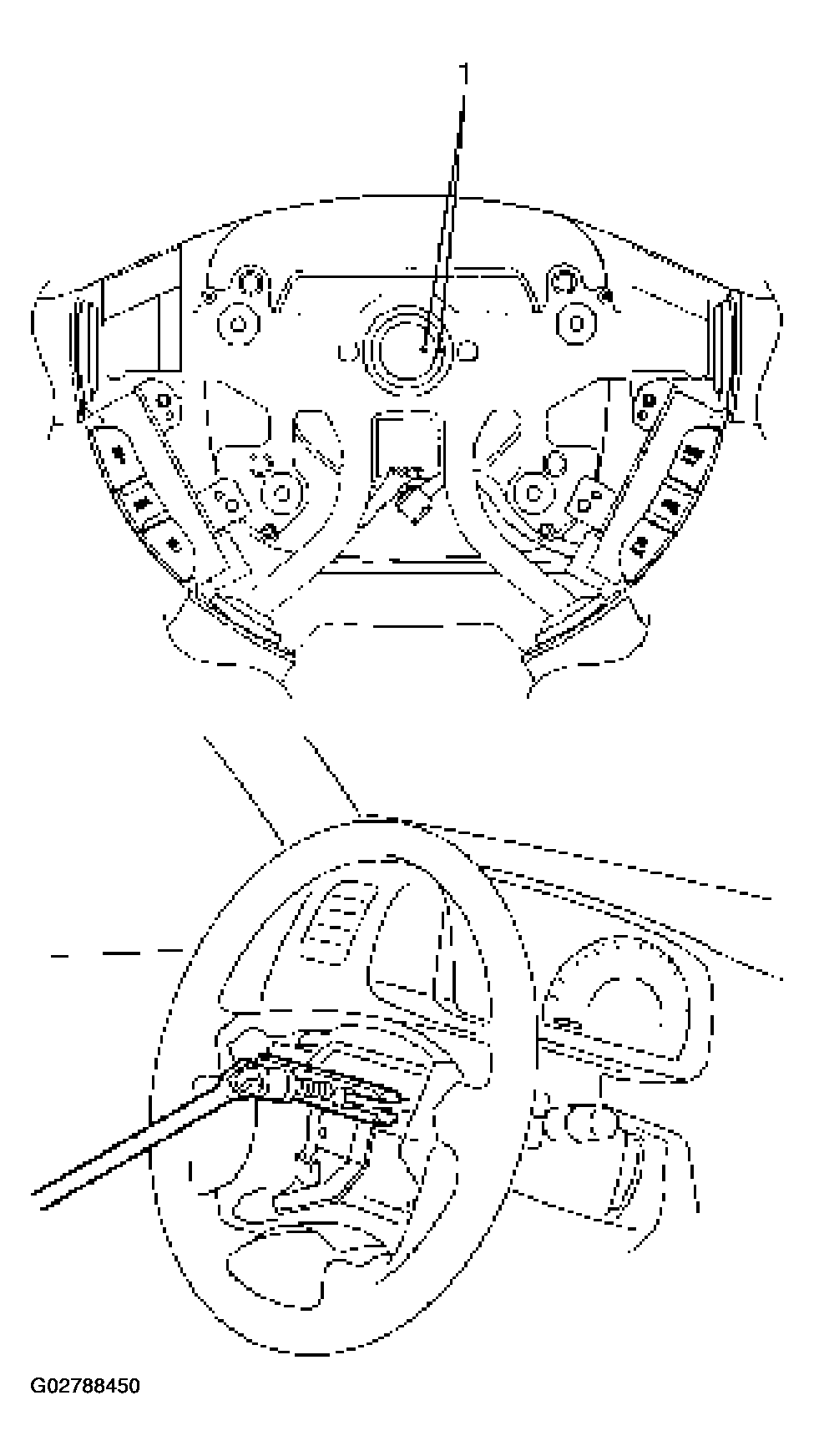

    Fig 3: Applying Setting Mark Across Steering Wheel & Shaft
    G02788450Courtesy of ISUZU MOTOR CO.
  12. Remove steering column cover.
  13. Disconnect the wiring harness connectors located under the steering column.
  14. Remove the combination switch assembly with SRS coil.
    Fig 4: Removing Combination Switch Assembly With SRS Coil
    G02788451Courtesy of ISUZU MOTOR CO.
  15. Disconnect immobilizer coil connector from a control unit, then remove immobilizer coil assembly. (For 6VD1 Engine)
  16. Remove snap ring.
  17. Remove cushion rubber.
  18. Remove shift lock cable (For A/T).
  19. Disconnect the starter switch harness connector located under the steering column, then remove lock cylinder assembly.
  20. Apply a setting mark (1) across the universal joint and second steering shaft to reassemble the parts in their original position, then remove steering column assembly and second shaft.
    NOTE: A setting mark can be easily made if the shaft is withdrawn a little by loosening the steering shaft universal joint.

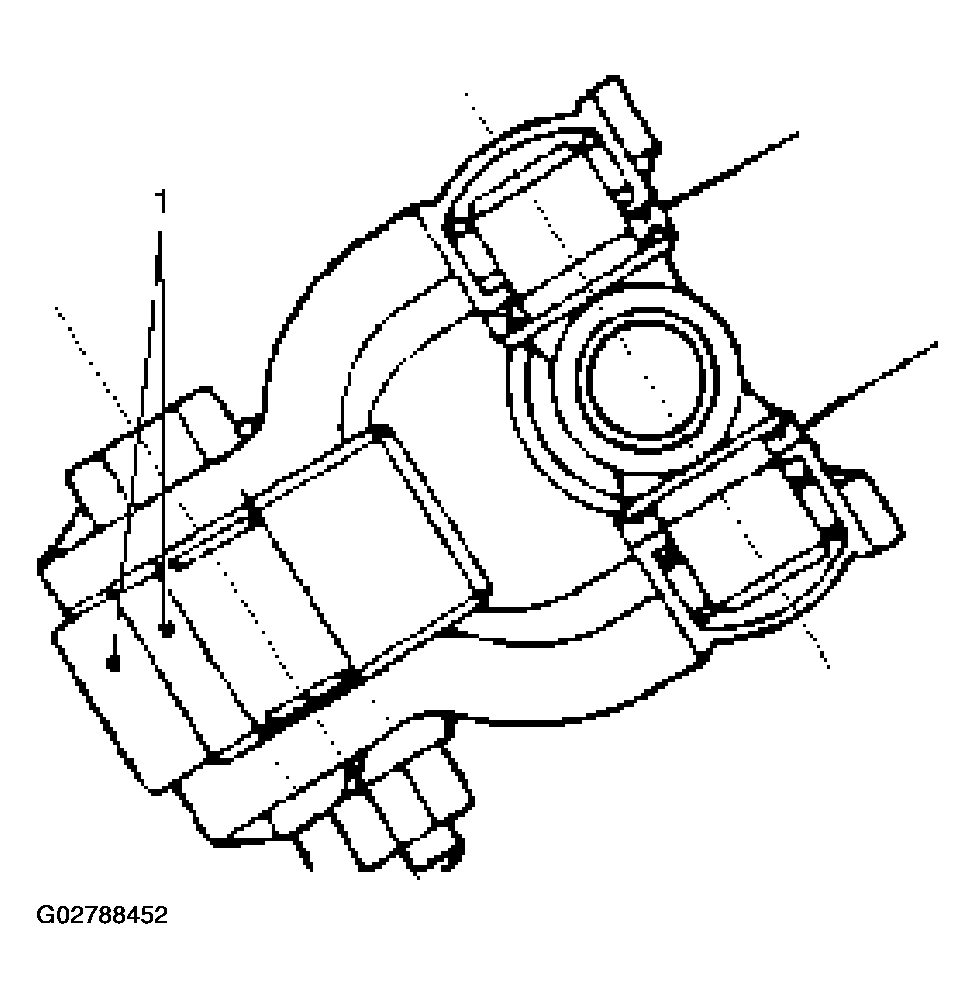

    Fig 5: Applying Setting Mark Across Universal Joint & Second Steering Shaft
    G02788452Courtesy of ISUZU MOTOR CO.
