Combination Switch and Associated Parts

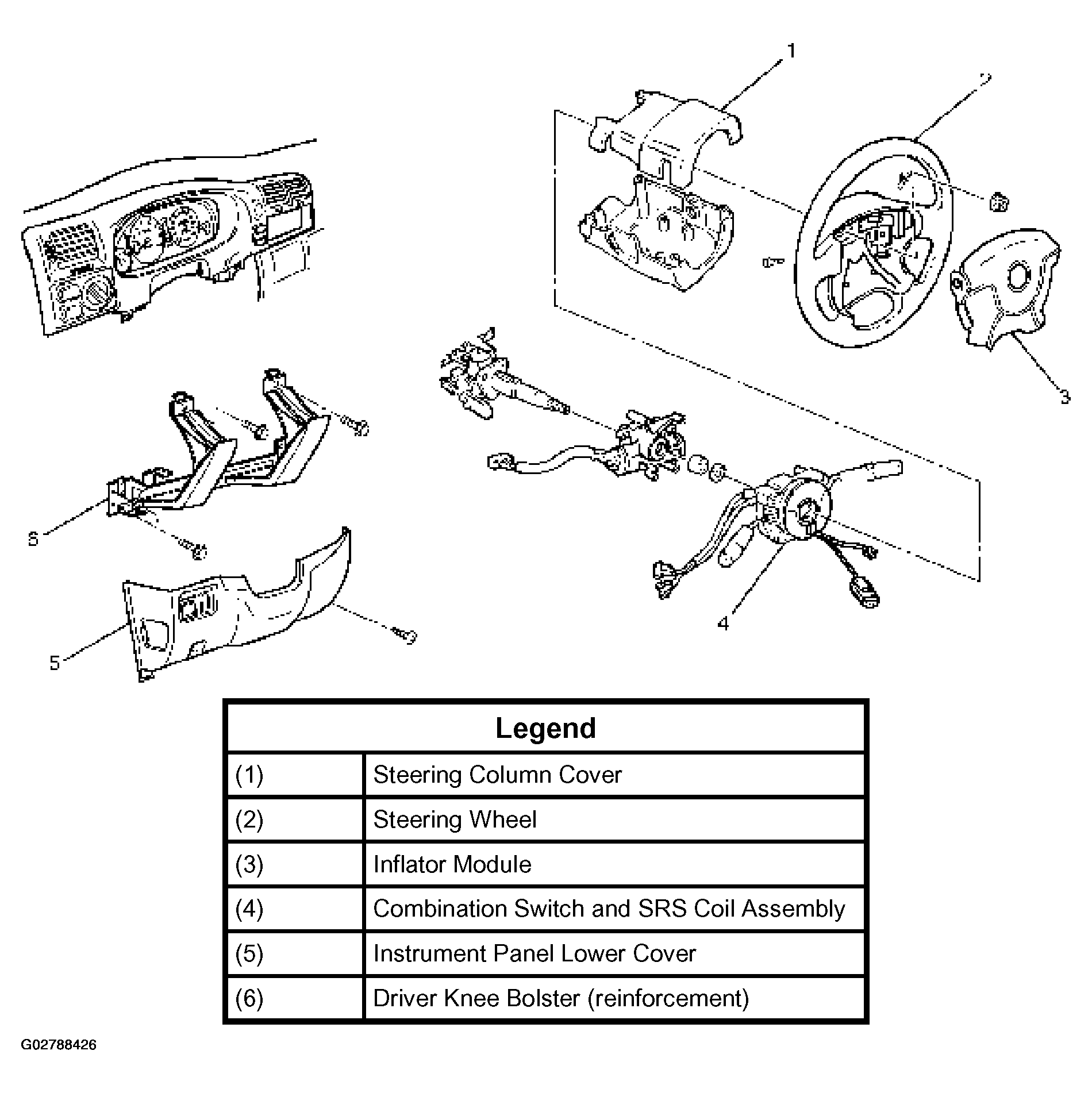

Fig 1: Identifying Combination Switch & Associated Parts

G02788426

Courtesy of ISUZU MOTOR CO.
