Removal & Installation (Axiom, Rodeo & Rodeo Sport 3.2L)

NOTE: Intake manifold may also be referred to as intake plenum or common chamber.
  1. Disconnect negative battery cable.
  2. Remove air cleaner duct assembly.
  3. Disconnect power brake booster vacuum hose.
  4. Disconnect necessary electrical connectors.
  5. Disconnect vacuum hose on EVAP VSV canister and PCV ventilation hose.
  6. Remove ventilation hose from throttle valve and intake duct and remove water hose.

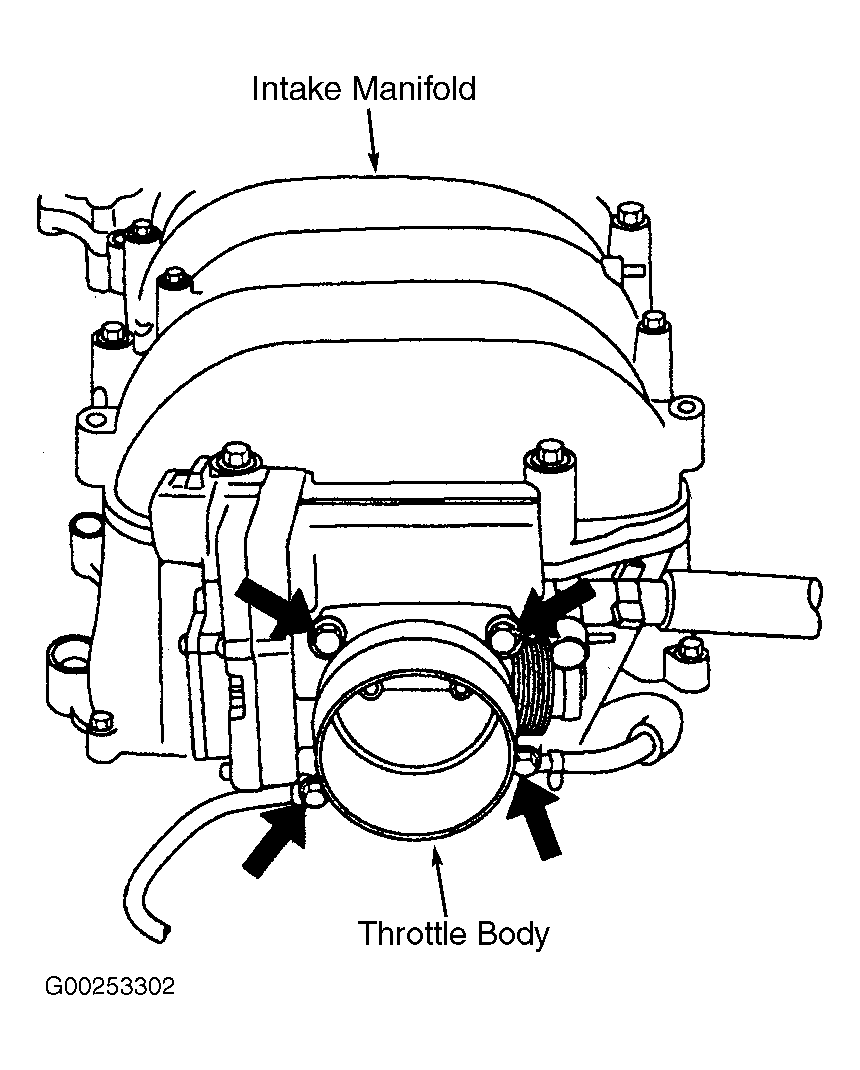

  7. Remove 4 bolts securing throttle body to intake manifold. See Figure .
  8. Remove EGR valve nut and bolt, and remove EGR valve.
  9. Remove 2 bolts at rear of intake manifold and remove fuel hose bracket.
  10. Remove remaining intake manifold nuts and bolts. Remove intake manifold.
  11. To install, reverse removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS  .
