Removal & Installation (Ascender 4.2L)

  1. Remove throttle body assembly. See THROTTLE BODY  .
  2. Remove Powertrain Control Module (PCM) retaining bolts and nuts. See Figure . See POWER TRAIN CONTROL MODULE  under COMPUTERIZED ENGINE CONTROLS.
  3. Disconnect electrical connectors and all wire harnesses from harness bracket. See Fig 1 .
  4. Remove front differential vent hose from bracket clip.
  5. Remove engine harness bracket bolt and remove bracket. See Fig 2 .
  6. Disconnect MAP sensor electrical connector.
  7. Disconnect crankcase ventilation hose. See Fig 3 .
  8. Disconnect the brake hose at the booster.
  9. Remove generator. See appropriate GENERATORS & REGULATORS article in ELECTRICAL.
  10. Loosen and remove the intake manifold bolts. Remove the intake manifold. See Fig 4 .

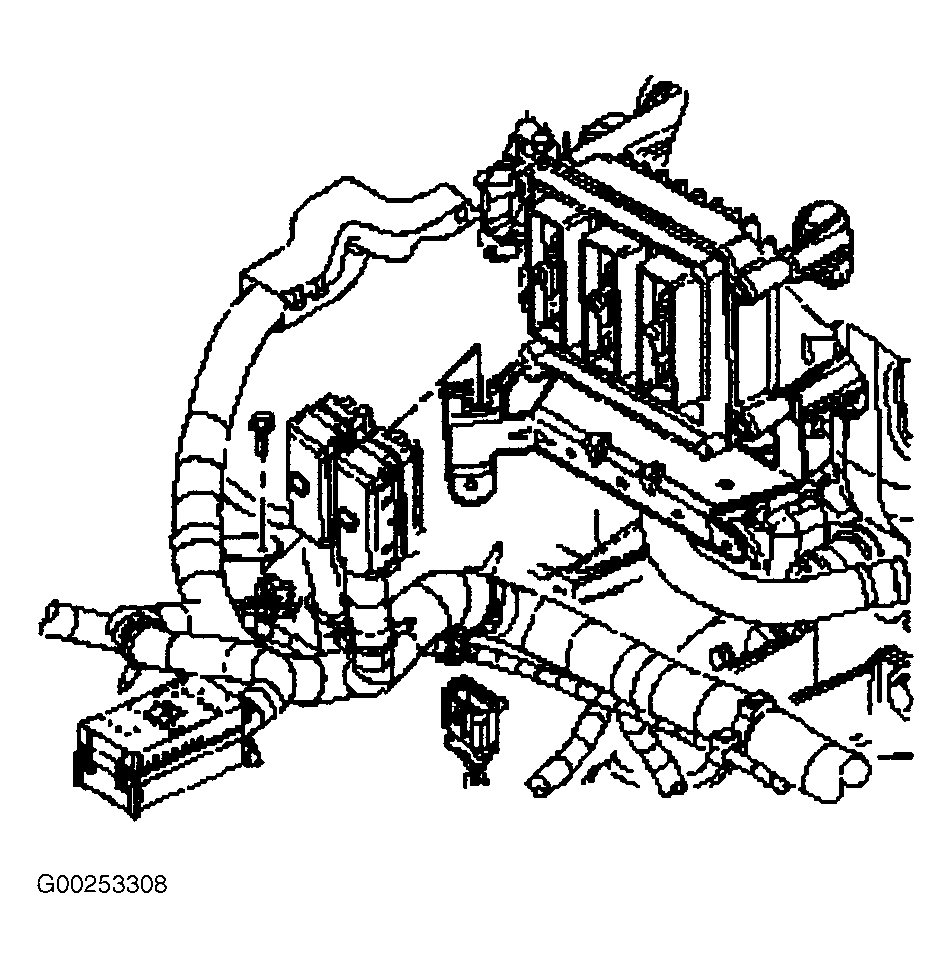

Fig 1: Removing & Installing Wiring Harness (Ascender 4.2L)
G00253308Courtesy of ISUZU MOTOR CO.

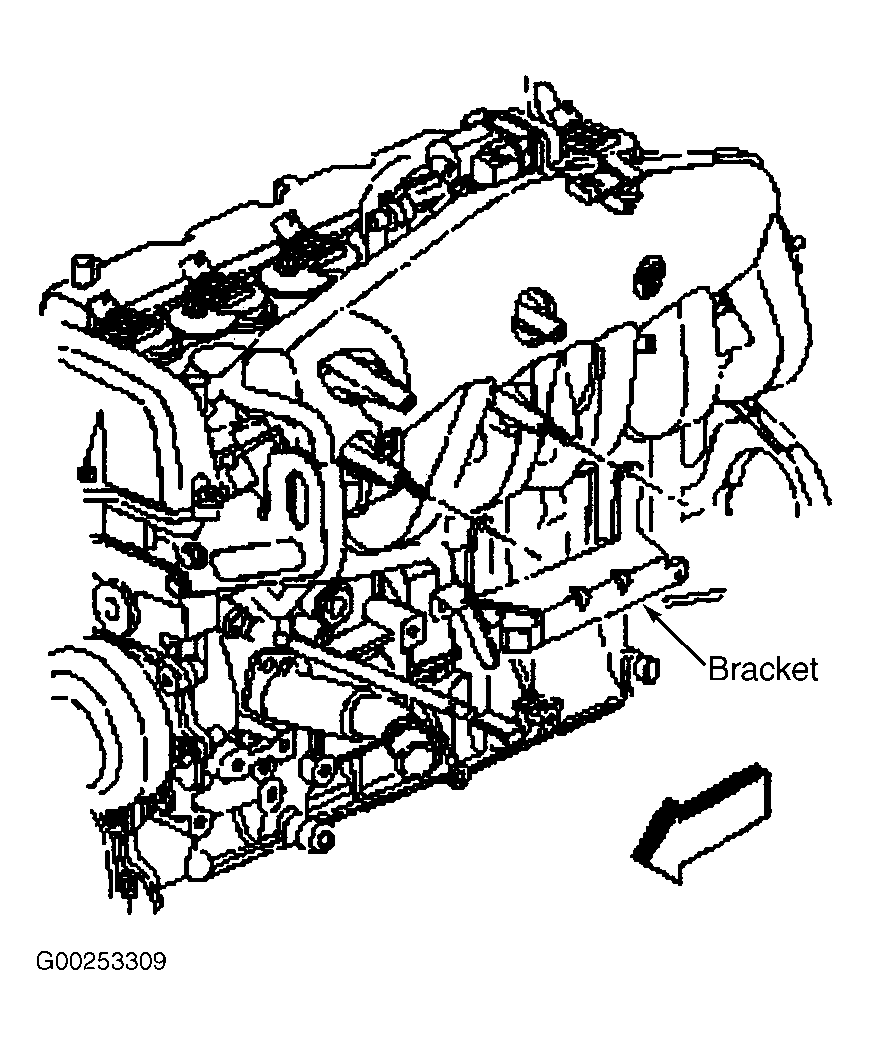

Fig 2: Locating Wiring Harness Bracket (Ascender 4.2L)
G00253309Courtesy of ISUZU MOTOR CO.

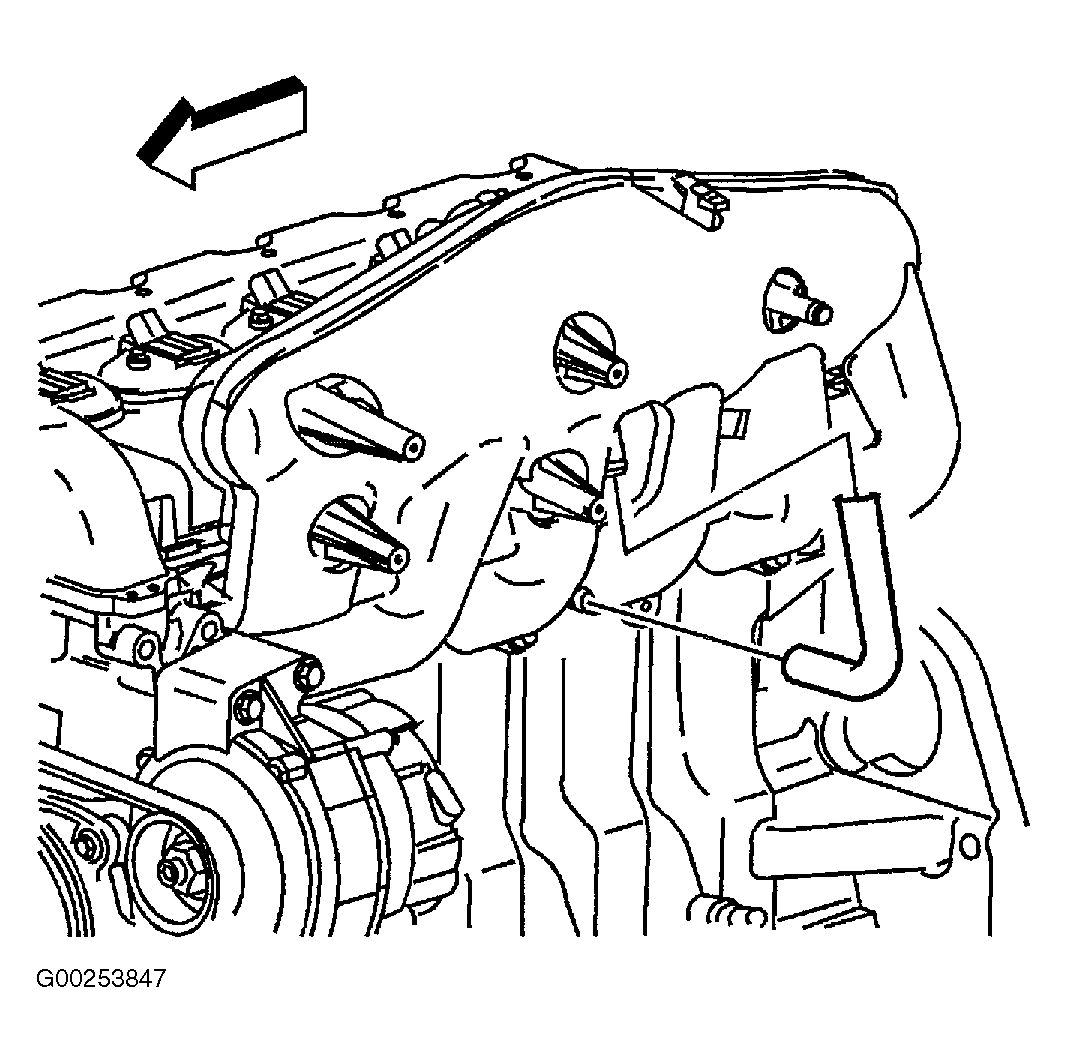

Fig 3: Locating Crankcase Ventilation Hose (Ascender 4.2L)
G00253847Courtesy of GENERAL MOTORS CORP.

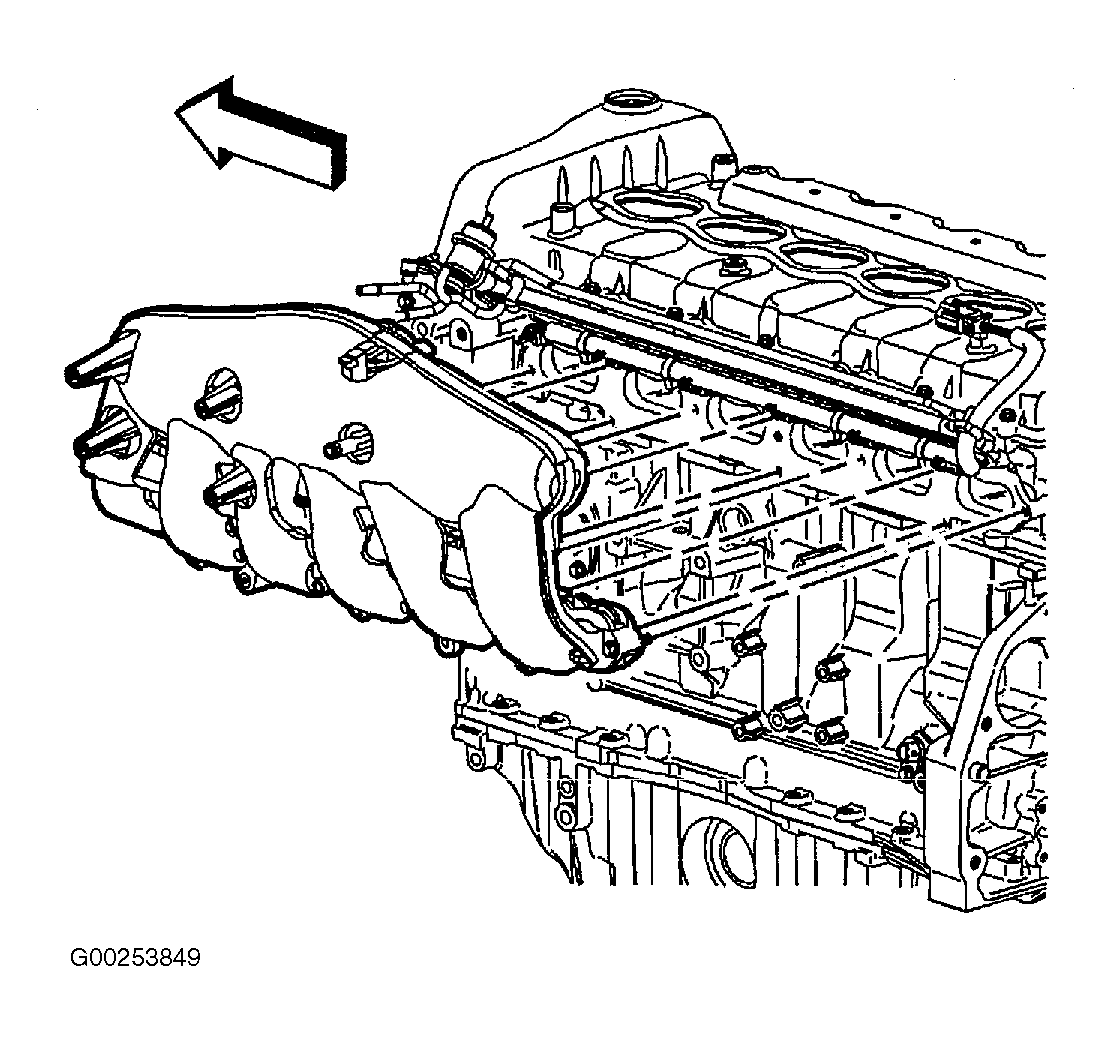

Fig 4: Removing Intake Manifold (Ascender 4.2L)
G00253849Courtesy of GENERAL MOTORS CORP.
