Ascender 4.2L

  1. Remove fuel tank cap.
  2. Remove fuel pump relay from underhood junction block. See Fig 1 .
  3. Crank engine.
  4. Allow engine to start and stall.
  5. Crank engine an additional 3 seconds.
  6. Turn ignition off.
  7. Disconnect negative battery cable.
  8. Install and tighten fuel filler cap.
  9. Install fuel pump relay.

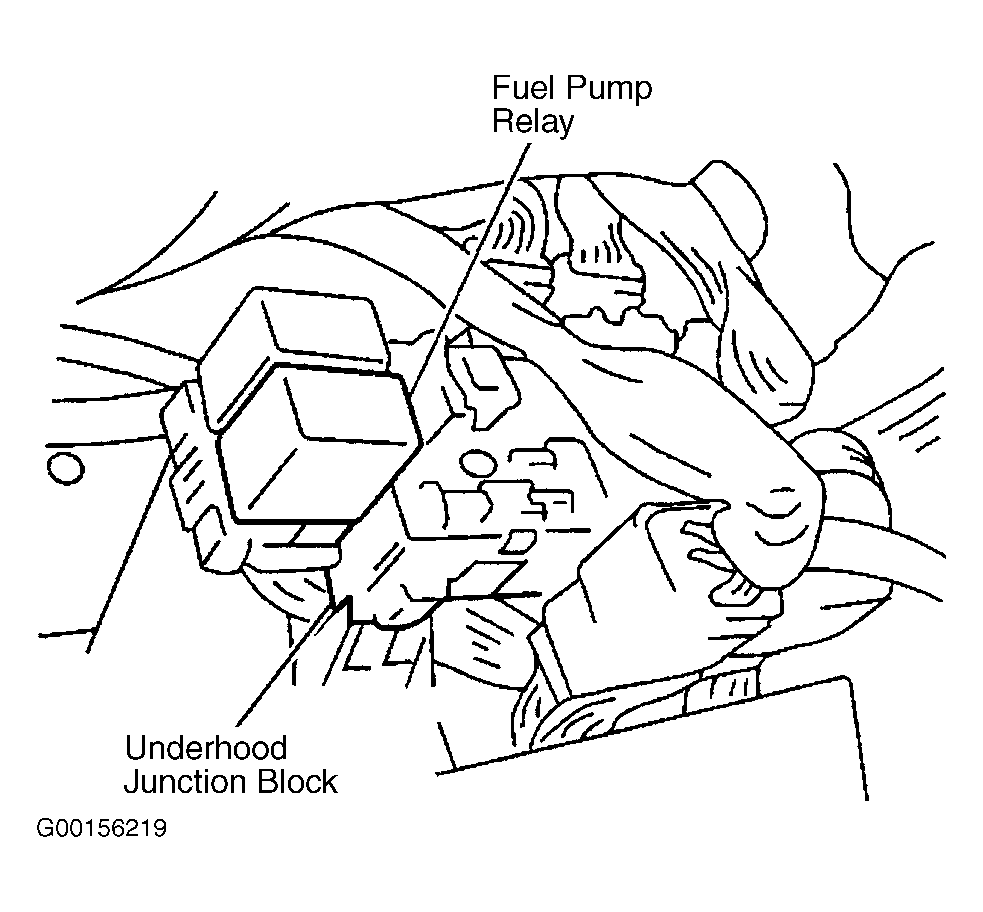

Fig 1: Locating Fuel Pump Relay (Ascender 4.2L)
G00156219Courtesy of GENERAL MOTORS CORP.
