Lock Cylinder: Removal

  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Turn the ignition switch to "LOCK".
  3. Disconnect the battery ground cable, and wait at least 5 minutes.
  4. Disconnect the yellow SRS connector located under the steering column.
    CAUTION: The wheels of the vehicle must be straight ahead and the steering column in the "LOCK" position before disconnecting the steering wheel. Failure to do so will cause the coil assembly to become uncentered which will cause damage to the coil assembly.
  5. Remove the engine hood opening lever and steering lower cover.
  6. Remove driver knee bolster (reinforcement).
  7. Loosen the inflator module fixing bolt from behind the steering wheel assembly using a TORX® driver or equivalent until the inflator module can be released from steering assembly.

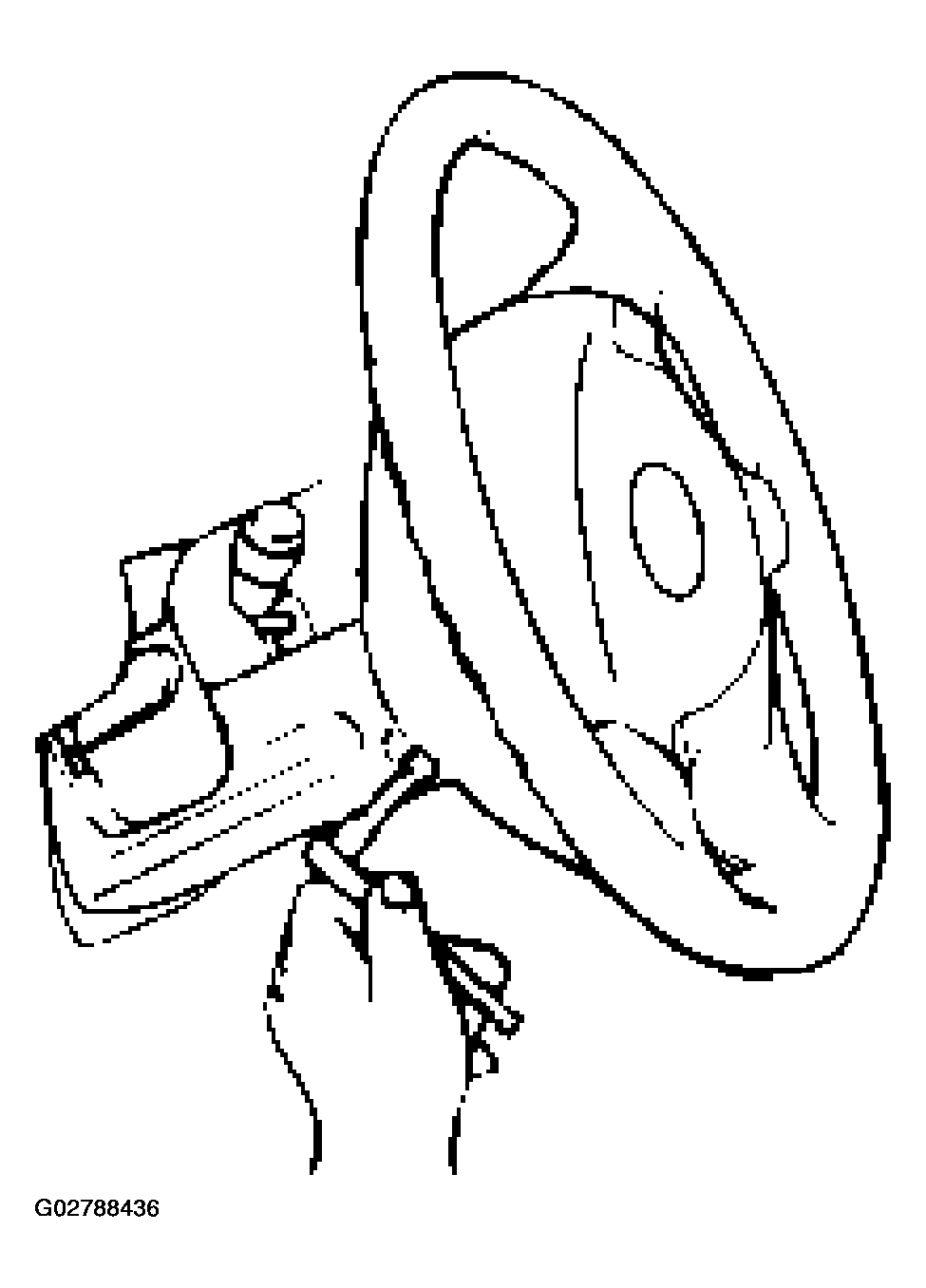

    Fig 1: Removing Inflator Module
    G02788436Courtesy of ISUZU MOTOR CO.
  8. Disconnect the yellow SRS connector and horn lead located behind the inflator module.

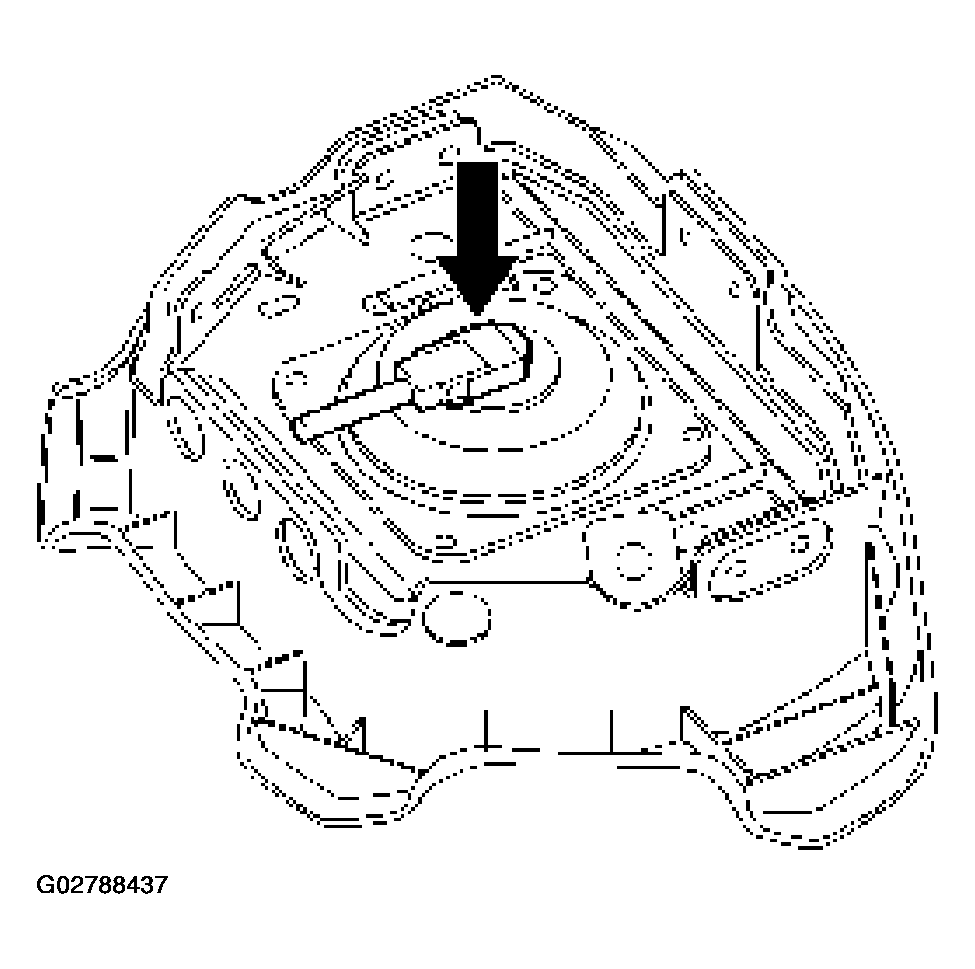

    Fig 2: Disconnecting SRS Connector & Horn
    G02788437Courtesy of ISUZU MOTOR CO.
  9. Disconnect horn and steering switch connector.

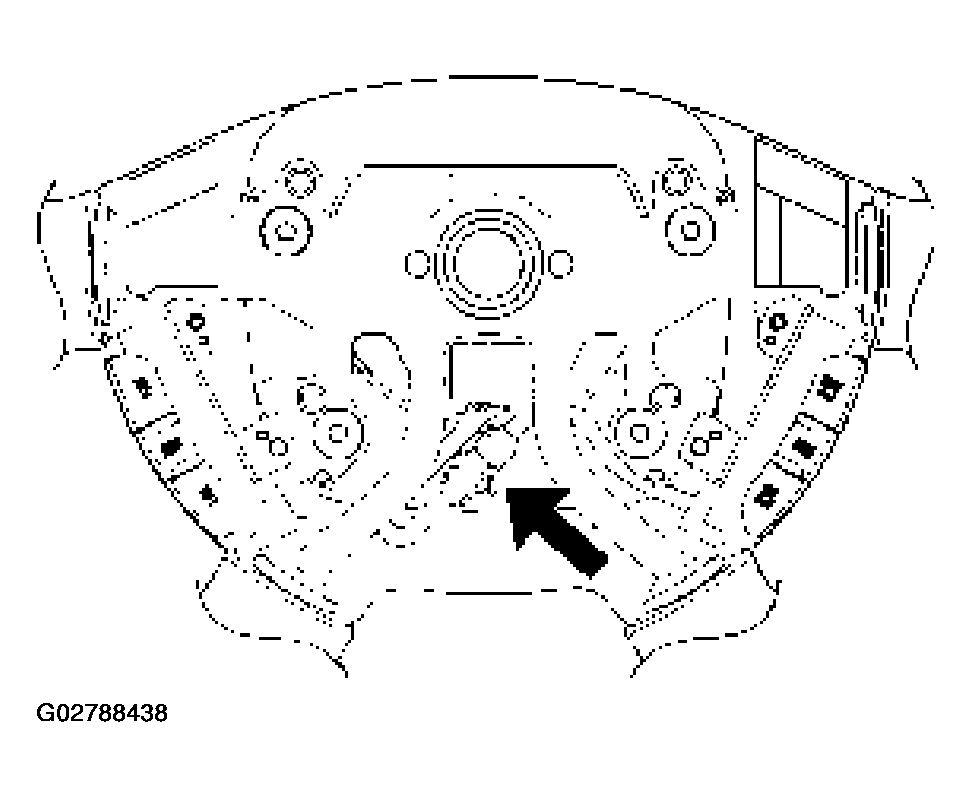

    Fig 3: Disconnecting Horn & Steering Switch Connector
    G02788438Courtesy of ISUZU MOTOR CO.
  10. Apply a setting mark (1) across the steering wheel and shaft so parts can be reassembled in their original position.

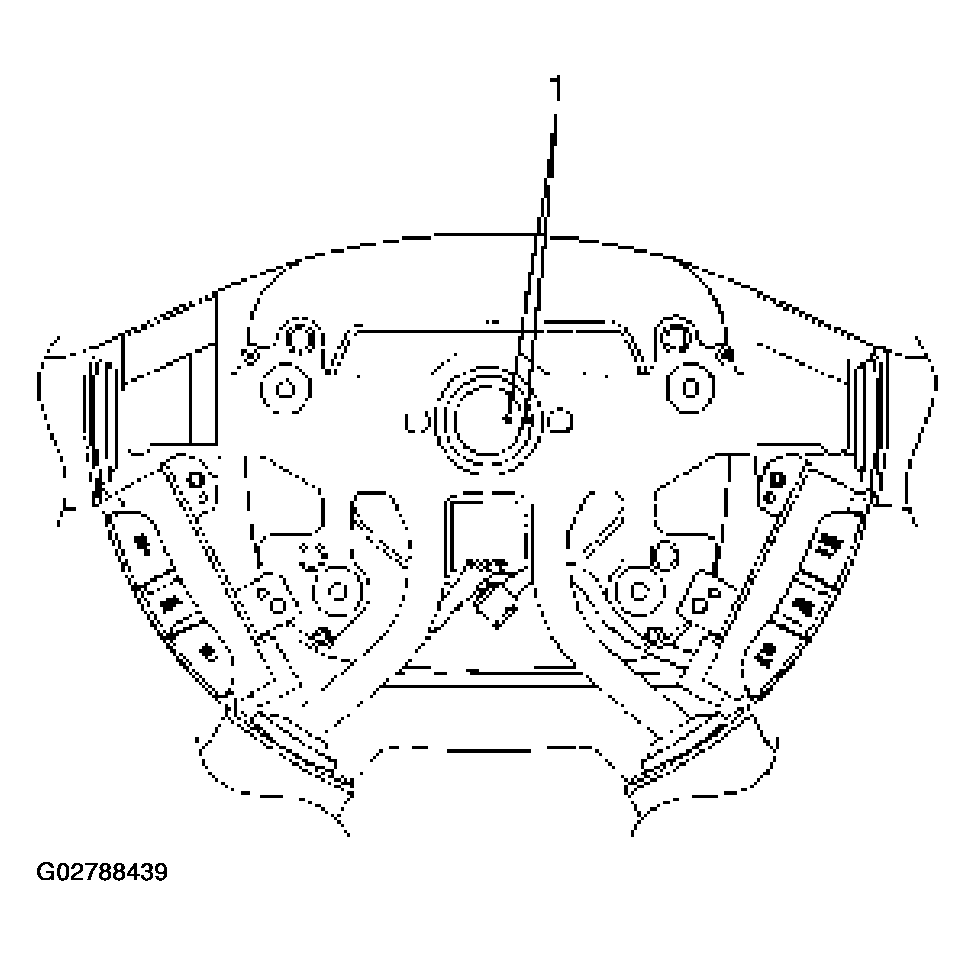

    Fig 4: Applying Setting Mark Across Steering Wheel & Shaft
    G02788439Courtesy of ISUZU MOTOR CO.
  11. Move the front wheels to the straight ahead position, then use steering wheel remover J-29752 to remove the steering wheel.
    CAUTION: Never apply force to the steering wheel shaft using a hammer or other impact tools in an attempt to remove the steering wheel. The steering shaft is designed as an energy absorbing unit.

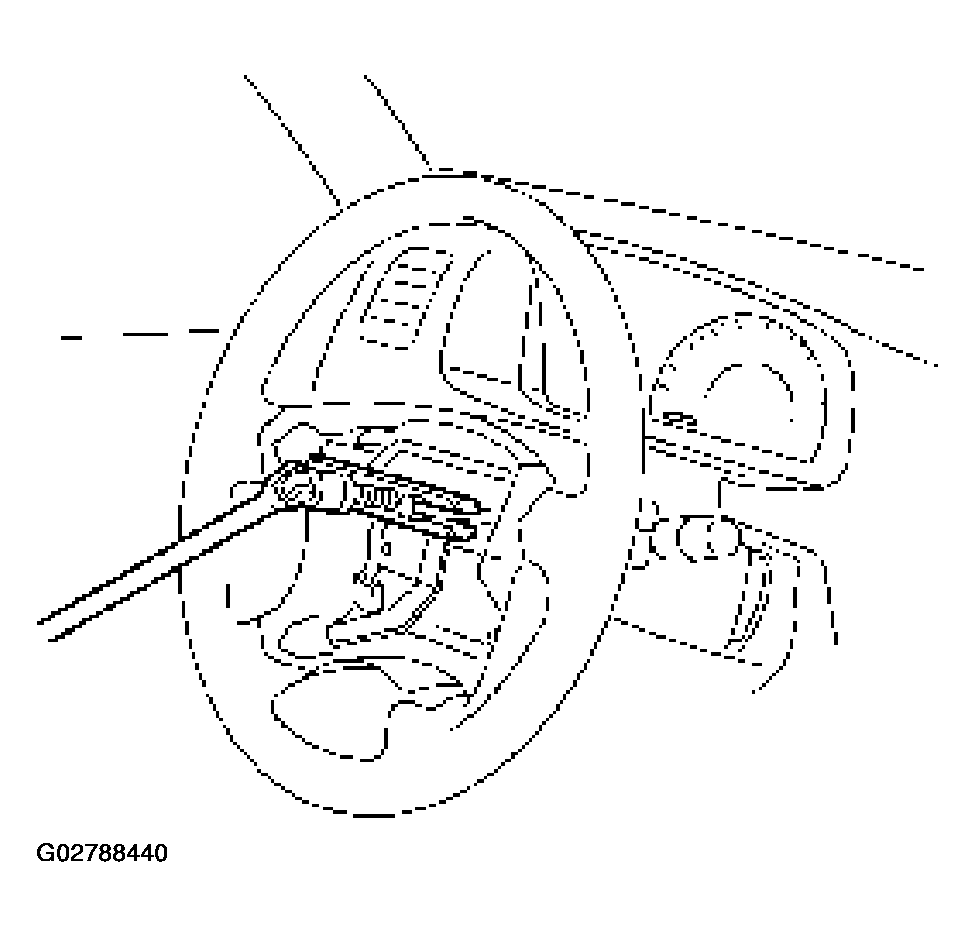

    Fig 5: Removing Steering Wheel
    G02788440Courtesy of ISUZU MOTOR CO.
    WARNING: THE INFLATOR MODULE SHOULD ALWAYS BE CARRIED WITH THE TRIM COVER AWAY FROM YOUR BODY AND SHOULD ALWAYS BE LAID ON A FLAT SURFACE WITH THE URETHANE SIDE UP. THIS IS NECESSARY BECAUSE A FREE SPACE IS PROVIDED TO ALLOW THE AIR CUSHION TO EXPAND IN THE UNLIKELY EVENT OF ACCIDENTAL DEPLOYMENT. OTHERWISE, PERSONAL INJURY MAY RESULT.
    Fig 6: Carrying Trim Cover Away From Body
    G02788441Courtesy of ISUZU MOTOR CO.
  12. Remove steering column cover.
  13. Disconnect the wiring harness connectors located under the steering column.
  14. Remove the combination switch assembly with SRS coil.
    Fig 7: Disconnecting Wiring Harness Connectors
    G02788442Courtesy of ISUZU MOTOR CO.
  15. Disconnect immobilizer coil assembly (for 6VD1 Engine).

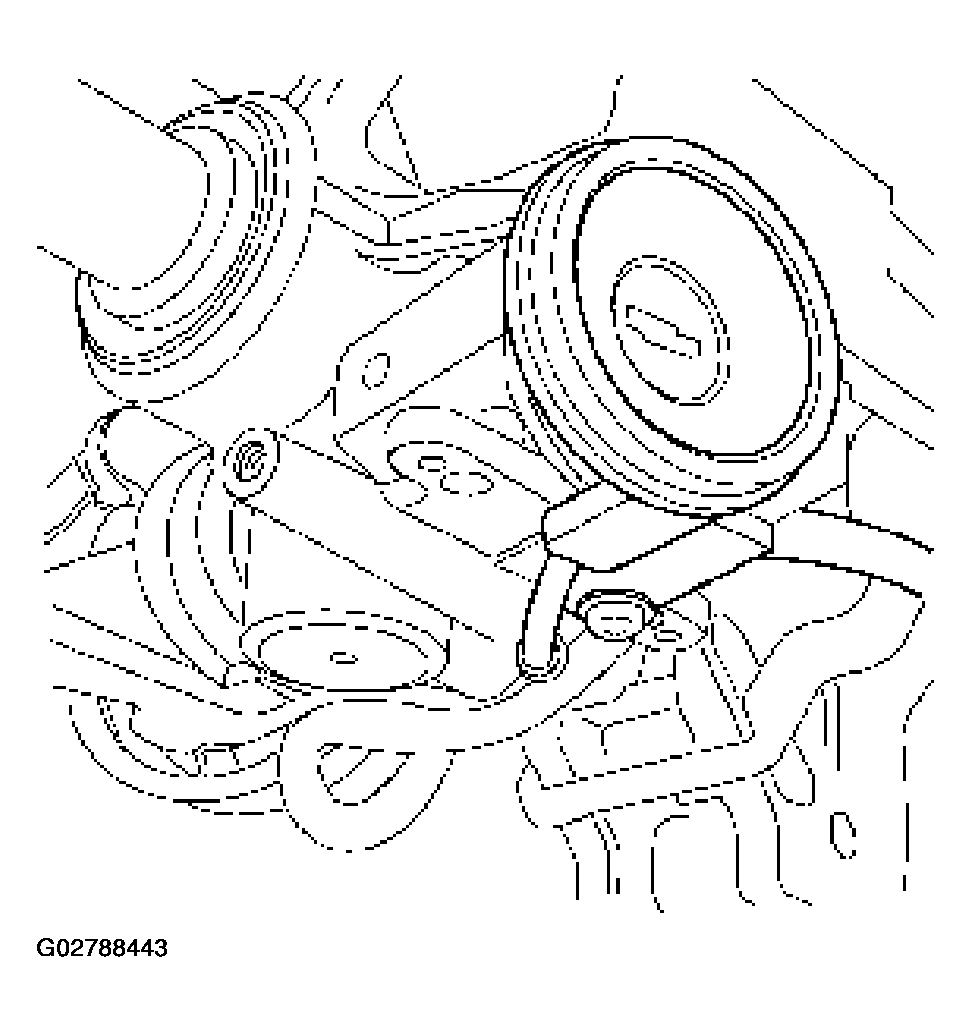

    Fig 8: Disconnecting Immobilizer Coil Assembly (For 6VD1 Engine)
    G02788443Courtesy of ISUZU MOTOR CO.
  16. Remove lock cylinder assembly.

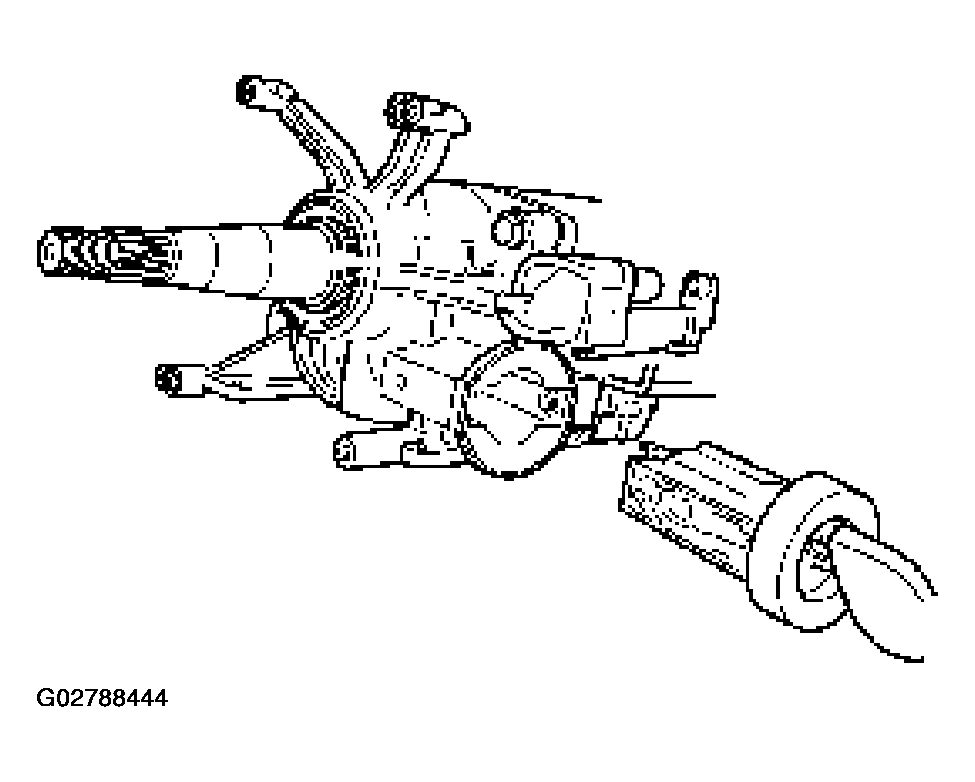

    Fig 9: Removing Lock Cylinder Assembly
    G02788444Courtesy of ISUZU MOTOR CO.
