Home >> Isuzu >> 2003 >> Rodeo LS, 3.2 W >> Repair and Diagnosis >> Steering >> Power Steering >> Power-Assisted Steering System >> Diagnosis >> General Diagnosis >> Notes

General Diagnosis: Notes

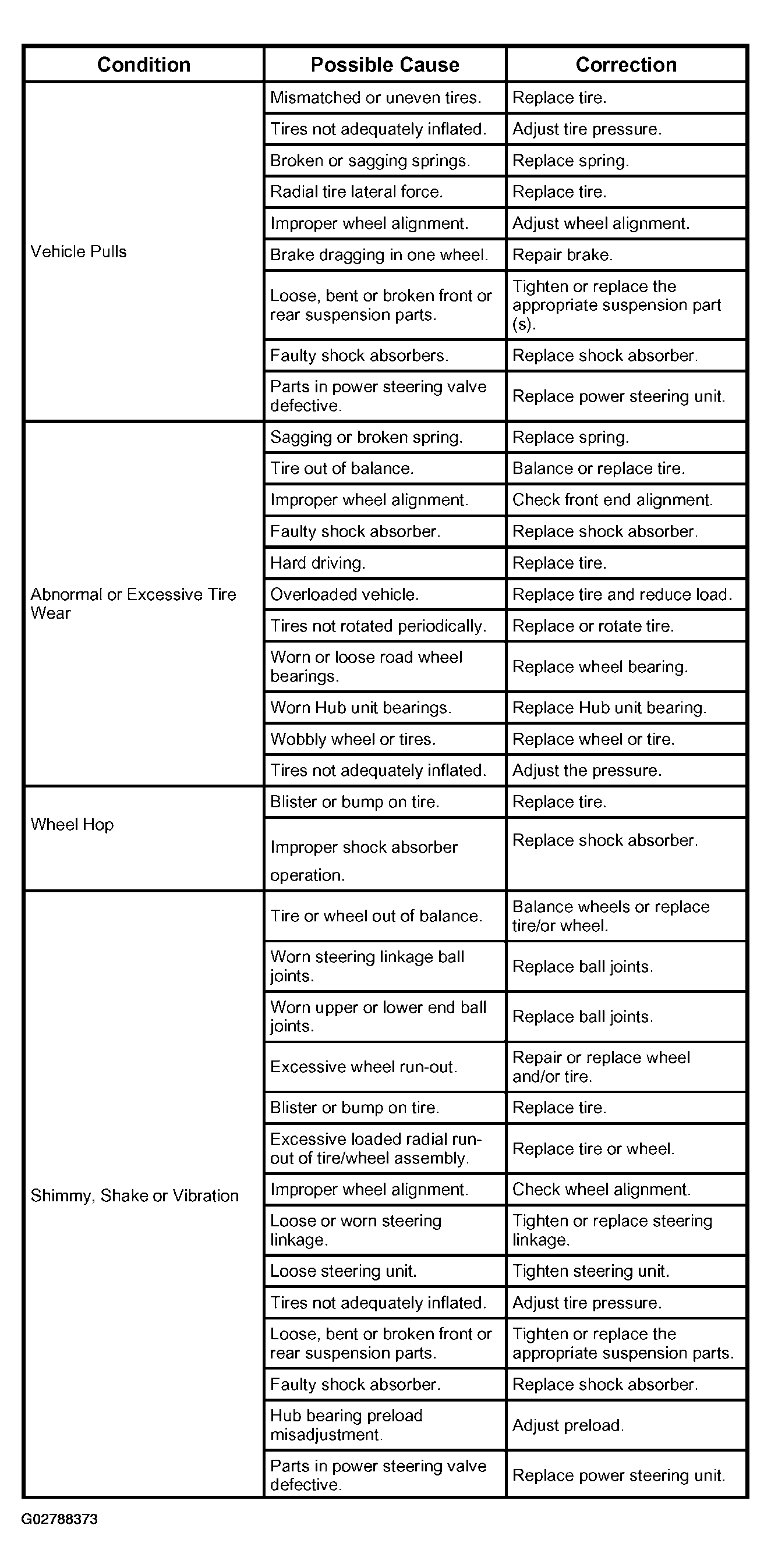

Fig 1: General Diagnosis Chart (1 Of 3)
G02788373Courtesy of ISUZU MOTOR CO.
Fig 2: General Diagnosis Chart (2 Of 3)
G02788374Courtesy of ISUZU MOTOR CO.

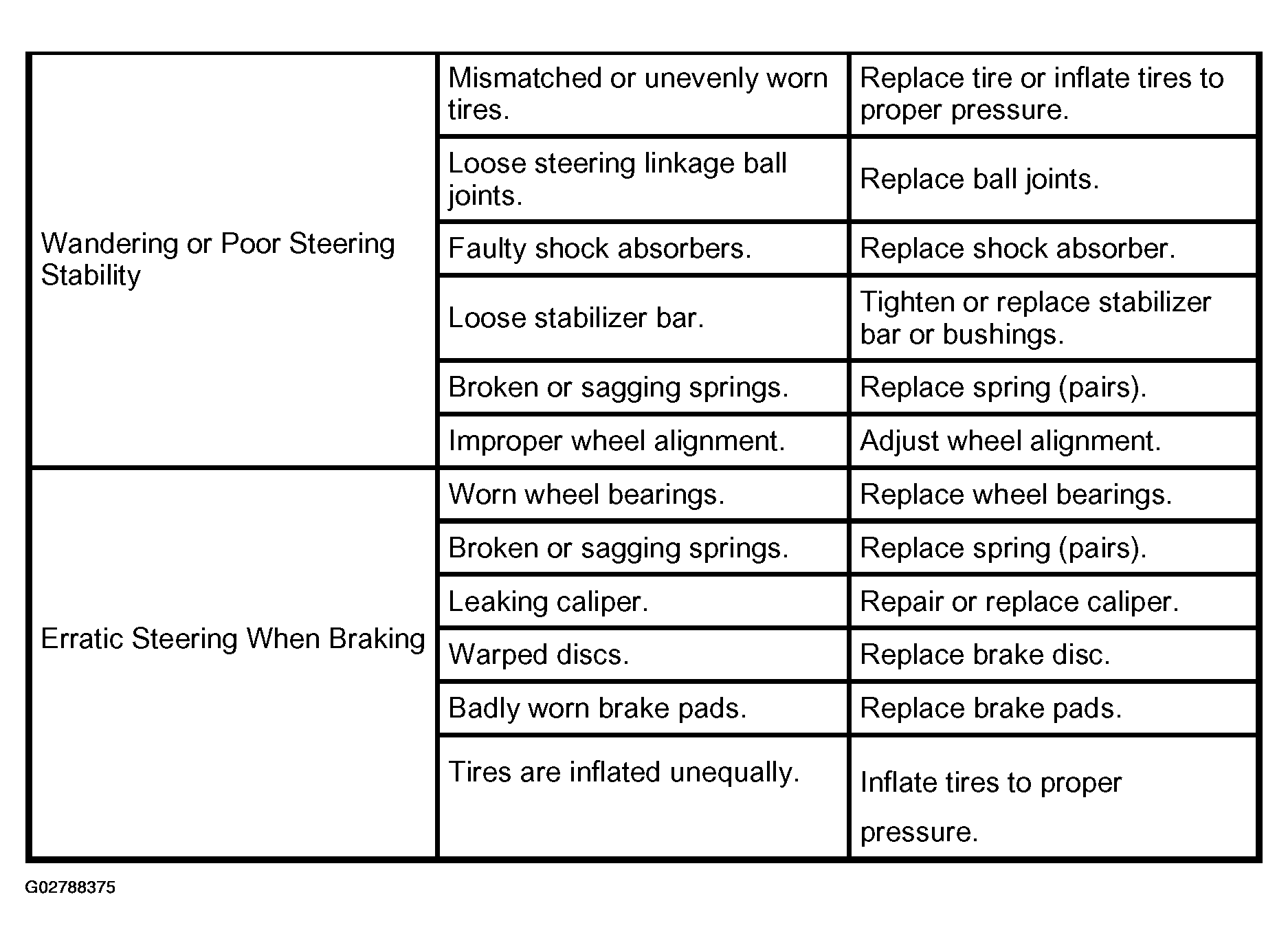

Fig 3: General Diagnosis Chart (3 Of 3)
G02788375Courtesy of ISUZU MOTOR CO.
