Chart C-1-1 FL Sensor Output Inspection Procedure

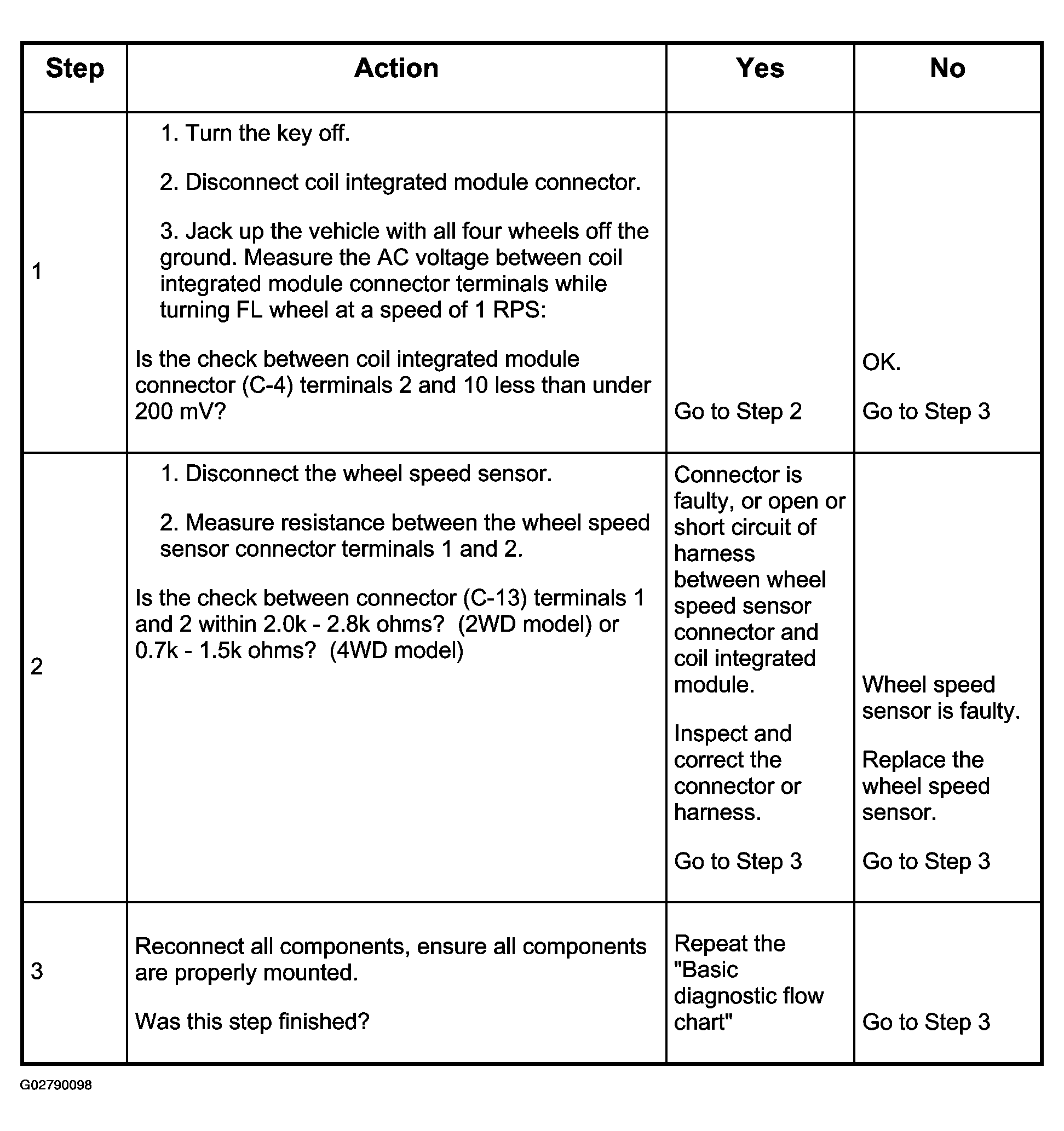

Fig 1: Chart C-1-1 FL Sensor Output Inspection Procedure

Courtesy of ISUZU MOTOR CO.

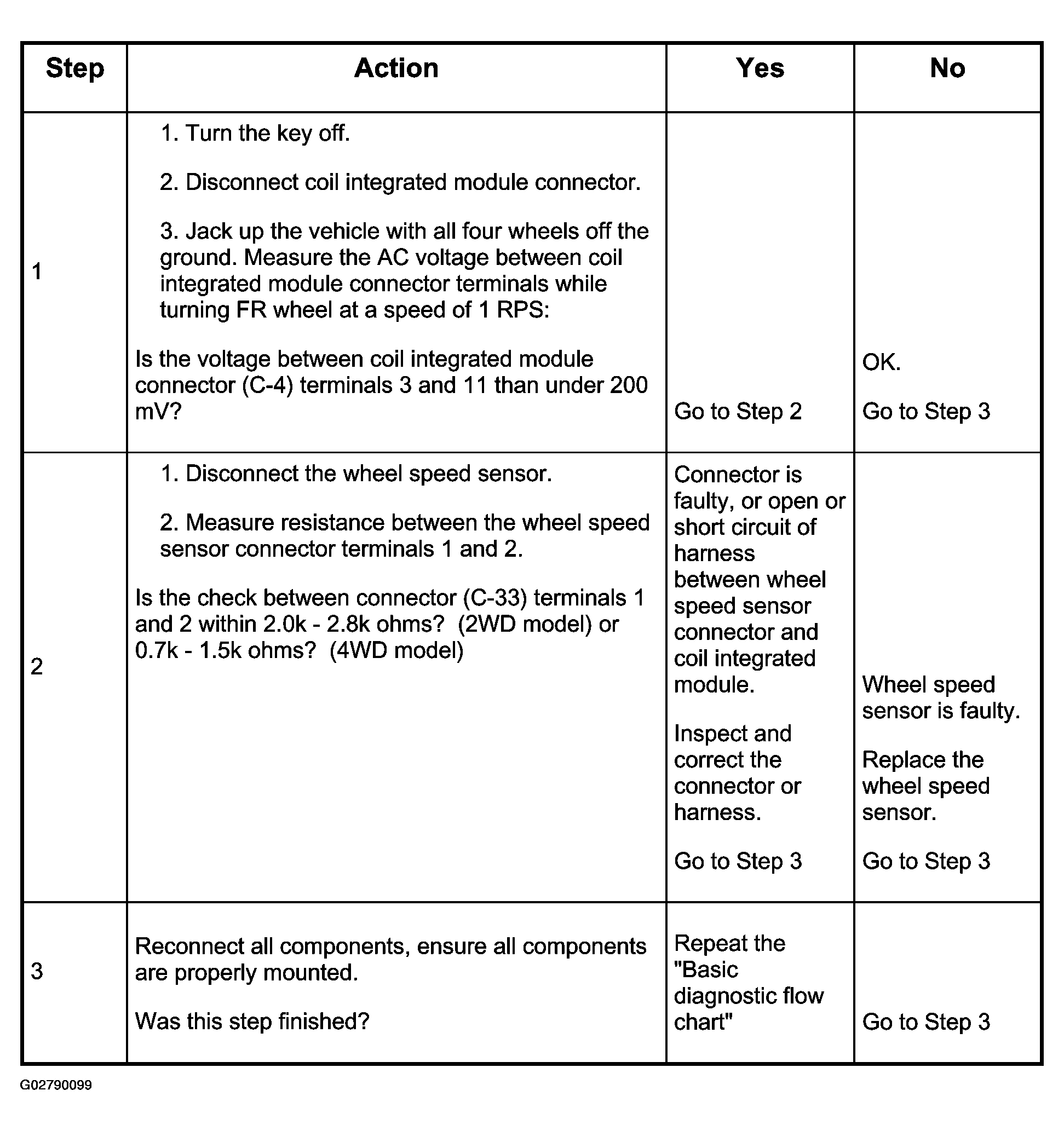

Fig 2: Chart C-1-2 FR Sensor Output Inspection Procedure

Courtesy of ISUZU MOTOR CO.

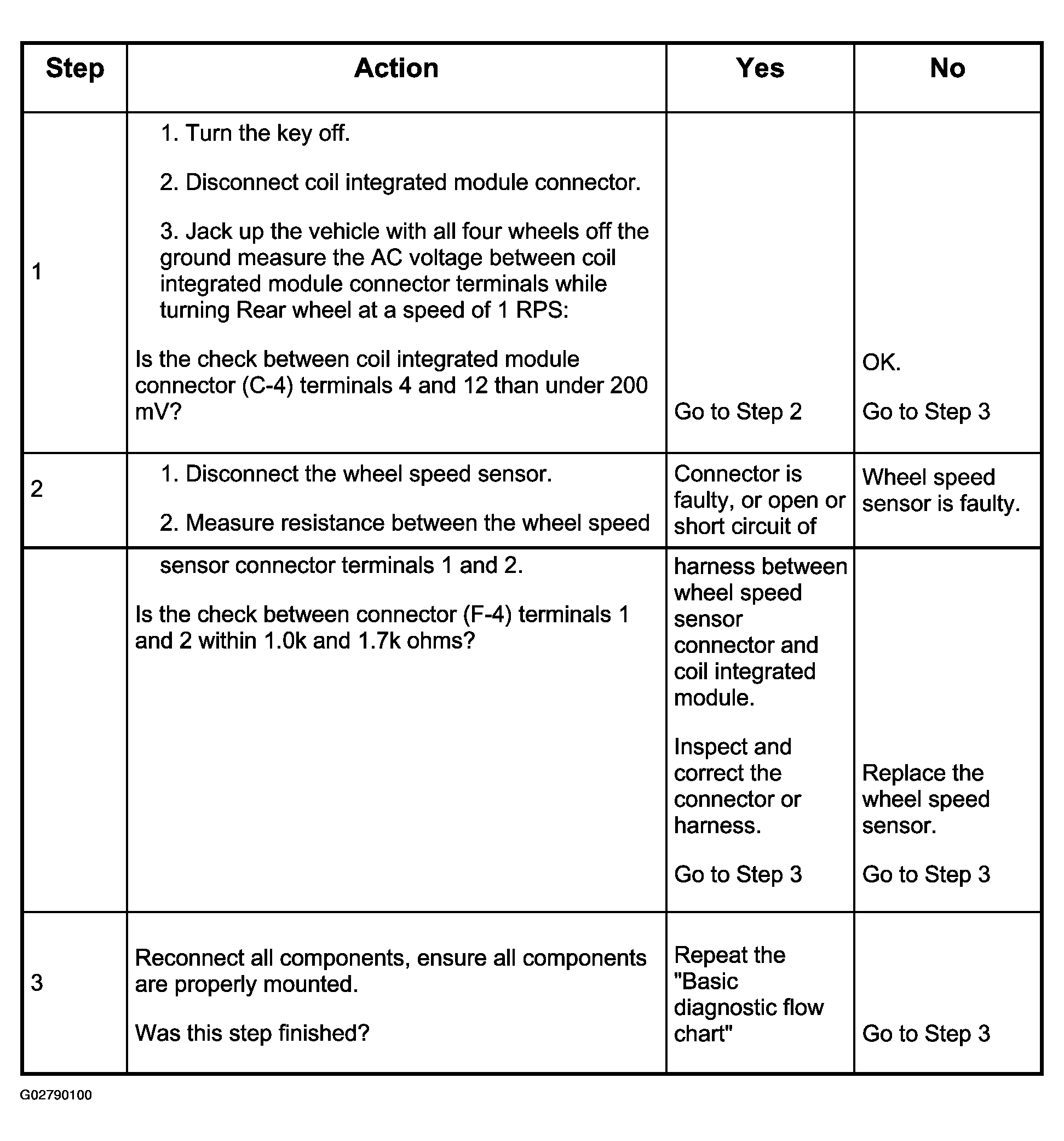

Fig 3: Chart C-1-3 Rear Sensor Output Inspection Procedure

Courtesy of ISUZU MOTOR CO.
