Home >> Isuzu >> 2003 >> Rodeo LS, 3.2 W >> Repair and Diagnosis >> Brakes >> Brakes Control Systems >> Brake Control System >> EHCU Connector Pin-out Checks >> Circuit Diagram

Circuit Diagram

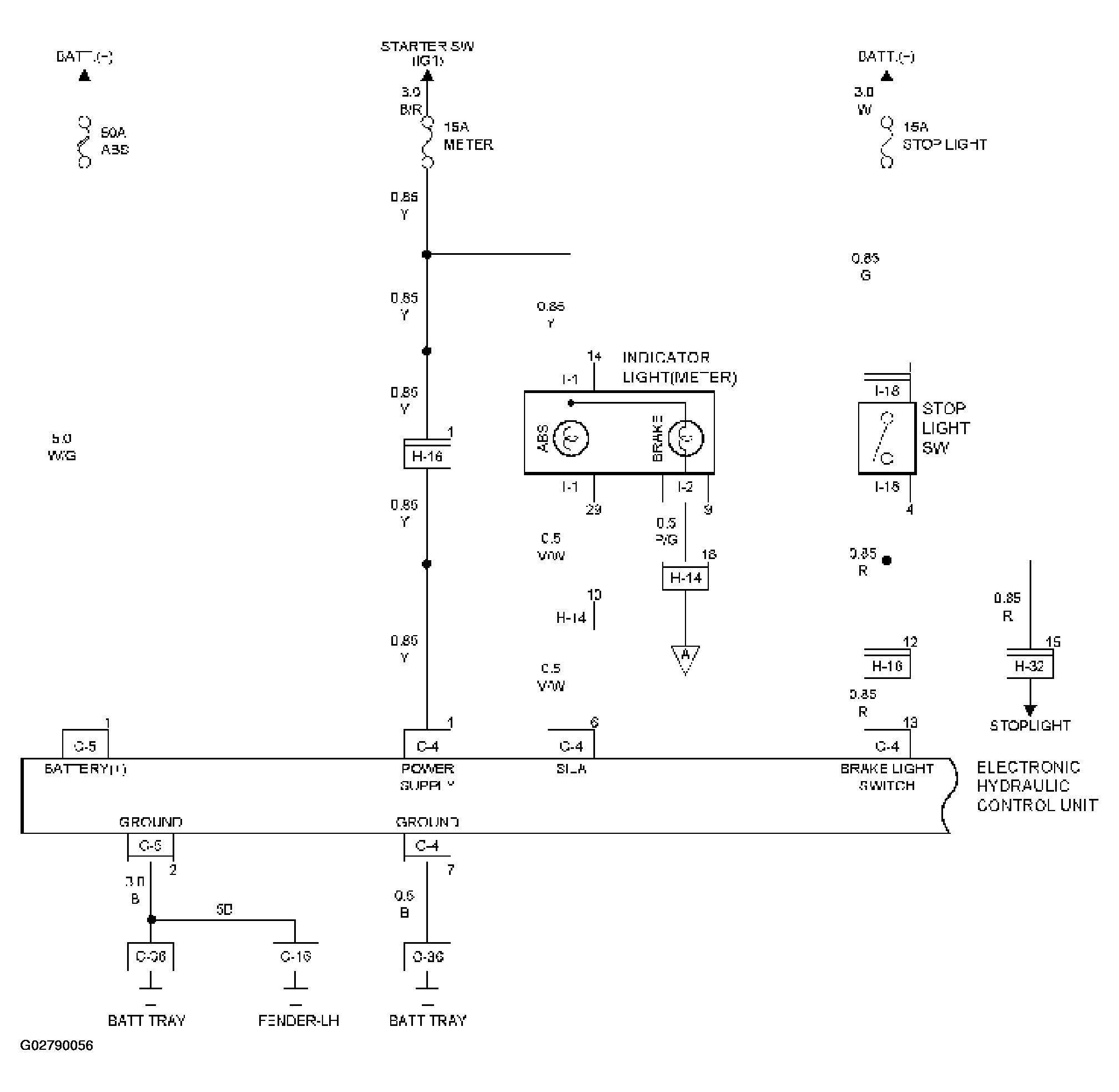

Fig 1: Circuit Diagram (1 Of 3)

G02790056

Courtesy of ISUZU MOTOR CO.

Fig 2: Circuit Diagram (2 Of 3)

G02790057

Courtesy of ISUZU MOTOR CO.

Fig 3: Circuit Diagram (3 Of 3)

G02790058

Courtesy of ISUZU MOTOR CO.
