Preliminary Inspection Chart

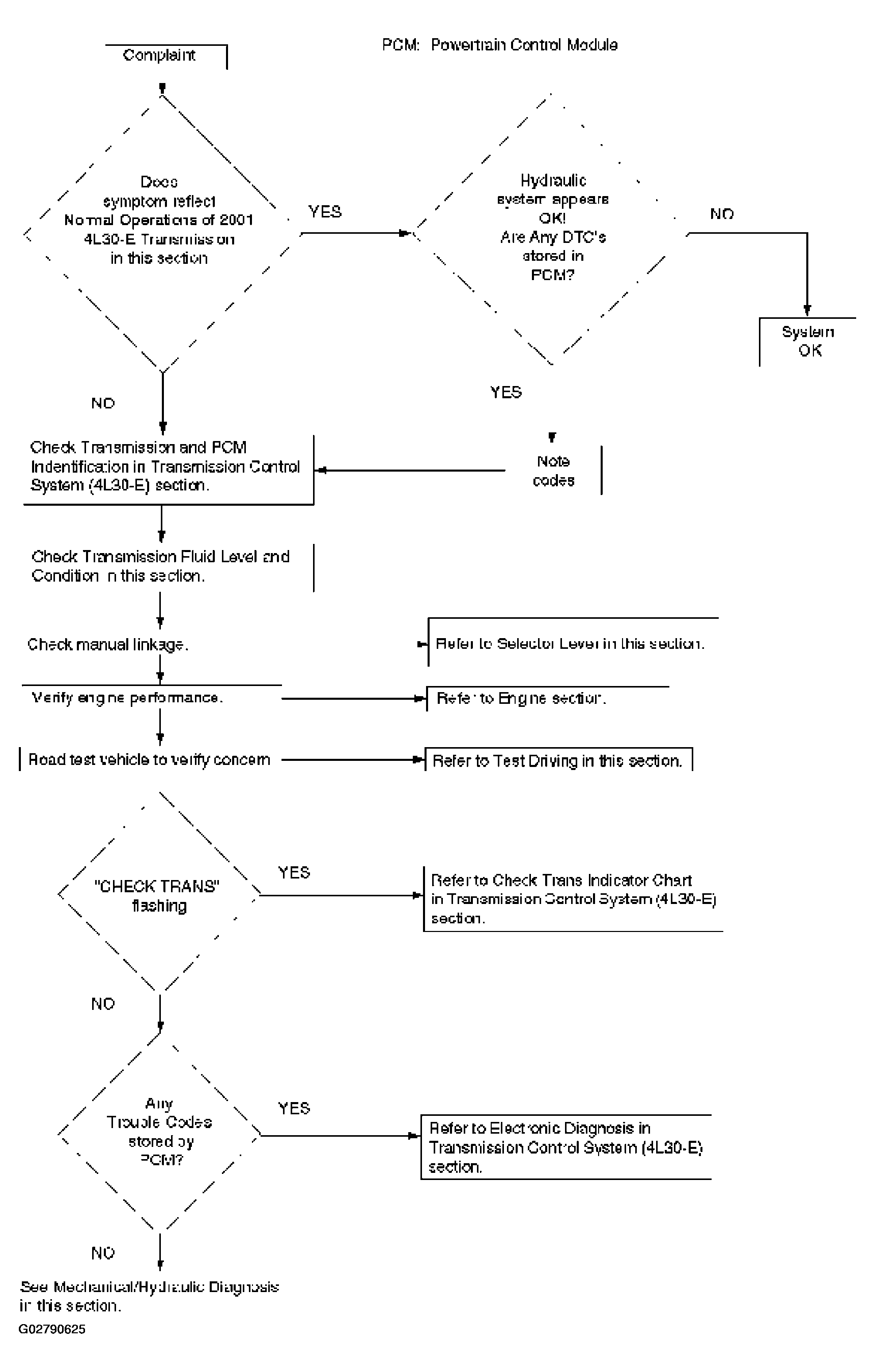

Fig 1: Preliminary Inspection Chart

G02790625

Courtesy of ISUZU MOTOR CO.
