Disassembled View
Disassembled View

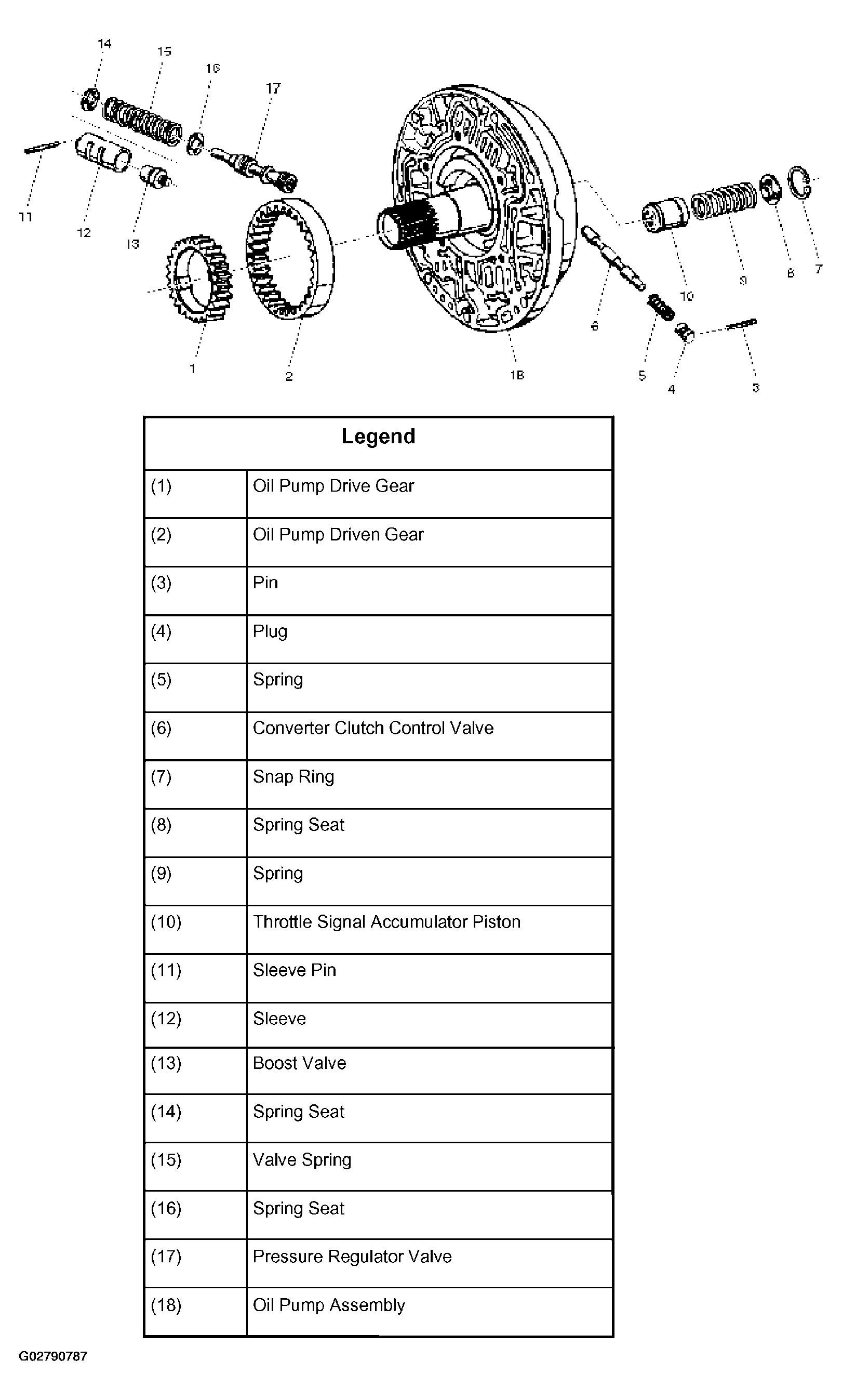

Fig 1: Disassembled View Of Oil Pump
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
