Automatic Trans (4L30-E): Construction

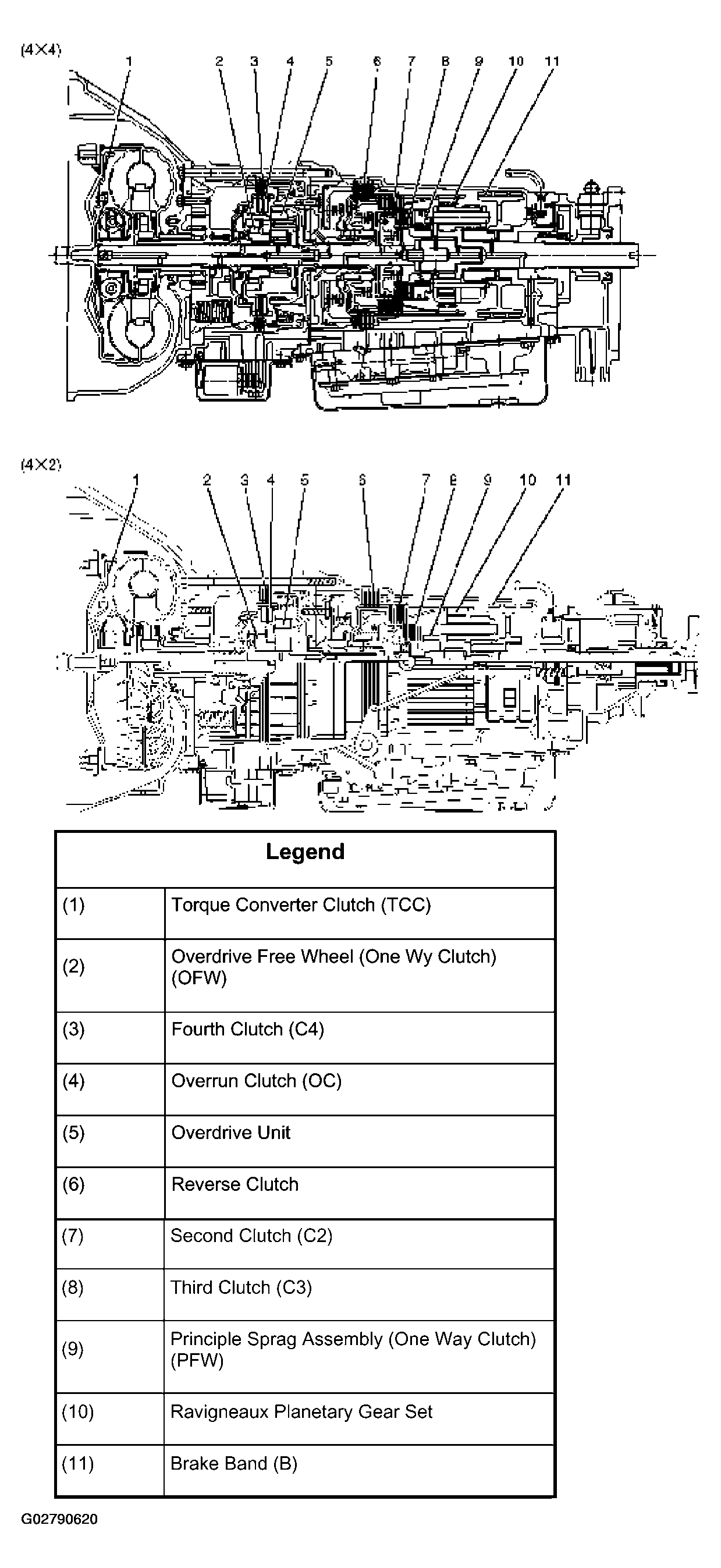

Fig 1: Identifying Automatic Transmission & Components

G02790620

Courtesy of ISUZU MOTOR CO.
