Isuzu
>>
2003
>>
Rodeo LS, 2.2 D
>>
Repair and Diagnosis
>>
Suspension
>>
Front Suspension
>>
Special Tools
Special Tools

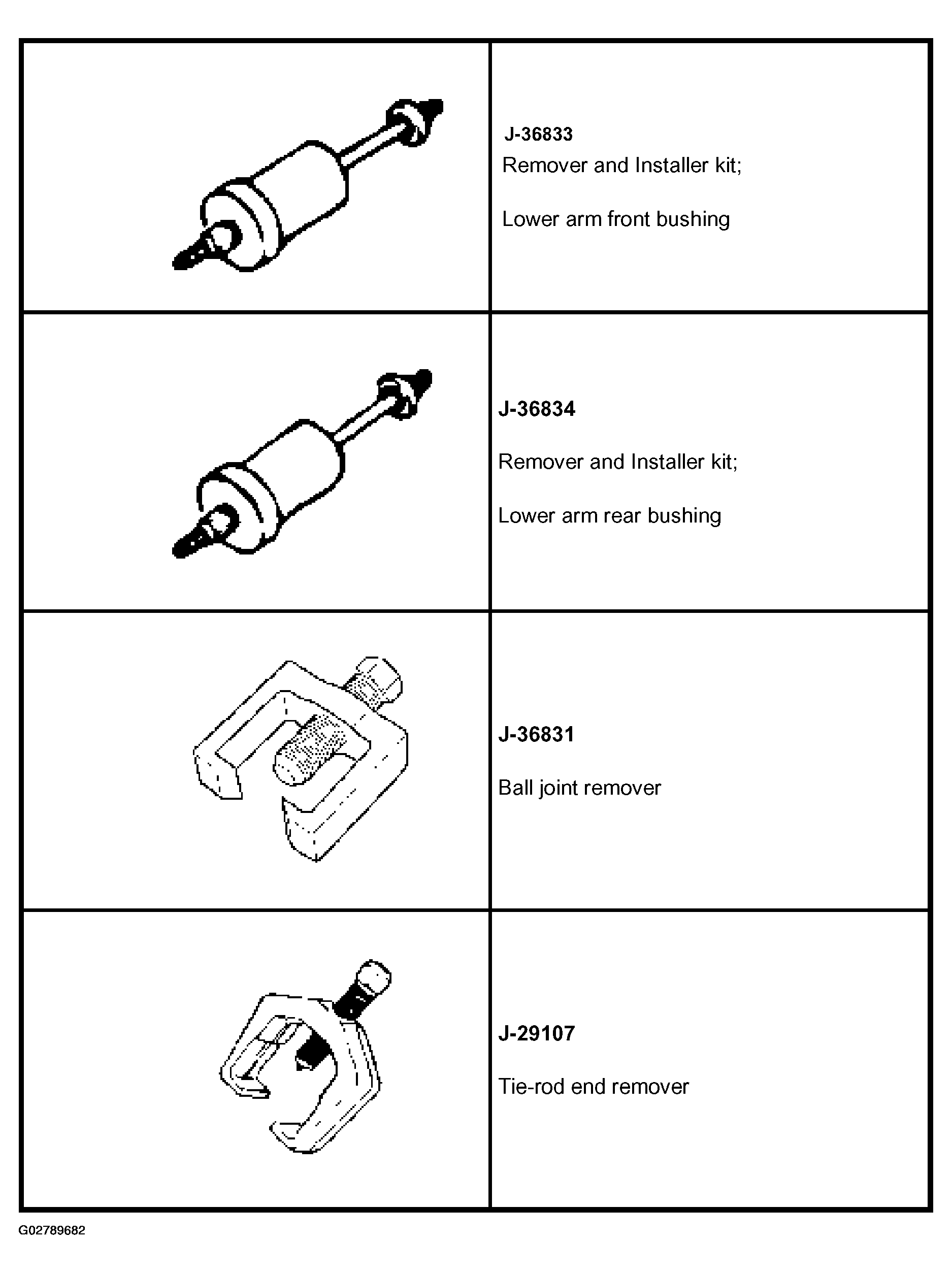

Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of ISUZU MOTOR CO.

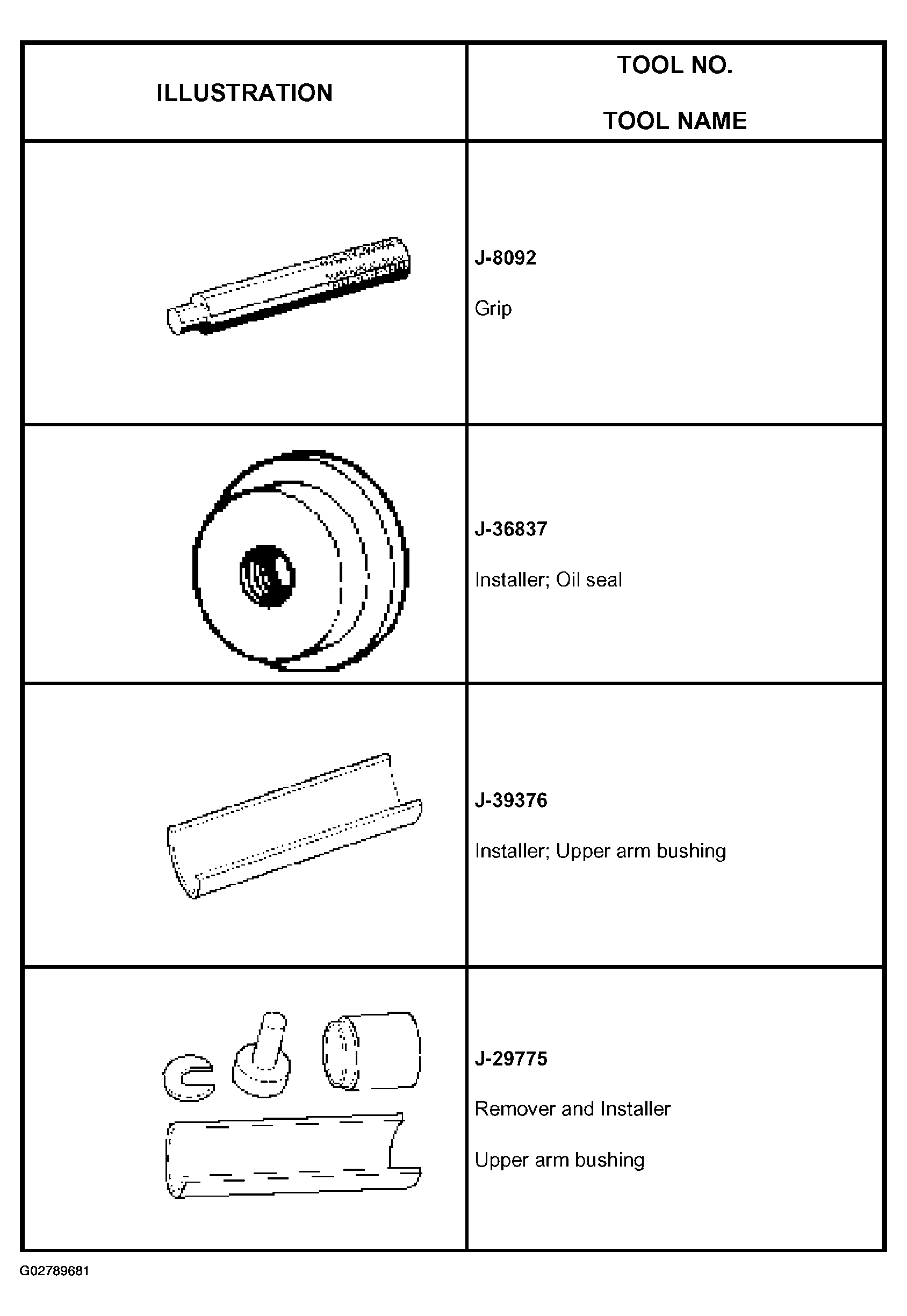

Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
