Home >> Isuzu >> 2003 >> Rodeo LS, 2.2 D >> Repair and Diagnosis >> Suspension >> Front Suspension >> Lower Control Arm >> Lower Control Arm and Associated Part

Lower Control Arm and Associated Part

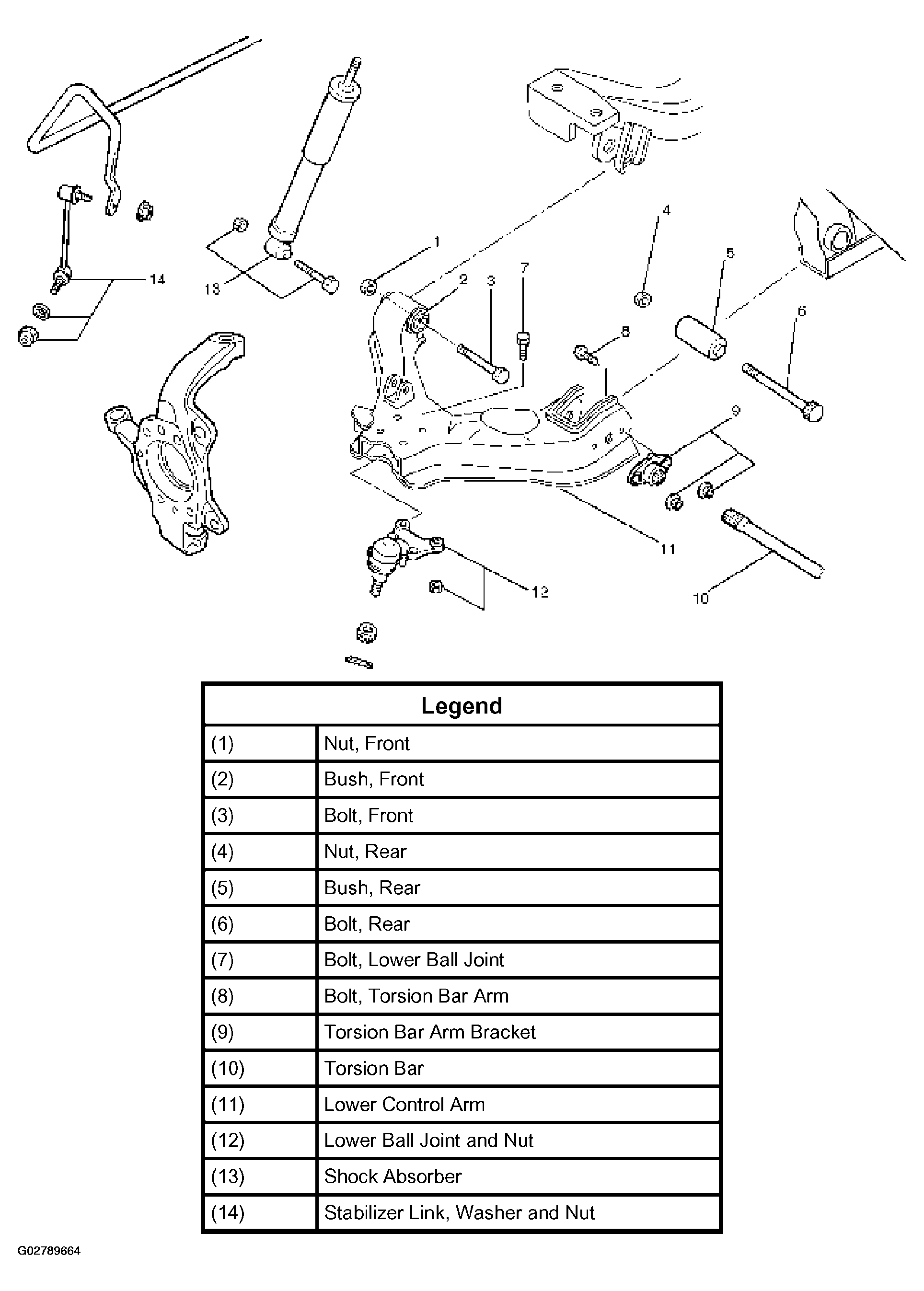

Fig 1: Identifying Lower Control Arm & Associated Part

G02789664

Courtesy of ISUZU MOTOR CO.
