Section 1 (Differentials & Drive Axles): Overhaul: Notes

WARNING: This page is about a different variant/trim than selected.

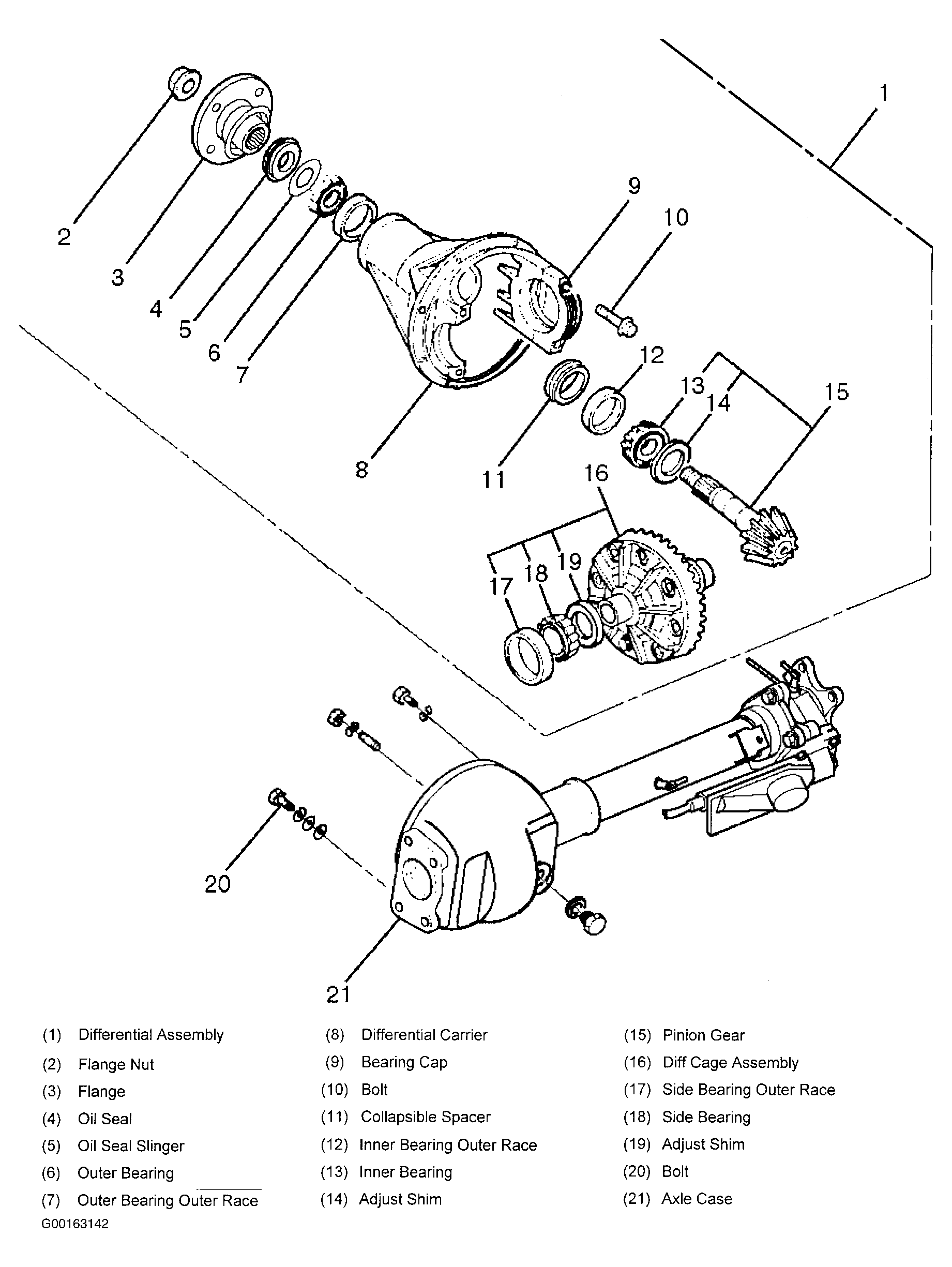

NOTE: To aid in overhaul of differential assembly, refer to exploded view illustration. See Figure.
