Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.

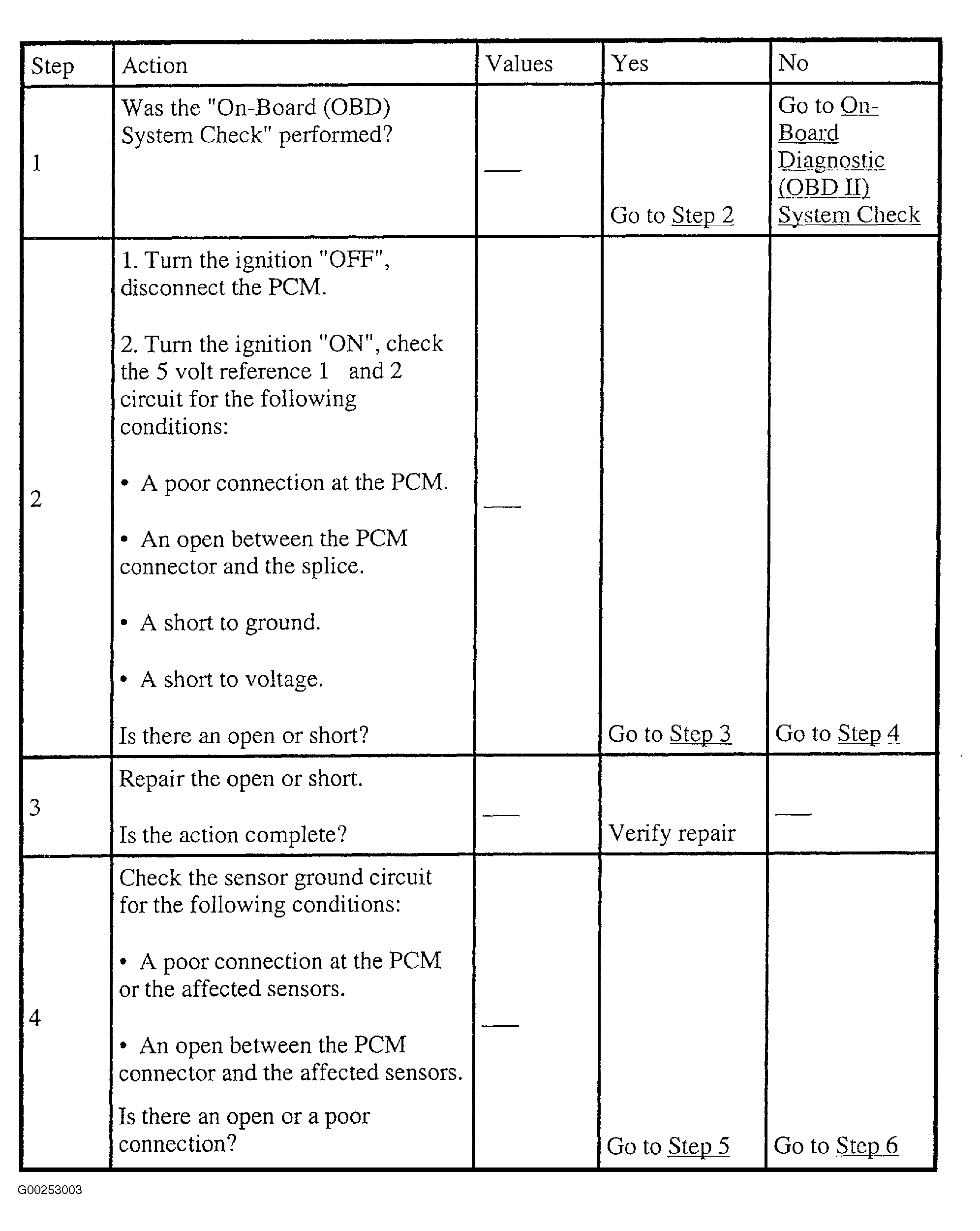

Fig 1: Identifying Multiple PCM Information Sensor DTCs Set (Steps 1-4)
G00253003Courtesy of ISUZU MOTOR CO.

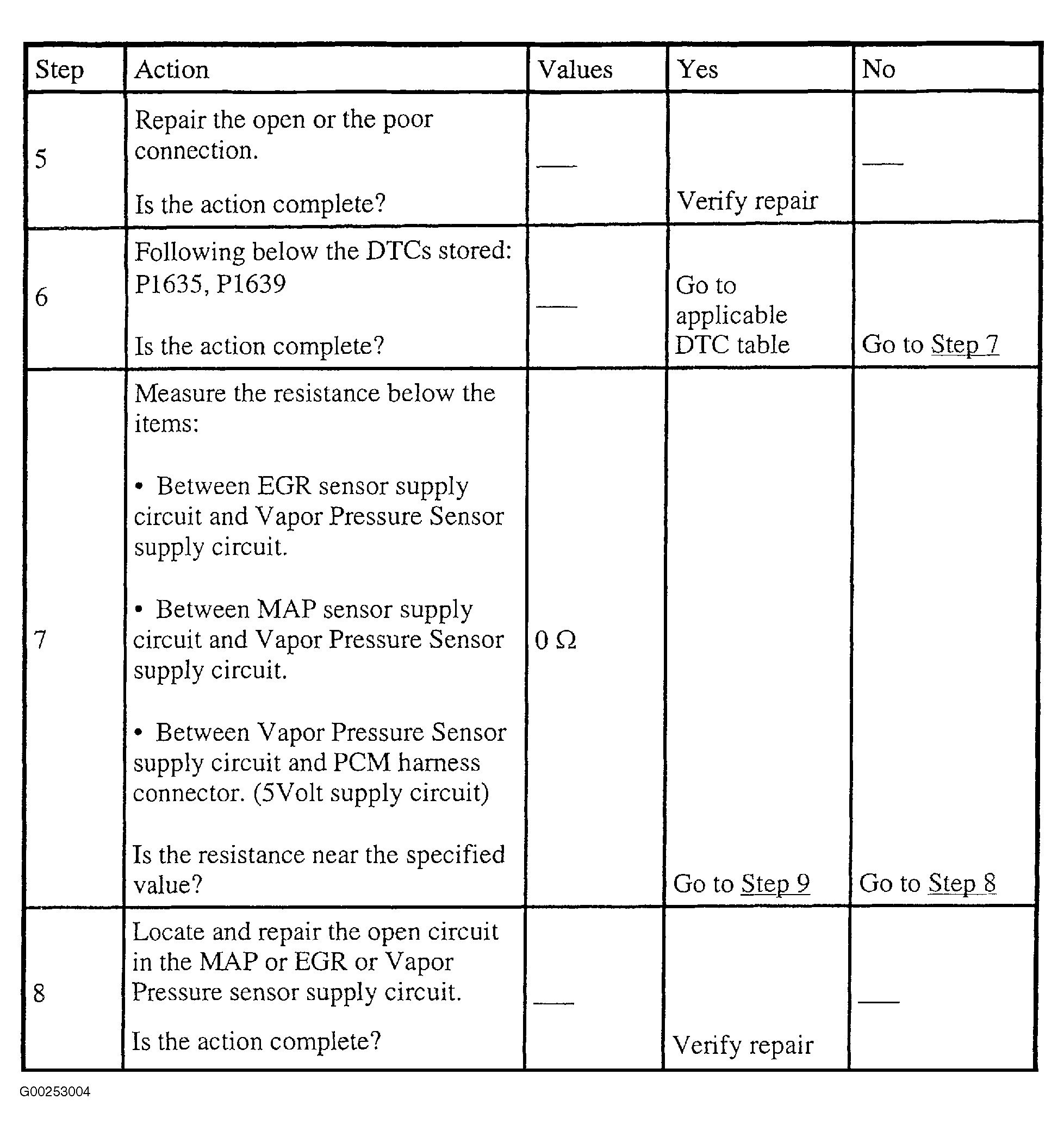

Fig 2: Identifying Multiple PCM Information Sensor DTCs Set (Steps 5-8)
G00253004Courtesy of ISUZU MOTOR CO.

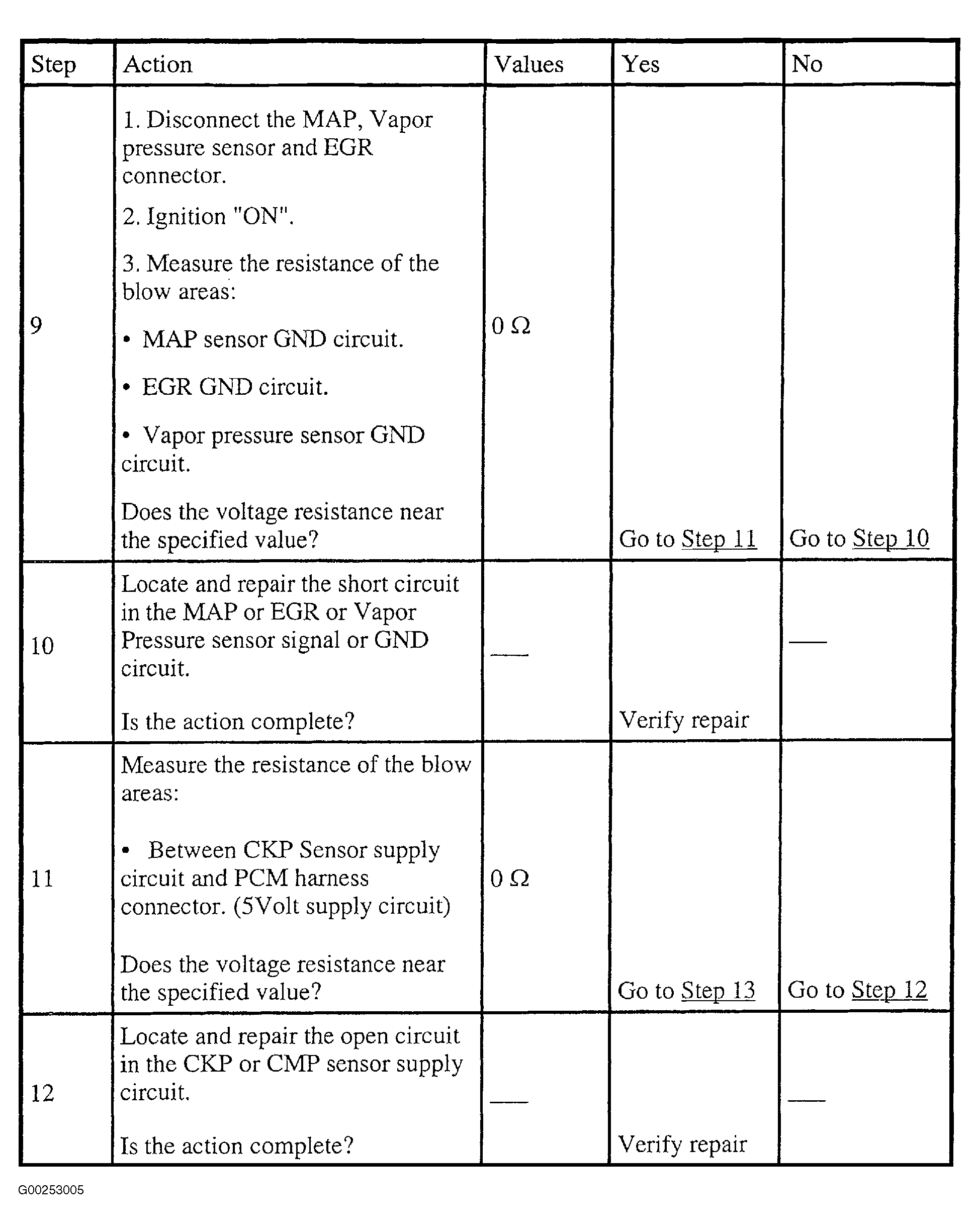

Fig 3: Identifying Multiple PCM Information Sensor DTCs Set (Steps 9-12)
G00253005Courtesy of ISUZU MOTOR CO.

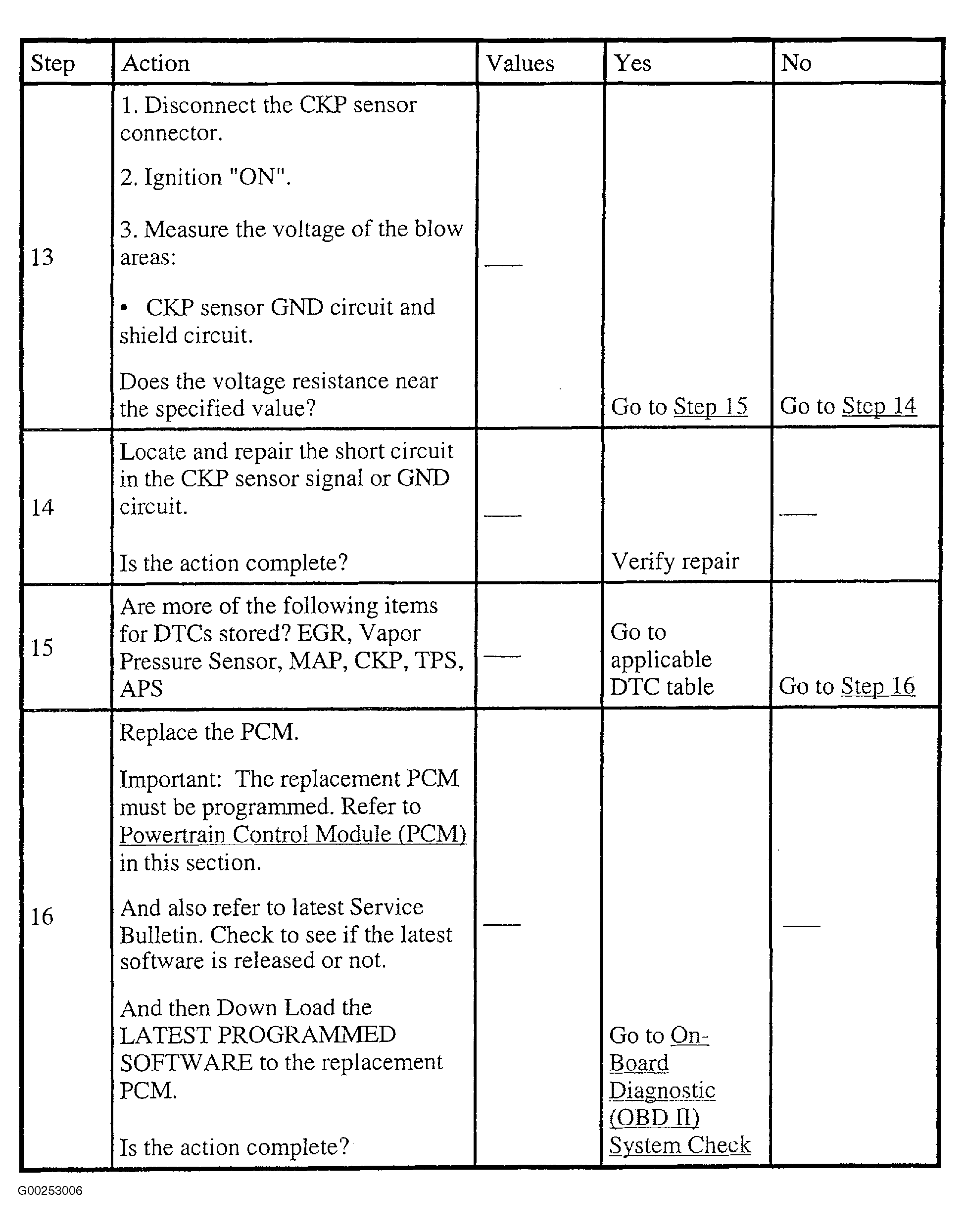

Fig 4: Identifying Multiple PCM Information Sensor DTCs Set (Steps 13-16)
G00253006Courtesy of ISUZU MOTOR CO.
