Home >> Isuzu >> 2003 >> Rodeo LS, 2.2 D >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Front Wheel Speed Sensor >> Front Wheel Speed Sensor and Associated Parts

Front Wheel Speed Sensor and Associated Parts

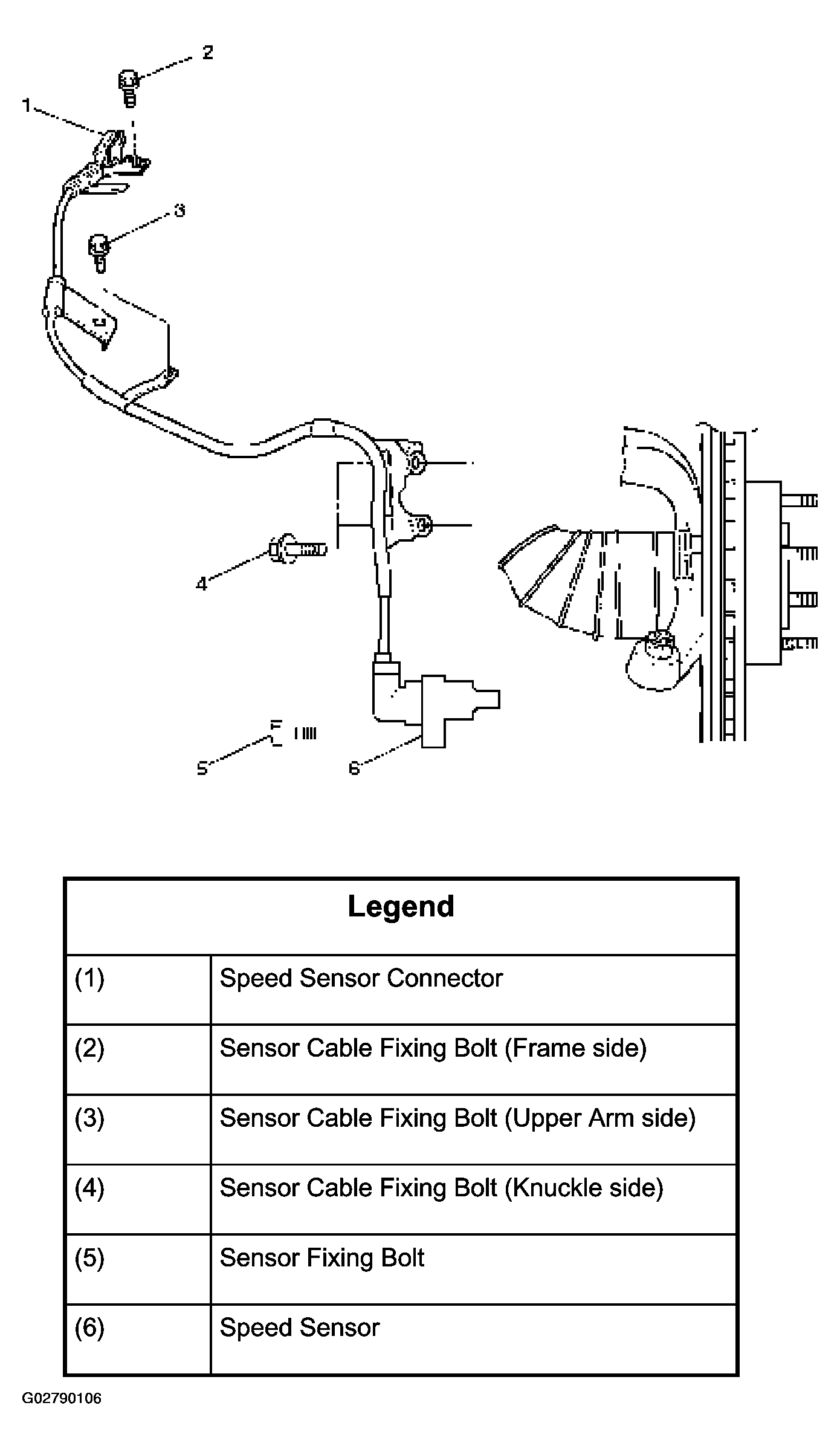

Fig 1: Locating Bolts Of Front Wheel Speed Sensor

G02790106

Courtesy of ISUZU MOTOR CO.
