Front Door Assembly: Removal

  1. Disconnect the battery ground cable.
  2. Apply a setting mark on the body side hinge.
  3. Remove the door check arm pin.

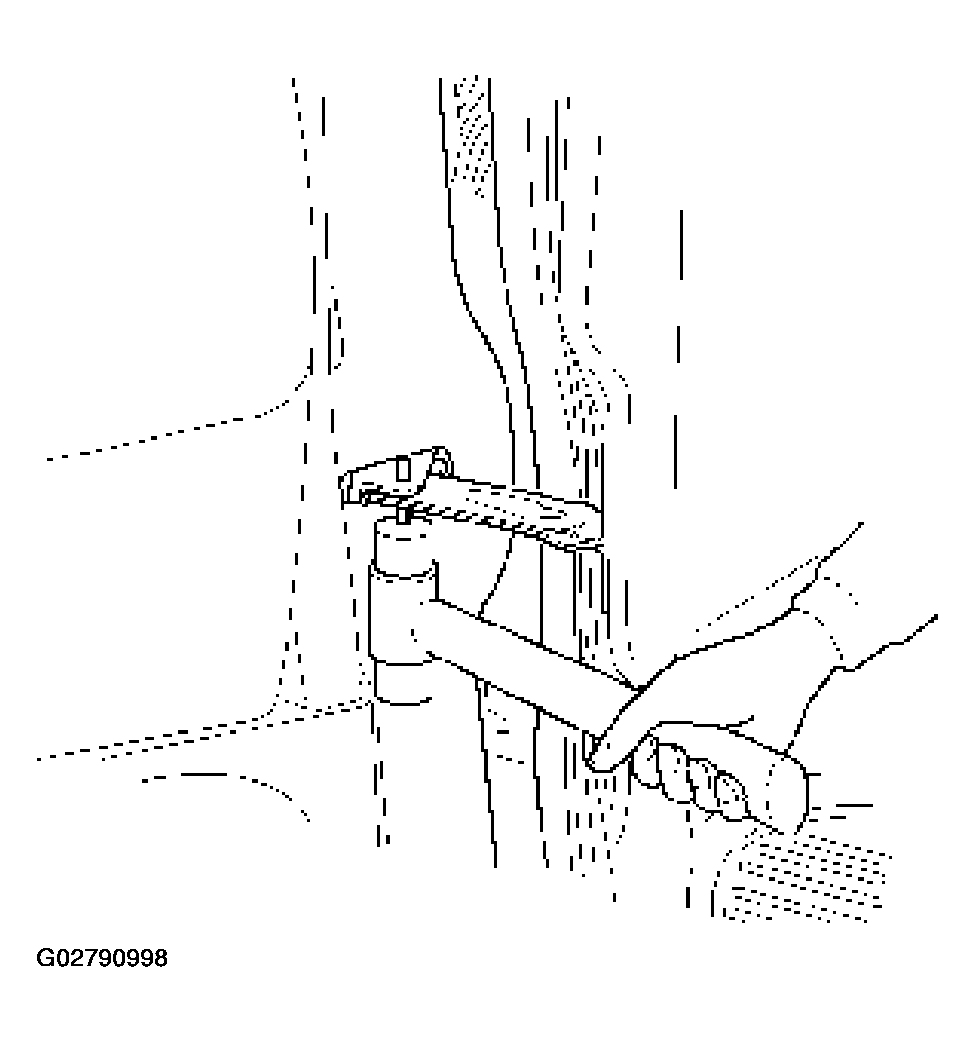

    Fig 1: Removing Door Check Arm Pin
    G02790998Courtesy of ISUZU MOTOR CO.
  4. Remove upper and lower hinge bolts.
    • Position a wood block under the door for protection and support the door assembly with hands during removal or installation.

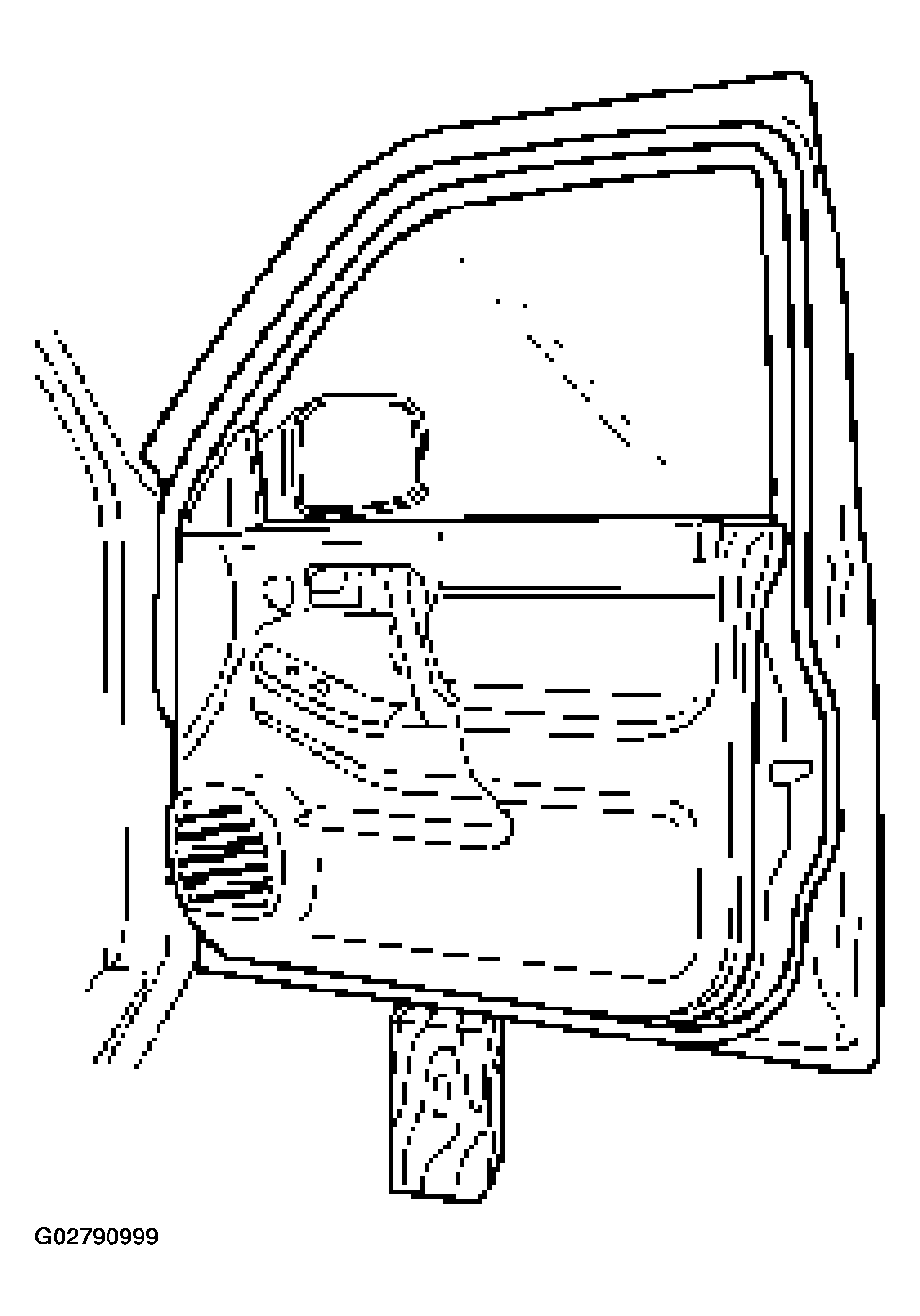

      Fig 2: Positioning Wood Block Under Door
      G02790999Courtesy of ISUZU MOTOR CO.
  5. Remove the door harness connection.
    • Pull the door harness grommet out in order to disconnect the harness connection.

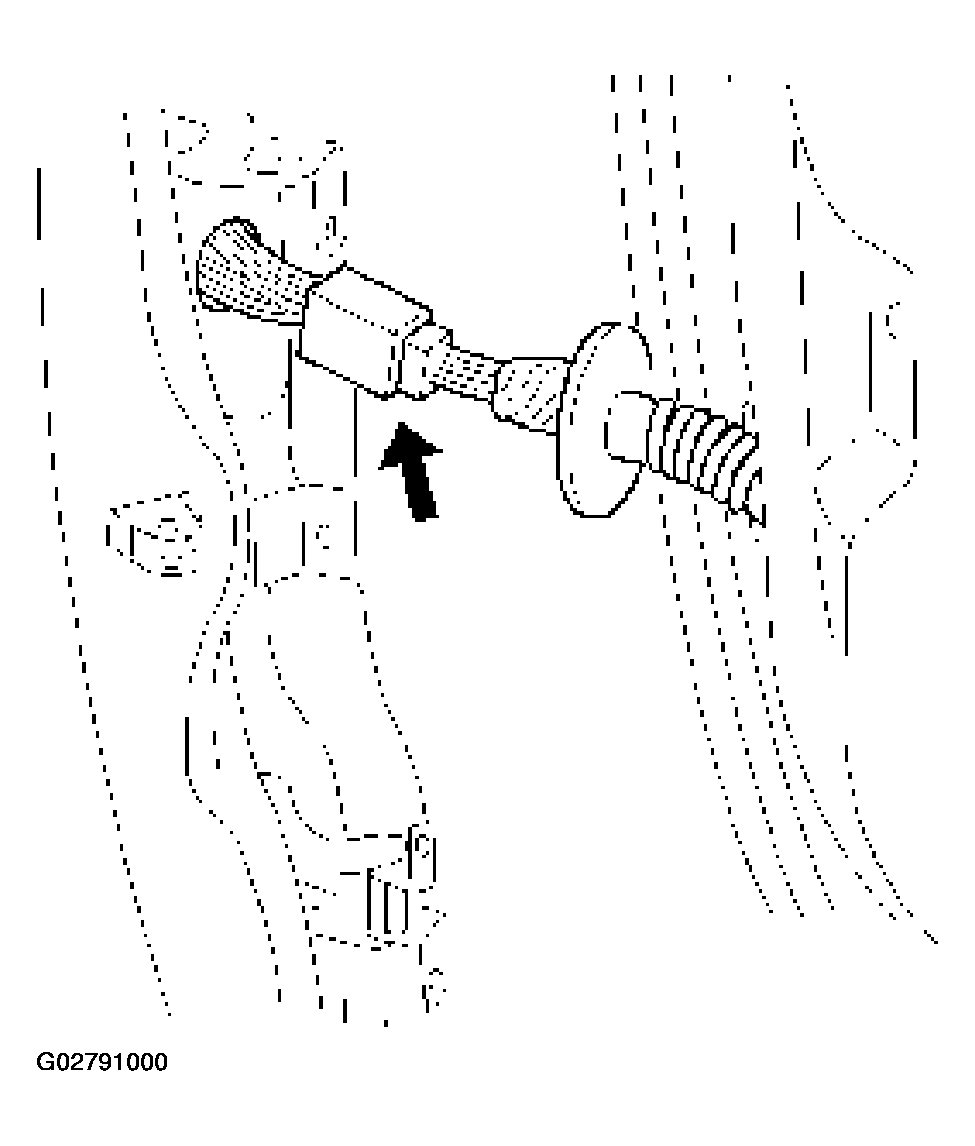

      Fig 3: Removing Door Harness Connection
      G02791000Courtesy of ISUZU MOTOR CO.
  6. Remove front door assembly.
