Engine Hood Lock: Removal

  1. Remove the hood lock control lever.
  2. Remove the inner liner.
  3. Remove the radiator grille.
  4. Remove the engine hood lock assembly.
    • Apply setting marks (1) to the hood lock assembly and the body prior to removal.

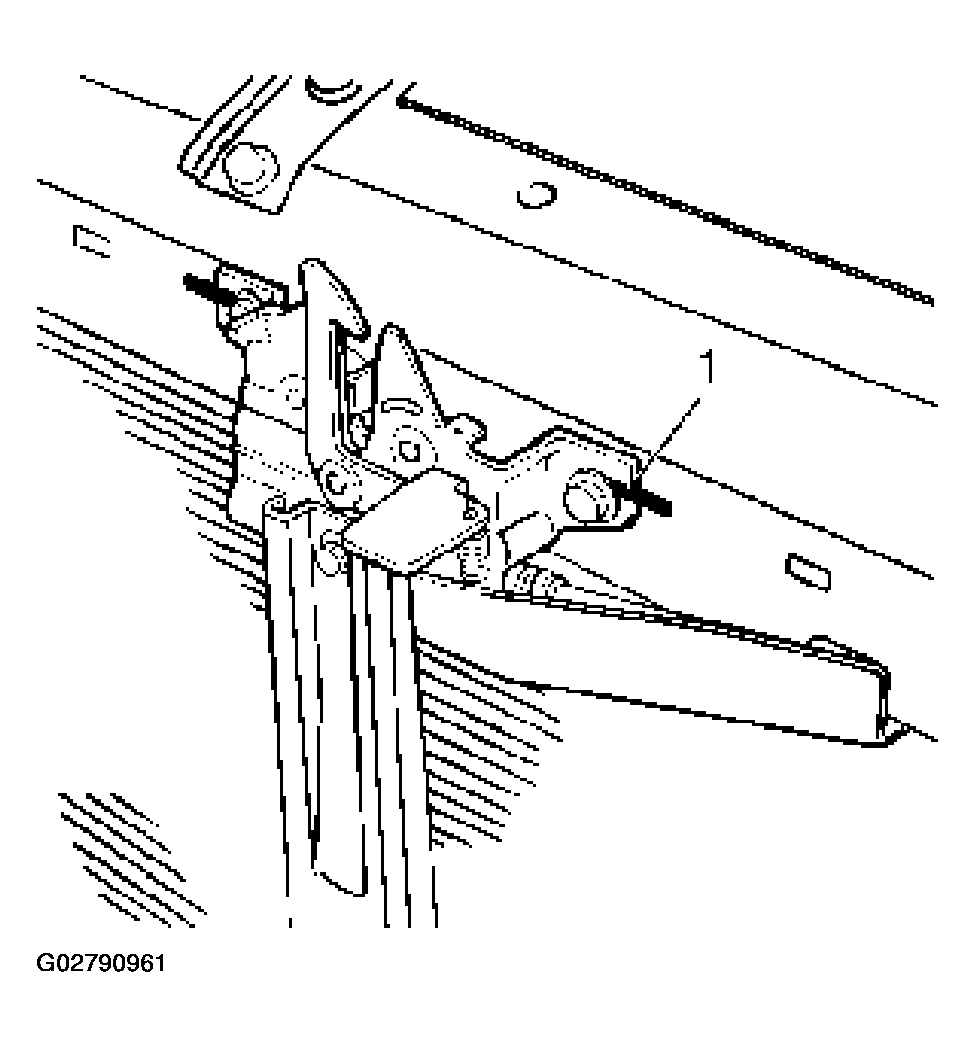

      Fig 1: Applying Setting Marks To Hood Lock Assembly
      G02790961Courtesy of ISUZU MOTOR CO.
  5. Remove the control cable.
    • Remove the cable fixing clips from the engine hood lock.
