Front Section

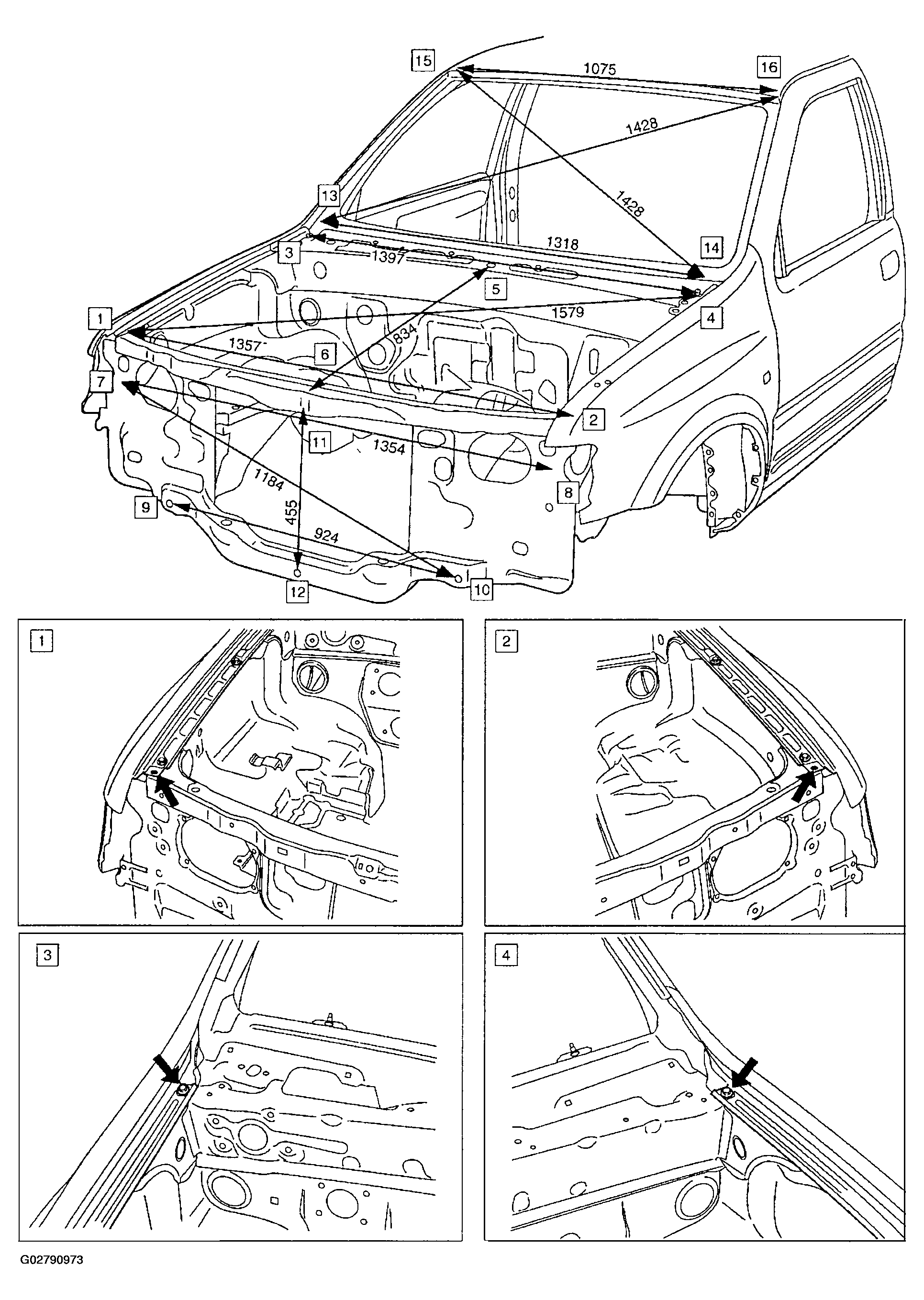

Fig 1: Identifying Body Dimension - Front Section (1 Of 3)
G02790973Courtesy of ISUZU MOTOR CO.

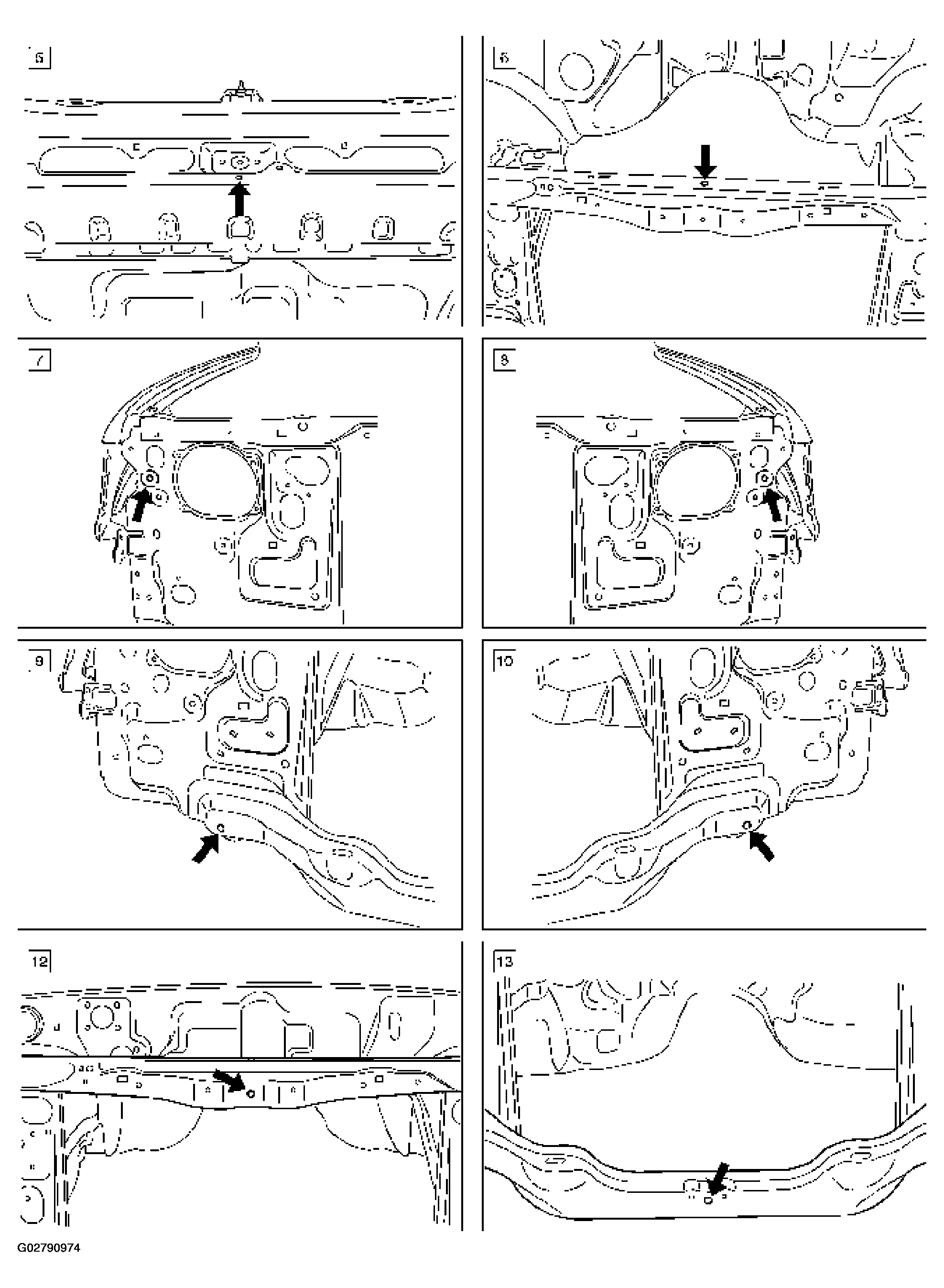

Fig 2: Identifying Body Dimension - Front Section (2 Of 3)
G02790974Courtesy of ISUZU MOTOR CO.

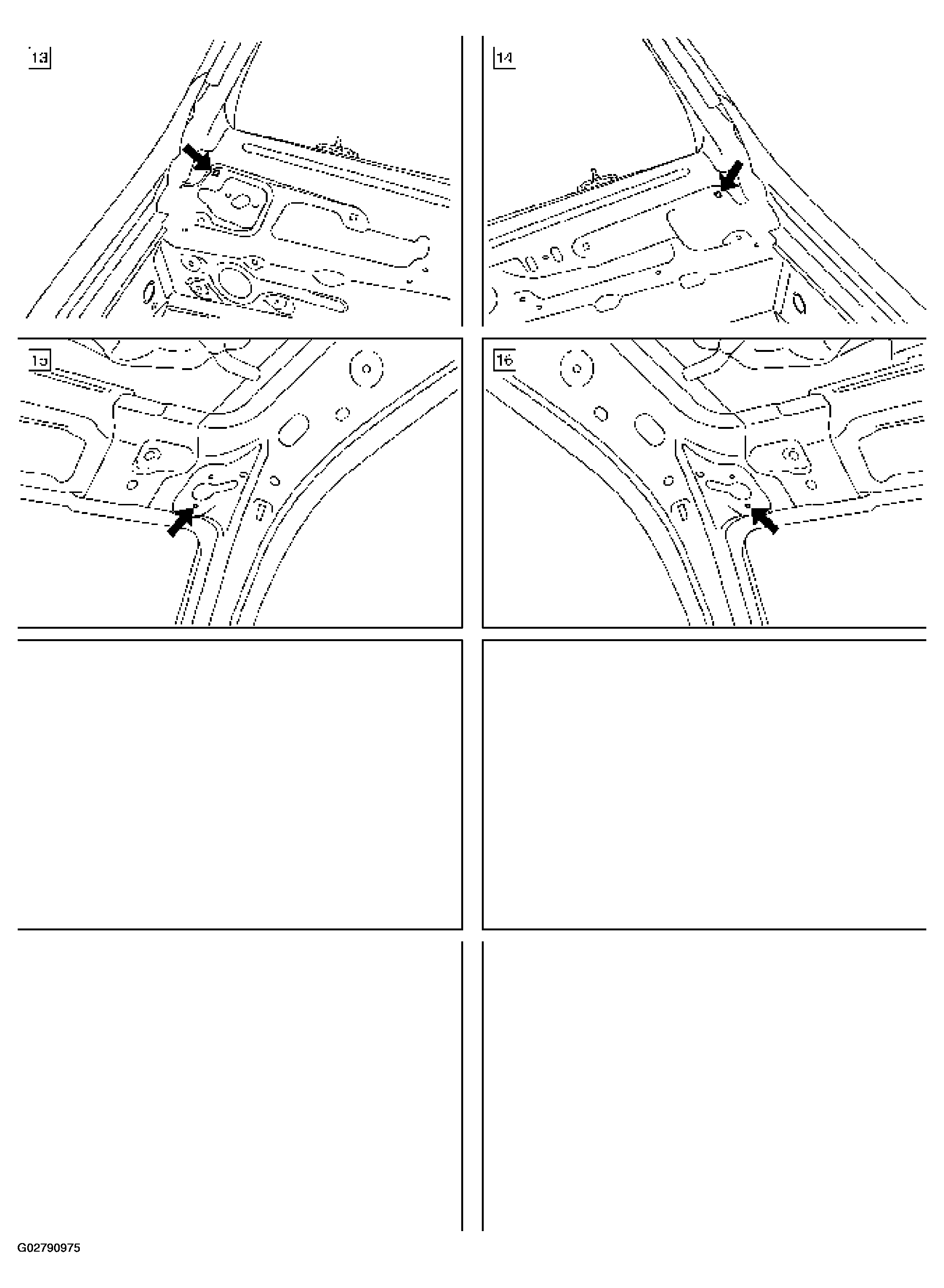

Fig 3: Identifying Body Dimension - Front Section (3 Of 3)
G02790975Courtesy of ISUZU MOTOR CO.
