B8009: NO Transponder Key Programmed

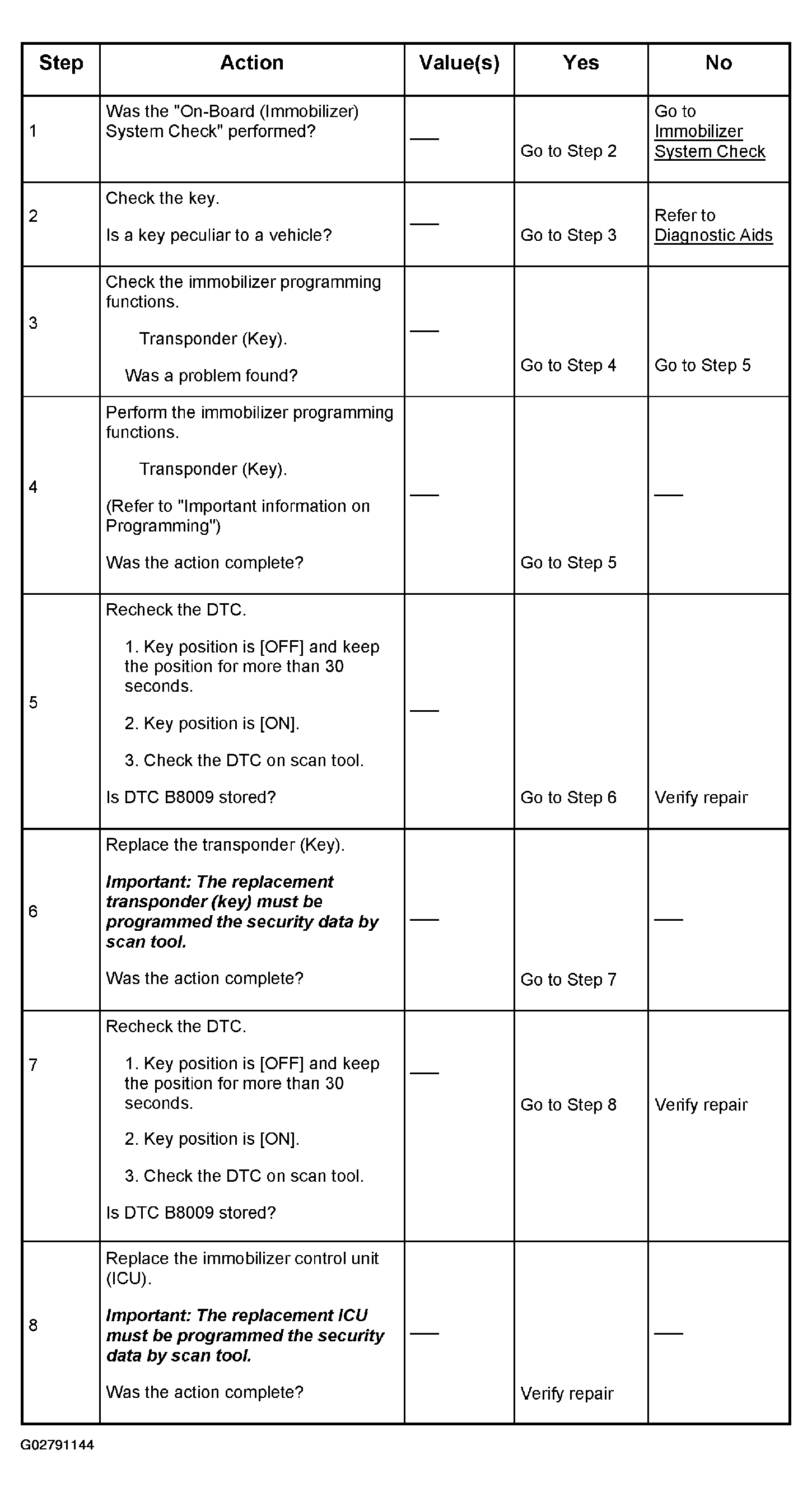

Fig 1: B8009: NO Transponder Key Programmed Chart

G02791144

Courtesy of ISUZU MOTOR CO.
