B8003: Transponder Key Problem
B8003: Transponder Key Problem

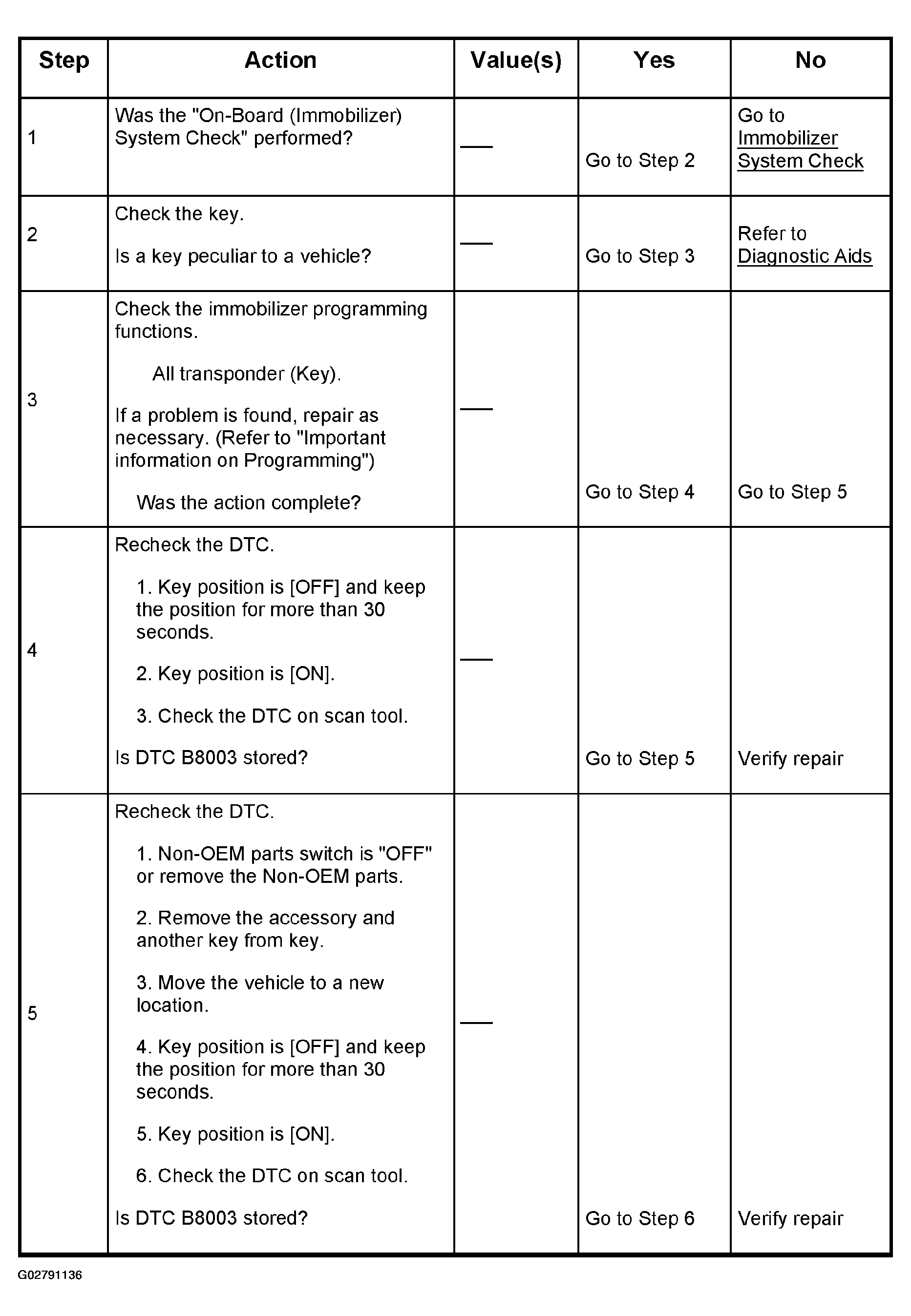

Fig 1: B8003: Transponder Key Problem Chart (1 Of 2)
Courtesy of ISUZU MOTOR CO.

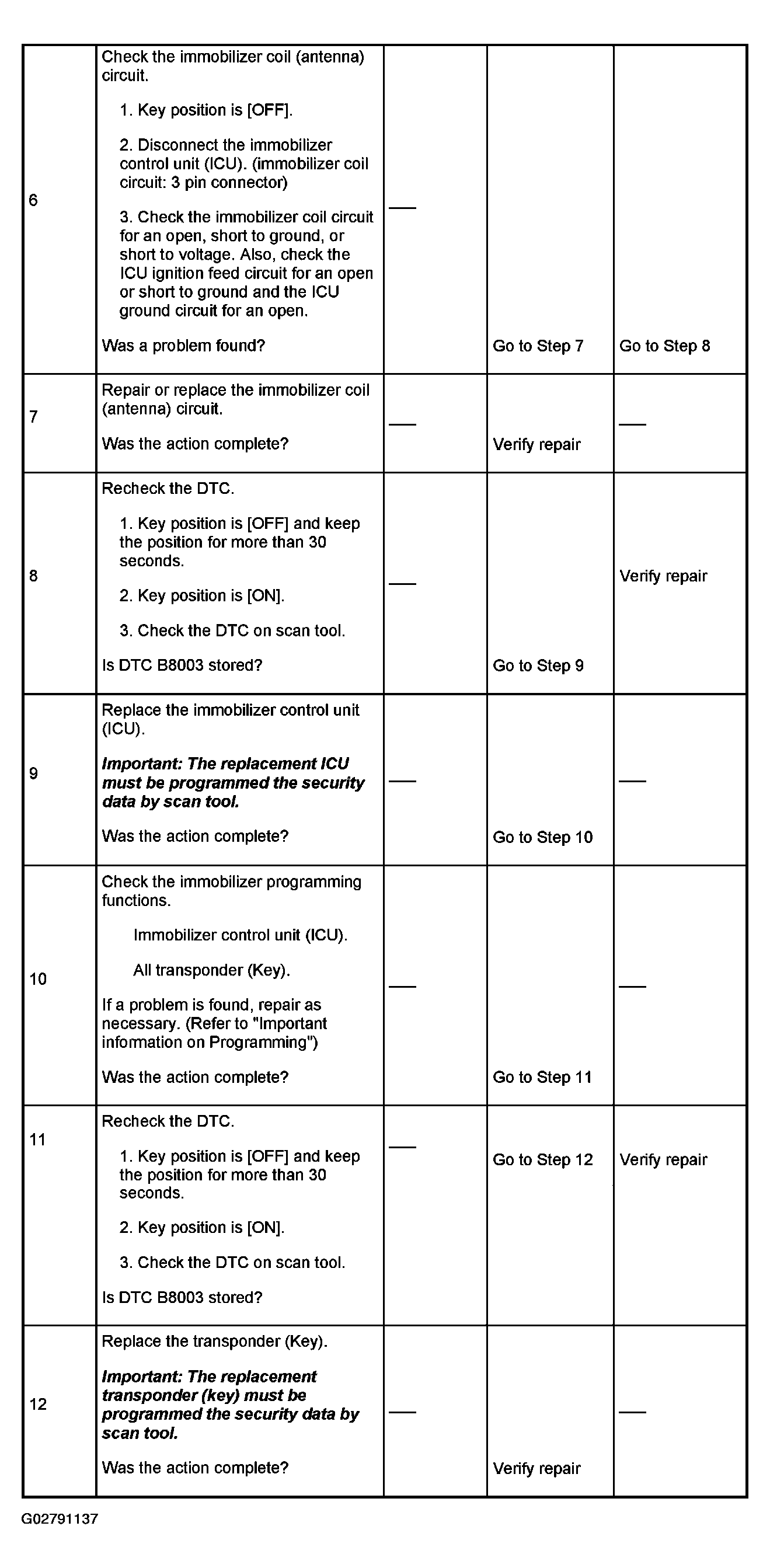

Fig 2: B8003: Transponder Key Problem Chart (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
