Solenoid (Main Case Valve Body): Installation
- Install shift solenoid A, shift solenoid B, band control solenoid with new gaskets to main case valve body respectively.

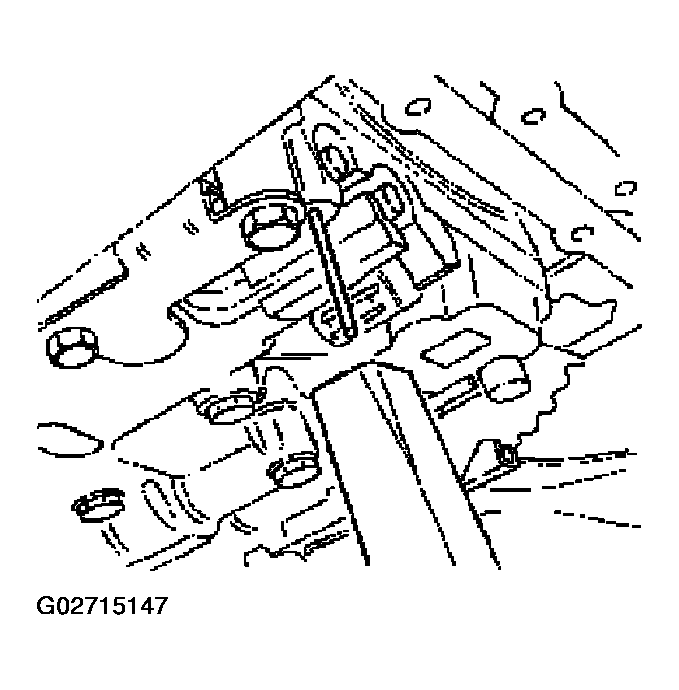

- Carefully install spring pin with hammer to avoid damage to valve body, etc.
- Connect wiring harness to solenoids.
- Install oil filter with a new gasket and the three 13 mm screws. Tighten the screws to the specified torque.
Torque: 20 N.m (15 lb ft)
- Install magnet, main case oil pan with new gasket, sixteen 10 mm screws. Tighten the screws to the specified torque.
Torque: 11 N.m (96 lb in)
- Install third crossmember and rear mount nuts. Tighten the nuts and bolts to the specified torque.
Third crossmember bolt: 116 N.m (85 lb ft)
Rear mount nut: 50 N.m (37 lb ft)
- Install the transfer protector. Tighten the bolts to the specified torque (4x4).
Torque: 37 N.m (27 lb ft)
- Fill transmission through the overfill screw hole of oil pan, using ATF DEXRON®-III. Refer to CHANGING TRANSMISSION FLUID .
- Connect the battery ground cable.
