Diagnostic Procedure

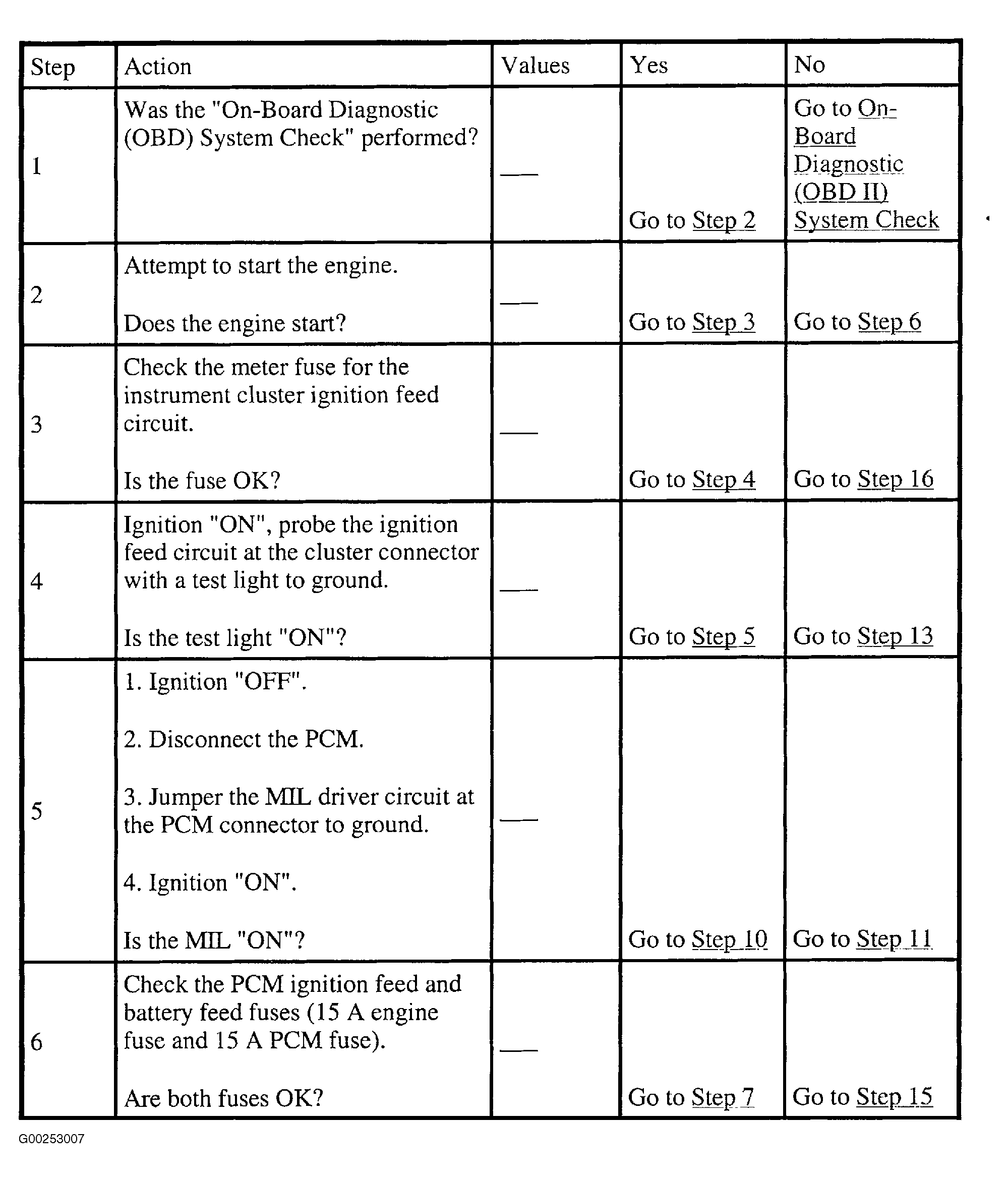

Fig 1: No Malfunction Indicator Light (Steps 1-6)
G00253007Courtesy of ISUZU MOTOR CO.

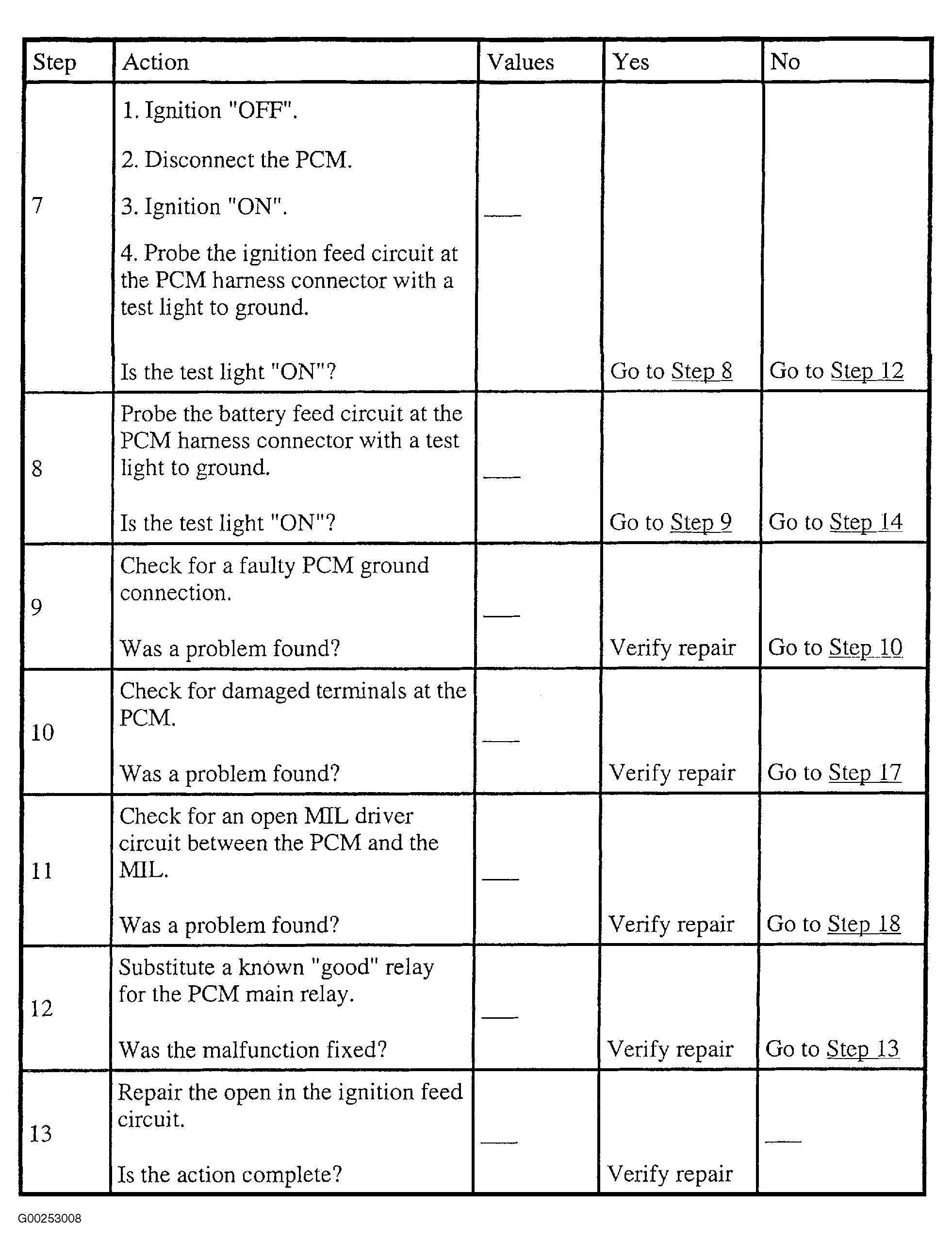

Fig 2: No Malfunction Indicator Light (Steps 7-13)
G00253008Courtesy of ISUZU MOTOR CO.

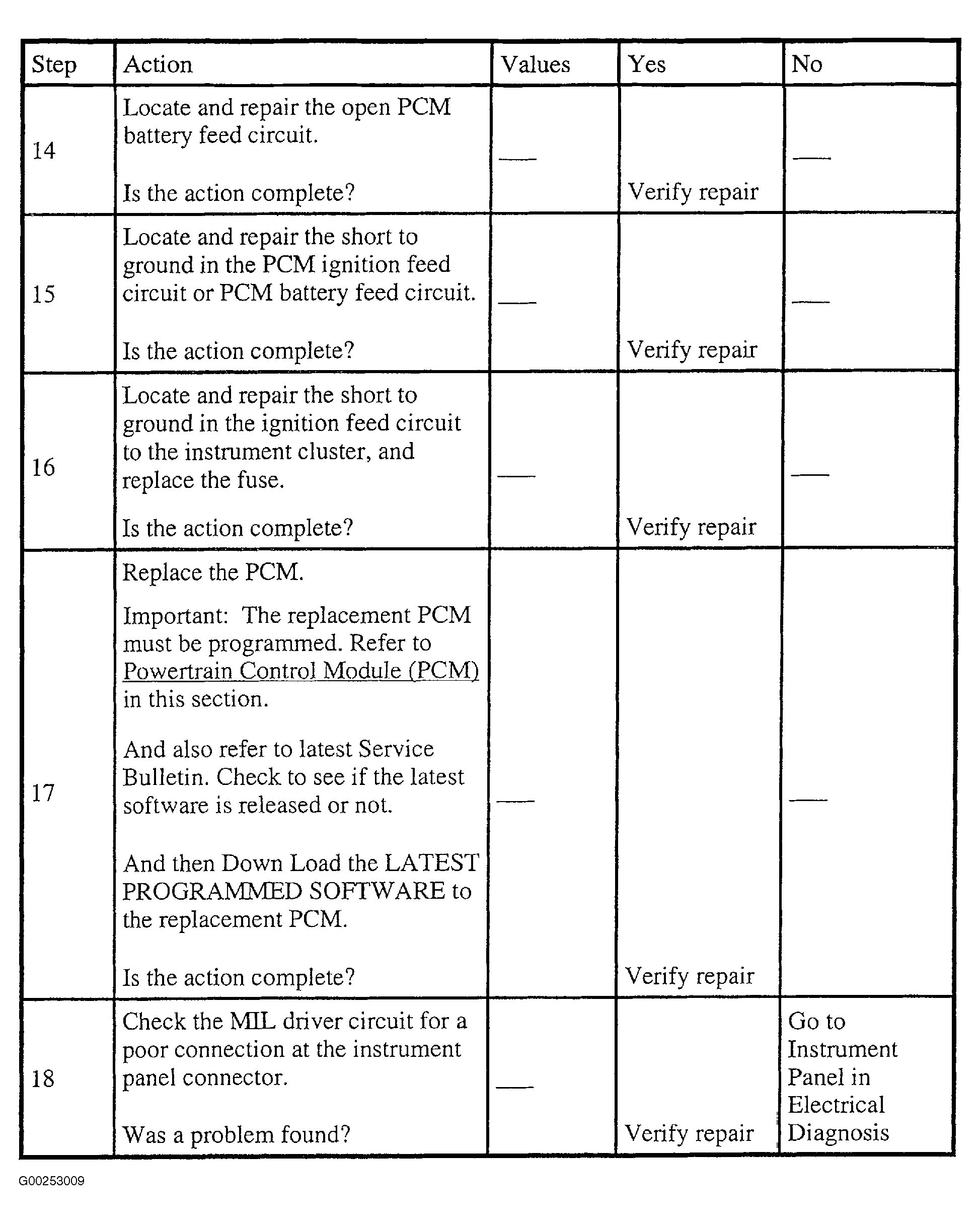

Fig 3: No Malfunction Indicator Light (Steps 14-18)
G00253009Courtesy of ISUZU MOTOR CO.
