Malfunction Indicator Light On Steady
>>
Diagnostic Procedure
Diagnostic Procedure

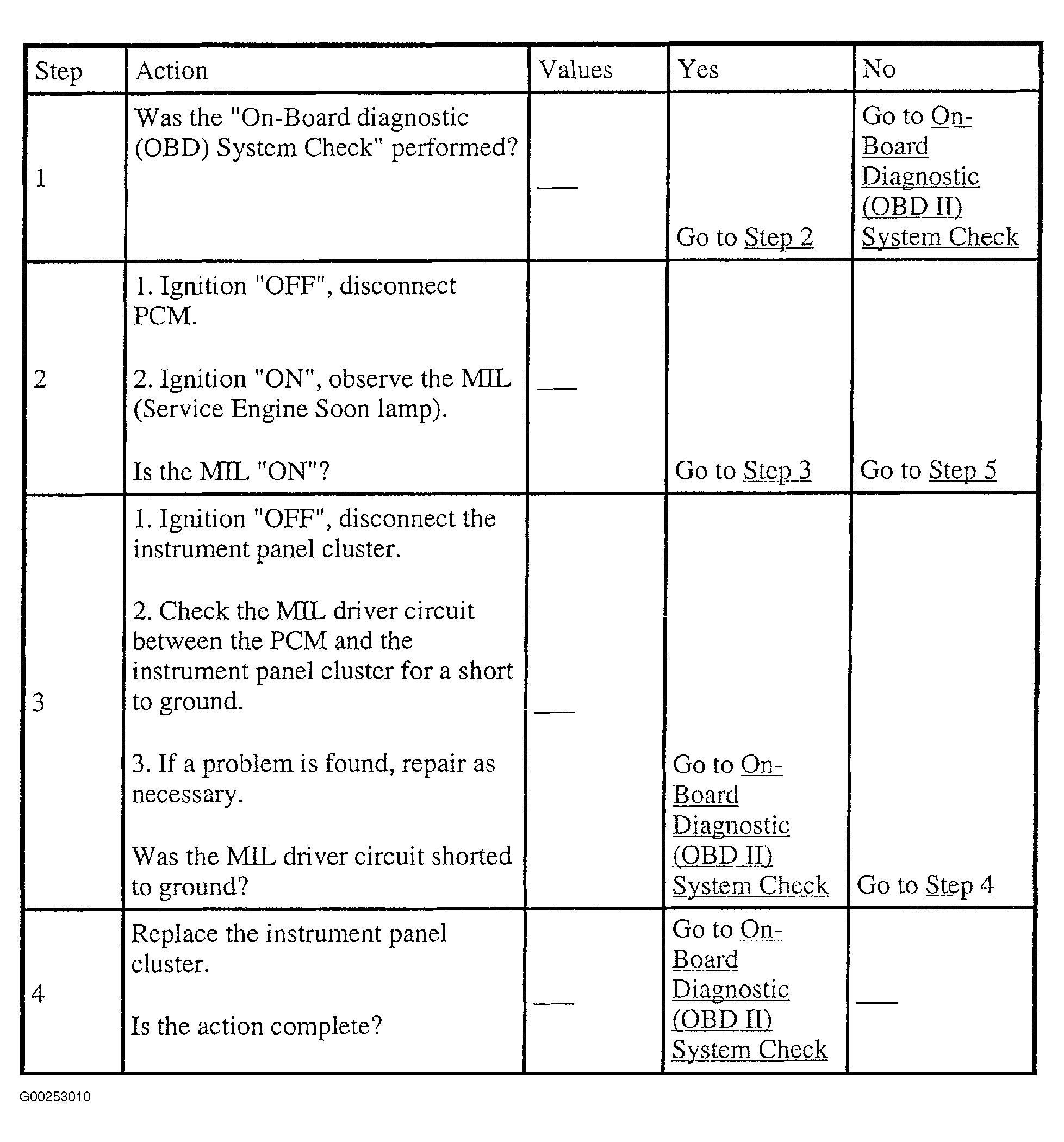

Fig 1: Malfunction Indicator Light On Steady (Steps 1-4)
Courtesy of ISUZU MOTOR CO.

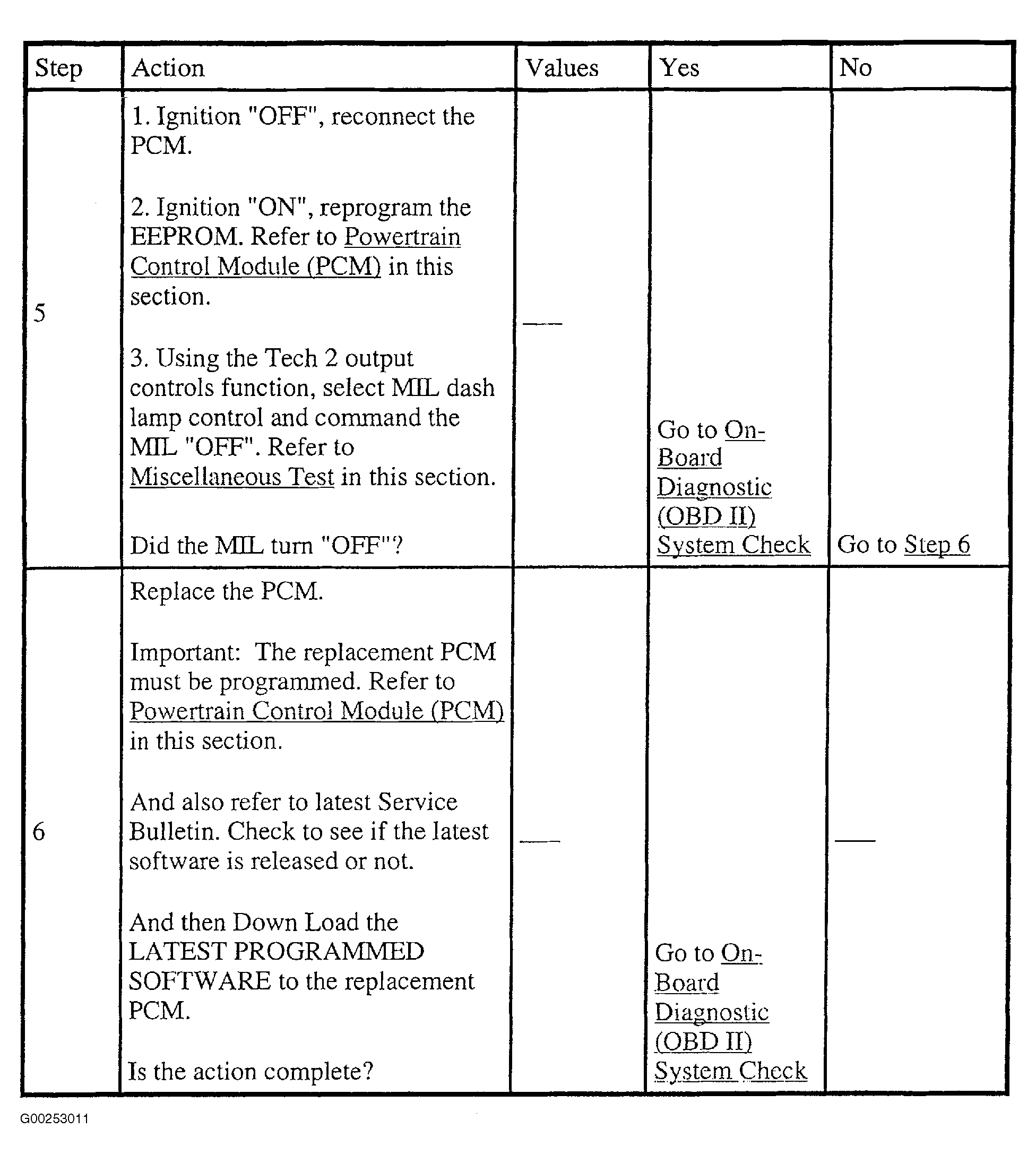

Fig 2: Malfunction Indicator Light On Steady (Steps 5 & 6)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
