Valve Spring, Oil Controller, Valve, Valve Guide and Associated Parts: Notes

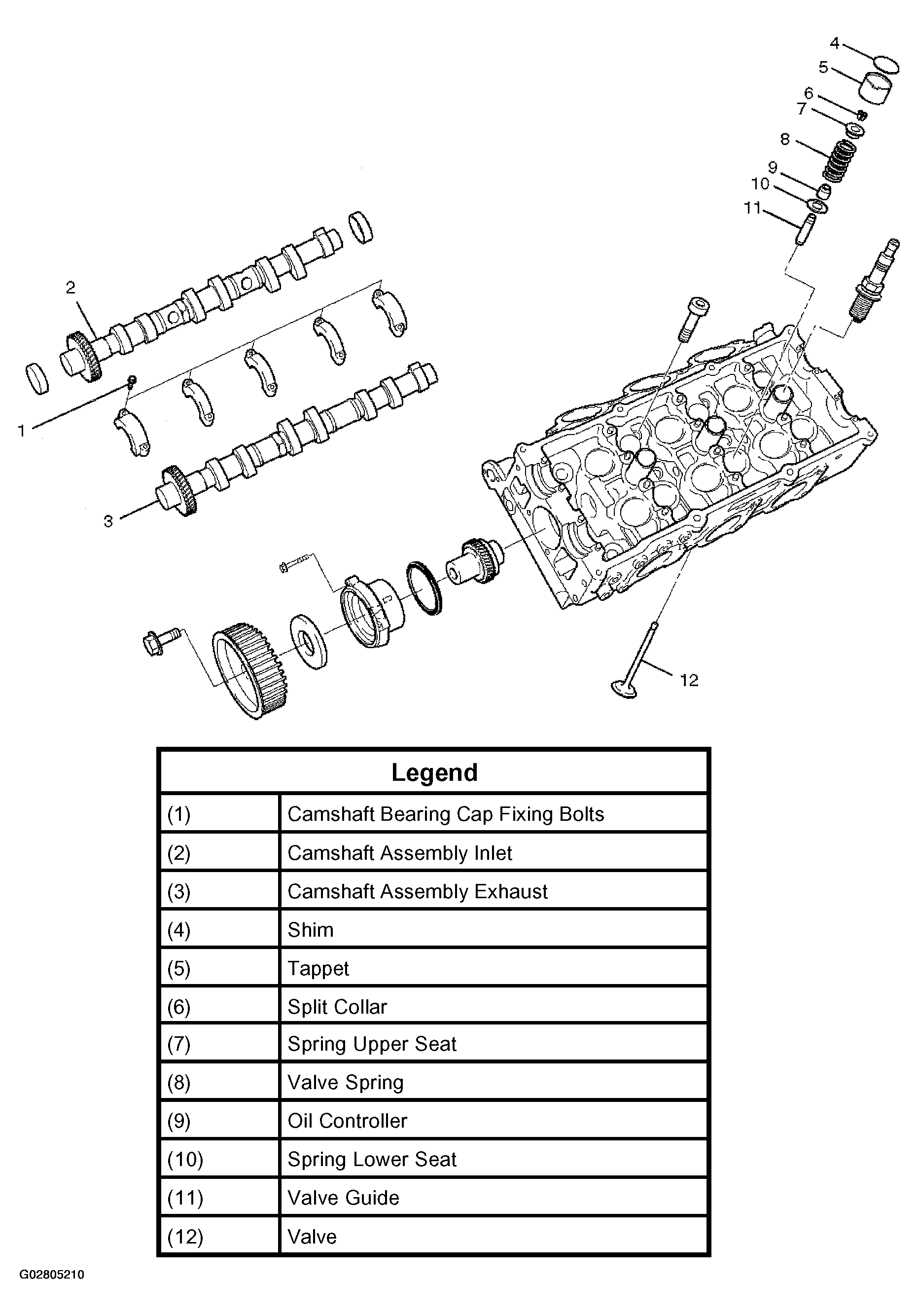

Fig 1: Identifying Valve Spring, Oil Controller, Valve, Valve Guide And Associated Parts

G02805210

Courtesy of ISUZU MOTOR CO.
