Diagnostic Procedure

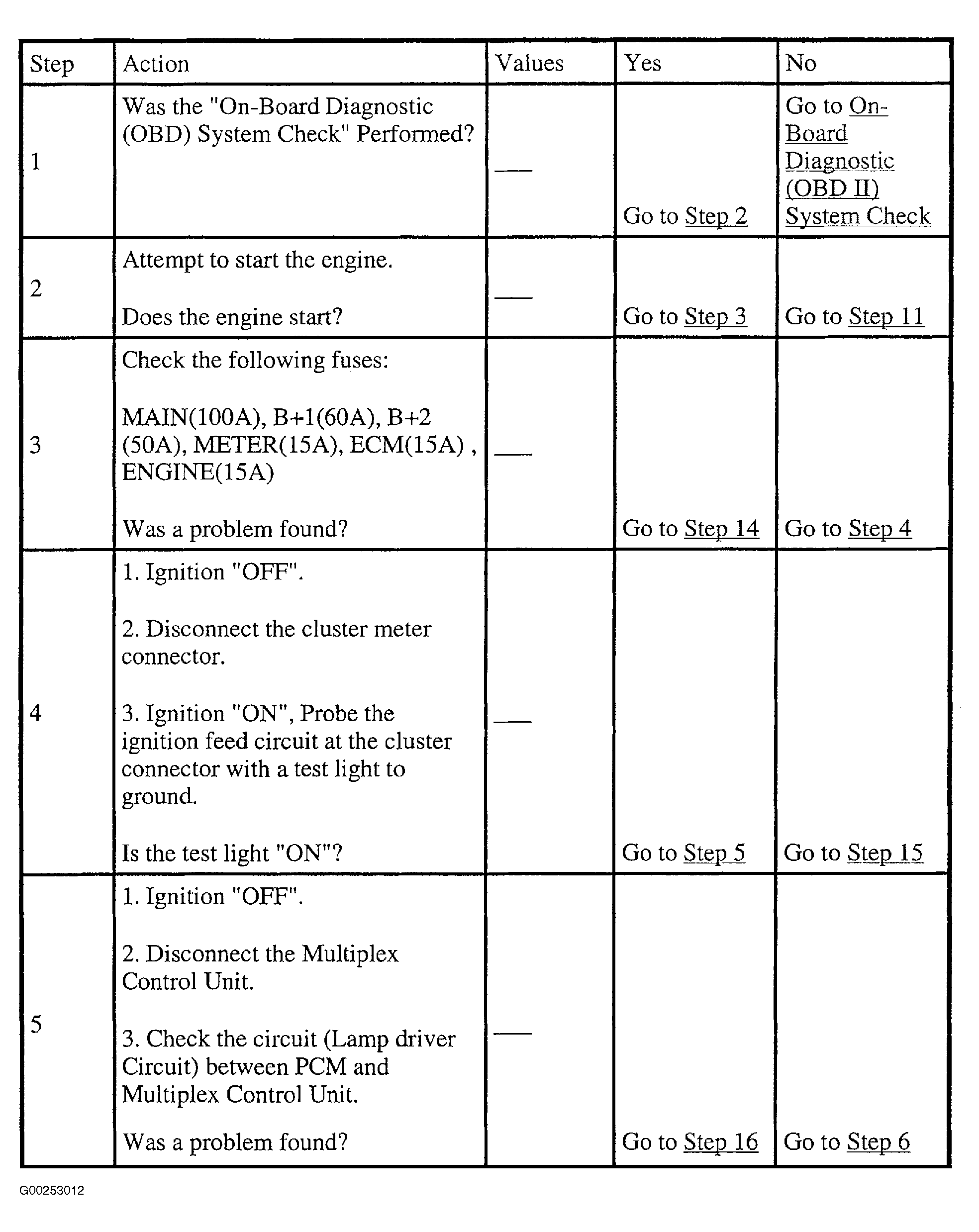

Fig 1: No Reduced Power Lamp (Steps 1-5)
G00253012Courtesy of ISUZU MOTOR CO.

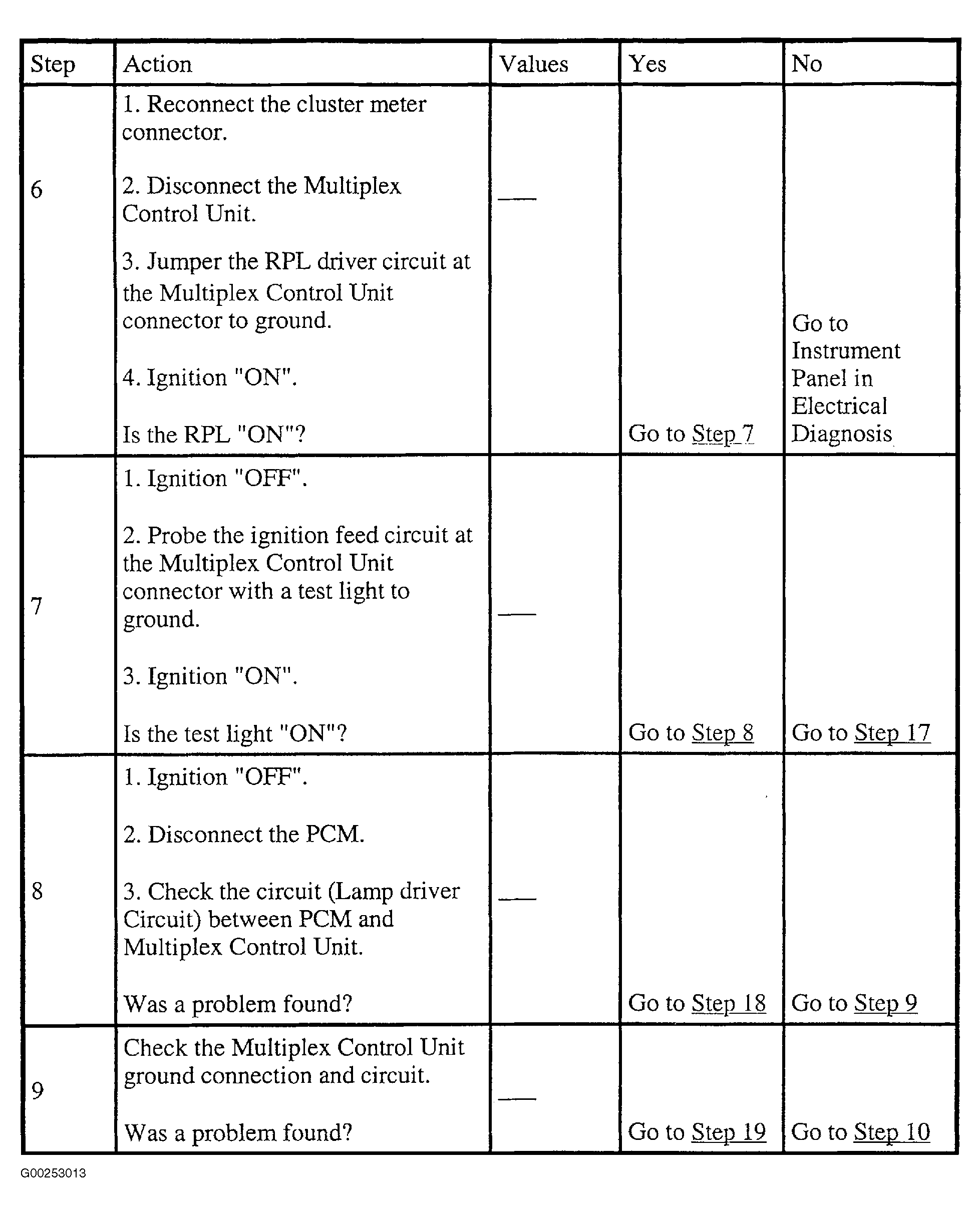

Fig 2: No Reduced Power Lamp (Steps 6-9)
G00253013Courtesy of ISUZU MOTOR CO.

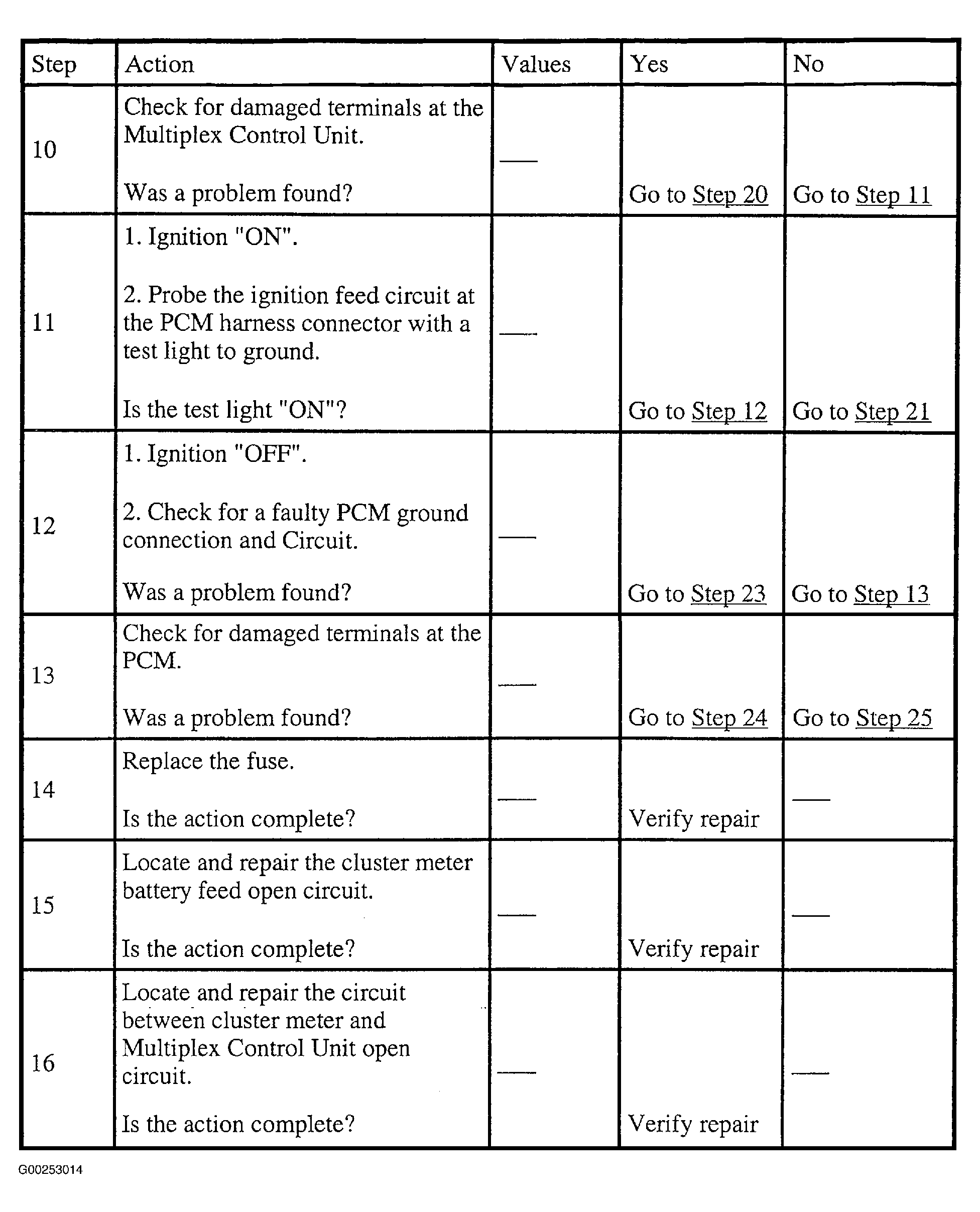

Fig 3: No Reduced Power Lamp (Steps 10-16)
G00253014Courtesy of ISUZU MOTOR CO.

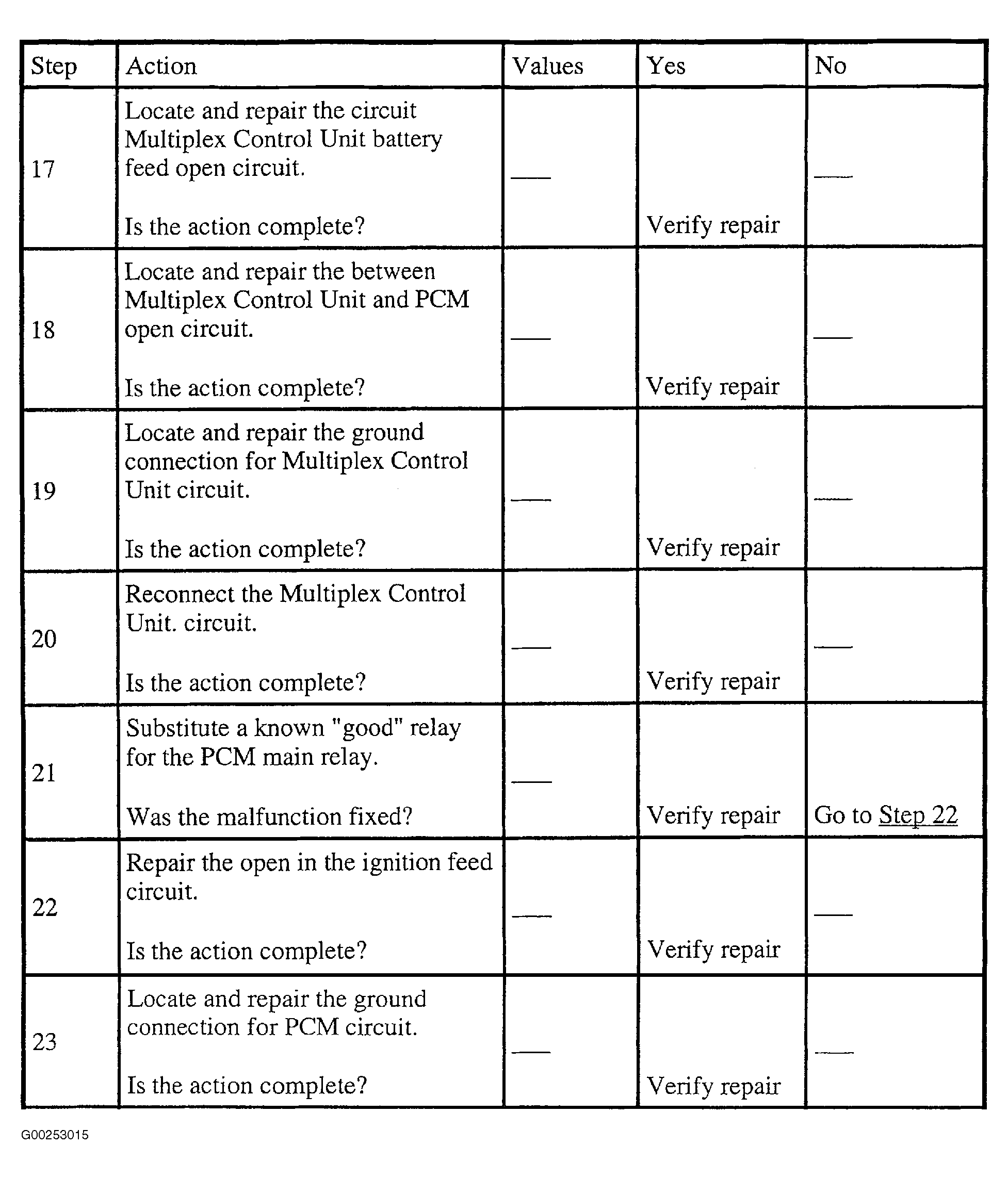

Fig 4: No Reduced Power Lamp (Steps 17-23)
G00253015Courtesy of ISUZU MOTOR CO.

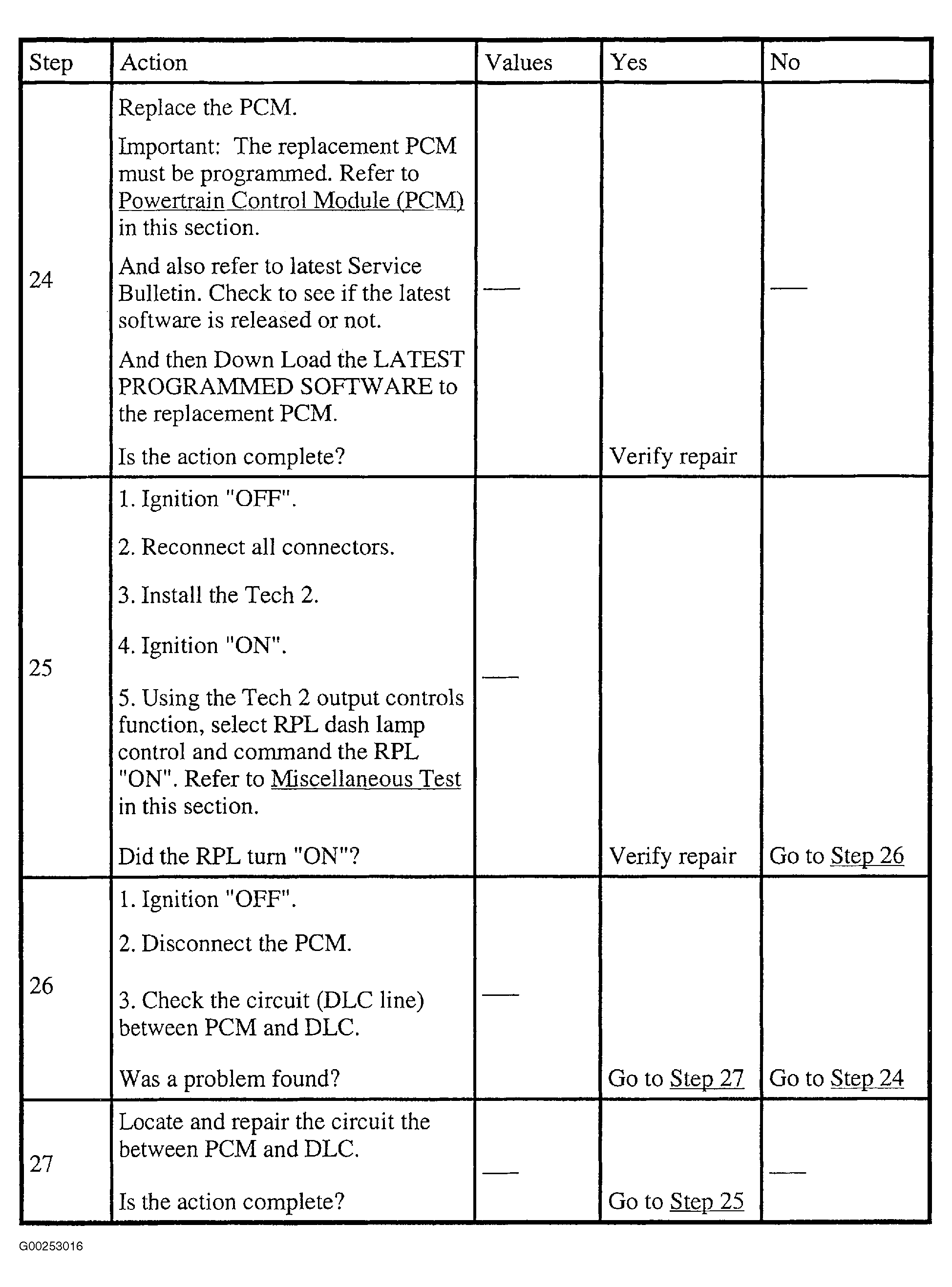

Fig 5: No Reduced Power Lamp (Steps 24-27)
G00253016Courtesy of ISUZU MOTOR CO.
