Trouble Code: 42 / P1773 - Check Flow 14
TROUBLE CODE: 42 / P1773 - ERROR OPERATION CARRIED OUT UNDER HIGH LOW MOTOR RUNNING
| Check Flow | Trouble Code | Phenomenon | Standard |
|---|---|---|---|
| 14 | 42 (P1773) | Error operation was carried out under high -low motor running. | ___ |

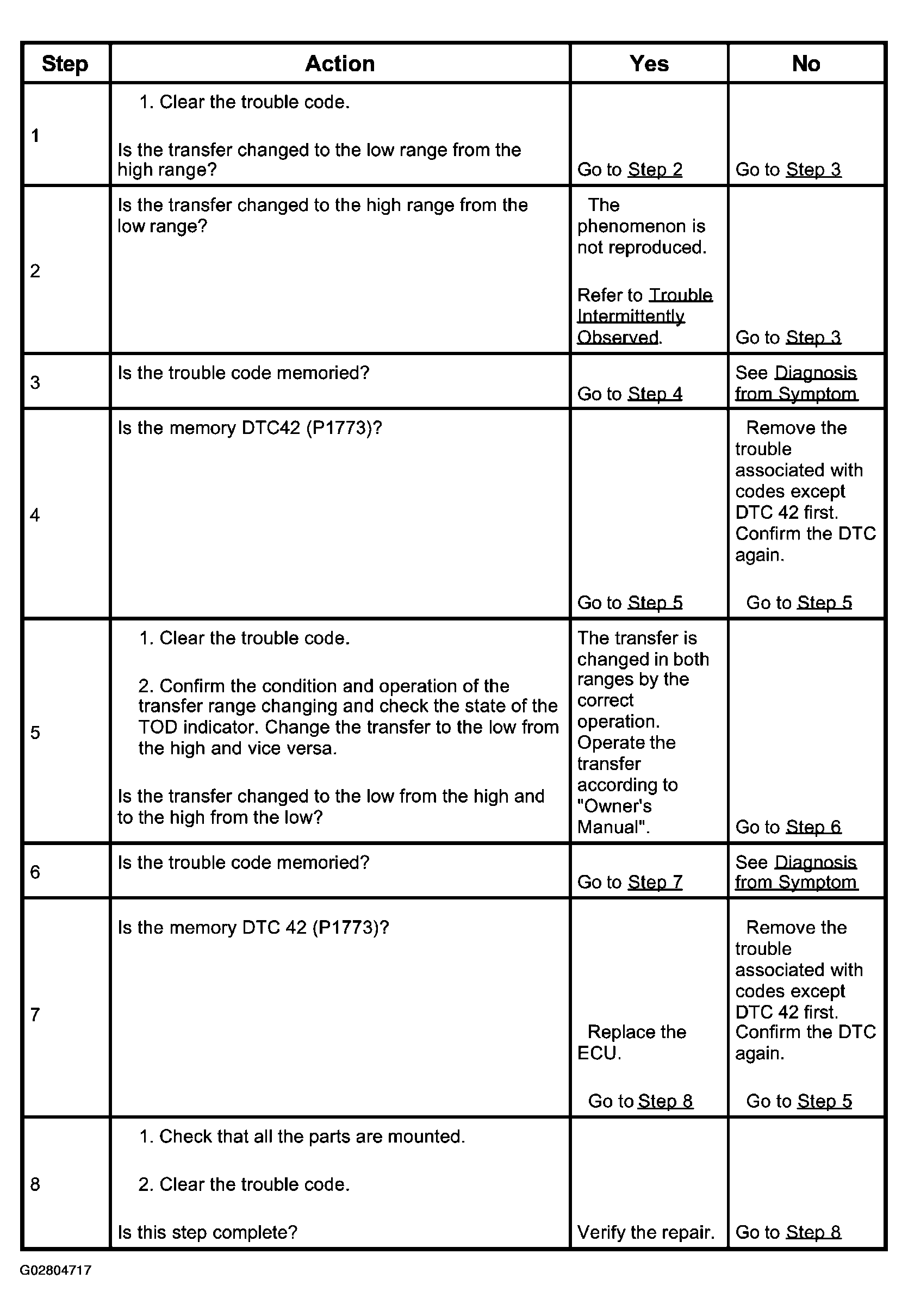

Fig 1: Trouble Code 42 / P1773, Diagnostic Procedure Chart - Error Operation Carried Out Under High-Low Motor Running
NOTE:
Confirm the operation conditions when changing high/low range:
- The car stops. (less than 2 km/h or 1.2 mph and engine speed: less than 1500 RPM).
- The AT selector position is neutral.
- The brake is applied (brake switch: ON)
- Verify the completion of changing the high/low range by the TOD indicator on the instrument panel.
- This code does not indicate the trouble of the transfer or ECU, and is memoried when an error operation is carried out under high -low motor running.
Therefore this code is not memoried if the transfer is operated according to "Owner's Manual".
