Trouble Code: 28 / P1760 - Check Flow 10

TROUBLE CODE: 28 / P1760 - SHIFT ON FLY SYSTEM WORKS INCORRECTLY

Check Flow	Trouble Code	Phenomenon	Standard
10	28 (P1760)	The shift on the fly system (front axle disconnect) works incorrectly.	___

NOTE: The shift on the fly system is not changed between 2WD and 4WD modes normally.

CAUTION: If code 32 or 33 is also observed, remove the trouble associated with code 32 or 33 first.

Fig 1: Trouble Code P1760, TOD Control Unit Circuit Diagram - Shift On Fly System

Courtesy of ISUZU MOTOR CO.

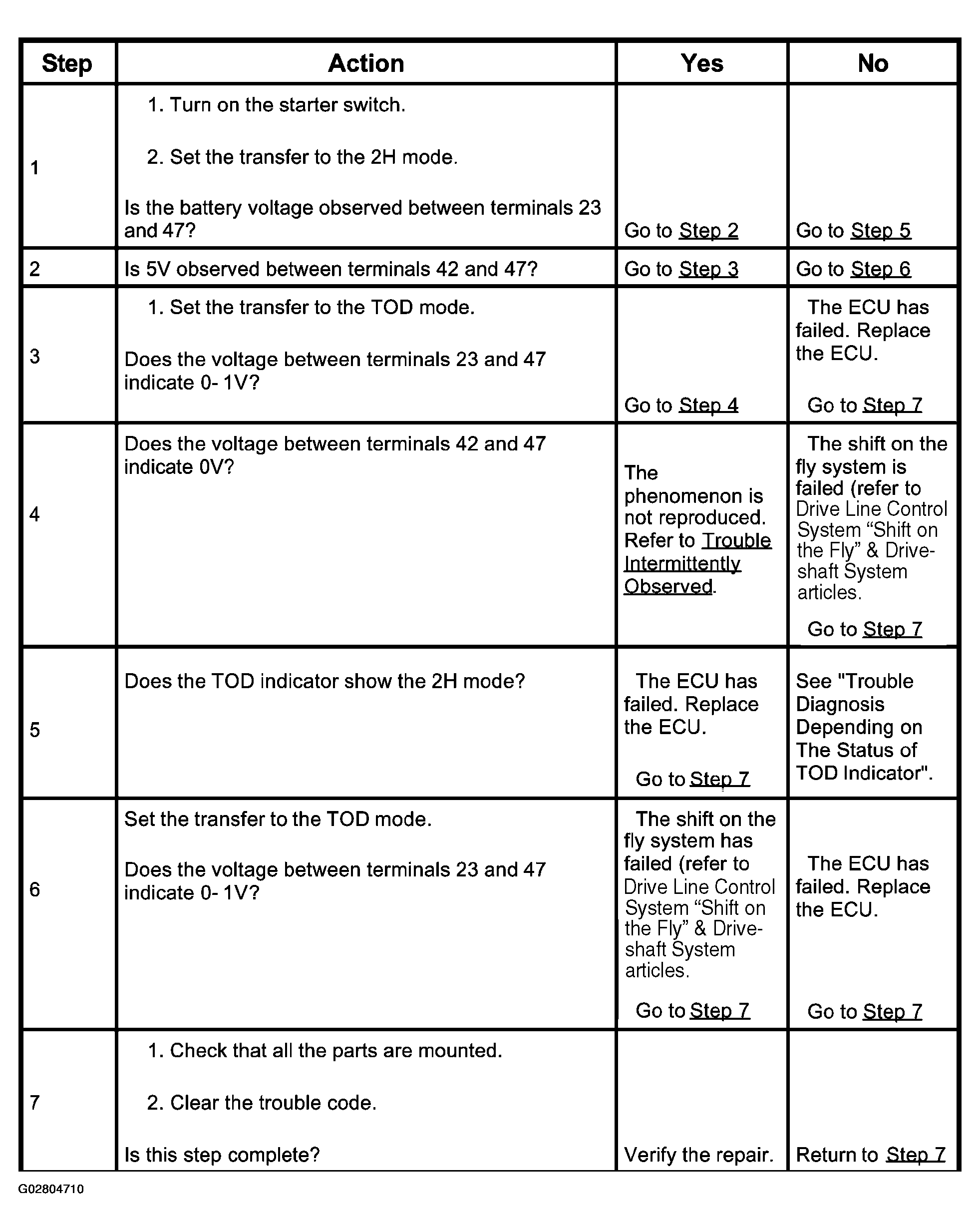

Fig 2: Trouble Code P1760, Diagnostic Procedure Chart - Shift On Fly System Works Incorrectly

Courtesy of ISUZU MOTOR CO.
